LG ARUN100LT3.EWGBLEU

Model: ARUN100LT3.EWGBLEU

Save Part Not Listed?
product name

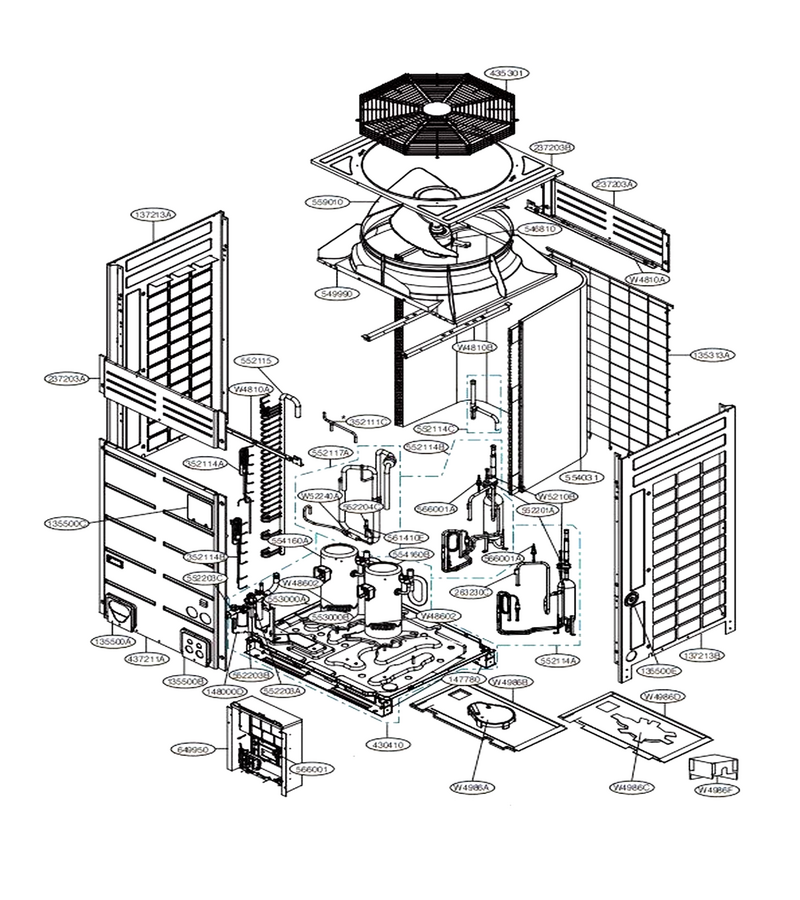

Main (i)

...
...
W4810A
Bracket L-G-MAZ40246801
...
W52240A
Strainer L-G-5224A20005L
...
W5210B
Tube,connector L-G-MJU61942701
...
W4986F
Sound Proof L-G-MDS61982404
...
W4986D
Sound Proof L-G-MDS42294613
...
W4986B
Sound Proof L-G-MDS42294608
...
W4986C
Sound Proof L-G-MDS42399707
...
W4810B
Bracket L-G-MAZ40016203
...
W4986A
Sound Proof L-G-MDS42399709
...
W48602
Clamp,spring L-G-4H01930A
...
135313A
Grille Assembly,inlet L-G-AEB35728702
...
135500A
Cover L-G-MCK40004902
...
135500B
Cover L-G-MCK40005002
...
135500C
Cover L-G-MCK40005902
...
135500E
Cover L-G-3550A30339H
...
137213A
Panel Assembly,side L-G-AGL72947304
...
137213B
Panel Assembly,side L-G-AGL72947302
...
147780
Leg L-G-MFA40230502
...
148000D
Supporter L-G-MJH57203801
...
237203A
Panel,upper L-G-MGC40245702
...
237203B
Panel,upper L-G-MGC40245902
...
263230C
Thermistor Assembly,ntc L-G-EBG61107104
...
352111C
Tube Assembly,connector L-G-AJR72953301
...
352114A
Tube Assembly,distributor L-G-AJR72367702
...
352114B
Tube Assembly,distributor L-G-AJR72367603
...
430410
Base Assembly,outdoor L-G-AAN34852406
...
435301
Grille,discharge L-G-MDX40361602
...
437211A
Panel Assembly,front(outdoor) L-G-AGL34886003
...
549990
Shroud Assembly L-G-AHV35766202
...
552114B
Tube Assembly,discharge(outdoor) L-G-AJR73622501
...
552114C
Tube Assembly,discharge(outdoor) L-G-AJR56662803
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR72572902
...
552117A
Tube Assembly,suction(outdoor) L-G-AJR72952006
...
552201A
Check Valve L-G-5220A30004A
...
552203B
Valve,service L-G-5220A20029M
...
552203C
Valve,service L-G-MJX62253901
...
552203A
Valve,service L-G-MJX62254101
...
552204C
Valve,solenoid L-G-5220A90008H
...
553000A
Heater,sump L-G-5300A20008M
...
553000B
Heater,sump L-G-5300A20008X
...
554031
Condenser Assembly,bending L-G-ACG35866315
...
554160A
Compressor Set,korea L-G-TBZ35235901
...
554160B
Compressor Set,korea L-G-TBZ35644701
...
559010
Fan Assembly,propeller L-G-ADP35622901
...
561410E
Solenoid L-G-6141A20050Y
...
566001A
Switch,pressure L-G-EBF40271401
...
566001
Switch,magnet L-G-EBF33717201
...
649950
Case Assembly,control(outdoor) L-G-ABQ72935609

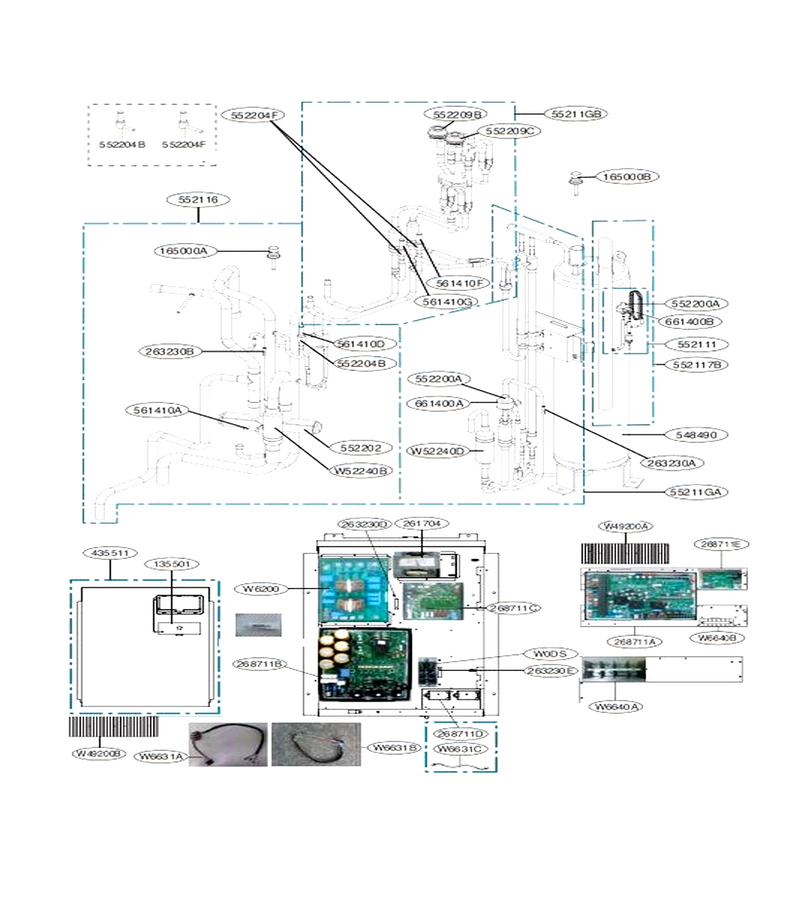

Main (ii)

...
...
W49200A
Heat Sink L-G-MED37293701
...
W49200B
Heat Sink L-G-MED42478108
...
W52240B
Strainer L-G-MJC62301701
...
W52240D
Strainer L-G-5224A20005D
...
W6200
Pcb Assembly,main L-G-EBR82795402
...
W6631A
Harness,multi L-G-EAD62061401
...
W6631B
Harness,multi L-G-EAD62061404
...
W6640A
Connector,terminal Block L-G-6640A30004J
...
55211GA
Tube Assembly,expansion L-G-AJR72957303
...
55211GB
Tube Assembly,expansion L-G-AJR72929510
...
135501
Cover Assembly L-G-ACQ33787701
...
165000B
Sensor,pressure L-G-EBD60663823
...
165000A
Sensor,pressure L-G-EBD62165601
...
261704
Transformer,reactor L-G-EBJ42574005
...
263230A
Panel,upper L-G-MGC40245702
...
263230B
Panel,upper L-G-MGC40245902
...
263230D
Thermistor Assembly,ntc L-G-EBG61207011
...
263230E
Thermistor Assembly,ntc L-G-EBG61207003
...
268711C
Pcb Assembly,fan L-G-EBR39778513
...
268711E
Pcb Assembly L-G-EBR56714311
...
268711B
Pcb Assembly,inverter L-G-EBR36932815
...
268711A
Pcb Assembly,main L-G-EBR56714102
...
268711D
Pcb Assembly,sub L-G-6871A30042D
...
435511
Cover Assembly,control(outdoor) L-G-ACQ74759307
...
548490
Accumulator L-G-MAA41415102
...
552111
Tube Assembly,capillary L-G-AJR74488604
...
552116
Tube Assembly,reverse L-G-AJR73685210
...
552117B
Tube Assembly,suction(outdoor) L-G-AJR72952903
...
552200A
Valve,expansion Body L-G-MJX62751401
...
552202
Valve,reverse L-G-5220AP3777C
...
552204B
Valve,solenoid L-G-MJX61841301
...
552204F
Valve,solenoid L-G-MJX61841301
...
552209B
Valve Assembly L-G-AJU36719701
...
552209C
Valve Assembly L-G-AJU36719704
...
561410A
Solenoid L-G-6141A20010W
...
561410D
Solenoid L-G-EBE60661401
...
561410F
Solenoid L-G-EBE60661402
...
561410G
Solenoid L-G-EBE60661403
...
661400A
Coil,expansion L-G-EAP30616912
...
661400B
Coil,expansion L-G-6141A20032V
