LG ARUN072DT3.AWGBLUS

Model: ARUN072DT3.AWGBLUS

Save Part Not Listed?
product name

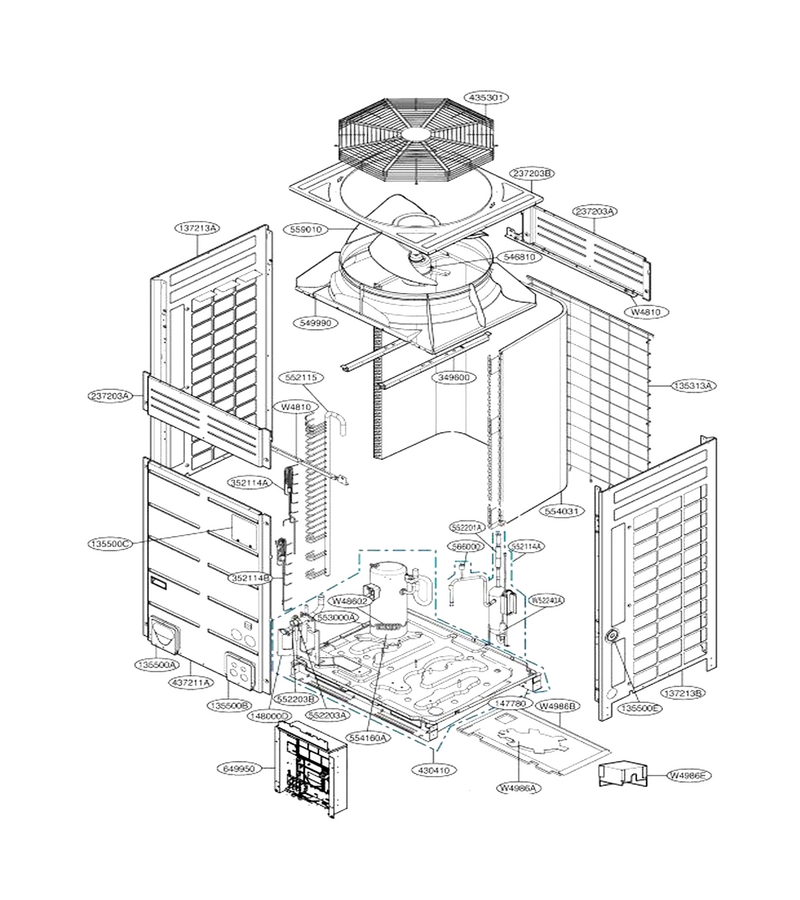

Outdoor Unit

...
...
W4810
Bracket L-G-MAZ40246801
...
W52240A
Strainer L-G-5224A20005L
...
W4986B
Sound Proof L-G-MDS42294608
...
W48602
Clamp,spring L-G-4H01930A
...
W4986A
Sound Proof L-G-MDS42399709
...
135313A
Grille Assembly,inlet L-G-AEB35728702
...
135500A
Cover L-G-MCK40004902
...
135500B
Cover L-G-MCK40005006
...
135500C
Cover L-G-MCK40005902
...
135500E
Cover L-G-3550A30339H
...
137213B
Panel Assembly,side L-G-AGL72947302
...
137213A
Panel Assembly,side L-G-AGL72947304
...
147780
Leg L-G-MFA40230502
...
148000D
Supporter L-G-MJH57203801
...
237203A
Panel,upper L-G-MGC40245702
...
237203B
Panel,upper L-G-MGC40245902
...
349600
Bracket L-G-MAZ40016201
...
352114A
Tube Assembly,distributor L-G-AJR72367702
...
352114B
Tube Assembly,distributor L-G-AJR72367604
...
430410
Base Assembly,outdoor L-G-AAN34852407
...
435301
Grille,discharge L-G-MDX40361602
...
437211A
Panel Assembly,front(outdoor) L-G-AGL34886003
...
546810
Motor Assembly,dc,outdoor L-G-EAU43080001
...
549990
Shroud Assembly L-G-AHV35766202
...
552114A
Tube Assembly,discharge(outdoor) L-G-AJR72953101
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR72572902
...
552201A
Valve,check L-G-MJX39414102
...
552203A
Valve,service L-G-MJX62253901
...
552203B
Valve,service L-G-5220A20029M
...
554031
Condenser Assembly,bending L-G-ACG35866309
...
554160A
Compressor Set,korea L-G-TBZ35255001
...
559010
Fan Assembly,propeller L-G-ADP35622901
...
566000
Switch,pressure L-G-EBF40271401
...
649950
Case Assembly,control(outdoor) L-G-ABQ73023718

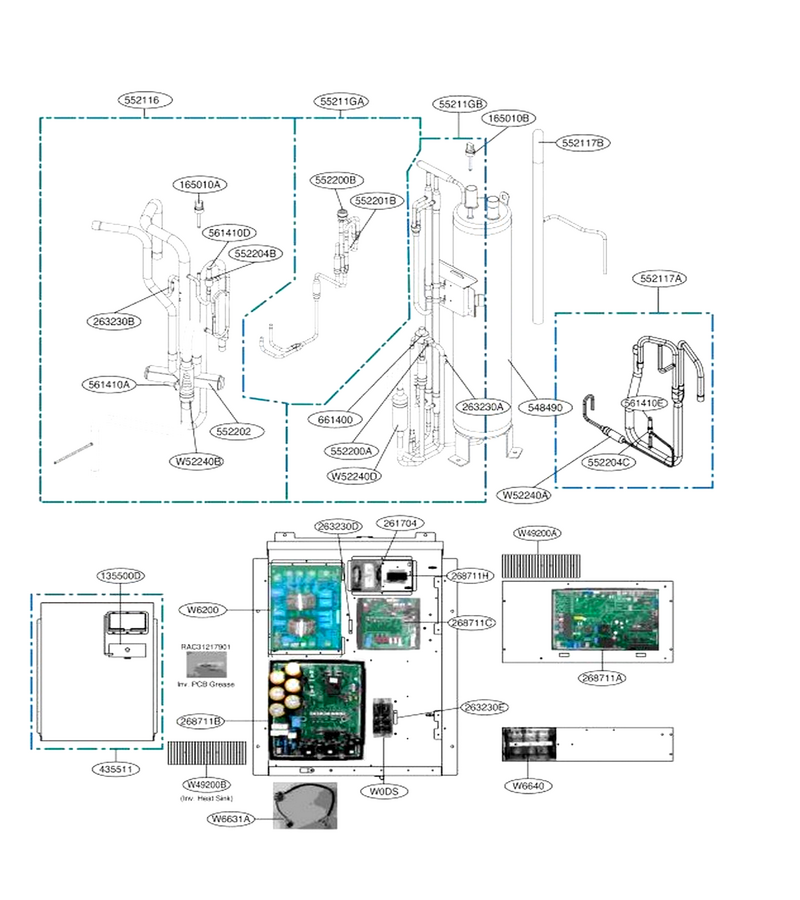

Main

...
...
W6631A
Harness,multi L-G-EAD43354407
...
W6200
Filter,ac Line L-G-EAM39080202
...
W52240D
Strainer L-G-5224A20005D
...
W52240B
Strainer L-G-5224A20005F
...
W49200B
Heat Sink L-G-MED42478101
...
W49200A
Heat Sink L-G-MED37293701
...
W0DS
Diode,bridge L-G-EAH37374701
...
W52240A
Strainer L-G-5224A20005L
...
55211GA
Tube Assembly,expansion L-G-AJR72928103
...
55211GB
Tube Assembly,expansion L-G-AJR72928402
...
135500D
Cover L-G-MCK62218101
...
165010B
Sensor Assembly L-G-6501A20004X
...
165010A
Sensor Assembly L-G-6501A20004W
...
261704
Transformer,reactor L-G-EBJ42574005
...
263230A
Panel,upper L-G-MGC40245702
...
263230B
Panel,upper L-G-MGC40245902
...
263230D
Thermistor Assembly,ntc L-G-EBG61207011
...
263230E
Thermistor Assembly,ntc L-G-EBG61207002
...
268711A
Pcb Assembly,main L-G-EBR74400001
...
268711B
Pcb Assembly,inverter L-G-EBR36932815
...
268711C
Pcb Assembly,fan L-G-EBR39778509
...
435511
Cover Assembly,control(outdoor) L-G-ACQ74759307
...
548490
Accumulator L-G-MAA41415102
...
552116
Tube Assembly,reverse L-G-AJR73685207
...
552117A
Tube Assembly,suction(outdoor) L-G-AJR72916005
...
552117B
Tube Assembly,suction(outdoor) L-G-AJR73824502
...
552200A
Valve,expansion Body L-G-5220A90003C
...
552200B
Valve Assembly L-G-AJU36719701
...
552201B
Valve,check L-G-3A01020G
...
552202
Valve,reverse L-G-5220AP3777C
...
552204C
Valve,solenoid L-G-5220A90008H
...
561410A
Solenoid L-G-6141A20010W
...
561410D
Solenoid L-G-EBE60661401
...
561410E
Solenoid L-G-6141A20050Y
...
661400
Coil,expansion L-G-6141A20032P
