LG ARUN072BTE4.AWGBLUS

Model: ARUN072BTE4.AWGBLUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

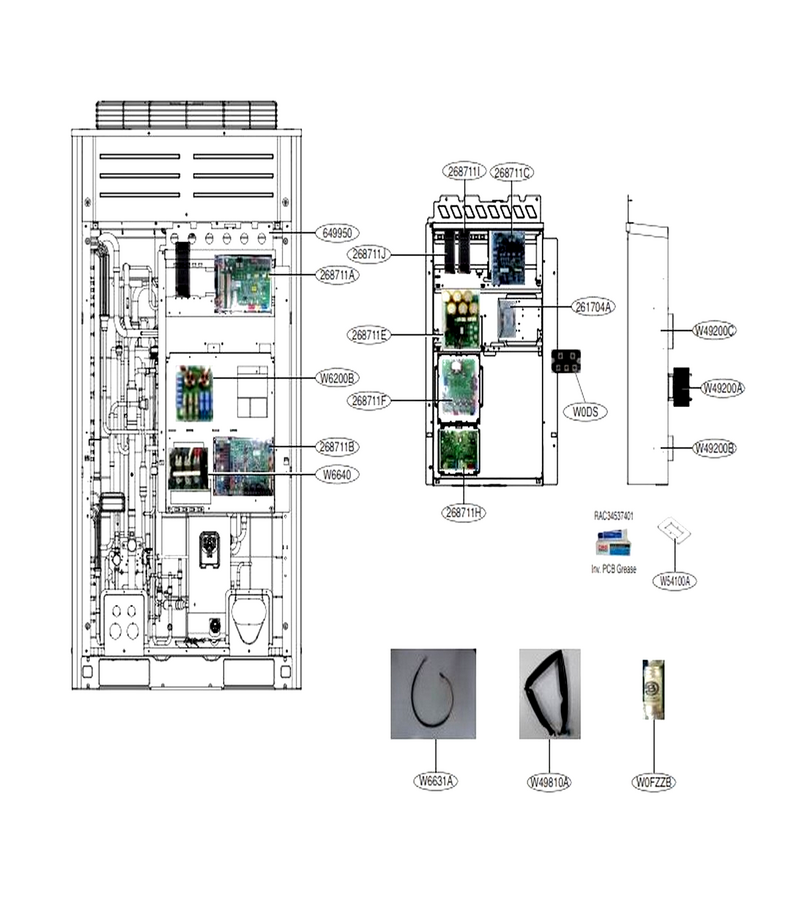

Outdoor Unit

...
...
W0DS
Diode,bridge L-G-EAH61772601
...
W49200A
Heat Sink L-G-MED62551203
...
W49200B
Heat Sink L-G-MED62551204
...
W49200C
Heat Sink L-G-MED37293706
...
W54100A
Insulator L-G-MEV64092408
...
W6200B
Filter,ac Line L-G-EAM62632301
...
W6631A
Harness,multi L-G-EAD63769002
...
261704A
Transformer,reactor L-G-EBJ62950501
...
268711A
Pcb Assembly,main L-G-EBR77177105
...
268711J
Pcb Assembly,sub L-G-EBR74801101
...
268711H
Pcb Assembly,fan L-G-EBR73910905
...
268711F
Pcb Assembly,inv(h/w) L-G-EBR76610201
...
268711E
Pcb Assembly,power L-G-EBR76196401
...
268711C
Pcb Assembly,main L-G-EBR74365001
...
268711B
Pcb Assembly,main L-G-EBR74363401
...
649950
Case Assembly,control(outdoor) L-G-ABQ74300510

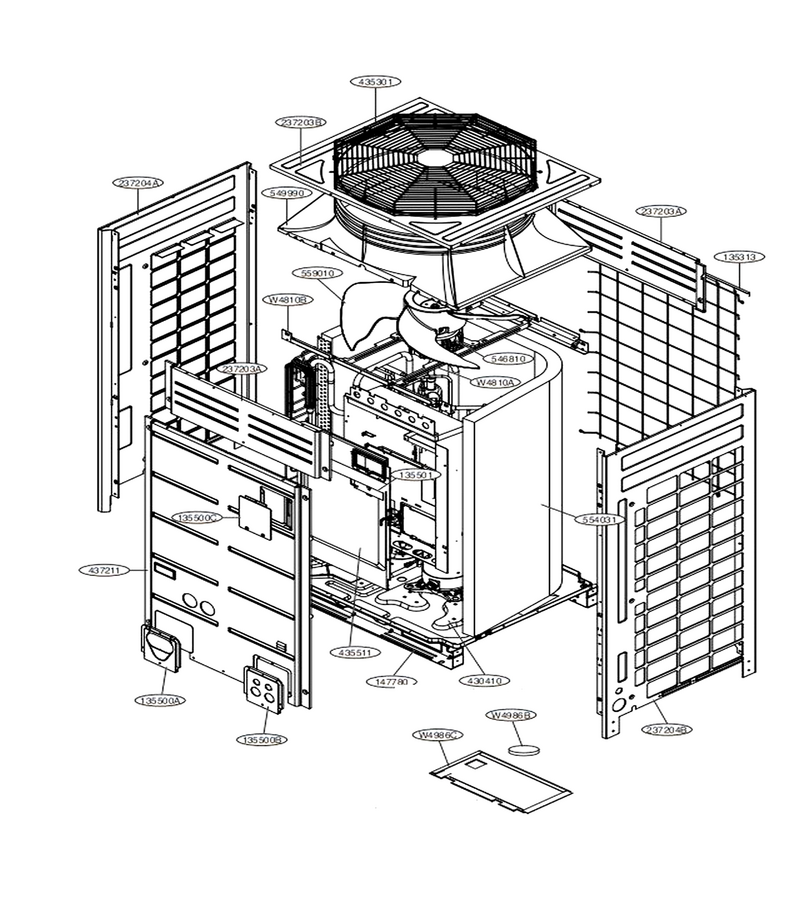

Main (i)

...
...
W4986C
Gasket L-G-MDS64990301
...
W4986B
Sound Proof L-G-MDS42399720
...
W4810A
Bracket L-G-MAZ40016203
...
W4810B
Bracket L-G-MAZ40246801
...
135313
Grille Assembly,inlet L-G-AEB35728707
...
135500A
Cover L-G-MCK40004902
...
135500B
Cover L-G-MCK40005006
...
135500C
Cover L-G-MCK40005902
...
135501
Cover Assembly L-G-ACQ33787701
...
147780
Leg L-G-MFA40230502
...
237203A
Panel,upper L-G-MGC40245702
...
237203B
Panel,upper L-G-MGC40245902
...
237204A
Panel,side L-G-MGC39995808
...
237204B
Panel,side L-G-MGC39995906
...
430410
Base Assembly,outdoor L-G-AAN34852415
...
435301
Grille,discharge L-G-MDX40361602
...
435511
Cover Assembly,control(outdoor) L-G-ACQ85917027
...
437211
Panel Assembly,front(outdoor) L-G-AGL34886007
...
546810
Motor Assembly,dc,outdoor L-G-EAU61423601
...
549990
Shroud Assembly L-G-AHV35766202
...
554031
Condenser Assembly,bending L-G-ACG35866008
...
559010
Fan Assembly,propeller L-G-ADP35622901

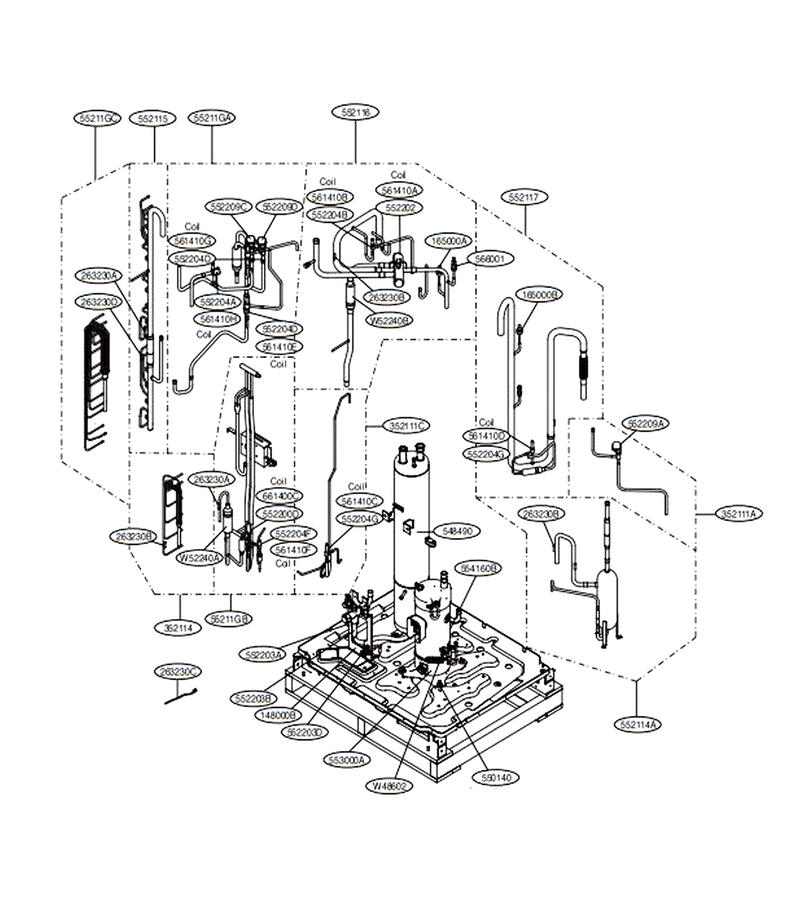

Main (ii)

...
...
W52240B
Strainer L-G-MJC62301701
...
W52240A
Strainer L-G-5224A20005D
...
W48602
Clamp,spring L-G-4H01930A
...
55211GA
Tube Assembly,expansion L-G-AJR74022301
...
55211GB
Tube Assembly,expansion L-G-AJR73980202
...
55211GC
Tube Assembly,expansion L-G-AJR73980002
...
148000B
Supporter L-G-MJH57203811
...
165000A
Sensor,pressure L-G-EBD62165601
...
165000B
Sensor,pressure L-G-EBD60663823
...
263230A
Thermistor Assembly,ntc L-G-EBG61107301
...
263230B
Thermistor Assembly L-G-EBG51581702
...
263230C
Thermistor Assembly,ntc L-G-EBG61285701
...
263230D
Thermistor Assembly,ntc L-G-EBG61106922
...
352111C
Tube Assembly,connector L-G-AJR73980401
...
352114
Tube Assembly,distributor L-G-AJR73957302
...
548490
Accumulator L-G-MAA62384402
...
550140
Damper,compressor L-G-MCQ62569601
...
552114A
Tube Assembly,discharge(outdoor) L-G-AJR74207301
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73979902
...
552116
Tube Assembly,reverse L-G-AJR73980319
...
552117
Tube Assembly,suction(outdoor) L-G-AJR74169701
...
552200D
Valve,expansion Body L-G-MJX62751401
...
552202
Valve,reverse L-G-5220AP3777C
...
552203A
Valve,service L-G-5220A20029M
...
552203D
Valve,service L-G-MJX62792301
...
552204A
Valve,solenoid L-G-MJX61537802
...
552204B
Valve,solenoid L-G-MJX61841301
...
552204D
Valve,solenoid L-G-MJX61537801
...
552204F
Valve,solenoid L-G-5220A90008K
...
552204G
Valve,solenoid L-G-5220A90008H
...
552209A
Valve Assembly L-G-AJU73472403
...
552209C
Valve Assembly L-G-AJU73472405
...
552209D
Valve Assembly L-G-AJU73472406
...
553000A
Heater,sump L-G-MEE61984909
...
554160B
Compressor Set,korea L-G-TBZ37955401
...
561410A
Fan Assembly,propeller L-G-ADP35622901
...
561410B
Solenoid L-G-EBE60661407
...
561410C
Solenoid L-G-EBE61083201
...
561410D
Solenoid L-G-6141A20050Y
...
561410E
Solenoid L-G-EBE60661408
...
561410F
Solenoid L-G-EBE61083202
...
561410G
Solenoid L-G-EBE60661409
...
561410H
Solenoid L-G-EBE61083203
...
566001
Switch,pressure L-G-EBF40271407
...
661400C
Coil,expansion L-G-EAP30616912
