product name

LG ARUN060GSS4.EWGBLUS

Model: ARUN060GSS4.EWGBLUS

Save Part Not Listed?

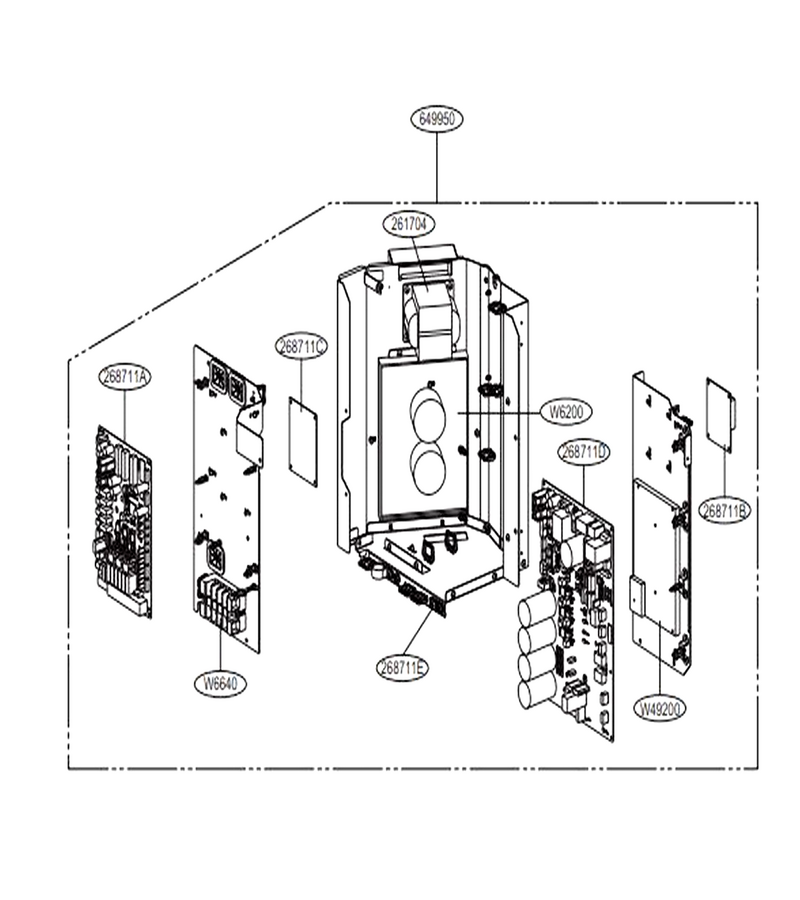

product name

Control Box

...
...
W49200
Heat Sink L-G-MED63010804
...
W6640
Terminal Block Connector L-G-EAG63111401
...
W6200
Filter,line Noise L-G-EAM62792405
...
261704
Transformer,reactor L-G-EBJ62950507
...
268711A
Main Pcb Assembly L-G-EBR83822903
...
268711B
Pcb Assembly,display L-G-EBR80882201
...
268711C
Pcb Assembly,sub L-G-EBR80820501
...
268711D
Pcb Assembly,inverter L-G-EBR83821101
...
268711E
Pcb Assembly,sensor L-G-EBR80100302
...
649950
Control (outdoor) Case Assembly L-G-ABQ75804503

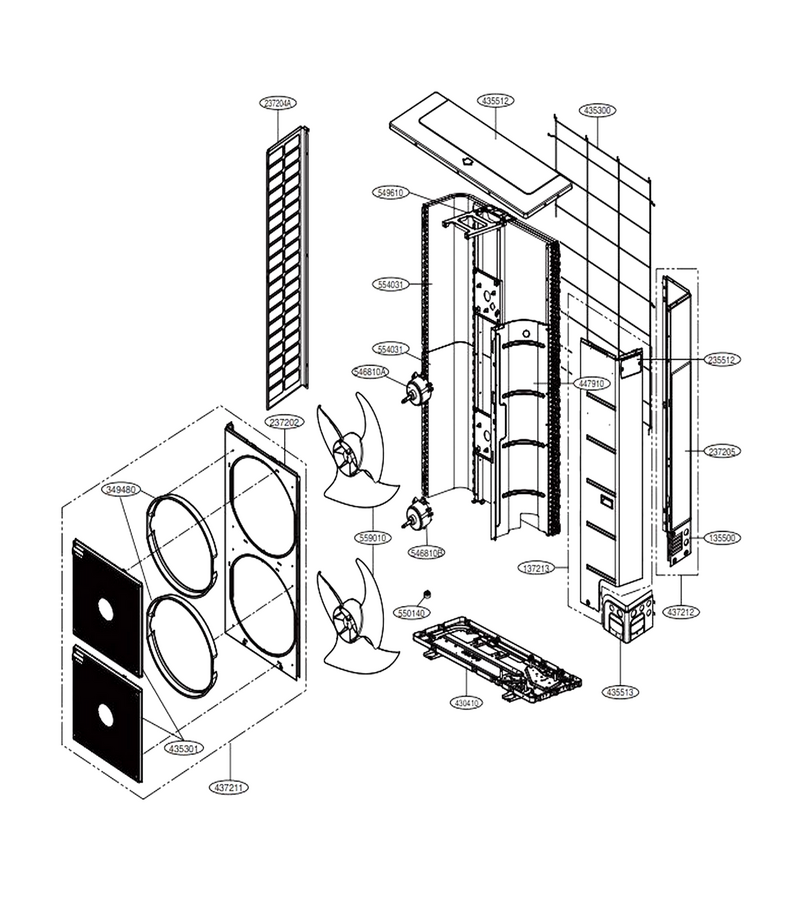

Mechanical Parts And Panels

...
...
135500
Cover L-G-MCK39626220
...
137213
Side Panel Assembly L-G-AGL76513034
...
235512
Display Cover Assembly L-G-ACQ89948702
...
237202
Panel,front L-G-MGC39426114
...
237204A
Panel,side L-G-MGC39426015
...
237205
Panel,rear L-G-MGC39613728
...
349480
Orifice L-G-MFX42382101
...
430410
Base Assembly,outdoor L-G-AAN74728601
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
435513
Tubing Cover Assembly L-G-ACQ34583420
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578711
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512811
...
447910
Barrier Assembly,outdoor L-G-AAM35646432
...
546810B
Motor Assembly,dc L-G-4681A20172R
...
546810A
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168809
...
550140
Damper,compressor L-G-MCQ62569601
...
554031
Condenser Assembly,bending L-G-ACG74464801
...
559010
Fan,propeller L-G-MDG62002901

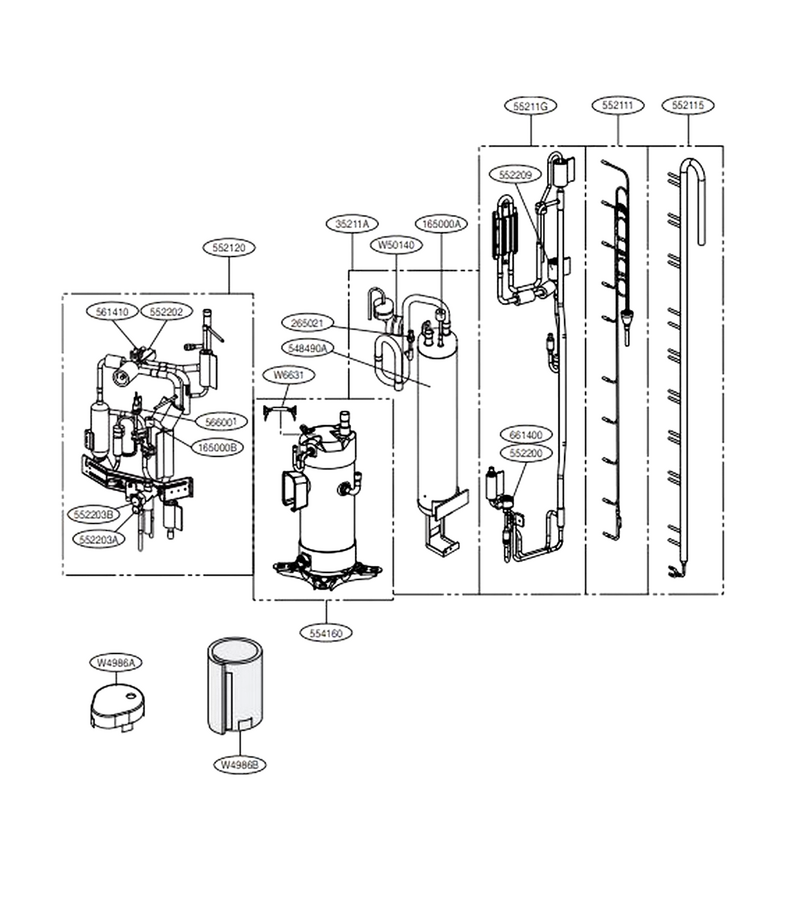

Main

...
...
W4986A
Sound Proof L-G-MDS42399718
...
W4986B
Sound Proof L-G-MDS42294623
...
W50140
Damper,tube L-G-5014A20009C
...
W6631
Harness,multi L-G-EAD62727227
...
35211A
Suction Tube Assembly L-G-AJR75805703
...
55211G
Tube Assembly,expansion L-G-AJR75802902
...
165000A
Sensor,pressure L-G-EBD62165607
...
165000B
Sensor,pressure L-G-EBD62165602
...
265021
Plug,fusible L-G-MKW30000002
...
548490A
Accumulator Assembly L-G-AAB73490404
...
552111
Tube Assembly,capillary L-G-AJR74522401
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR75803202
...
552120
Tube Assembly L-G-AJR75803304
...
552200
Valve,expansion Body L-G-MJX63991901
...
552202
Valve,reverse L-G-3A02080B
...
552203A
Valve,service L-G-5220A20029P
...
552203B
Valve,service L-G-MJX62253901
...
552209
Valve Assembly L-G-AJU73472405
...
554160
Korea Compressor Set L-G-TBZ38235901
...
561410
Solenoid L-G-6141A20010X
...
566001
Switch,pressure L-G-EBF40271405
...
661400
Coil,expansion L-G-EAP63107107
