product name

LG ARUN053GSS4.EWGBEUS

Model: ARUN053GSS4.EWGBEUS

Save Part Not Listed?

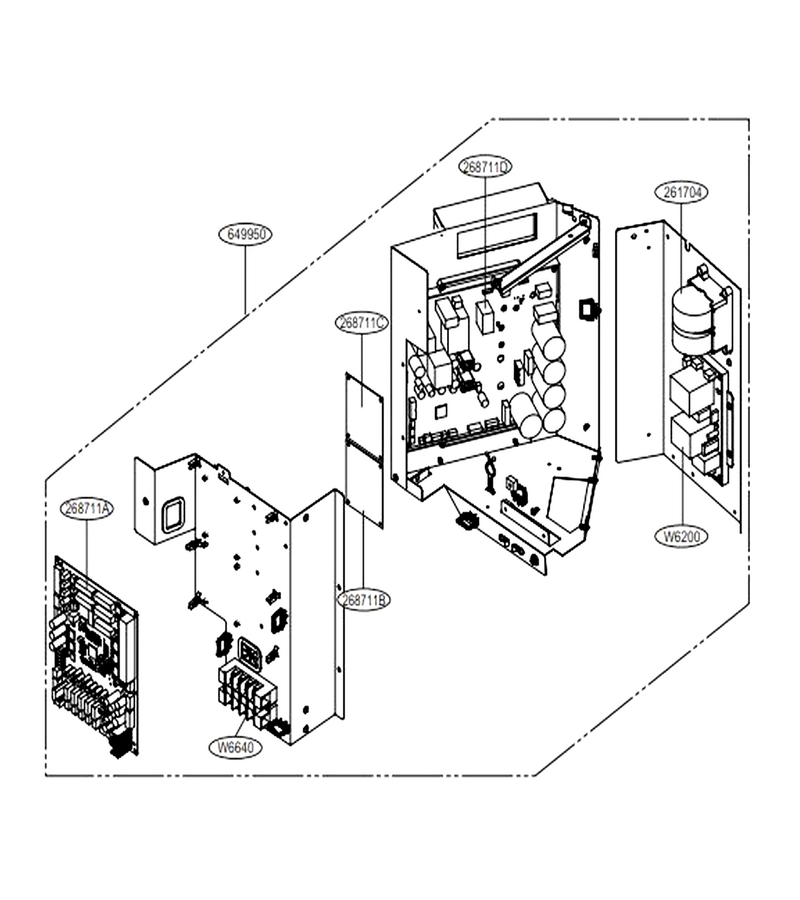

product name

Control Box

...
...
268711A
Pcb Assembly,main L-G-EBR77177105
...
649950
Case Assembly,control(outdoor) L-G-ABQ74541610

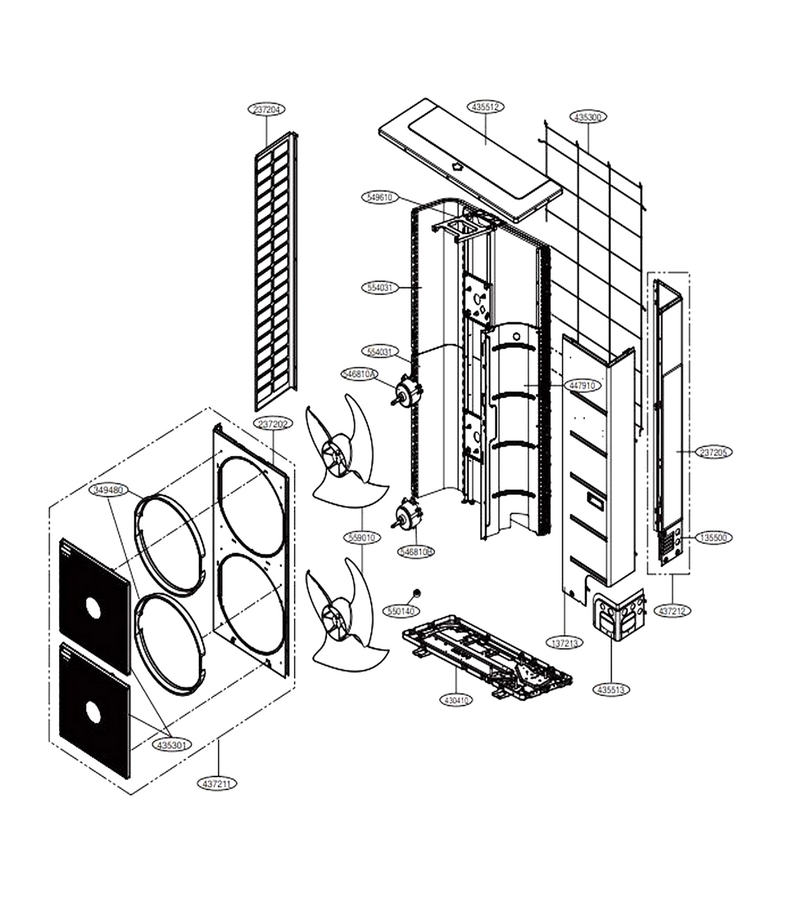

Mechanical Parts

...
...
135500
Cover L-G-MCK40005902
...
137213
Panel Assembly,side L-G-AGL76513026
...
237202
Panel,front L-G-MGC39426114
...
237204
Panel,side L-G-MGC39426015
...
349480
Orifice L-G-4948A20011G
...
430410
Base Assembly,outdoor L-G-AAN74512202
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
435513
Cover Assembly,tubing L-G-ACQ34583417
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578711
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512811
...
550140
Motor Assembly,dc L-G-4681A20172R
...
554031
Condenser Assembly,bending L-G-ACG35866008

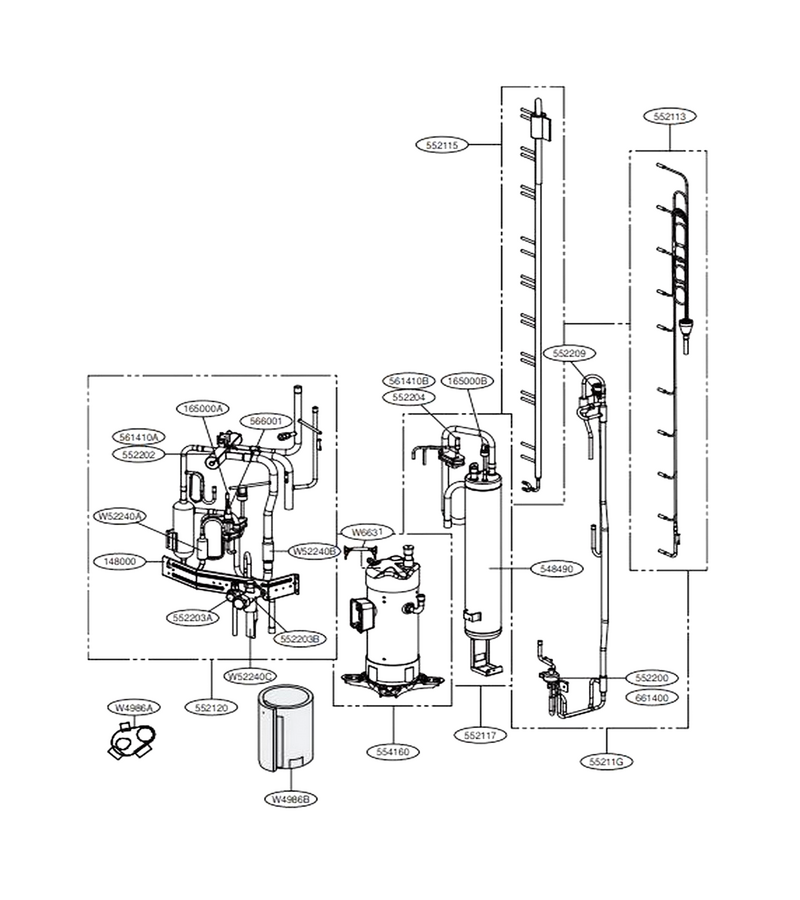

Cycle Parts

...
...
W52240A
Strainer L-G-5224A20005D
...
W52240B
Strainer L-G-MJC62301701
...
148000
Supporter L-G-MJH57203811
...
165000A
Sensor,pressure L-G-EBD62165601
...
552117
Tube Assembly,suction(outdoor) L-G-AJR74523103
...
552202
Valve,reverse L-G-3A02080E
...
552203A
Valve,service L-G-5220A20029M
...
552203B
Valve,service L-G-MJX62253901
...
552204
Valve,solenoid L-G-5220A90008K
...
561410A
Solenoid L-G-6141A20010W
...
561410B
Solenoid L-G-EBE60661407
...
566001
Switch,pressure L-G-EBF40271405
...
661400
Coil,expansion L-G-EAP30616912
