product name

LG ARUN053GS2.EWGBLUS

Model: ARUN053GS2.EWGBLUS

Save Part Not Listed?
product name

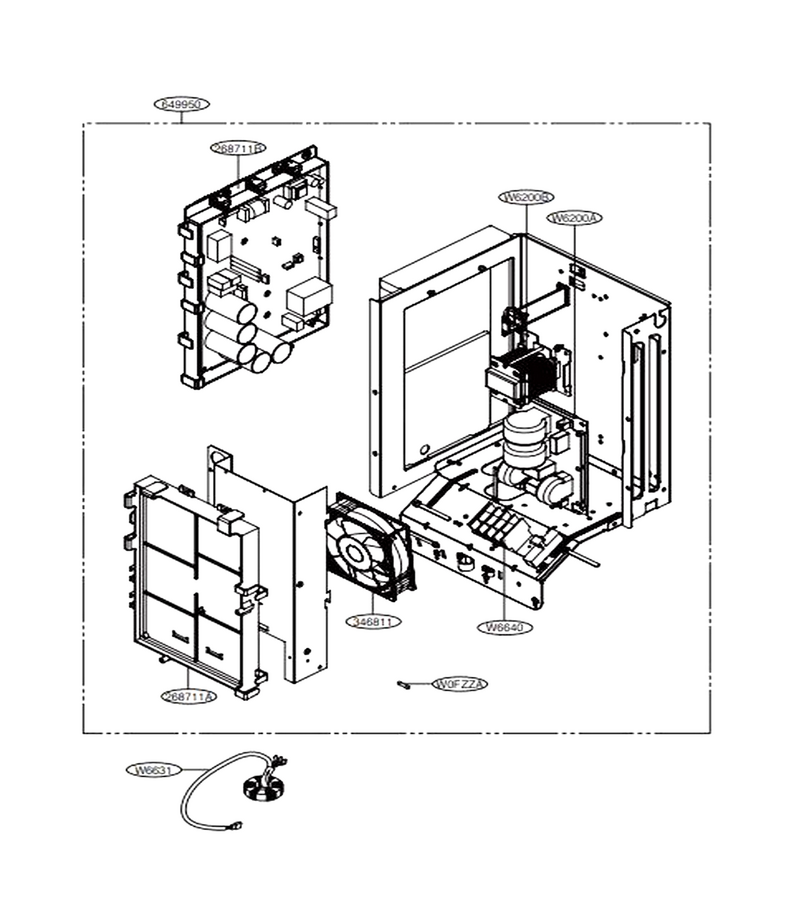

Control Box

...
...
W0FZZA
Fuse,time Delay L-G-EAF38718601
...
W6631
Harness,multi L-G-EAD62227506
...
W6200A
Pcb Assembly,filter L-G-EBR81792401
...
W6200B
Filter,line Noise L-G-EAM60751501
...
268711A
Pcb Assembly,main L-G-EBR63390918
...
268711B
Pcb Assembly,inverter L-G-EBR75228203
...
346811
Motor Assembly,ac,cooling L-G-EAU38500601
...
649950
Case Assembly,control(outdoor) L-G-ABQ54064124

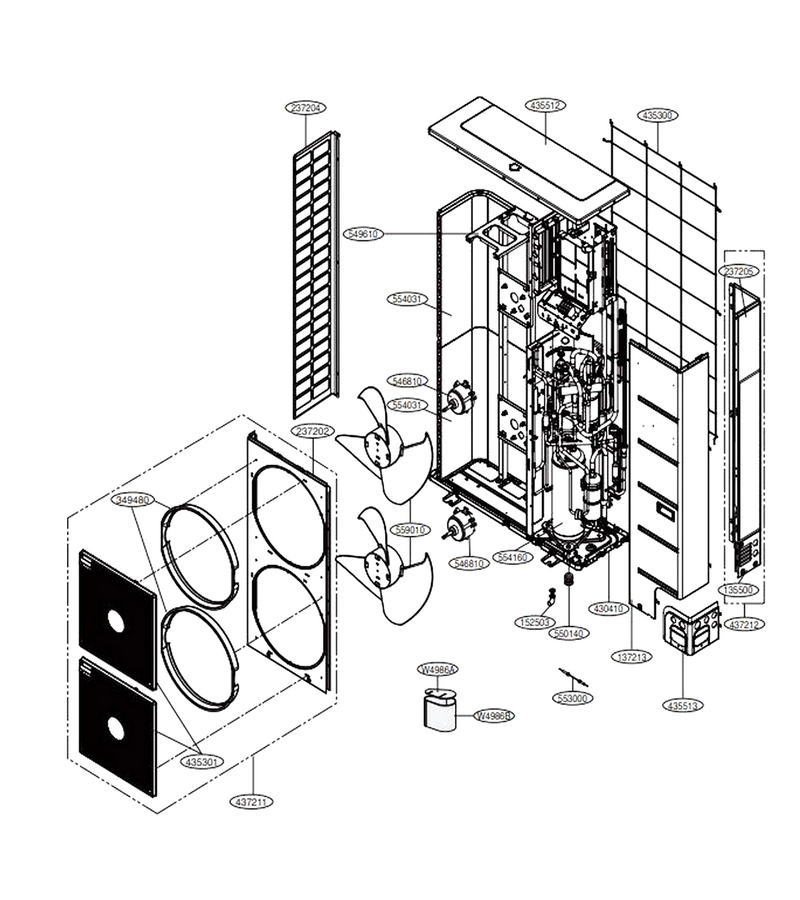

Mechanical Parts & Panels

...
...
W4986A
Sound Proof L-G-MDS42399705
...
W4986B
Sound Proof L-G-MDS42294604
...
135500
Cover L-G-MCK39626220
...
137213
Panel Assembly,side L-G-AGL76513013
...
152503
Nipple,drain L-G-4H01010A
...
237202
Panel,front L-G-MGC39426114
...
237204
Panel,side L-G-MGC39426015
...
237205
Panel,rear L-G-MGC39613728
...
349480
Orifice L-G-4948A20011G
...
430410
Base Assembly,outdoor L-G-AAN74512208
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
435513
Cover Assembly,tubing L-G-ACQ34583417
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578711
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512811
...
546810
Motor Assembly,dc,outdoor L-G-4681A20172L
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168813
...
554031
Condenser Assembly,bending L-G-ACG34880616
...
554160
Compressor Set,korea L-G-TBZ34636501
...
559010
Fan,propeller L-G-MDG62002901

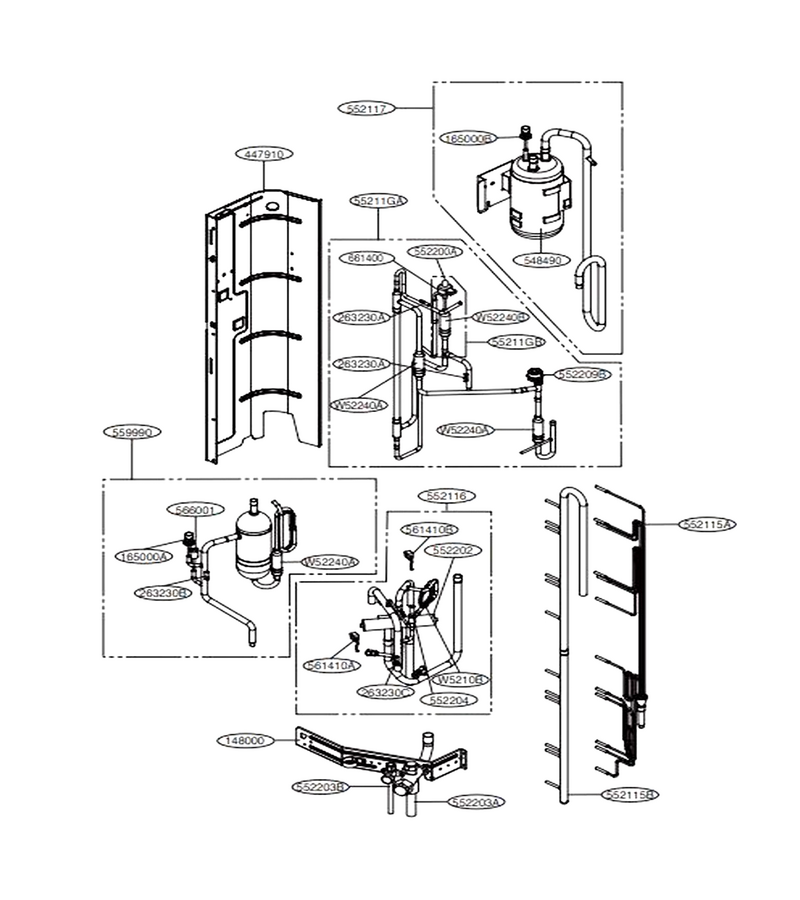

Cycle Parts

...
...
W5210B
Tube,connector L-G-MJU61928901
...
W52240A
Strainer L-G-5224A20005N
...
W52240B
Strainer L-G-5224A20005M
...
55211GA
Tube Assembly,expansion L-G-AJR72937701
...
55211GB
Tube Assembly,expansion L-G-AJR36904201
...
148000
Supporter L-G-MJH39544901
...
165000A
Sensor,pressure L-G-EBD60663824
...
165000B
Sensor,pressure L-G-EBD62165606
...
263230A
Thermistor Assembly,ntc L-G-EBG61106910
...
263230B
Thermistor Assembly,ntc L-G-EBG61107106
...
263230C
Thermistor Assembly,ntc L-G-EBG61107005
...
447910
Barrier Assembly,outdoor L-G-AAM35646404
...
548490
Accumulator Assembly L-G-AAB37023602
...
552115A
Tube Assembly,menifold(outdoor) L-G-AJR37124201
...
552115B
Tube Assembly,manifold(outdoor) L-G-AJR37119901
...
552117
Tube Assembly,suction(outdoor) L-G-AJR37048408
...
552200A
Valve,expansion Body L-G-5220A90003C
...
552202
Valve,reverse L-G-3A02080B
...
552203A
Valve,service L-G-MJX62253901
...
552203B
Valve,service L-G-5220A20029M
...
552204
Valve,solenoid L-G-MJX61841306
...
552209B
Valve Assembly L-G-AJU73472405
...
559990
Separator Assembly,oil L-G-AHQ37048805
...
566001
Switch,pressure L-G-EBF40271404
...
661400
Coil,expansion L-G-EAP30616911
