LG ARUN053GF2.AWGBLUS

Model: ARUN053GF2.AWGBLUS

Save Part Not Listed?
product name

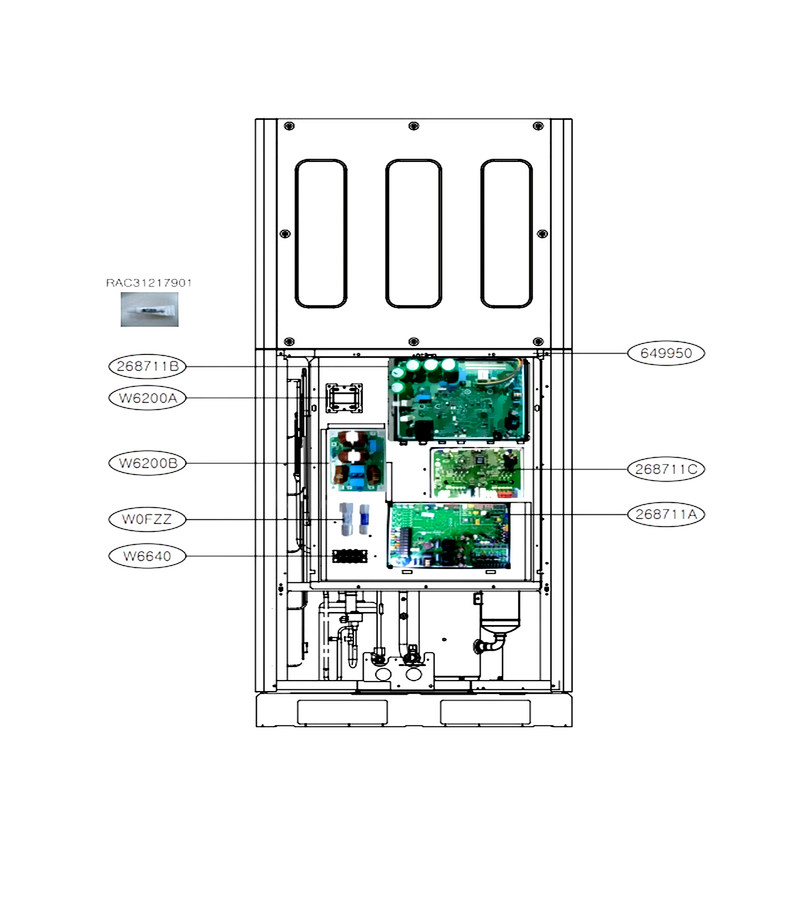

Outdoor Unit

...
...
W0FZZ
Fuse,time Delay L-G-EAF38718601
...
W6640
Connector,terminal Block L-G-EAG41846701
...
W6200A
Filter,line Noise L-G-EAM60751501
...
W6200B
Pcb Assembly,filter L-G-EBR81792401
...
268711A
Pcb Assembly,cycle L-G-EBR74400009
...
268711B
Pcb Assembly,inverter L-G-EBR37094724
...
268711C
Pcb Assembly,fan L-G-EBR73910903
...
649950
Case Assembly,control(outdoor) L-G-ABQ74230101

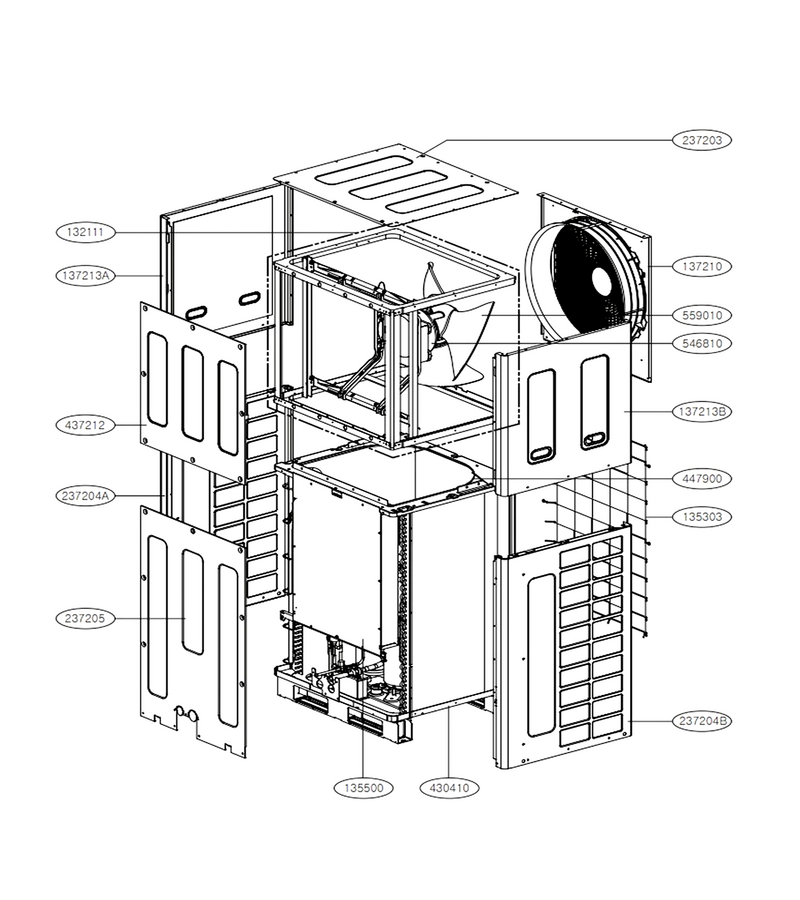

Main 1

...
...
132111
Frame Assembly L-G-ADV74570201
...
135303
Grille,inlet L-G-MDX61846403
...
135500
Cover L-G-3550A10085P
...
137210
Panel Assembly,front L-G-AGL74258601
...
137213A
Panel Assembly,side L-G-3721A20214A
...
137213B
Panel Assembly,side L-G-3721A20214B
...
237203
Panel,upper L-G-3720A10154B
...
237204A
Panel,side L-G-3720A10155L
...
237204B
Panel,side L-G-3720A10155J
...
237205
Panel,rear L-G-3720A10156F
...
430410
Base Assembly,outdoor L-G-AAN33093306
...
437212
Panel Assembly,rear(outdoor) L-G-3721A20215A
...
546810
Motor Assembly,dc,outdoor L-G-EAU61423601
...
559010
Fan Assembly,propeller L-G-ADP74593301

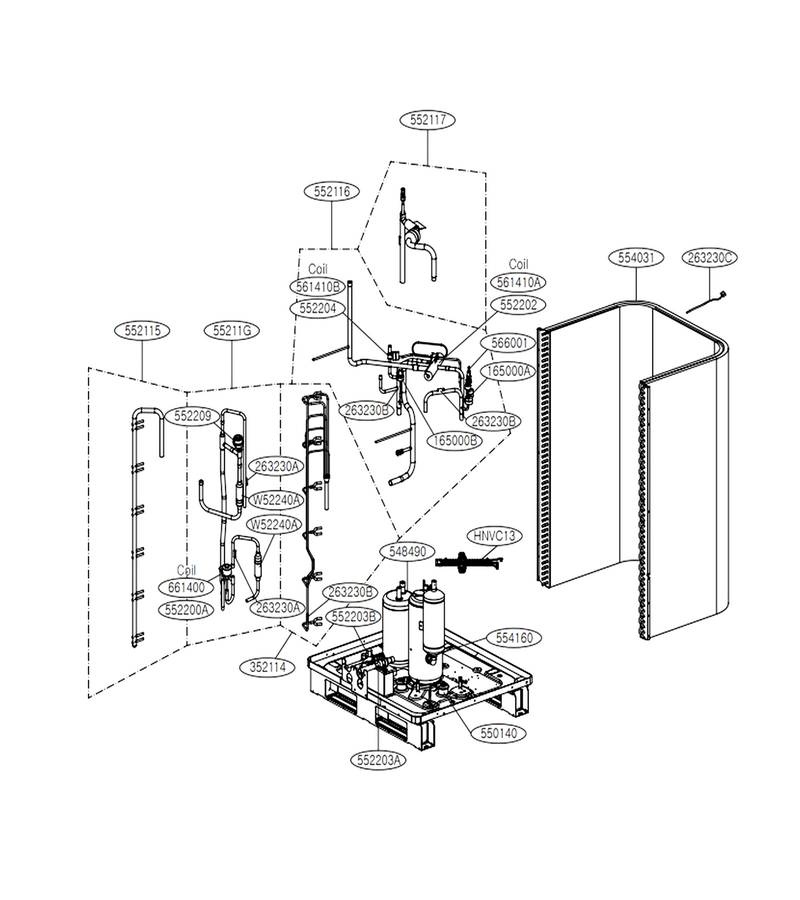

Main 2

...
...
W52240A
Strainer L-G-5224A20005N
...
HNVC13
Harness,multi L-G-EAD63768916
...
55211G
Tube Assembly,expansion L-G-AJR74207701
...
165000A
Sensor,pressure L-G-EBD62165601
...
165000B
Sensor,pressure L-G-EBD60663823
...
263230A
Thermistor Assembly,ntc L-G-EBG61106912
...
263230B
Thermistor Assembly,ntc L-G-EBG61107401
...
263230C
Thermistor Assembly,ntc L-G-EBG61285701
...
352114
Tube Assembly,distributor L-G-AJR72953412
...
548490
Accumulator Assembly L-G-AAB72909801
...
550140
Damper,rubber L-G-MCQ68888201
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR72572913
...
552116
Tube Assembly,reverse L-G-AJR73703815
...
552117
Tube Assembly,suction(outdoor) L-G-AJR74230801
...
552200A
Valve,expansion Body L-G-5220A90003C
...
552202
Valve,reverse L-G-3A02080B
...
552203A
Valve,service L-G-MJX62572802
...
552203B
Valve,service L-G-MJX62572803
...
552204
Valve,solenoid L-G-MJX61841301
...
552209
Valve Assembly L-G-AJU36719715
...
554031
Condenser Assembly,bending L-G-ACG73966601
...
554160
Compressor Set,korea L-G-TBZ37956201
...
561410A
Solenoid L-G-6141A20010W
...
561410B
Solenoid L-G-EBE60661401
...
566001
Switch,pressure L-G-EBF40271401
...
661400
Coil,expansion L-G-EAP30616911
