LG ARUN048GSS4.EWGBLUS

Model: ARUN048GSS4.EWGBLUS

Save Part Not Listed?
product name

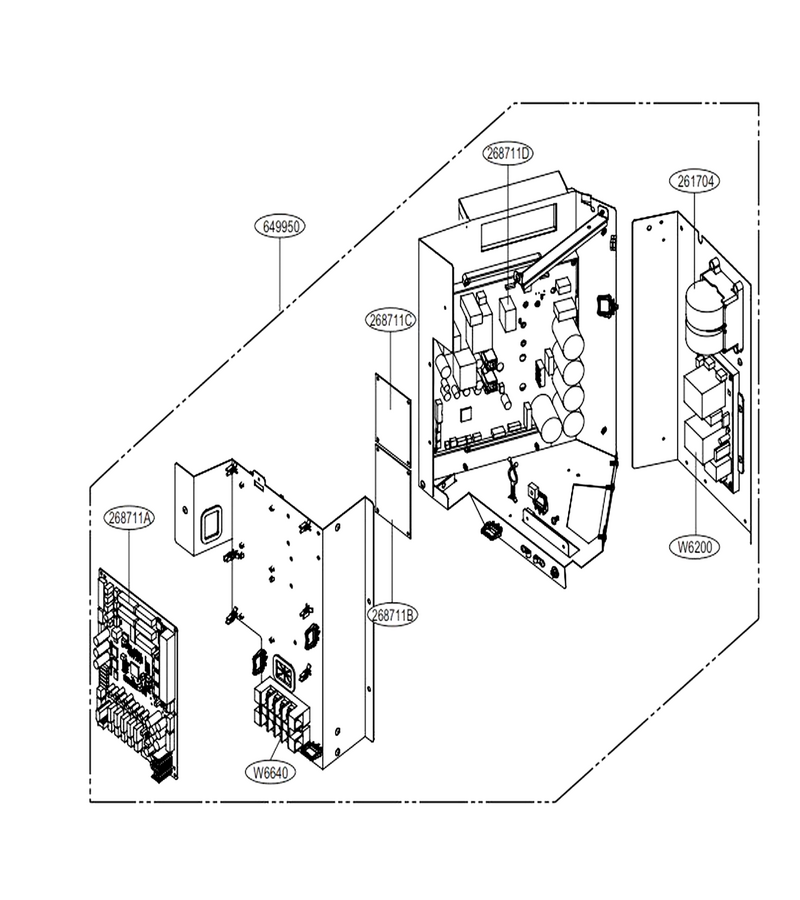

Control Box

...
...
W6200
Filter,ac Line L-G-EAM62791203
...
W6640
Connector,terminal Block L-G-EAG63111409
...
261704
Transformer,reactor L-G-EBJ61770404
...
268711A
Main Pcb Assembly L-G-EBR77627621
...
268711B
Pcb Assembly,sub L-G-EBR74801101
...
268711C
Pcb Assembly,sub L-G-EBR74374302
...
268711D
Pcb Assembly,inverter L-G-EBR78509901
...
649950
Case Assembly,control(outdoor) L-G-ABQ77442701

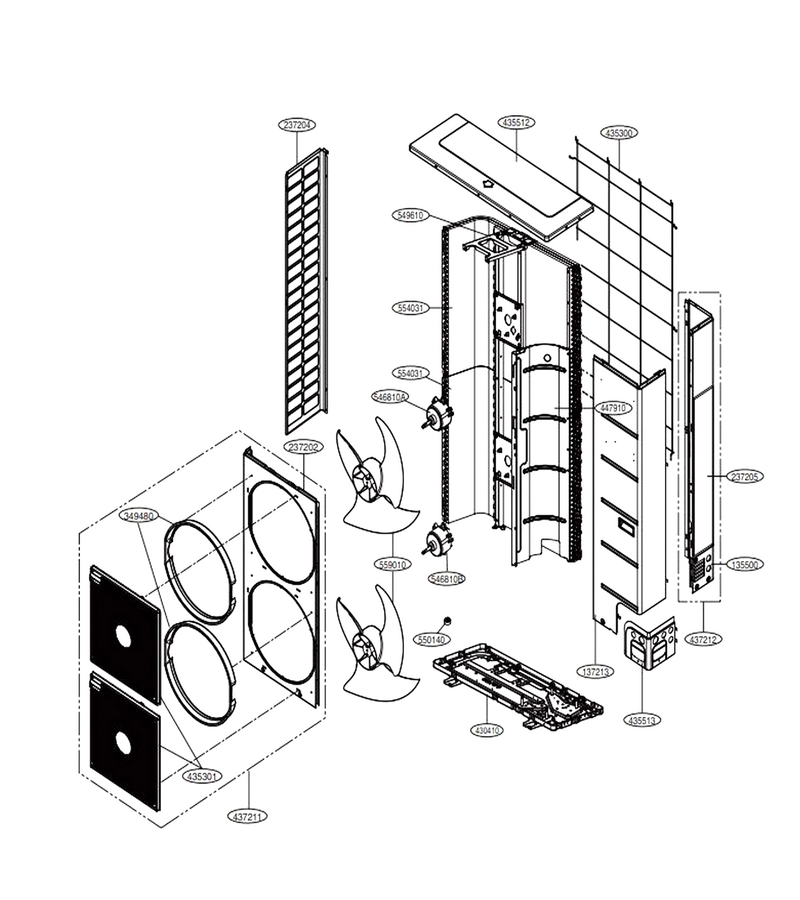

Mechanical Parts And Panels

...
...
135500
Cover L-G-MCK39626220
...
137213
Panel Assembly,side L-G-AGL76513026
...
237202
Panel,front L-G-MGC39426114
...
237204
Panel,side L-G-MGC39426015
...
237205
Panel,rear L-G-MGC39613728
...
349480
Orifice L-G-MFX42382101
...
430410
Base Assembly,outdoor L-G-AAN74512202
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
435513
Cover Assembly,tubing L-G-ACQ34583417
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578711
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512811
...
447910
Barrier Assembly,outdoor L-G-AAM35646444
...
546810A
Motor Assembly,dc,outdoor L-G-4681A20172Q
...
546810B
Motor Assembly,dc L-G-4681A20172R
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168813
...
550140
Damper,rubber L-G-MCQ68888201
...
554031
Condenser Assembly,bending L-G-ACG73705903
...
559010
Fan,propeller L-G-MDG62002901

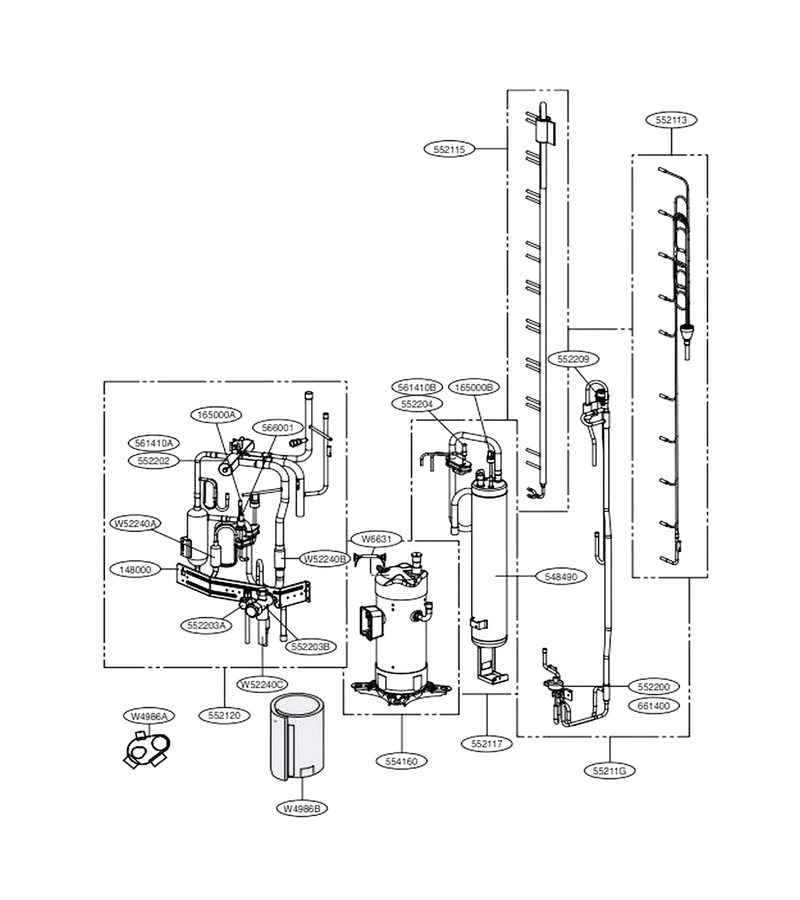

Cycle Parts

...
...
W4986A
Sound Proof L-G-MDS63978804
...
W4986B
Sound Proof L-G-MDS63978803
...
W52240A
Strainer L-G-5224A20002V
...
W52240B
Strainer L-G-5224A20002D
...
W52240C
Strainer L-G-3H03659M
...
W6631
Harness,multi L-G-EAD63768946
...
55211G
Tube Assembly,expansion L-G-AJR74824501
...
148000
Supporter L-G-MJH39544901
...
165000A
Sensor,pressure L-G-EBD60663821
...
165000B
Pressure Sensor L-G-EBD60663822
...
548490
Accumulator Assembly L-G-AAB73490404
...
552113
Tube Assembly,condenser(out) L-G-AJR74523301
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR73326630
...
552117
Tube Assembly,suction(outdoor) L-G-AJR74523103
...
552120
Tube Assembly L-G-AJR74524708
...
552200
Valve,expansion Body L-G-5220A90003C
...
552202
Valve,reverse L-G-3A02080E
...
552203A
Valve,service L-G-5220A20029M
...
552203B
Valve,service L-G-MJX62253801
...
552204
Valve,solenoid L-G-5220A90008K
...
552209
Valve Assembly L-G-AJU73472405
...
554160
Compressor Set,korea L-G-TBZ37954901
...
561410A
Solenoid L-G-6141A20010X
...
561410B
Solenoid L-G-EBE60659006
...
566001
Switch,pressure L-G-EBF40271405
...
661400
Coil,expansion L-G-EAP30616912
