LG ARUM072DTE5.AWGBLUS

Model: ARUM072DTE5.AWGBLUS

Save Part Not Listed?
product name

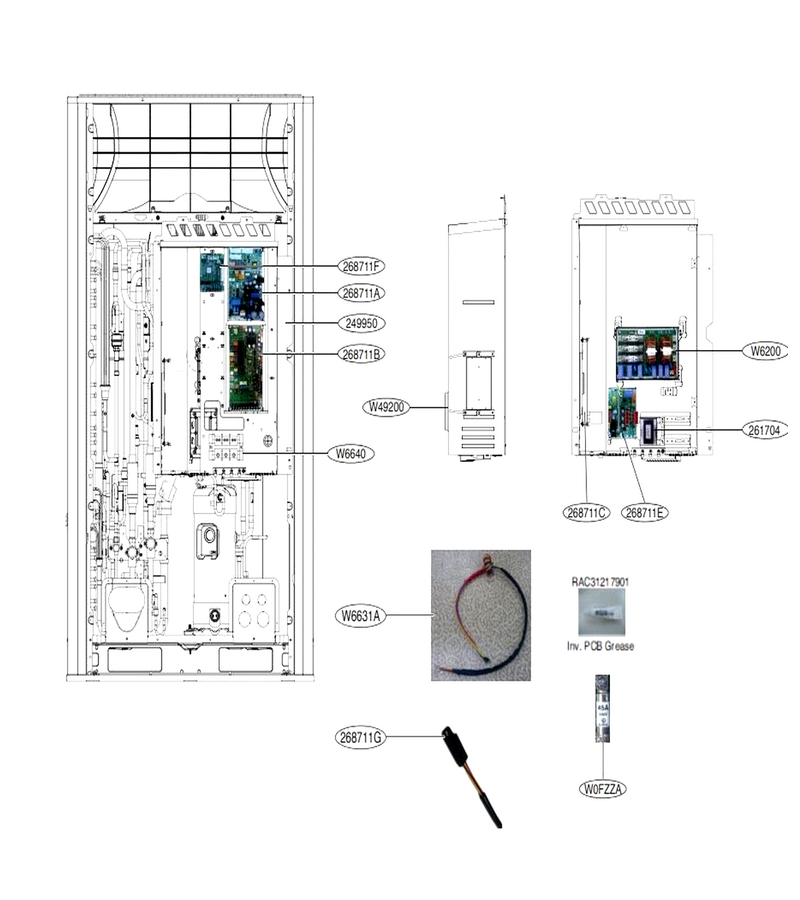

Main I

...
...
W49200
Heat Sink L-G-MED64111109
...
W6631A
Harness,multi L-G-EAD62666233
...
W6200
Filter,ac Line L-G-EAM63430903
...
268711B
Pcb Assembly,main L-G-EBR79669907
...
268711C
Pcb Assembly,inv(onboarding) L-G-EBR88279006
...
268711E
Pcb Assembly,fan(onboarding) L-G-EBR88279202
...
268711F
Pcb Assembly,sub L-G-EBR80820501
...
268711G
Pcb Assembly,sensor L-G-EBR80100302

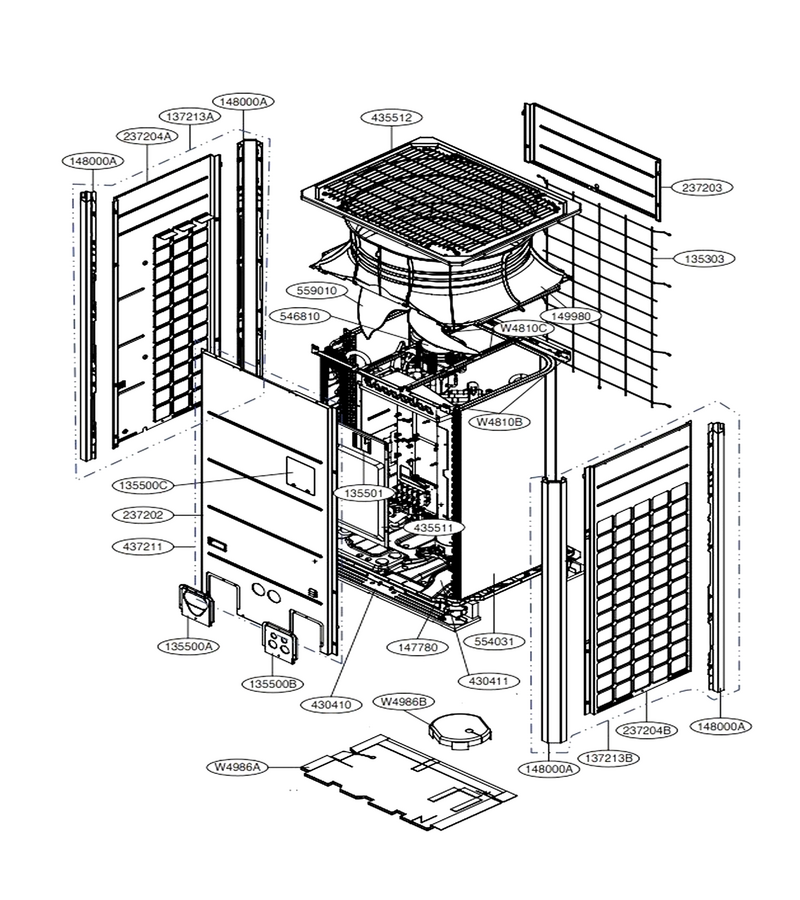

Main Ii

...
...
W4810B
Bracket L-G-MAZ65143501
...
W4986B
Gasket L-G-MDS65550401
...
135500A
Cover L-G-MCK40004912
...
135500B
Cover L-G-MCK40005015
...
135500C
Cover L-G-MCK40005905
...
135501
Cover Assembly L-G-ACQ33787704
...
147780
Leg L-G-MFA63082902
...
148000A
Supporter L-G-MJH63754102
...
237204A
Panel,side L-G-MGC63779204
...
237204B
Panel,side L-G-MGC63779104
...
430410
Base Assembly,outdoor L-G-AAN75070508
...
435511
Cover Assembly,control(outdoor) L-G-ACQ85917024
...
546810
Motor Assembly,dc,outdoor L-G-EAU43080022
...
554031
Condenser Assembly,bending L-G-ACG74565015
...
559010
Fan Assembly,propeller L-G-ADP73533502

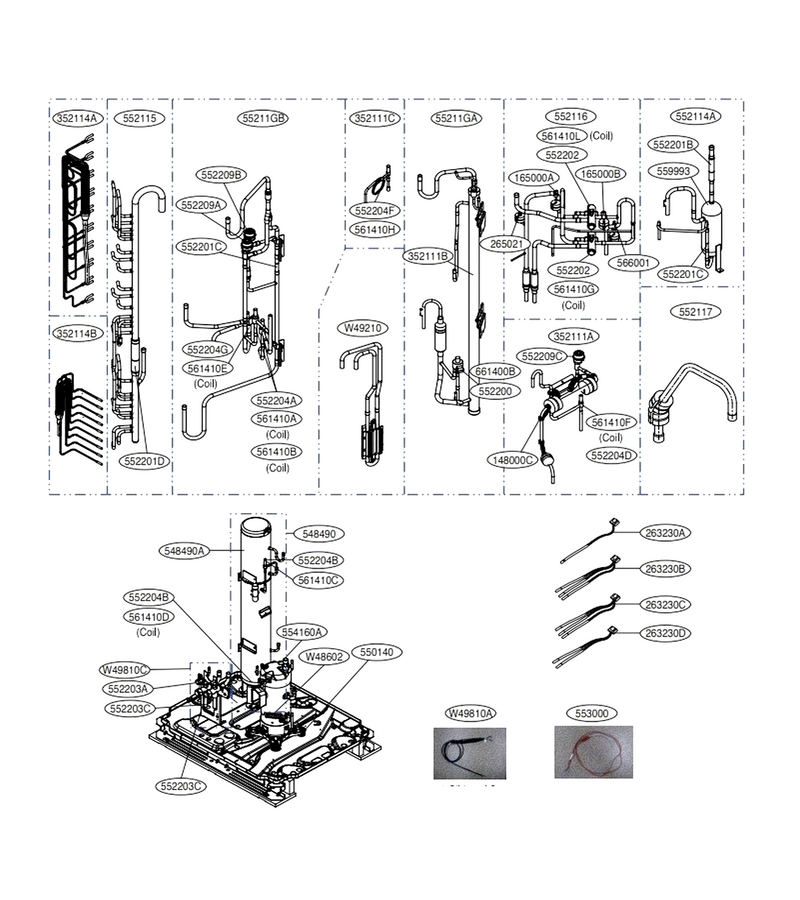

Main Iii

...
...
W48602
Clamp,spring L-G-4H01930A
...
55211GB
Tube Assembly,expansion L-G-AJR75483401
...
55211GA
Tube Assembly,expansion L-G-AJR75483502
...
165000A
Sensor,pressure L-G-EBD60663823
...
165000B
Sensor,pressure L-G-EBD62165601
...
263230D
Thermistor Assembly,ntc L-G-EBG61106922
...
263230B
Thermistor Assembly,ntc L-G-EBG61107406
...
263230A
Thermistor Assembly,ntc L-G-EBG61486301
...
263230C
Thermistor Assembly,ntc L-G-EBG61107301
...
352111A
Tube Assembly,connector L-G-AJR75483601
...
352111B
Tube Assembly,connector L-G-AJR75122501
...
352111C
Tube Assembly,connector L-G-AJR74984601
...
548490
Accumulator Assembly L-G-AAB73610303
...
550140
Damper,compressor L-G-MCQ62569601
...
552114A
Tube Assembly,discharge(outdoor) L-G-AJR75484001
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR75463303
...
552116
Tube Assembly,reverse L-G-AJR75704005
...
552117
Tube Assembly,suction(outdoor) L-G-AJR75544704
...
552202
Valve,reverse L-G-5220AP3777C
...
552203A
Valve,service L-G-5220A20029M
...
552203C
Valve,service L-G-MJX62253901
...
552204G
Valve,solenoid L-G-MJX61537802
...
552204B
Valve,solenoid L-G-5220A90008H
...
552204F
Valve,solenoid L-G-5220A90008K
...
552204D
Valve,solenoid L-G-MJX61841301
...
552204A
Valve,solenoid L-G-MJX61537801
...
552209A
Valve Assembly L-G-AJU73472405
...
552209B
Valve Assembly L-G-AJU73472406
...
552209C
Valve Assembly L-G-AJU73472403
...
561410A
Solenoid L-G-EBE60661415
...
561410B
Solenoid L-G-EBE60661416
...
561410C
Solenoid L-G-EBE61083201
...
561410D
Solenoid L-G-EBE61621601
...
561410E
Solenoid L-G-EBE61083212
...
561410F
Solenoid L-G-EBE60661414
...
561410H
Solenoid L-G-EBE61083211
...
566001
Switch,pressure L-G-EBF40271401
...
661400B
Coil,expansion L-G-EAP30616912
