LG ARUB154DT2.AWGBLUS

Model: ARUB154DT2.AWGBLUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

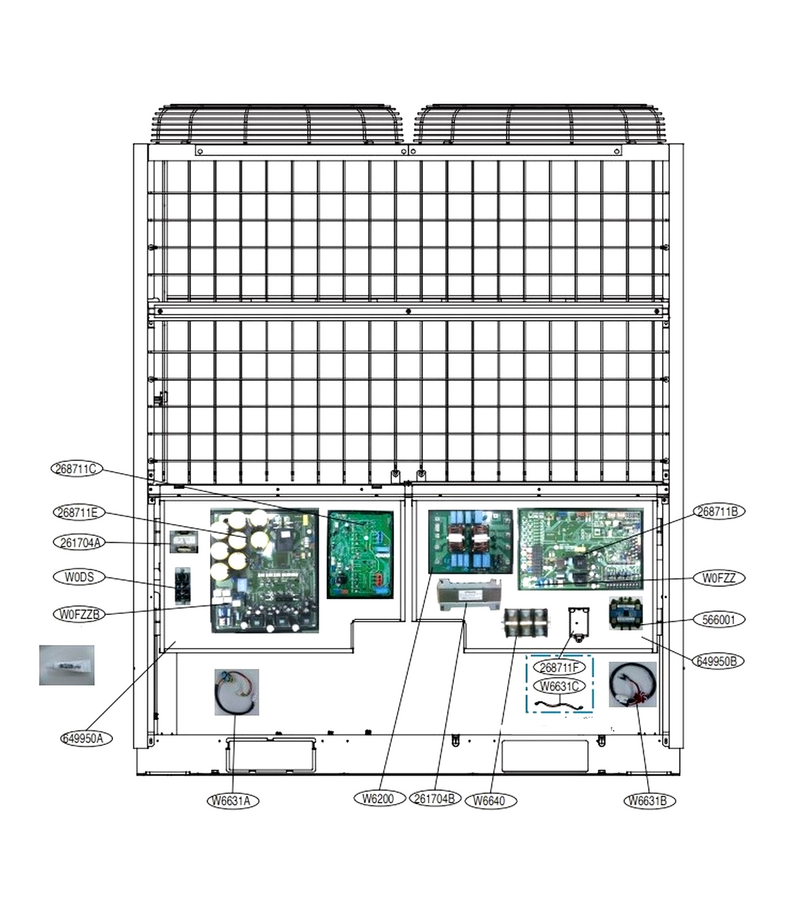

Main I

...
...
W0DS
Diode,bridge L-G-EAH37374701
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028C
...
W0FZZB
Fuse,time Delay L-G-0FT5001B511
...
W6200
Filter,ac Line L-G-EAM39080202
...
W6631A
Harness,single L-G-EAD61072516
...
W6631B
Harness,multi L-G-EAD37680323
...
261704A
Transformer,reactor L-G-EBJ42574002
...
261704B
Transformer,linear L-G-EBJ42393201
...
268711E
Pcb Assembly,inverter L-G-EBR36932808
...
268711C
Pcb Assembly,fan L-G-EBR34853105
...
268711B
Pcb Assembly,cycle(onboarding) L-G-EBR63390901
...
566001
Switch,magnet L-G-6600B000037
...
649950A
Case Assembly,control(outdoor) L-G-ABQ67638501
...
649950B
Case Assembly,control(outdoor) L-G-ABQ67638320

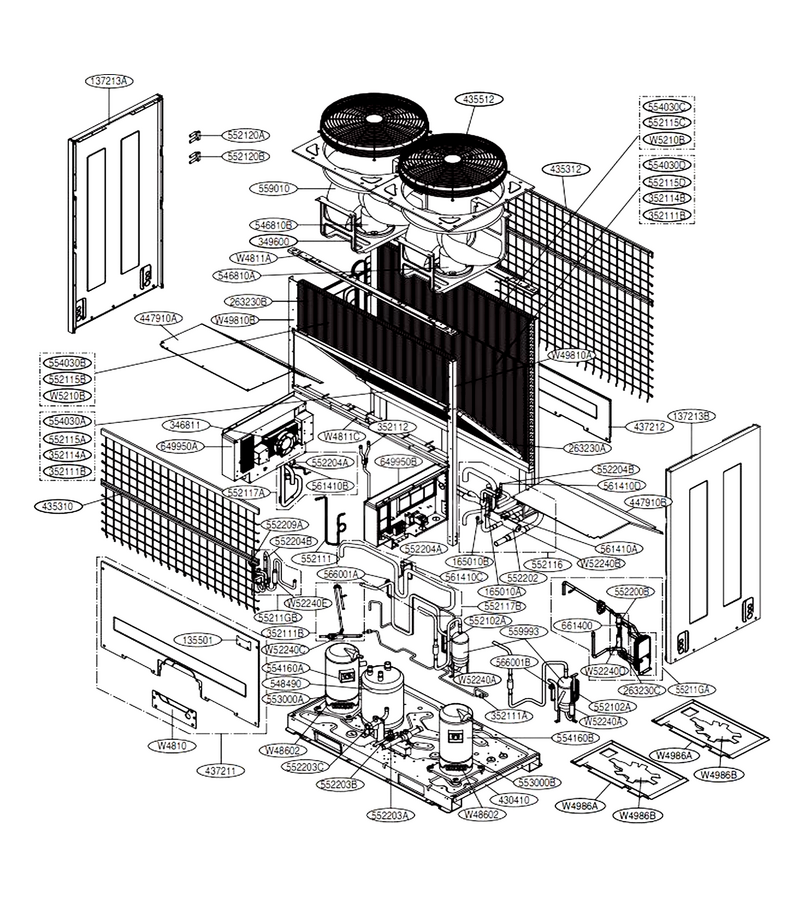

Main Ii

...
...
W4986A
Gasket L-G-3096AP3469M
...
W52240E
Strainer L-G-5224A20005N
...
W52240D
Strainer L-G-5224A20005M
...
W52240B
Strainer L-G-5224A20005A
...
W52240A
Strainer L-G-5224A20005L
...
W5210B
Tube,connector L-G-5210A22825A
...
W4986B
Sound Proof L-G-3096AP3476G
...
W49810B
Supporter Assembly L-G-4981A10024G
...
W49810A
Supporter Assembly L-G-4981A10023G
...
W48602
Clamp,spring L-G-4H01930A
...
W4811C
Bracket Assembly L-G-4811A10018A
...
W4811A
Bracket Assembly L-G-4811A10013B
...
W4810
Bracket L-G-4810A20116Q
...
55211GB
Tube Assembly,expansion L-G-5211A11100C
...
135501
Cover Assembly L-G-ACQ34723601
...
137213A
Panel Assembly,side L-G-3721A10120A
...
137213B
Panel Assembly,side L-G-3721A10120D
...
165010A
Sensor Assembly L-G-6501A20004F
...
165010B
Sensor Assembly L-G-6501A20004E
...
263230A
Thermistor Assembly,ntc L-G-EBG61107502
...
263230B
Thermistor Assembly,ntc L-G-EBG61107403
...
346811
Motor Assembly,ac,cooling L-G-EAU38500601
...
349600
Bracket,motor L-G-4960A10022A
...
352111B
Tube Assembly,connector L-G-5211A10623D
...
352114A
Tube Assembly,distributor L-G-5211A10681A
...
352114B
Tube Assembly,distributor L-G-5211A10680A
...
430410
Base Assembly,outdoor L-G-3041A10082A
...
435310
Grille Assembly,front(outdoor) L-G-AEB72917502
...
435312
Grille Assembly,rear(outdoor) L-G-AEB72917602
...
435512
Cover Assembly,top(outdoor) L-G-3551A10071A
...
437211
Panel Assembly,front(outdoor) L-G-3721A10107S
...
437212
Panel Assembly,rear(outdoor) L-G-3721A10108J
...
447910A
Barrier Assembly,outdoor L-G-4791A10021E
...
447910B
Barrier Assembly,outdoor L-G-4791A10023A
...
546810A
Motor Assembly,dc,outdoor L-G-EAU36301603
...
546810B
Motor Assembly,dc,outdoor L-G-EAU36301604
...
548490
Accumulator L-G-4849A10070B
...
552102A
Tube,capillary Bending L-G-5210A22526C
...
552111
Tube Assembly,capillary L-G-5211A21734A
...
552115C
Tube Assembly,manifold(outdoor) L-G-5211A22100A
...
552115D
Tube Assembly,manifold(outdoor) L-G-5211A11034A
...
552115B
Tube Assembly,manifold(outdoor) L-G-5211A22101A
...
552115A
Tube Assembly,manifold(outdoor) L-G-5211A11033A
...
552116
Tube Assembly,reverse L-G-5211A10624S
...
552117A
Tube Assembly,suction(outdoor) L-G-5211A11098A
...
552117B
Tube Assembly,suction(outdoor) L-G-5211A11096C
...
552120A
Tube Assembly L-G-AJR71088301
...
552120B
Tube Assembly L-G-AJR71088302
...
552202
Valve,reverse L-G-5220AP3777C
...
552203C
Valve,service L-G-MJX62253901
...
552203B
Valve,service L-G-5220A90012D
...
552203A
Valve,service L-G-5220A90012N
...
552204A
Valve,solenoid L-G-5220A90008K
...
552204B
Valve,solenoid L-G-MJX61845502
...
552209A
Valve Assembly L-G-AJU36719701
...
553000A
Heater,sump L-G-5300A20008T
...
553000B
Heater,sump L-G-5300A20008U
...
554030A
Condenser Assembly,first L-G-ACG33922403
...
554030B
Condenser Assembly,first L-G-ACG56695401
...
554030C
Condenser Assembly,first L-G-ACG56695402
...
554030D
Condenser Assembly,first L-G-ACG33922404
...
554160A
Compressor Set,korea L-G-TBZ35436901
...
559010
Fan Assembly,propeller L-G-5901A10029A
...
559993
Separator,oil L-G-5998A20002A
...
561410A
Solenoid L-G-6141A20010U
...
561410B
Solenoid L-G-6141A20050G
...
561410C
Solenoid L-G-6141A20050H
...
561410D
Solenoid L-G-EBE60658017
...
649950A
Switch,pressure L-G-EBF40271401
...
649950B
Switch,pressure L-G-EBF40271402
...
661400
Coil,expansion L-G-EAP30616911
