LG ARUB144DT3.AWGBLUS

Model: ARUB144DT3.AWGBLUS

Save Part Not Listed?
product name

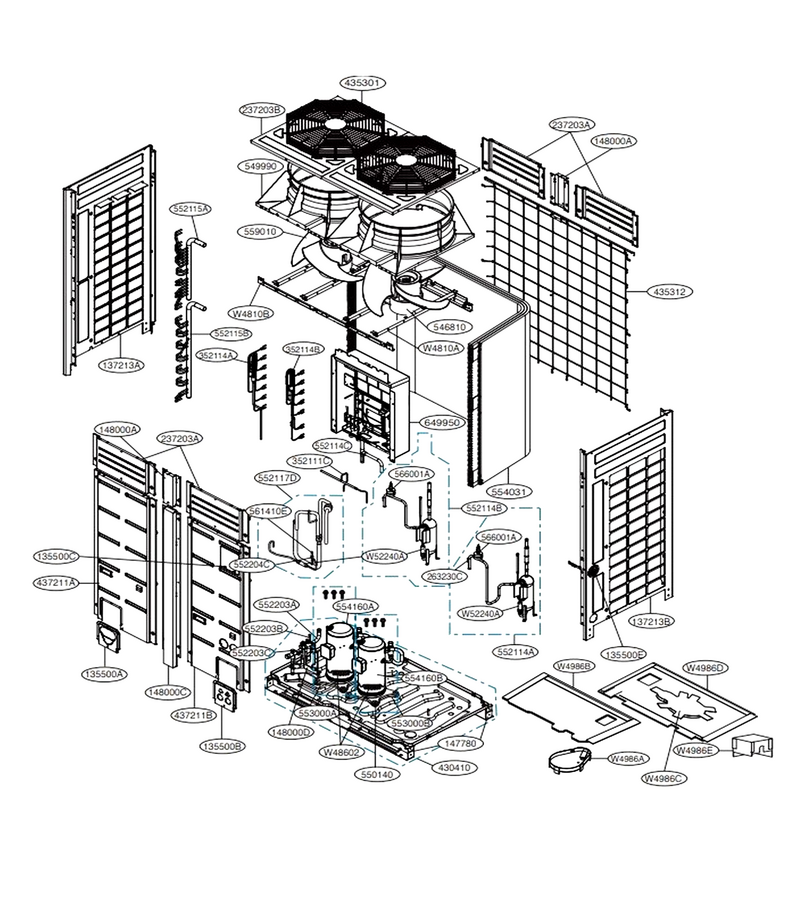

Main I

...
...
W4810A
Bracket L-G-MAZ40016203
...
W52240A
Strainer L-G-5224A20005L
...
W4986E
Sound Proof L-G-MDS61982404
...
W4986D
Sound Proof L-G-MDS42294613
...
W4986A
Sound Proof L-G-MDS42399709
...
W4986C
Sound Proof L-G-MDS42399707
...
W4810B
Bracket L-G-MAZ40016101
...
W48602
Clamp,spring L-G-4H01930A
...
135500A
Cover L-G-MCK40004902
...
135500B
Cover L-G-MCK40005006
...
135500C
Cover L-G-MCK40005902
...
135500E
Cover L-G-3550A30339H
...
137213A
Panel Assembly,side L-G-AGL72947304
...
137213B
Panel Assembly,side L-G-AGL72947302
...
147780
Leg L-G-MFA40133102
...
148000A
Supporter L-G-MJH40033002
...
148000C
Supporter L-G-MJH40032802
...
148000D
Supporter L-G-MJH57203801
...
237203A
Panel,upper L-G-MGC40001402
...
237203B
Panel,upper L-G-MGC40015602
...
263230C
Thermistor Assembly,ntc L-G-EBG61186709
...
352111C
Tube Assembly,connector L-G-AJR56661101
...
352114B
Tube Assembly,distributor L-G-AJR72367608
...
352114A
Tube Assembly,distributor L-G-AJR72367706
...
435301
Grille,discharge L-G-MDX40360902
...
435312
Grille Assembly,rear(outdoor) L-G-AEB73704901
...
437211A
Panel Assembly,front(outdoor) L-G-AGL34759608
...
546810
Motor Assembly,dc,outdoor L-G-EAU60687201
...
549990
Shroud Assembly L-G-AHV35766201
...
550140
Damper,compressor L-G-MCQ62569601
...
552114B
Tube Assembly,discharge(outdoor) L-G-AJR72953101
...
552114C
Tube Assembly,discharge(outdoor) L-G-AJR56662803
...
552115A
Tube Assembly,manifold(outdoor) L-G-AJR73382904
...
552115B
Tube Assembly,manifold(outdoor) L-G-AJR73383004
...
552117D
Tube Assembly,suction(outdoor) L-G-AJR72952006
...
552203B
Valve,service L-G-5220A20034C
...
552203C
Valve,service L-G-MJX62253901
...
553000A
Heater,sump L-G-5300A20008M
...
554031
Condenser Assembly,bending L-G-ACG35866005
...
559010
Fan Assembly,propeller L-G-ADP73733501
...
561410E
Solenoid L-G-6141A20050Y
...
566001A
Switch,pressure L-G-EBF40271401
...
649950
Case Assembly,control(outdoor) L-G-ABQ73023735

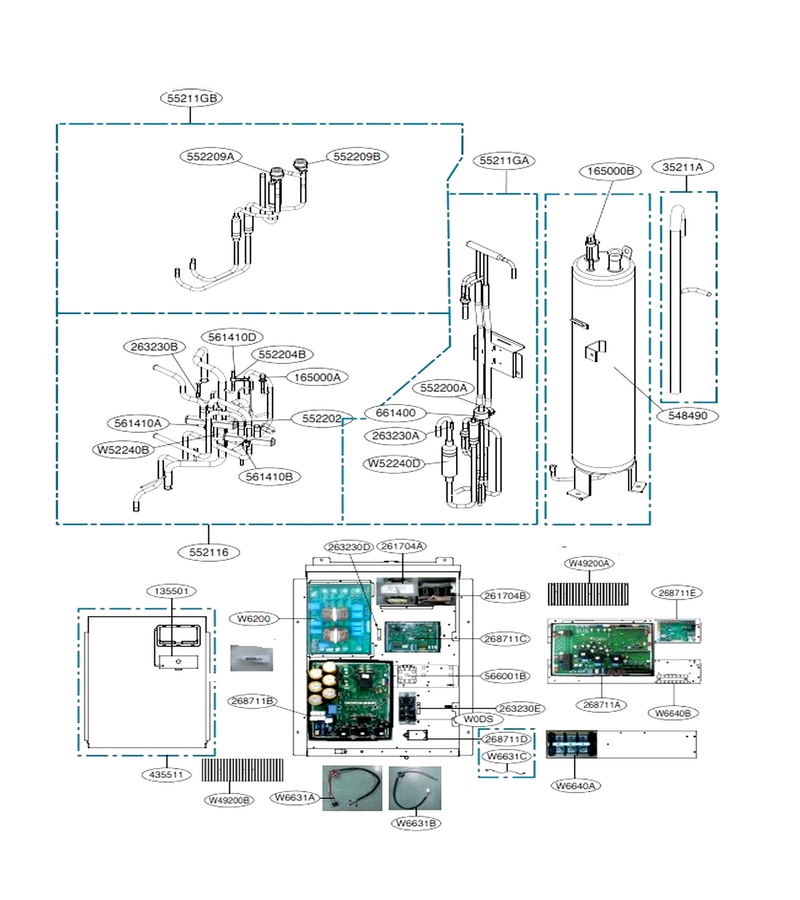

Main Ii

...
...
W6631A
Harness,multi L-G-EAD43354407
...
W6631C
Harness,multi L-G-EAD43354416
...
W6200
Filter,ac Line L-G-EAM39080202
...
W52240D
Strainer L-G-5224A20005D
...
W52240B
Strainer L-G-MJC62301701
...
W49200B
Heat Sink L-G-MED42478101
...
W49200A
Heat Sink L-G-MED37293701
...
35211A
Tube Assembly,suction L-G-AJR73763302
...
55211GB
Tube Assembly,expansion L-G-AJR73462303
...
55211GA
Tube Assembly,expansion L-G-AJR72957305
...
135501
Cover Assembly L-G-ACQ33787701
...
165000A
Sensor,pressure L-G-EBD62165601
...
165000B
Sensor,pressure L-G-EBD60663823
...
261704A
Transformer,reactor L-G-EBJ42574005
...
261704B
Transformer,linear L-G-EBJ42393202
...
263230D
Thermistor Assembly,ntc L-G-EBG61207011
...
263230B
Thermistor Assembly,ntc L-G-EBG61107401
...
263230A
Thermistor Assembly,ntc L-G-EBG61106912
...
268711E
Pcb Assembly,sub L-G-EBR74357504
...
268711C
Pcb Assembly,fan L-G-EBR34853112
...
268711D
Pcb Assembly,sub L-G-6871A30042D
...
435511
Cover Assembly,control(outdoor) L-G-ACQ74759306
...
548490
Accumulator L-G-MAA41415102
...
552116
Tube Assembly,reverse L-G-AJR73688406
...
552200A
Valve,expansion Body L-G-MJX62751401
...
552202
Valve,reverse L-G-3A02080B
...
552204B
Valve,solenoid L-G-MJX61841301
...
552209A
Valve Assembly L-G-AJU36719715
...
552209B
Valve Assembly L-G-AJU36719716
...
561410A
Solenoid L-G-6141A20010W
...
561410B
Solenoid L-G-EBE60742004
...
561410D
Solenoid L-G-EBE60661401
...
566001B
Switch,magnet L-G-EBF33717201
...
661400
Coil,expansion L-G-EAP30616912
