LG ARUB115BT2.AWGBLUS

Model: ARUB115BT2.AWGBLUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

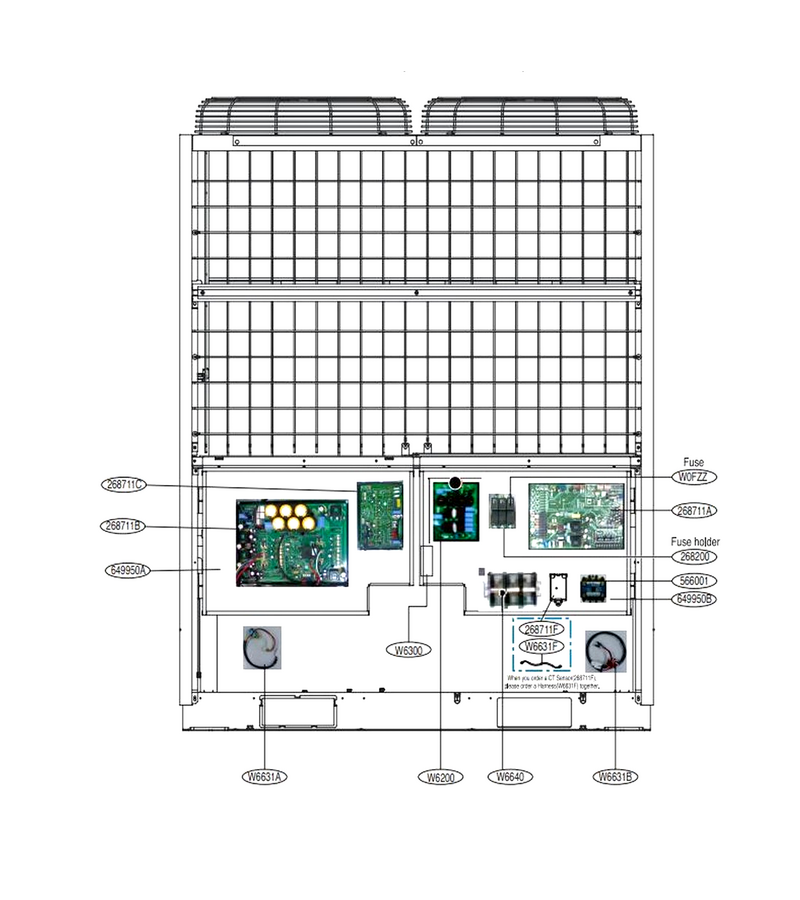

Main (i)

...
...
W6200
Filter,line Noise L-G-EAM37641502
...
W6300
Resistor,cement L-G-EBC39311501
...
W6631A
Harness,multi L-G-EAD37680315
...
W6631B
Harness,multi L-G-EAD37680302
...
W6631F
Harness,multi L-G-EAD36278412
...
268200
Fuse Holder L-G-6820W5A003A
...
268711C
Pcb Assembly,fan L-G-EBR34853107
...
268711F
Pcb Assembly,sub L-G-6871A30042B
...
268711B
Pcb Assembly,main L-G-EBR34881002
...
268711A
Pcb Assembly,cycle(onboarding) L-G-EBR44371215
...
649950A
Case Assembly,control(outdoor) L-G-ABQ32722403
...
649950B
Case Assembly,control(outdoor) L-G-ABQ31733615

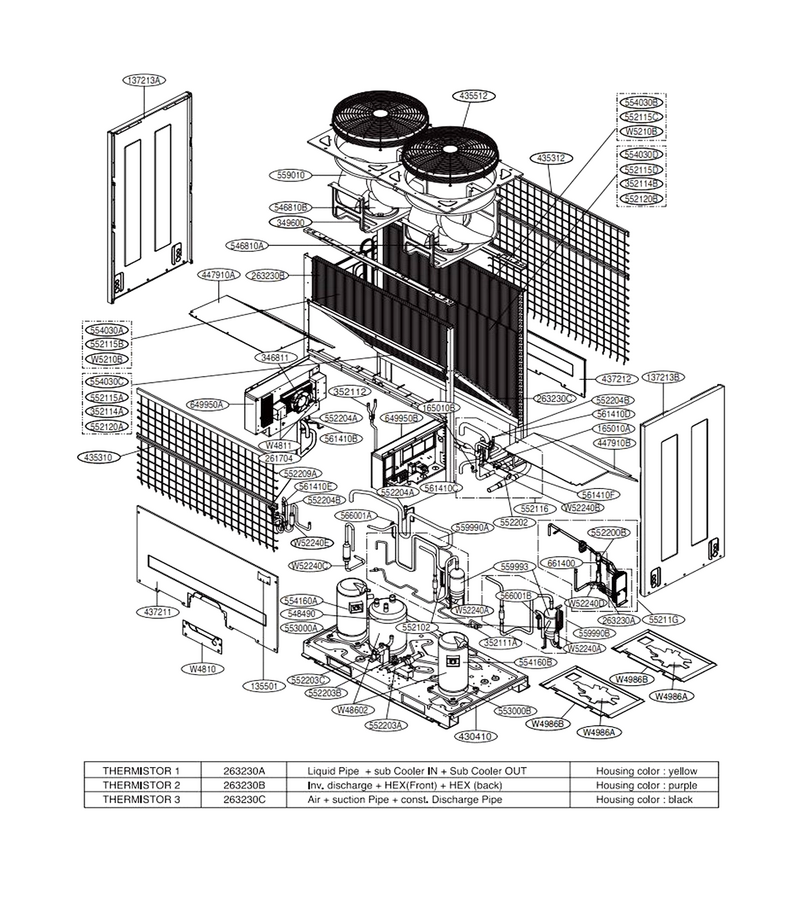

Main (ii)

...
...
W52240D
Strainer L-G-5224A20005M
...
W52240E
Strainer L-G-5224A20005N
...
W52240C
Strainer L-G-5224A20005D
...
W52240B
Strainer L-G-5224A20005A
...
W52240A
Strainer L-G-5224A20005L
...
W5210B
Tube,connector L-G-5210A22825A
...
W4986A
Sound Proof L-G-3096AP3476G
...
W48602
Clamp,spring L-G-4H01930A
...
W4811
Bracket Assembly L-G-ABA32779003
...
W4986B
Gasket L-G-3096AP3469M
...
W4810
Bracket L-G-4810A20116Q
...
55211G
Tube Assembly,expansion L-G-AJR72939602
...
135501
Cover Assembly L-G-ACQ34723601
...
137213B
Panel Assembly,side L-G-3721A10120D
...
137213A
Panel Assembly,side L-G-3721A10120A
...
165010A
Sensor Assembly L-G-6501A20004F
...
165010B
Sensor Assembly L-G-6501A20004E
...
261704
Transformer,reactor L-G-EBJ36363403
...
263230A
Thermistor Assembly,ntc L-G-EBG61107306
...
263230B
Thermistor Assembly,ntc L-G-EBG61107403
...
263230C
Thermistor Assembly,ntc L-G-EBG61107502
...
346811
Motor Assembly,ac,cooling L-G-EAU37261501
...
349600
Bracket,motor L-G-4960A10022A
...
352111A
Tube Assembly,connector L-G-5211A11102A
...
352112
Tube Assembly,coupling L-G-5211A11097B
...
352114A
Tube Assembly,distributor L-G-5211A10681A
...
352114B
Tube Assembly,distributor L-G-5211A10680A
...
430410
Base Assembly,outdoor L-G-3041A10082A
...
435310
Grille Assembly,front(outdoor) L-G-AEB72917502
...
435312
Grille Assembly,rear(outdoor) L-G-AEB72917602
...
435512
Cover Assembly,top(outdoor) L-G-3551A10071A
...
437211
Panel Assembly,front(outdoor) L-G-3721A10107S
...
437212
Panel Assembly,rear(outdoor) L-G-3721A10108J
...
447910B
Barrier Assembly,outdoor L-G-4791A10021E
...
447910A
Barrier Assembly,outdoor L-G-4791A10023A
...
546810A
Motor Assembly,dc,outdoor L-G-EAU36301603
...
546810B
Motor Assembly,dc,outdoor L-G-EAU36301604
...
548490
Accumulator L-G-4849A10070B
...
552102
Tube,capillary Bending L-G-5210A22526C
...
552115A
Tube Assembly,manifold(outdoor) L-G-5211A11033A
...
552115B
Tube Assembly,manifold(outdoor) L-G-5211A22101A
...
552115C
Tube Assembly,manifold(outdoor) L-G-5211A22100A
...
552115D
Tube Assembly,manifold(outdoor) L-G-5211A11034A
...
552116
Tube Assembly,reverse L-G-5211A10624S
...
552120A
Tube Assembly L-G-AJR71088301
...
552120B
Tube Assembly L-G-AJR71088302
...
552200B
Valve,expansion Body L-G-5220A90003C
...
552202
Valve,reverse L-G-5220AP3777C
...
552203A
Valve,service L-G-5220A90012N
...
552203B
Valve,service L-G-5220A90012D
...
552203C
Valve,service L-G-MJX62253901
...
552204A
Valve,solenoid L-G-5220A90008K
...
552204B
Valve,solenoid L-G-MJX61845502
...
552209A
Valve Assembly L-G-AJU36719701
...
553000B
Heater,sump L-G-5300A20008U
...
553000A
Heater,sump L-G-5300A20008T
...
554030A
Condenser Assembly,first L-G-ACG56695401
...
554030B
Condenser Assembly,first L-G-ACG56695402
...
554030C
Condenser Assembly,first L-G-ACG33922403
...
554030D
Condenser Assembly,first L-G-ACG33922404
...
554160A
Compressor Set,korea L-G-TBZ31726701
...
554160B
Compressor Set,korea L-G-TBZ31726601
...
559010
Fan Assembly,propeller L-G-5901A10029A
...
559990B
Separator Assembly,oil L-G-5999A10005H
...
559990A
Separator Assembly,oil L-G-5999A10004M
...
559993
Separator,oil L-G-5998A20002A
...
561410B
Solenoid L-G-EBE60658017
...
561410C
Solenoid L-G-6141A20050H
...
561410D
Solenoid L-G-6141A20050G
...
561410E
Solenoid L-G-6141A20010U
...
561410F
Solenoid L-G-EBE60658022
...
566001A
Switch,pressure L-G-EBF40271401
...
566001B
Switch,pressure L-G-EBF40271402
...
661400
Coil,expansion L-G-EAP30616911
