LG ARNU963B8Z4.ANWALUS

Model: ARNU963B8Z4.ANWALUS

Save Part Not Listed?
product name

Main

...
...
W50010
Accessory Assembly L-G-AAA73031501
...
W6640C
Connector,terminal Block L-G-EAG38884445
...
W6640B
Terminal Block L-G-3H00390A
...
W6640A
Connector,terminal Block L-G-EAG63452303
...
55211G
Tube Assembly,expansion L-G-AJR73907702
...
130411A
Base Assembly,indoor L-G-AAN75848701
...
130411B
Base Assembly,indoor L-G-AAN75848702
...
135500
Cover L-G-MCK39875409
...
137213A
Panel Assembly,side L-G-AGL35764412
...
137213B
Panel Assembly,side L-G-AGL35764707
...
137214
Panel Assembly,upper L-G-AGL75653501
...
152302
Filter,air L-G-5230A30017D
...
158591
Pump Assembly,water L-G-5859A20002K
...
249951
Case Assembly,control(indoor) L-G-ABQ74462711
...
261704
Linear Trans L-G-5874A90003H
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
263230B
Thermistor Assembly,ntc L-G-EBG61287706
...
263230A
Thermistor Assembly,ntc L-G-EBG61106830
...
266010
Switch Assembly L-G-6601A20013P
...
267110
Remote Controller Assembly L-G-AKB75075701
...
268711B
Pcb Assembly,main L-G-EBR78310706
...
268711C
Pcb Assembly,sub L-G-EBR72059605
...
268711D
Pcb Assembly,sub L-G-EBR80820301
...
268711E
Pcb Assembly,sub L-G-EBR79304120
...
330871
Pan Assembly,drain L-G-AGK34943708
...
336610
Housing Assembly L-G-3661A20025N
...
346810
Motor Assembly,dc,indoor L-G-EAU39857401
...
349610
Bracket Assembly,motor L-G-ABA74291801
...
352118
Tube Assembly,manifold(indoor) L-G-AJR33316212
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20217L
...
552209
Valve Assembly L-G-AJU36719728
...
561410
Solenoid L-G-EBE60661413

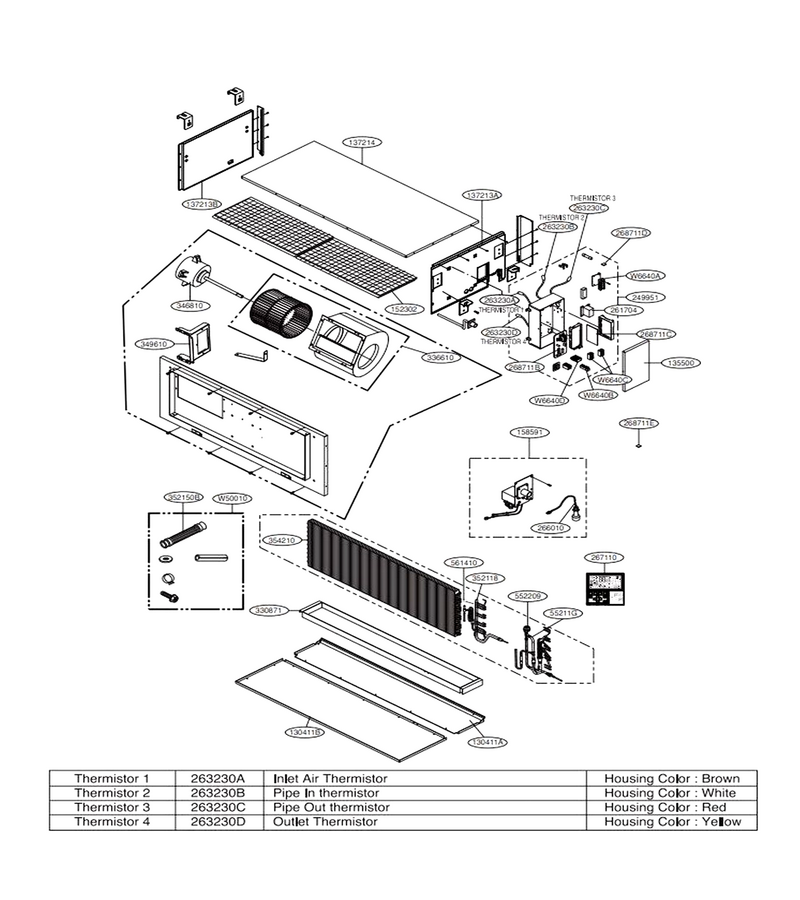

Schematic Image Zoomed
