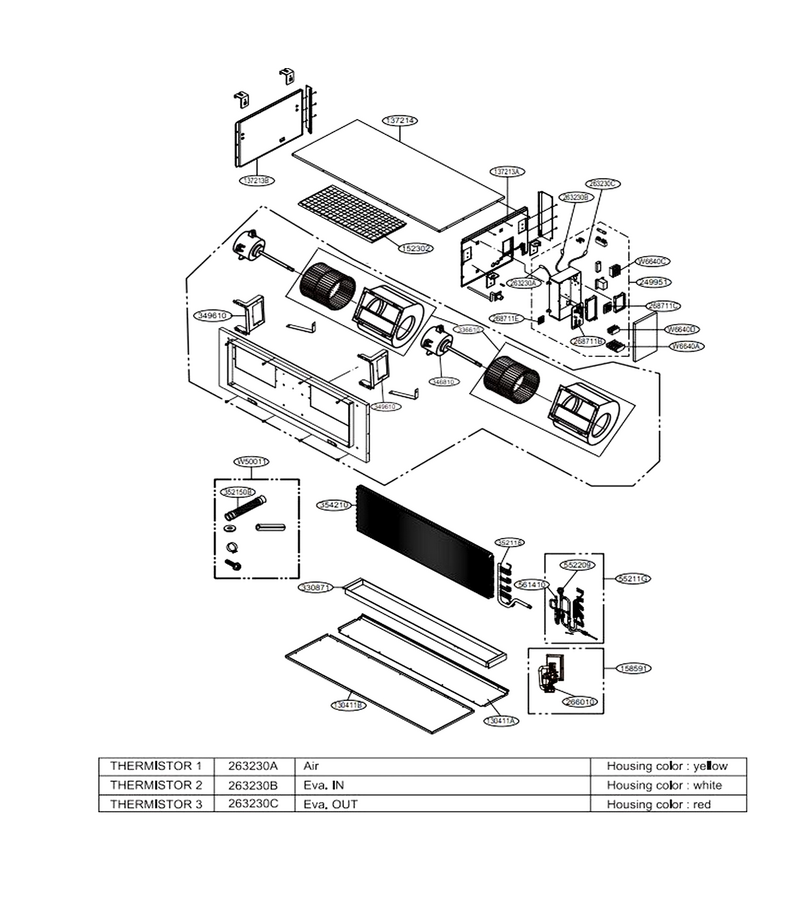

LG ARNU763B8A2.ANWALUS

Model: ARNU763B8A2.ANWALUS

Save Part Not Listed?
product name

Main

...
...
W50011
Accessory Assembly,indoor L-G-5001A30049K
...
W6640A
Connector,terminal Block L-G-EAG63452303
...
W6640C
Connector,terminal Block L-G-6640000036U
...
55211G
Tube Assembly,expansion L-G-AJR73907701
...
130411A
Base Assembly,indoor L-G-AAN75848701
...
130411B
Base Assembly,indoor L-G-AAN75848702
...
137213A
Panel Assembly,side L-G-AGL35764412
...
137213B
Panel Assembly,side L-G-AGL35764707
...
137214
Panel Assembly,upper L-G-AGL75653501
...
152302
Filter,air L-G-5230A30017D
...
158591
Pump Assembly,water L-G-5859A20002K
...
249951
Case Assembly,control(indoor) L-G-ABQ59261303
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
263230B
Thermistor Assembly,ntc L-G-EBG61287706
...
263230A
Thermistor Assembly,ntc L-G-EBG61106822
...
266010
Switch Assembly L-G-6601A20013P
...
268711B
Pcb Assembly,main L-G-EBR77384110
...
268711C
Pcb Assembly,sub L-G-6871A20912J
...
268711E
Pcb Assembly,sub L-G-EBR57726711
...
330871
Pan Assembly,drain L-G-AGK34943708
...
336610
Housing Assembly L-G-3661A20025N
...
346810
Motor Assembly,dc,indoor L-G-EAU39857401
...
349610
Bracket Assembly,motor L-G-ABA74291801
...
352118
Tube Assembly,manifold(indoor) L-G-AJR33316210
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20217L
...
552209
Valve Assembly L-G-AJU36719728
...
561410
Solenoid L-G-EBE60661413
