LG ARNU363V2A4.ANWALUS

Model: ARNU363V2A4.ANWALUS

Save Part Not Listed?
product name

Main

...
...
EBG13RD
Thermistor Assembly,ntc L-G-EBG61325804
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287706
...
EBG13YL
Ntc Thermistor Assembly L-G-EBG61465903
...
W4810
Bracket L-G-MAZ65145402
...
W4811A
Bracket Assembly L-G-ABA75588402
...
W4811B
Bracket Assembly L-G-ABA75588401
...
W49300A
Holder L-G-MEG64179502
...
W49300B
Holder L-G-MEG64179501
...
W6642A
Terminal Block Connector L-G-6640000036H
...
W6642B
Connector,terminal Block L-G-EAG63452303
...
1463YB
Stepping Dc Motor Assembly L-G-EAU60659714
...
2687Z
Sub Pcb Assembly L-G-EBR72498219
...
2687S
Pcb Assembly,sub L-G-EBR80820301
...
2687M
Main Pcb Assembly L-G-EBR84255102
...
2687D
Display Pcb Assembly L-G-6871A20096V
...
55211G
Expansion Tube Assembly L-G-AJR75723818
...
135304B
Diffuser Grille L-G-MDX63712102
...
135304A
Diffuser Grille L-G-MDX63712101
...
135313
Inlet Grille Assembly L-G-AEB74664501
...
135515B
Top (indoor) Cover Assembly L-G-ACQ88151704
...
135515A
Top (indoor) Cover Assembly L-G-ACQ88151703
...
135525B
Cover L-G-MCK67536402
...
135525A
Cover L-G-MCK67536401
...
137211
Front (indoor) Panel Assembly L-G-AGL76613201
...
137213B
Side Panel Assembly L-G-AGL75434702
...
137213A
Side Panel Assembly L-G-AGL75252606
...
144710
Gear Assembly L-G-ADY73209301
...
147740
Hinge L-G-MEF63382001
...
149301
Holder L-G-MEG64179401
...
149303
Tubing Holder L-G-MEG64120001
...
152402
Air Filter L-G-MDJ64344501
...
235502A
Cover L-G-MCK69252707
...
249951
Control (indoor) Case Assembly L-G-ABQ75720955
...
342800A
Bearing L-G-4280A20003A
...
342800
Bearing L-G-4280A20004M
...
346810
Dc Indoor Motor L-G-EAU62023304
...
352118
Manifold (indoor) Tube Assembly L-G-AJR75243608
...
352150
Drain Hose Assembly L-G-AEM73493409
...
352380
Air Guide L-G-MEA63950801
...
354210
First Evaporator Assembly L-G-ADL74861004
...
359011A
Cross Flow Fan Assembly L-G-ADP73694503
...
359011B
Cross Flow Fan Assembly L-G-ADP73694502
...
437214
Base Panel Assembly L-G-AGL75676604
...
749750
Guide Assembly L-G-AEC74537401

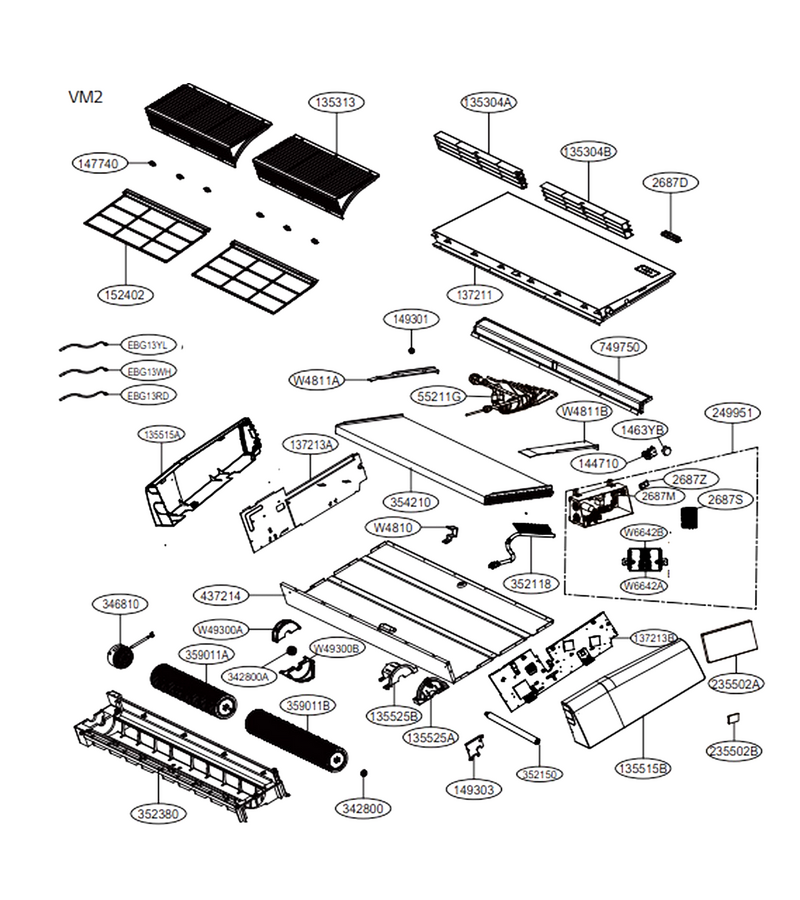

Schematic Image Zoomed
