LG ARNU363NJA4.AMBBLUS

Model: ARNU363NJA4.AMBBLUS

Save Part Not Listed?
product name

Nj

...
...
W0FZZA
Fuse,time Delay L-G-6900AQ9028D
...
W0FZZB
Fuse,non Time Delay L-G-0FM8001B511
...
W4811A
Bracket Assembly L-G-ABA73488301
...
W4811B
Bracket L-G-MAZ62607820
...
W6631B
Harness,single L-G-EAD63468101
...
W6640A
Connector,terminal Block L-G-EAG38884446
...
55211G
Tube Assembly,expansion L-G-AJR73363201
...
130411
Base Assembly,indoor L-G-AAN73350803
...
130911
Cabinet Assembly,indoor L-G-ABJ73227107
...
137211A
Panel Assembly,front(indoor) L-G-AGL73252603
...
137211B
Panel Assembly,front(indoor) L-G-AGL73252701
...
137214
Panel Assembly,upper L-G-AGL73252801
...
147911
Barrier Assembly,indoor L-G-AAM73111202
...
249951
Case Assembly,control(indoor) L-G-ABQ59260727
...
261704
Transformer,reactor L-G-5874FR2112F
...
263230A
Thermistor Assembly,ntc L-G-EBG61106816
...
263230C
Thermistor Assembly,ntc L-G-EBG61325811
...
263230B
Thermistor Assembly,ntc L-G-EBG61287713
...
268711A
Pcb Assembly,main L-G-EBR79004805
...
268711D
Pcb Assembly,sub L-G-EBR83841801
...
268711C
Pcb Assembly,sub L-G-EBR79304112
...
268711B
Pcb Assembly,sub L-G-EBR72059611
...
330871A
Pan Assembly,drain L-G-AGK73050501
...
330871B
Pan Assembly,drain L-G-AGK73050601
...
336610A
Housing Assembly L-G-AEN55797602
...
336610B
Housing Assembly L-G-3661AP1139L
...
346810
Motor, Dc Indoor L-G-EAU50642902
...
349600
Bracket,motor L-G-MAZ48060502
...
352118A
Tube Assembly,manifold(indoor) L-G-AJR73327001
...
352118B
Tube Assembly,manifold(indoor) L-G-AJR73342801
...
354210A
Evaporator Assembly,first L-G-ADL73180901
...
354210B
Evaporator Assembly,first L-G-ADL73180902
...
359012
Fan Assembly,blower L-G-2A00578F

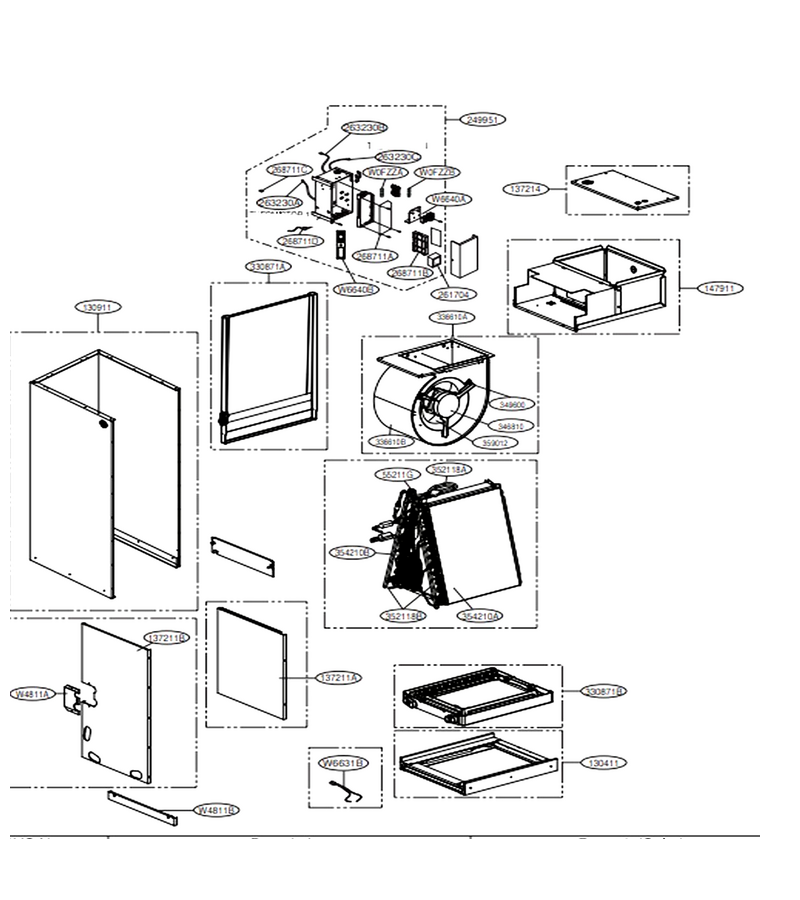

Schematic Image Zoomed
