LG ARNU363BRA4.ANWBLUS

Model: ARNU363BRA4.ANWBLUS

Save Part Not Listed?
product name

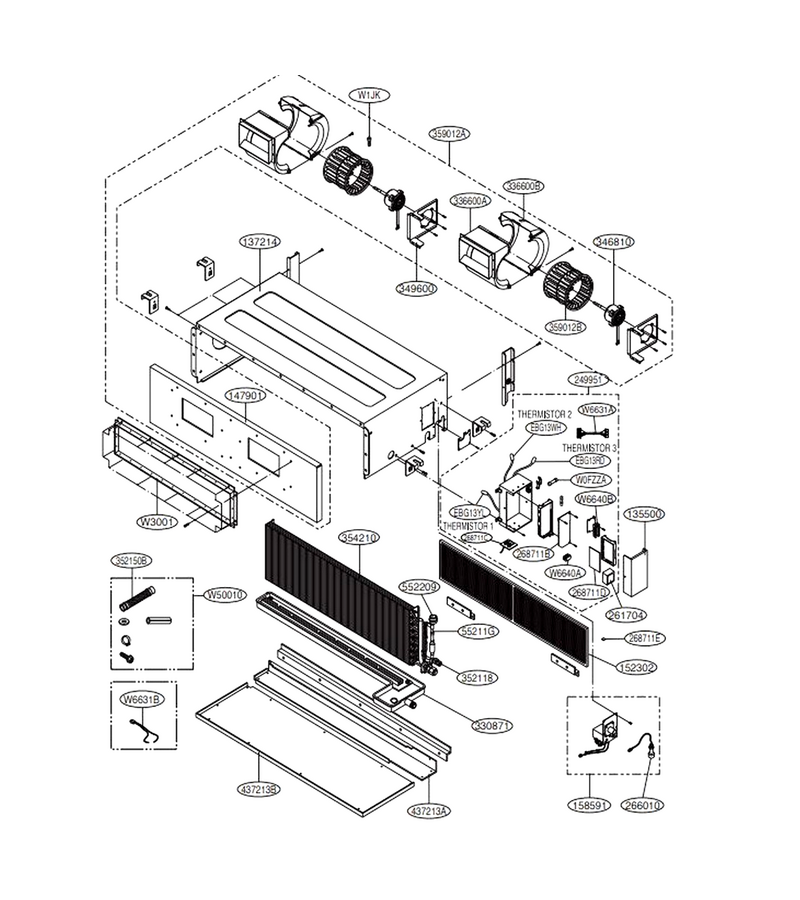

Main

...
...
EBG13RD
Thermistor Assembly,ntc L-G-EBG61325803
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287706
...
EBG13YL
Thermistor Assembly,ntc L-G-EBG61106822
...
W0FZZA
Fuse,time Delay L-G-6900AQ9028D
...
W1JK
Screw,set L-G-4H00026A
...
W3001
Angle Assembly L-G-3001A20007A
...
W50010
Accessory Assembly L-G-AAA73031501
...
W6631A
Harness,multi L-G-EAD62490407
...
W6631B
Harness,single L-G-EAD63468101
...
W6640A
Connector,terminal Block L-G-EAG38884446
...
W6640B
Terminal Block Connector L-G-EAG63452301
...
55211G
Tube Assembly,expansion L-G-5211A21810A
...
135500
Cover L-G-3550A20518B
...
137214
Panel Assembly,upper L-G-3721A20199C
...
147901
Barrier,indoor L-G-4790A10052B
...
152302
Filter,air L-G-5230A30017A
...
158591
Pump Assembly,water L-G-5859A20002D
...
249951
Case Assembly,control(indoor) L-G-ABQ59260724
...
261704
Linear Trans L-G-5874A90003H
...
266010
Switch Assembly L-G-6601A20013P
...
268711B
Pcb Assembly,main L-G-EBR79004804
...
268711E
Pcb Assembly,sub L-G-EBR78237003
...
268711D
Pcb Assembly,sub L-G-6871A20912Q
...
268711C
Pcb Assembly,sub L-G-EBR80820301
...
330871
Pan Assembly,drain L-G-3087A20025B
...
336600A
Housing,wrapper L-G-3660A20044A
...
336600B
Housing,wrapper L-G-3660A20045A
...
346810
Motor Assembly,dc,indoor L-G-4681A20169B
...
349600
Bracket,motor L-G-4960A20103A
...
352118
Tube Assembly,manifold(indoor) L-G-5211A21811B
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20273A
...
359012A
Fan Assembly,final L-G-5901A20054A
...
359012B
Fan Assembly,blower L-G-5901A10051A
...
437213A
Panel Assembly,rear(indoor) L-G-3721A23003B
...
437213B
Panel Assembly,rear(indoor) L-G-3721A23002B
