LG ARNU283M3A4.ANWALUS

Model: ARNU283M3A4.ANWALUS

Save Part Not Listed?
product name

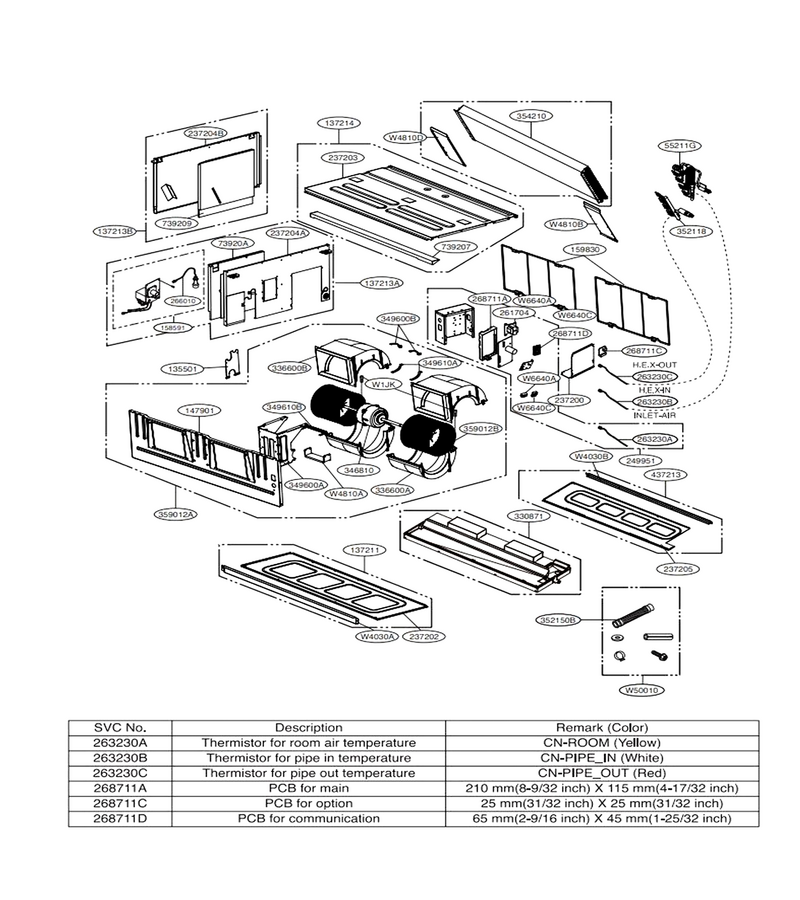

M3 Chassis

...
...
W1JK
Screw,set L-G-4H00026A
...
W4030A
Flange L-G-MDM61941201
...
W4030B
Flange L-G-MDM61941301
...
W4810A
Bracket L-G-MAZ64043902
...
W4810B
Bracket L-G-MAZ63847903
...
W4810D
Bracket L-G-MAZ67085701
...
W50010
Accessory Assembly L-G-AAA73031501
...
W6640A
Connector,terminal Block L-G-EAG38884445
...
55211G
Tube Assembly,expansion L-G-AJR77103501
...
73920A
Packing,right L-G-MFZ63776902
...
135501
Cover Assembly L-G-ACQ86479602
...
137211
Panel Assembly,front(indoor) L-G-AGL74234903
...
137213A
Panel Assembly,side L-G-AGL74256832
...
137213B
Panel Assembly,side L-G-AGL74256804
...
137214
Panel Assembly,upper L-G-AGL74236403
...
147901
Barrier,indoor L-G-MAL62683903
...
158591
Pump Assembly,water L-G-5859A20002D
...
159830
Filter Assembly,air Cleaner L-G-ADQ73493506
...
237200
Panel,control L-G-MGC66161701
...
237202
Panel,front L-G-MGC63182103
...
237203
Panel,upper L-G-MGC63184403
...
237204B
Panel,side L-G-MGC63184504
...
237204A
Panel,side L-G-MGC63184522
...
237205
Panel,rear L-G-MGC63182205
...
249951
Case Assembly,control(indoor) L-G-ABQ76040306
...
261704
Transformer,reactor L-G-EBJ36274417
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287708
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
266010
Switch Assembly L-G-6601A20013P
...
268711A
Pcb Assembly,main L-G-EBR81117116
...
268711C
Pcb Assembly,sub L-G-EBR80296233
...
268711D
Pcb Assembly,sub L-G-EBR83841801
...
330871
Pan Assembly,drain L-G-AGK73510506
...
336600A
Housing,wrapper L-G-MEK62786903
...
336600B
Housing,wrapper L-G-MEK62786803
...
346810
Motor Assembly,dc,indoor L-G-EAU37067120
...
349600A
Bracket,motor L-G-MAZ63891303
...
349600B
Bracket,motor L-G-4960A30012A
...
349610B
Bracket Assembly,motor(indoor) L-G-ABA74670001
...
349610A
Bracket Assembly,motor(indoor) L-G-4961A30005A
...
352118
Tube Assembly,manifold(indoor) L-G-AJR74466308
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-ADL74001018
...
359012A
Fan Assembly,final L-G-ADP73813520
...
359012B
Fan,blower L-G-MDG62503402
...
437213
Panel Assembly,rear(indoor) L-G-AGL74235008
...
739207
Packing,upper L-G-MFZ63776803
...
739209
Packing,left L-G-MFZ63777002
