LG ARNU283BRA2.ANWALUS

Model: ARNU283BRA2.ANWALUS

Save Part Not Listed?
product name

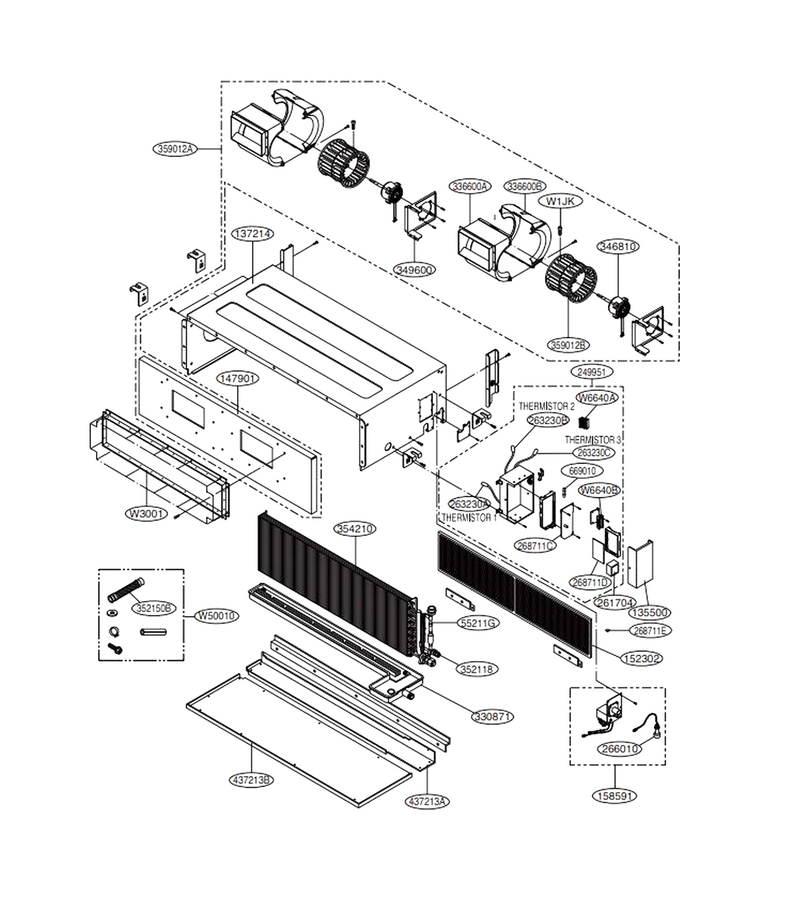

Main

...
...
W1JK
Screw,set L-G-4H00026A
...
W3001
Angle Assembly L-G-3001A20007A
...
W50010
Accessory Assembly L-G-AAA73031501
...
W6640A
Connector,terminal Block L-G-6640000036U
...
W6640B
Terminal Block Connector L-G-EAG63452301
...
55211G
Tube Assembly,expansion L-G-5211A21810A
...
135500
Cover L-G-3550A20518B
...
137214
Panel Assembly,upper L-G-3721A20199C
...
147901
Barrier,indoor L-G-4790A10052B
...
152302
Filter,air L-G-5230A30017A
...
158591
Pump Assembly,water L-G-5859A20002D
...
249951
Control (indoor) Case Assembly L-G-ABQ59260702
...
261704
Linear Trans L-G-5874A90003H
...
263230A
Thermistor Assembly,ntc L-G-EBG61106822
...
263230B
Thermistor Assembly,ntc L-G-EBG61287706
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
266010
Switch Assembly L-G-6601A20013P
...
268711C
Pcb Assembly,main L-G-EBR77384109
...
268711E
Sub Pcb Assembly L-G-EBR72936321
...
268711D
Sub Pcb Assembly L-G-6871A20912G
...
330871
Pan Assembly,drain L-G-3087A20025B
...
336600A
Housing,wrapper L-G-3660A20044A
...
336600B
Housing,wrapper L-G-3660A20045A
...
346810
Motor Assembly,dc,indoor L-G-4681A20169B
...
349600
Bracket,motor L-G-4960A20103A
...
352118
Tube Assembly,manifold(indoor) L-G-5211A21811B
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20273A
...
359012A
Fan Assembly,final L-G-5901A20054A
...
359012B
Fan Assembly,blower L-G-5901A10051A
...
437213A
Panel Assembly,rear(indoor) L-G-3721A23003B
...
437213B
Panel Assembly,rear(indoor) L-G-3721A23002B
...
669010
Fuse Assembly L-G-6901A20003K
