LG ARNU243TSA4.ANWBLUS

Model: ARNU243TSA4.ANWBLUS

Save Part Not Listed?
product name

Main

...
...
W1NF
Nut,common L-G-4H00947C
...
W3110
Case L-G-MBN64409002
...
W49810A
Supporter Assembly L-G-AJJ74798501
...
W49810B
Supporter Assembly L-G-AJJ74058601
...
W50010
Accessory Assembly L-G-AAA31075425
...
W50060
Cap L-G-MBL64919401
...
W52105
Tube,return Bending L-G-4H02273Q
...
W6640A
Connector,terminal Block L-G-EAG38884441
...
W6640B
Connector,terminal Block L-G-EAG63452303
...
55211G
Expansion Tube Assembly L-G-AJR75786302
...
130411
Base Assembly,indoor L-G-AAN74510601
...
130911B
Cabinet Assembly,indoor L-G-ABJ74147901
...
130911C
Cabinet Assembly,indoor L-G-ABJ74148501
...
130911A
Cabinet Assembly,indoor L-G-ABJ74147801
...
131410
Cabinet Assembly L-G-ABJ74148001
...
135500
Cover L-G-MCK64966501
...
158591
Pump Assembly,water(dc) L-G-AHA74013901
...
249310
Holder Assembly L-G-AEJ73919501
...
249951
Control (indoor) Case Assembly L-G-ABQ74383310
...
263230A
Thermistor Assembly,ntc L-G-EBG61106819
...
263230B
Thermistor Assembly,ntc L-G-EBG61287712
...
263230C
Thermistor Assembly,ntc L-G-EBG61106555
...
268711B
Pcb Assembly,main L-G-EBR79629502
...
268711E
Sub Pcb Assembly L-G-EBR80305813
...
330870
Pan Assembly L-G-AGK73590601
...
346810
Motor Assembly,dc,indoor L-G-4681A20168H
...
349490
Orifice Assembly L-G-AGD73069202
...
352118
Manifold (indoor) Tube Assembly L-G-AJR74823104
...
352150A
Hose Assembly,drain L-G-AEM73833301
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL74121001
...
359012
Fan Assembly,turbo L-G-ADP73853401

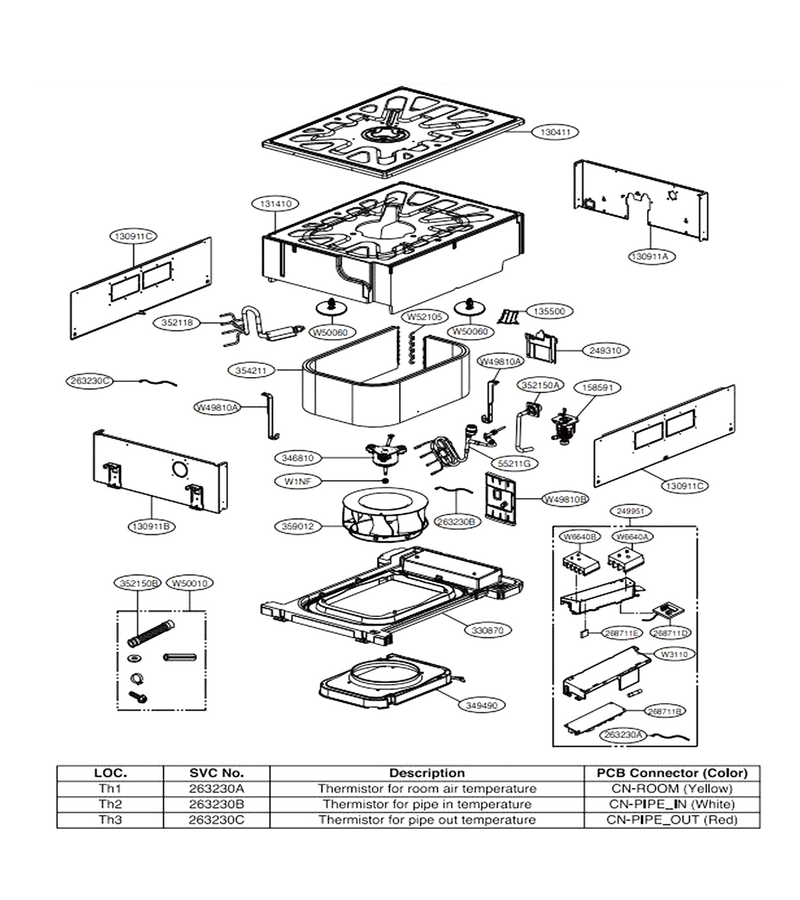

Schematic Image Zoomed
