LG ARNU243CFA2.ANWALUS

Model: ARNU243CFA2.ANWALUS

Save Part Not Listed?

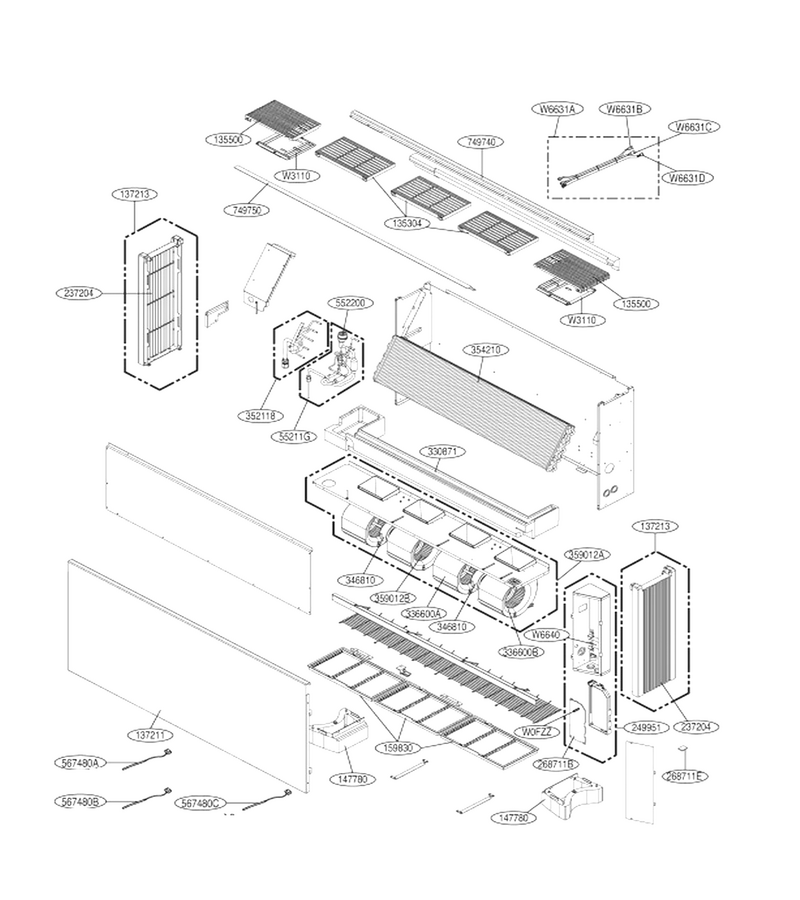

product name

Cf (with Case)

...
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W6631D
Harness,single L-G-6631A30122R
...
W6631C
Harness,single L-G-6631A30122Q
...
W6631B
Harness,single L-G-6631A30122N
...
W6631A
Harness,single L-G-6631A20249F
...
W3110
Case L-G-3110A20172A
...
55211G
Tube Assembly,expansion L-G-AJR30065102
...
135304
Grille,diffuser L-G-3530A20142A
...
135500
Cover L-G-3550A20537A
...
137211
Panel Assembly,front(indoor) L-G-AGL30619002
...
137213
Panel Assembly,side L-G-AGL30313401
...
147780
Leg L-G-4778A20018A
...
159830
Filter Assembly,air Cleaner L-G-5231A20053B
...
237204
Panel,side L-G-3720A20723A
...
249951
Case Assembly,control(indoor) L-G-ABQ59261502
...
268711E
Pcb Assembly,sub L-G-EBR57726718
...
268711B
Pcb Assembly,main L-G-EBR39319514
...
330871
Pan Assembly,drain L-G-AGK30348202
...
336600A
Housing,wrapper L-G-3660A20059A
...
336600B
Housing,wrapper L-G-3660A20060A
...
346810
Motor,dc L-G-EAU31898301
...
352118
Tube Assembly,manifold(indoor) L-G-AJR30072402
...
354210
Evaporator Assembly,first L-G-5421A20280C
...
359012A
Fan Assembly,final L-G-5901A20057C
...
359012B
Fan Assembly,blower L-G-5901A20049A
...
552200
Valve Assembly L-G-5221A20004S
...
567480A
Thermistor,ntc L-G-6323A30004P
...
567480B
Thermistor L-G-EBG58712401
...
567480C
Thermistor L-G-EBG58713202
...
749740
Guide L-G-MEA30239904
...
749750
Guide Assembly L-G-AEC30753508
