LG ARNU243B4G4.ANWALUS

Model: ARNU243B4G4.ANWALUS

Save Part Not Listed?
product name

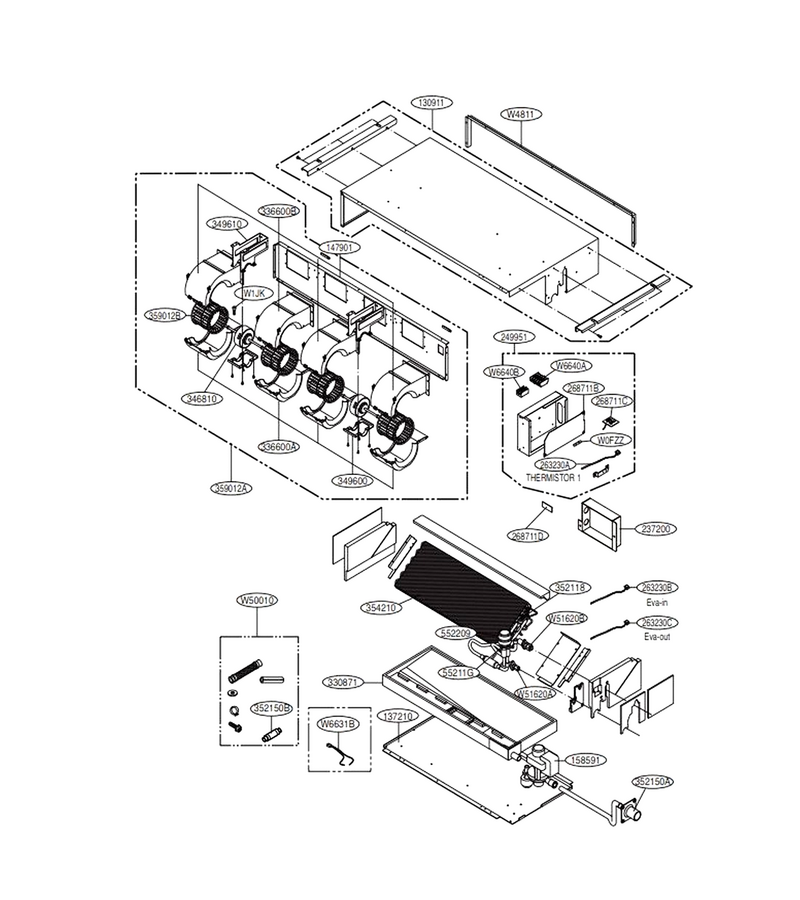

Main

...
...
W6640B
Connector,terminal Block L-G-EAG38884445
...
W6640A
Connector,terminal Block L-G-EAG63452303
...
W6631B
Harness,single L-G-EAD63468101
...
W51620B
Socket,flare L-G-6620DG3014E
...
W51620A
Socket,flare L-G-6620DG3015G
...
W50010
Accessory Assembly L-G-AAA73031501
...
W4811
Bracket Assembly L-G-4811A10032A
...
W1JK
Screw,set L-G-4H00516B
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
55211G
Tube Assembly,expansion L-G-5211A11603B
...
130911
Indoor Cabinet Assembly L-G-3091A10093V
...
137210
Panel Assembly,front L-G-AGL31147604
...
147901
Barrier,indoor L-G-4790A20076B
...
158591
Pump Assembly,water L-G-5859A10008B
...
237200
Cover Assembly L-G-ACQ33630803
...
249951
Case Assembly,control(indoor) L-G-ABQ59260302
...
263230C
Thermistor Assembly,ntc L-G-EBG61325801
...
263230B
Thermistor Assembly,ntc L-G-EBG61287708
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
268711B
Pcb Assembly,main L-G-EBR79004803
...
268711C
Pcb Assembly,main L-G-EBR85686003
...
268711D
Sub Pcb Assembly L-G-EBR79266919
...
330871
Pan Assembly,drain L-G-AGK30318402
...
336600A
Housing,wrapper L-G-3660A20059A
...
336600B
Housing,wrapper L-G-3660A20060A
...
346810
Motor Assembly,dc,indoor L-G-4681A20198D
...
349600
Bracket,motor L-G-4960A30038A
...
349610
Bracket Assembly,motor(indoor) L-G-4961A20043A
...
352118
Tube Assembly,manifold(indoor) L-G-5211A11604B
...
352150A
Hose Assembly,drain L-G-5215A20008B
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20280A
...
359012A
Fan Assembly,final L-G-5901A20057B
...
359012B
Fan Assembly,blower L-G-5901A20049A
...
552209
Valve Assembly L-G-AJU36719710
