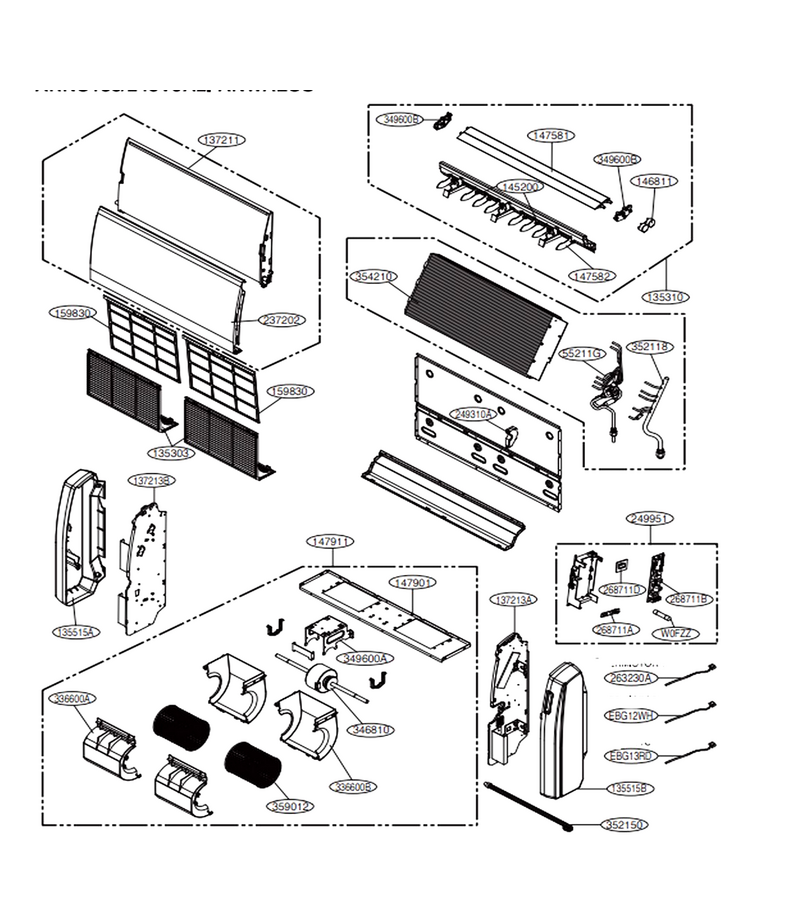

LG ARNU183VJA2.ANWALUS

Model: ARNU183VJA2.ANWALUS

Save Part Not Listed?
product name

Main

...
...
EBG12WH
Thermistor Assembly,ntc L-G-EBG61287707
...
EBG13RD
Thermistor Assembly,ntc L-G-EBG61325803
...
55211G
Tube Assembly,expansion L-G-AJR30386602
...
135303
Grille,inlet L-G-3530A10256A
...
135310
Grille Assembly,diffuser(indoor) L-G-3531A10306F
...
135515A
Cover Assembly,top(indoor) L-G-3551A20179B
...
135515B
Cover Assembly,top(indoor) L-G-3551A20179A
...
137211
Panel Assembly,front(indoor) L-G-3721A10143G
...
137213A
Panel Assembly,side L-G-3721A10142A
...
137213B
Panel Assembly,side L-G-3721A10141E
...
145200
Link L-G-4520A20035A
...
146811
Motor Assembly, Dc, Stepping L-G-4681AP2968L
...
147581
Louver,horizontal L-G-5990A10022A
...
147582
Louver,vertical L-G-4758A30056A
...
147901
Barrier,indoor L-G-4790A10059C
...
147911
Barrier Assembly,indoor L-G-AAM30575001
...
159830
Filter Assembly,air Cleaner L-G-5231A10016A
...
237202
Panel,front L-G-3720A11009F
...
249310A
Holder Assembly L-G-4931A20022A
...
249951
Case Assembly,control(indoor) L-G-ABQ30643105
...
263230A
Thermistor Assembly,ntc L-G-EBG61106819
...
268711A
Pcb Assembly,display L-G-6871A20096B
...
268711B
Pcb Assembly,main L-G-EBR39566203
...
268711D
Pcb Assembly,sub L-G-EBR44258709
...
336600A
Housing,wrapper L-G-3660A20047A
...
336600B
Housing,wrapper L-G-3660A20048A
...
346810
Motor Assembly,dc,indoor L-G-4681A20197B
...
349600A
Bracket,motor L-G-MAZ31074301
...
349600B
Bracket,motor L-G-4960A20077C
...
352118
Tube Assembly,manifold(indoor) L-G-AJR30374702
...
352150
Hose Assembly,drain L-G-5251A20011E
...
354210
Evaporator Assembly,first L-G-5421A20225C
...
359012
Fan,blower L-G-5900A20052A
