LG ARNU183TTD4.ANWBLUS

Model: ARNU183TTD4.ANWBLUS

Save Part Not Listed?
product name

Tt Chassis

...
...
W0FZZ
Fuse,time Delay L-G-EAF60673101
...
W3110
Case L-G-MBN64343001
...
W50010
Accessory Assembly L-G-AAA73031518
...
55211G
Tube Assembly,expansion L-G-AJR68019502
...
130911
Cabinet Assembly,indoor L-G-ABJ36803022
...
131410
Cabinet Assembly L-G-ABJ36805710
...
135500B
Cover L-G-MCK41149901
...
135500D
Cover L-G-MCK41469901
...
135500C
Cover L-G-MCK41149201
...
135501A
Cover Assembly L-G-ACQ59247801
...
135501B
Cover Assembly L-G-ACQ59247901
...
149304
Holder,evaporator L-G-MEG41149601
...
152301
Filter L-G-MDJ63486401
...
152302
Filter,air L-G-MDJ57199401
...
152500
Pan,drain L-G-MGB41570201
...
158591
Pump Assembly,water(dc) L-G-AHA75113301
...
159830A
Filter Assembly,clean L-G-ADQ68716803
...
249940
Case,control(indoor) L-G-MBN41150502
...
249951
Case Assembly,control(indoor) L-G-ABQ74881709
...
263230C
Thermistor Assembly,ntc L-G-EBG61325805
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287706
...
266010
Switch Assembly L-G-6601A20013P
...
268711B
Pcb Assembly,main L-G-EBR81767909
...
268711E
Pcb Assembly,sub L-G-EBR78895205
...
330870
Pan Assembly L-G-AGK73390902
...
342800A
Bearing L-G-4280A20003A
...
342800B
Bearing L-G-MAP64313501
...
346810
Motor Assembly,dc,indoor L-G-EAU62004010
...
352118
Tube Assembly,manifold(indoor) L-G-AJR67734302
...
352150A
Hose Assembly,drain L-G-AEM36806101
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
352380A
Guide,air L-G-MEA41163001
...
352380B
Guide,air L-G-MEA41149801
...
352380D
Guide,air L-G-MEA41644101
...
352380E
Guide,air L-G-MEA41644102
...
354210
Evaporator Assembly,first L-G-ADL36804501
...
359011A
Fan Assembly,cross Flow L-G-ADP35994402
...
359011B
Fan Assembly,cross Flow L-G-ADP35994401

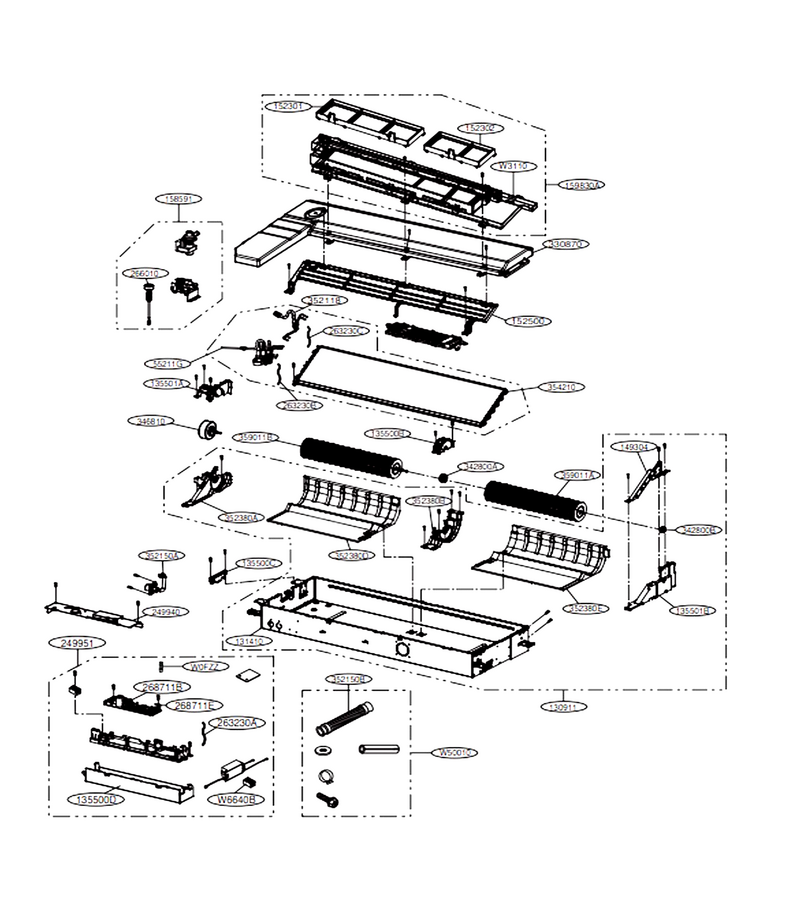

Schematic Image Zoomed
