LG ARNU183TTC4.ANWBLUS

Model: ARNU183TTC4.ANWBLUS

Save Part Not Listed?
product name

Main

...
...
W1JK
Screw,set L-G-3H00535C
...
W3110
Case L-G-MBN64343001
...
W50010
Accessory Assembly L-G-AAA73031518
...
W52105
Tube,return Bending L-G-3H02787B
...
W6640A
Connector,terminal Block L-G-EAG38884446
...
W6640B
Connector,terminal Block L-G-EAG38884444
...
55211G
Tube Assembly,expansion L-G-AJR68019502
...
130911
Indoor Cabinet Assembly L-G-ABJ36803028
...
131410
Cabinet Assembly L-G-ABJ36805705
...
135500B
Cover L-G-MCK41149901
...
135500D
Cover L-G-MCK41469901
...
135500C
Cover L-G-MCK41149201
...
135501A
Cover Assembly L-G-ACQ59247801
...
135501B
Cover Assembly L-G-ACQ59247901
...
149304
Holder,evaporator L-G-MEG41149601
...
152301
Filter L-G-MDJ63486402
...
152302
Air Filter L-G-MDJ57199405
...
152500
Pan,drain L-G-MGB41570201
...
158591
Water Pump Assembly L-G-AHA36804305
...
159830A
Filter Assembly,clean L-G-ADQ68716803
...
249940
Case,control(indoor) L-G-MBN41150504
...
249951
Control (indoor) Case Assembly L-G-ABQ74881702
...
263230C
Thermistor Assembly,ntc L-G-EBG61325805
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287706
...
266010
Switch Assembly L-G-6601A20013P
...
268711B
Main Pcb Assembly L-G-EBR81221805
...
268711E
Pcb Assembly,sub L-G-EBR78895205
...
268711D
Pcb Assembly,sub L-G-EBR80820301
...
330870
Pan Assembly L-G-AGK73390902
...
342800B
Bearing L-G-MAP64313501
...
342800A
Bearing L-G-4280A20003A
...
346810
Motor Assembly,dc,indoor L-G-EAU62004010
...
352118
Tube Assembly,manifold(indoor) L-G-AJR67734302
...
352119
Tube Assembly,return Bending L-G-3H02787A
...
352150A
Drain Hose Assembly L-G-AEM36806102
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
352380A
Guide,air L-G-MEA41163001
...
352380B
Guide,air L-G-MEA41149801
...
352380D
Air Guide L-G-MEA41644103
...
352380E
Air Guide L-G-MEA41644104
...
354210
Evaporator Assembly,first L-G-ADL36804501
...
359011A
Cross Flow Fan Assembly L-G-ADP75674701
...
359011B
Cross Flow Fan Assembly L-G-ADP75674702

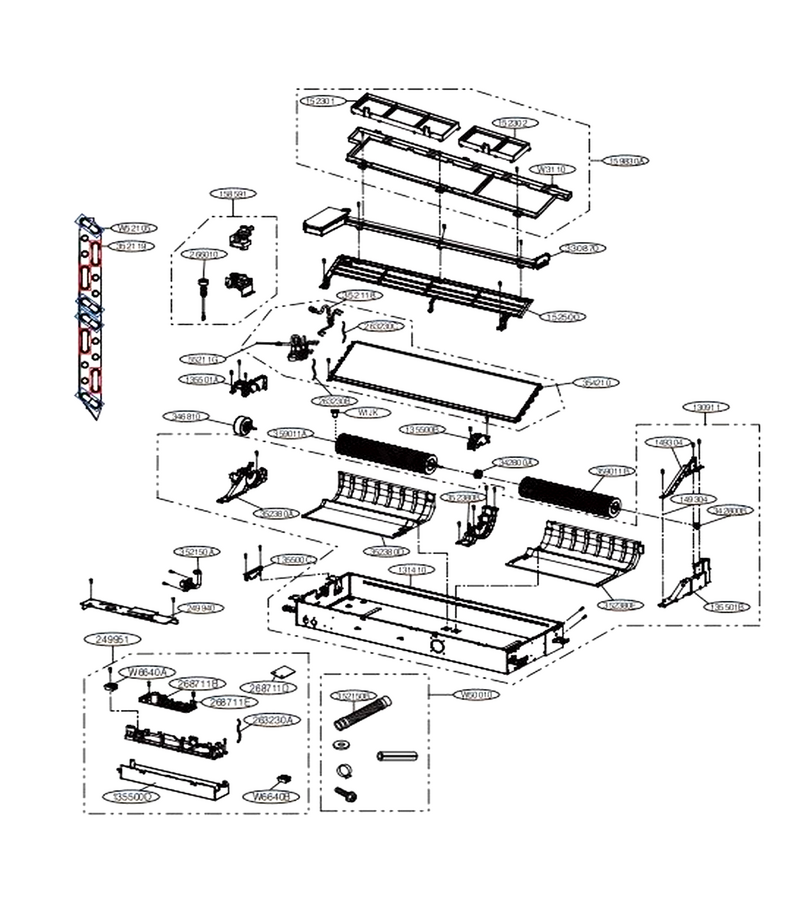

Schematic Image Zoomed
