LG ARNU183TLC4.ANWBLUS

Model: ARNU183TLC4.ANWBLUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Tl (plasma Model)

...
...
W0FZZ
Fuse,time Delay L-G-EAF60673101
...
W50010
Accessory Assembly L-G-AAA73031501
...
W6631B
Harness,single L-G-EAD63468103
...
55211G
Tube Assembly,expansion L-G-5211A11300F
...
130911
Cabinet Assembly,indoor L-G-3091A20045D
...
135501
Cover Assembly L-G-ACQ30226201
...
135511
Cover Assembly,control(indoor) L-G-ACQ87495102
...
158591
Pump Assembly,water L-G-5859A20005B
...
249951
Case Assembly,control(indoor) L-G-ABQ30161717
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230C
Thermistor Assembly,ntc L-G-EBG61325804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287705
...
268711C
Pcb Assembly,main L-G-EBR69493302
...
268711D
Pcb Assembly,sub L-G-EBR80820301
...
268711E
Pcb Assembly,option L-G-EBR78895208
...
330870
Pan Assembly,drain L-G-3087A10034A
...
342800
Bearing L-G-4280A20004M
...
346810
Motor Assembly,dc,indoor L-G-EAU62004010
...
352116
Tube Assembly,evaporator(out) L-G-5211A21725F
...
352150A
Hose Assembly,drain L-G-5251A21001A
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
352380
Guide,air L-G-5238A20037A
...
354210A
Evaporator Assembly,first L-G-5421A20269C
...
354210B
Evaporator Assembly,first L-G-5421A20269D
...
359011
Fan Assembly,cross Flow L-G-5901AR6141D
...
435513
Cover Assembly,tubing L-G-3551A21008C

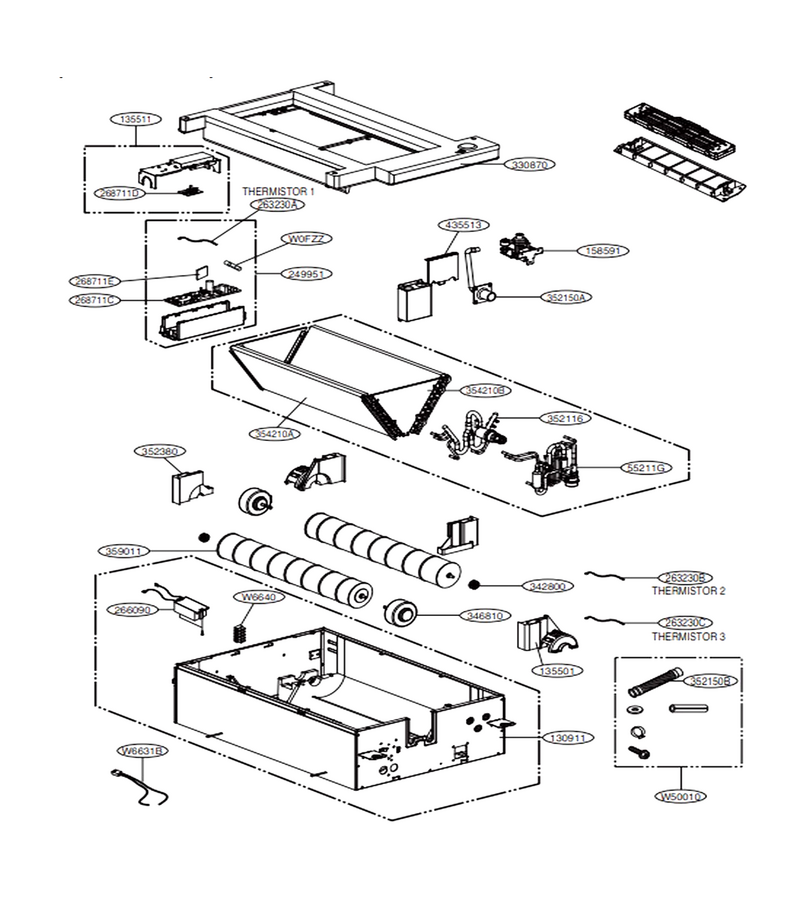

Schematic Image Zoomed
