LG ARNU153TQC4.ANWALUS

Model: ARNU153TQC4.ANWALUS

Save Part Not Listed?
product name

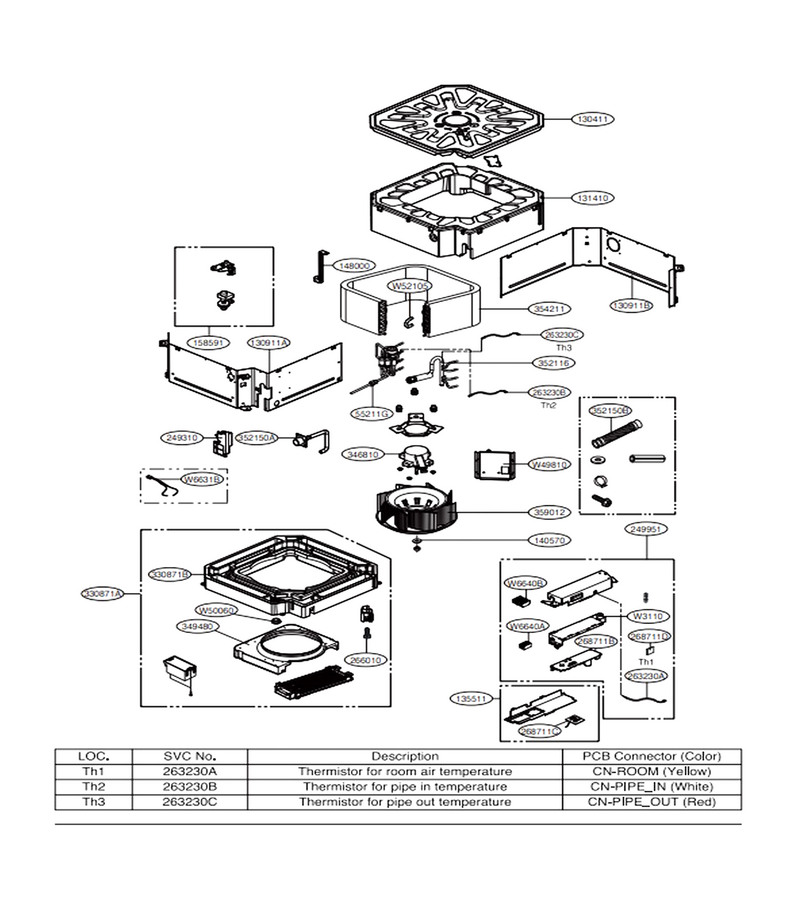

Main

...
...
W3110
Case L-G-MBN42288301
...
W49810
Supporter Assembly L-G-AJJ36865003
...
W50060
Cap L-G-MBL36236701
...
W52105
Tube,return Bending L-G-4H02273Q
...
W6631B
Harness,single L-G-EAD63468101
...
W6640A
Connector,terminal Block L-G-EAG38884426
...
W6640B
Connector,terminal Block L-G-EAG63452303
...
55211G
Expansion Tube Assembly L-G-AJR57024702
...
130411
Base Assembly,indoor L-G-AAN36760003
...
130911B
Cabinet Assembly,indoor L-G-ABJ36864908
...
130911A
Cabinet Assembly,indoor L-G-ABJ36864809
...
131410
Cabinet Assembly L-G-ABJ36729504
...
135511
Cover Assembly,control(indoor) L-G-ACQ59999212
...
140570
Locker Assembly L-G-4A01405H
...
148000
Supporter L-G-MJH62282101
...
158591
Pump Assembly,water L-G-AHA36872201
...
249310
Holder Assembly L-G-AEJ36877601
...
249951
Control (indoor) Case Assembly L-G-ABQ76160802
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230C
Thermistor Assembly,ntc L-G-EBG61325804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287705
...
266010
Switch Assembly L-G-6601A20013T
...
268711B
Pcb Assembly,main L-G-EBR81221804
...
268711C
Pcb Assembly,sub L-G-EBR83841801
...
268711D
Sub Pcb Assembly L-G-EBR78895213
...
330871A
Pan Assembly,drain L-G-AGK36759811
...
330871B
Pan Assembly,drain L-G-AGK73110501
...
346810
Motor Assembly,dc,indoor L-G-EAU63363401
...
349480
Orifice L-G-MFX42252901
...
352116
Tube Assembly,evaporator(out) L-G-AJR52676202
...
352150A
Hose Assembly,drain L-G-AEM36871901
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL55996001
...
359012
Fan,turbo L-G-MDG42287901
