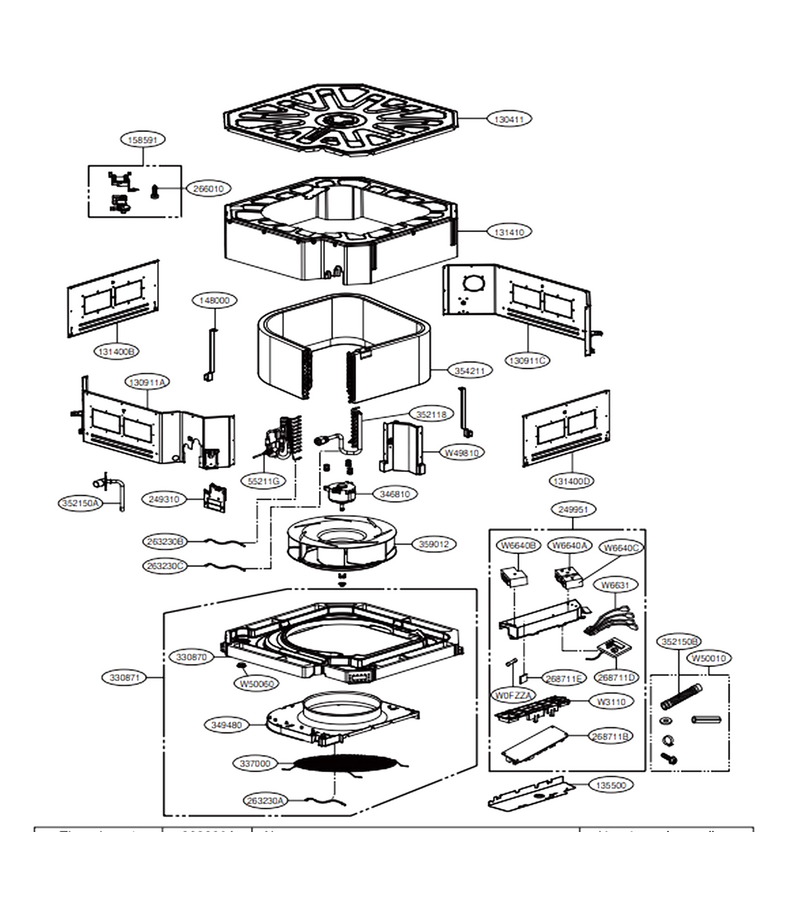

LG ARNU153TPAA.ANWALUS

Model: ARNU153TPAA.ANWALUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
W0FZZA
Fuse,time Delay L-G-EAF60673101
...
W3110
Case L-G-MBN36239701
...
W49810
Supporter Assembly L-G-AJJ73018303
...
W50010
Accessory Assembly L-G-AAA31075410
...
W50060
Cap L-G-MBL36236701
...
W6631
Harness,multi L-G-EAD54698921
...
W6640A
Connector,terminal Block L-G-EAG38884441
...
W6640B
Connector,terminal Block L-G-6640000036T
...
W6640C
Connector,terminal Block L-G-EAG38884445
...
55211G
Tube Assembly,expansion L-G-AJR74165001
...
130411
Base Assembly,indoor L-G-AAN31579002
...
130911C
Cabinet Assembly,indoor L-G-ABJ32881906
...
130911A
Cabinet Assembly,indoor L-G-ABJ32881606
...
131400D
Cabinet L-G-MBH36819002
...
131400B
Cabinet L-G-MBH36818602
...
131410
Cabinet Assembly L-G-ABJ32581801
...
135500
Cover L-G-MCK36239315
...
148000
Supporter L-G-MJH62013806
...
158591
Pump Assembly,water L-G-AHA32883202
...
249310
Holder Assembly L-G-AEJ32882701
...
249951
Control (indoor) Case Assembly L-G-ABQ59260011
...
263230B
Thermistor Assembly,ntc L-G-EBG61287707
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
266010
Switch Assembly L-G-6601A20013L
...
268711B
Pcb Assembly,main L-G-EBR78401707
...
268711D
Pcb Assembly,sub L-G-6871A20712A
...
268711E
Sub Pcb Assembly L-G-EBR74406008
...
330870
Pan Assembly L-G-AGK73130507
...
330871
Pan Assembly,drain L-G-AGK32882916
...
337000
Mesh,metal L-G-MFN55272302
...
346810
Motor,dc L-G-EAU32165801
...
349480
Orifice L-G-MFX37499001
...
352118
Tube Assembly,manifold(indoor) L-G-AJR74164901
...
352150A
Hose Assembly,drain L-G-AEM32883702
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL32881109
...
359012
Fan Assembly,turbo L-G-ADP32882601
