product name

LG ARNU153SBL4.ANWALUS

Model: ARNU153SBL4.ANWALUS

Save Part Not Listed?
product name

Sb Chassis

...
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W50011
Accessory Assembly,indoor L-G-AAA76308019
...
W50400
Damper L-G-5040A30027A
...
W51620A
Socket,flare L-G-3A00375D
...
W51620B
Socket,flare L-G-3A00375E
...
W52105A
Tube,return Bending L-G-MJU57909702
...
W52105B
Tube,connector L-G-5210A20851K
...
W52105C
Tube Assembly,return Bending L-G-5210A20274A
...
35211B
Tube Assembly,tubing L-G-AJR73982402
...
131410
Chassis Assembly L-G-ABW73612401
...
135080
Decor L-G-MCR60969401
...
135311
Grille Assembly,discharge(indoor) L-G-AEB74744504
...
135316
Grille Assembly,front(indoor) L-G-AEB73464522
...
135500A
Cover L-G-MCK56993601
...
135500B
Cover L-G-MCK62996201
...
135500C
Cover L-G-MCK56993302
...
145200
Link L-G-MFF56981901
...
146811B
Motor Assembly,dc,stepping L-G-EAU57945603
...
147581
Louver,horizontal L-G-MFH59924313
...
147582A
Louver,vertical L-G-MFH56981201
...
147582B
Louver,vertical L-G-MFH56981203
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG63162101
...
152302
Filter,air L-G-MDJ56986401
...
237202
Panel,front L-G-MGC61899717
...
249951
Case Assembly,control(indoor) L-G-ABQ74863110
...
263230A
Thermistor Assembly,ntc L-G-EBG62146102
...
263230B
Thermistor Assembly,ntc L-G-EBG62146101
...
263230C
Thermistor Assembly,ntc L-G-EBG61325801
...
268711J
Pcb Assembly,display L-G-EBR64620701
...
268711H
Sub Pcb Assembly L-G-6871A20259D
...
268711D
Pcb Assembly,sub L-G-EBR80820301
...
268711B
Pcb Assembly,main L-G-EBR78225703
...
342800
Bearing L-G-4280A20004M
...
346810
Motor Assembly,dc,indoor L-G-EAU62004011
...
352150
Hose Assembly,drain L-G-AEM73493402
...
354210
Evaporator Assembly,first L-G-ADL68714801
...
359011
Fan Assembly,cross Flow L-G-ADP67813503
...
552209
Valve Assembly L-G-AJU32452014
...
733010
Plate Assembly,installation L-G-AGU67813404
...
749740
Guide L-G-MEA56993101

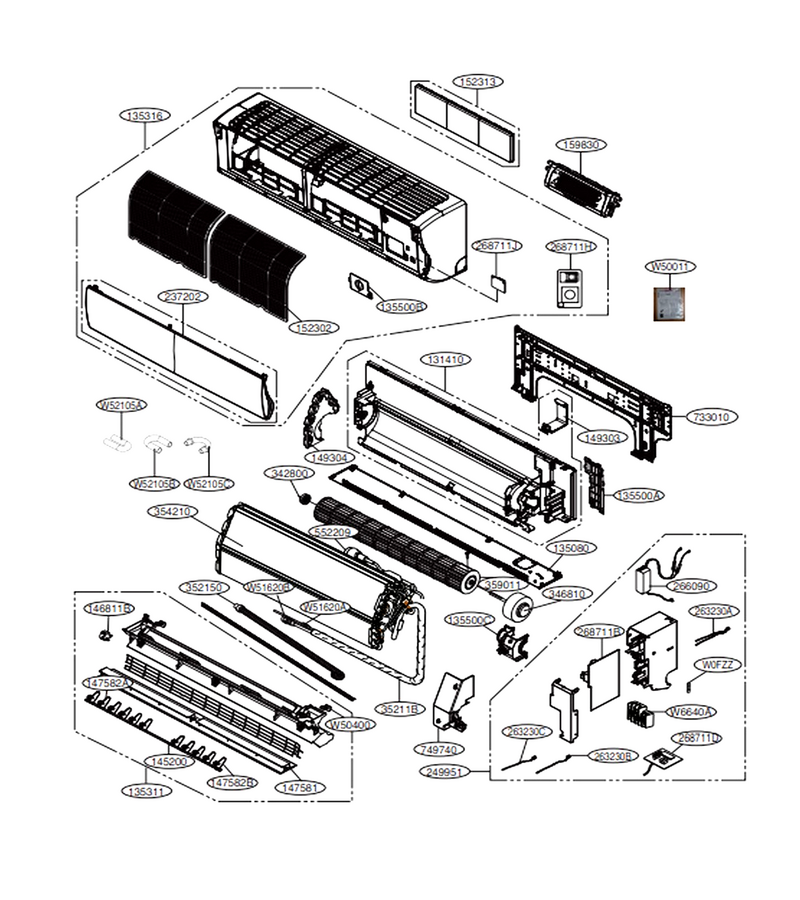

Schematic Image Zoomed
