LG ARNU153L2G4.ANWALUS

Model: ARNU153L2G4.ANWALUS

Save Part Not Listed?
product name

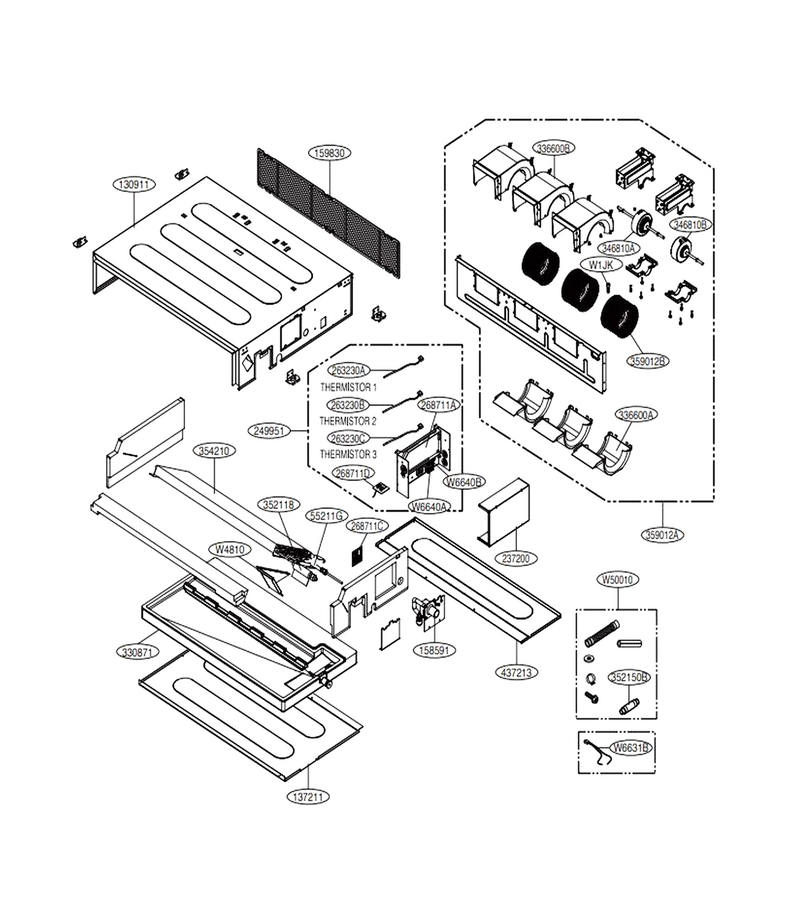

Main

...
...
W1JK
Screw,set L-G-4H00516B
...
W4810
Bracket L-G-MAZ63470401
...
W50010
Accessory Assembly L-G-AAA73031501
...
W6631B
Harness,single L-G-EAD63468101
...
W6640A
Connector,terminal Block L-G-EAG38884445
...
W6640B
Connector,terminal Block L-G-EAG38884444
...
55211G
Tube Assembly,expansion L-G-AJR73952410
...
130911
Cabinet Assembly,indoor L-G-ABJ73790908
...
137211
Panel Assembly,front(indoor) L-G-AGL73859102
...
158591
Pump Assembly,water L-G-AHA73673401
...
159830
Filter Assembly,air Cleaner L-G-ADQ73493502
...
237200
Panel,control L-G-MGC63188601
...
249951
Case Assembly,control(indoor) L-G-ABQ73941913
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
263230A
Thermistor Assembly,ntc L-G-EBG61106819
...
263230B
Thermistor Assembly,ntc L-G-EBG61287708
...
268711A
Pcb Assembly,main L-G-EBR79004807
...
268711C
Pcb Assembly,main L-G-EBR85686003
...
268711D
Pcb Assembly,sub L-G-EBR83841801
...
330871
Pan Assembly,drain L-G-AGK73330510
...
336600A
Housing,wrapper L-G-3660A20059A
...
336600B
Housing,wrapper L-G-3660A20060A
...
346810A
Motor Assembly,dc,indoor L-G-4681A20198D
...
346810B
Motor Assembly,dc,indoor L-G-EAU62943701
...
352118
Tube Assembly,manifold(indoor) L-G-AJR73952502
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-ADL73741602
...
359012A
Fan Assembly,final L-G-ADP73513602
...
359012B
Fan Assembly,blower L-G-5901A20049A
...
437213
Panel Assembly,rear(indoor) L-G-AGL73957002
