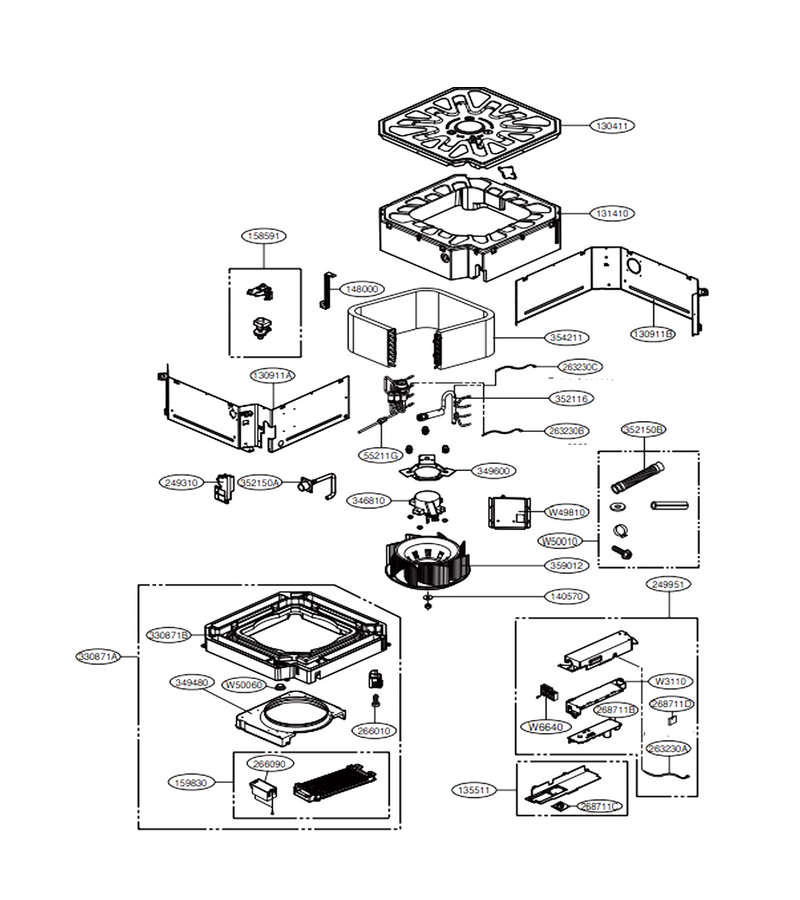

LG ARNU12GTRC2.ENWALEU

Model: ARNU12GTRC2.ENWALEU

Save Part Not Listed?
product name

Tr/tq(plasma Model)

...
...
W3110
Case L-G-MBN42288301
...
W49810
Supporter Assembly L-G-AJJ36865004
...
W50010
Accessory Assembly L-G-AAA73031501
...
W50060
Cap L-G-MBL36236701
...
55211G
Tube Assembly,expansion L-G-AJR56320905
...
130411
Base Assembly,indoor L-G-AAN36760001
...
130911B
Cabinet Assembly,indoor L-G-ABJ36864904
...
130911A
Cabinet Assembly,indoor L-G-ABJ36864804
...
131410
Cabinet Assembly L-G-ABJ52692103
...
135511
Cover Assembly,control(indoor) L-G-ACQ59999202
...
140570
Locker Assembly L-G-4A01405C
...
148000
Supporter L-G-MJH62282301
...
158591
Pump Assembly,water L-G-AHA36872201
...
159830
Filter Assembly,air Cleaner L-G-ADQ67111301
...
249310
Holder Assembly L-G-AEJ36877601
...
249951
Case Assembly,control(indoor) L-G-ABQ36680015
...
263230C
Thermistor Assembly,ntc L-G-EBG61325804
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287705
...
266010
Switch Assembly L-G-6601A20013T
...
266090
Hvps,dc/dc L-G-EAY64568801
...
268711B
Pcb Assembly,main L-G-EBR81333003
...
268711C
Pcb Assembly,sub L-G-6871A20712A
...
268711D
Pcb Assembly,sub L-G-EBR56463704
...
330871A
Pan Assembly,drain L-G-AGK36759807
...
330871B
Pan Assembly,drain L-G-AGK73110501
...
346810
Motor,dc L-G-EAU32165801
...
349480
Orifice L-G-MFX42382101
...
349600
Bracket,motor L-G-4960A20010A
...
352116
Tube Assembly,evaporator(out) L-G-AJR53980902
...
352150A
Hose Assembly,drain L-G-AEM36871901
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL55996002
...
359012
Fan,turbo L-G-MDG42451401
