LG ARNU123SFA4.ANCBLUS

Model: ARNU123SFA4.ANCBLUS

Save Part Not Listed?
product name

Main

...
...
W51620A
Socket,flare L-G-3A00375D
...
W51620B
Socket,flare L-G-3H01420A
...
W6640A
Connector,terminal Block L-G-6640000036B
...
W6640B
Connector,terminal Block L-G-EAG38884405
...
131410
Chassis Assembly L-G-3141A20037K
...
135080
Decor L-G-3508A20092G
...
135316
Grille Assembly,front(indoor) L-G-AEB74904501
...
135500A
Cover L-G-3550A20511A
...
135500B
Cover L-G-3550A20510A
...
145200A
Link L-G-4520A30097A
...
145200B
Link L-G-4520A30098A
...
146811A
Motor Assembly L-G-4681A20055A
...
146811B
Motor Assembly, Dc, Stepping L-G-4681AP2968N
...
147581
Horizontal Louver L-G-4758A20098A
...
249951A
Control (indoor) Case Assembly L-G-ABQ75602701
...
249951B
Case Assembly,control(indoor) L-G-ABQ75602801
...
263230A
Thermistor Assembly,ntc L-G-EBG62146101
...
263230B
Thermistor Assembly,ntc L-G-EBG62146102
...
263230C
Thermistor Assembly,ntc L-G-EBG61325801
...
268711A
Wire Harness L-G-6871A20921A
...
268711B
Pcb Assembly,main L-G-EBR81445001
...
268711C
Main Pcb Assembly L-G-EBR81445103
...
268711D
Sub Pcb Assembly L-G-6871A20363G
...
268711E
Pcb Assembly,sub L-G-6871A20259B
...
352150
Hose Assembly,drain L-G-AEM73493401
...
352380
Air Guide L-G-5238A20046A
...
359012
Turbo Fan L-G-5900A20063A
...
552120
Tube Assembly L-G-AJR32563602

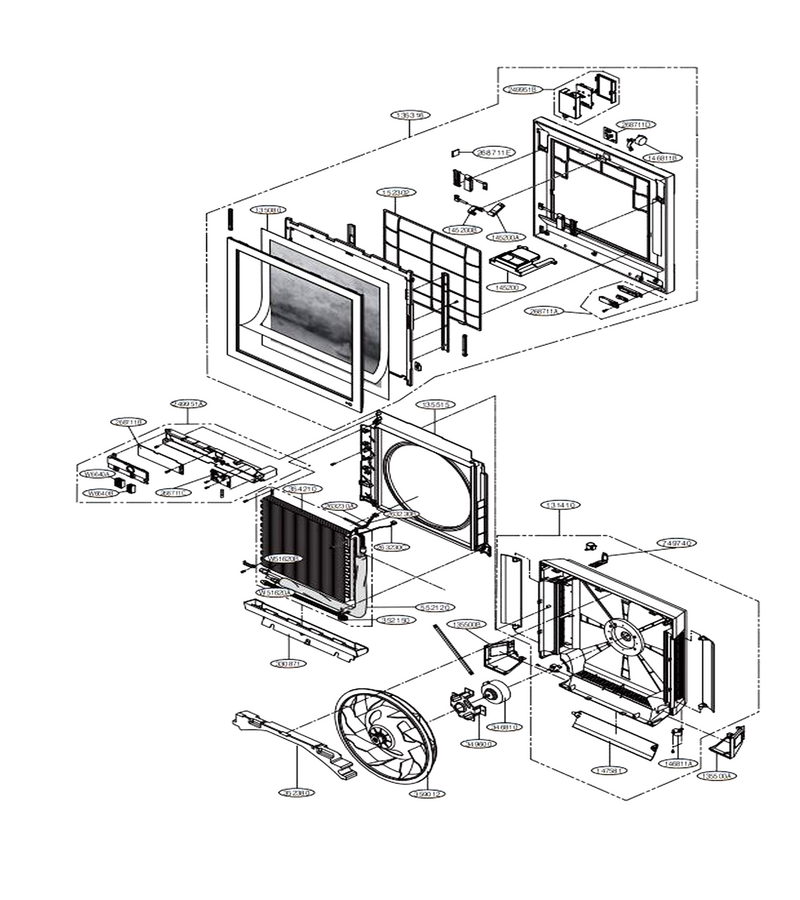

Schematic Image Zoomed
