LG ARNU123CEA2.ANWALUS

Model: ARNU123CEA2.ANWALUS

Save Part Not Listed?
product name

Main

...
...
W0FZZ
Fuse,time Delay L-G-6900AQ9028D
...
W6631D
Harness,single L-G-6631A30122K
...
W6631C
Harness,single L-G-6631A30122P
...
W6631B
Harness,single L-G-6631A30122S
...
W6631A
Harness,single L-G-6631A20249E
...
W52240
Strainer L-G-3H03659M
...
W3110
Case L-G-3110A20172A
...
55211G
Tube Assembly,expansion L-G-5211A11607A
...
135304
Grille,diffuser L-G-3530A20142A
...
135500
Cover L-G-3550A20537A
...
137211
Panel Assembly,front(indoor) L-G-AGL30619001
...
137213A
Panel Assembly,side L-G-AGL30313401
...
137213B
Panel Assembly,side L-G-AGL30313402
...
147780
Leg L-G-4778A20018A
...
159830
Filter Assembly,air Cleaner L-G-5231A20053B
...
237204
Panel,side L-G-3720A20723A
...
249951
Case Assembly,control(indoor) L-G-ABQ59261501
...
263230B
Thermistor Assembly,ntc L-G-EBG61287705
...
263230C
Thermistor Assembly,ntc L-G-EBG61325801
...
263230A
Thermistor Assembly,ntc L-G-EBG61106819
...
268711C
Pcb Assembly,main L-G-EBR39319514
...
268711E
Pcb Assembly,sub L-G-EBR57726715
...
330871
Pan Assembly,drain L-G-AGK30348201
...
336600A
Housing,wrapper L-G-3660A20059A
...
336600B
Housing,wrapper L-G-3660A20060A
...
346810A
Motor Assembly,dc,indoor L-G-EAU62943701
...
346810B
Motor Assembly,dc,indoor L-G-4681A20198D
...
352118
Tube Assembly,manifold(indoor) L-G-5211A11606A
...
352150
Hose Assembly,drain L-G-AEM36740101
...
354210
Evaporator Assembly,first L-G-5421A20279A
...
359012A
Fan Assembly,final L-G-5901A20056C
...
359012B
Fan Assembly,blower L-G-5901A20049A
...
552209
Valve Assembly L-G-AJU36719706
...
552570
Muffler Assembly L-G-5257A20010A
...
749740
Guide L-G-MEA30168304
...
749750
Guide Assembly L-G-AEC30753506

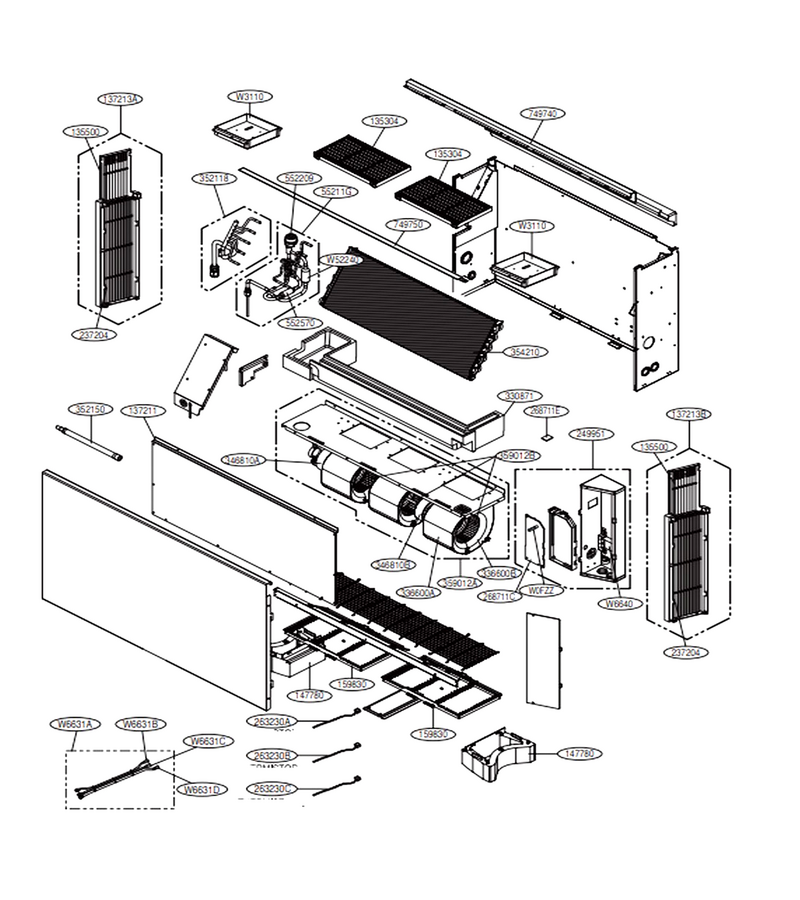

Schematic Image Zoomed
