LG ARNU123BHA4.ANWALUS

Model: ARNU123BHA4.ANWALUS

Save Part Not Listed?
product name

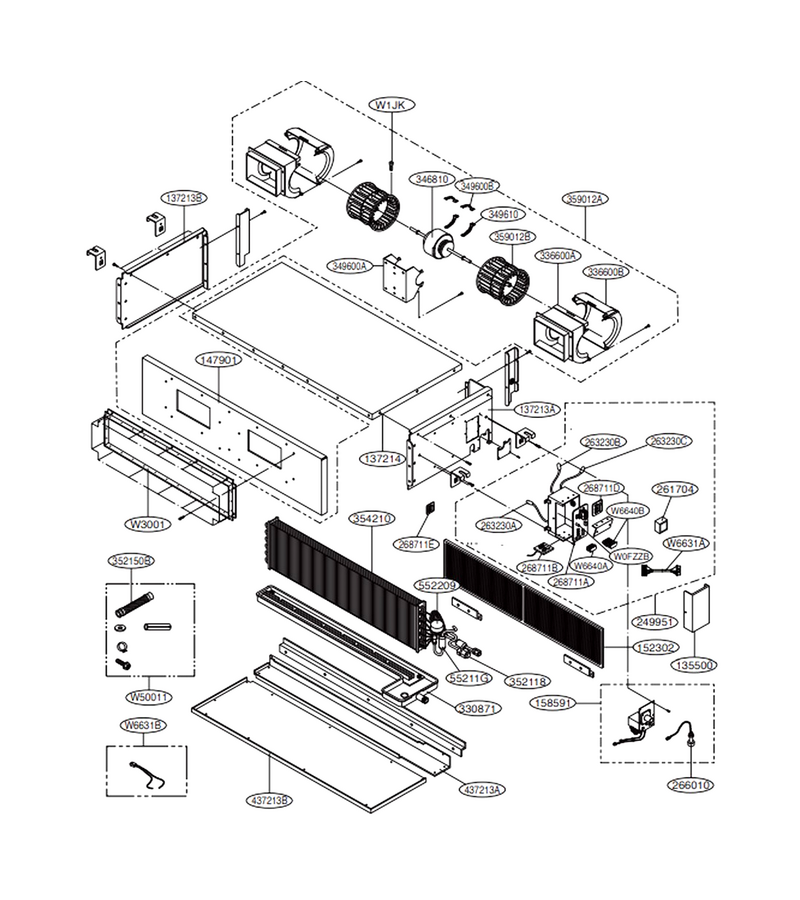

Bh Chassis

...
...
W1JK
Screw,set L-G-4H00026A
...
W6640A
Connector,terminal Block L-G-EAG38884445
...
W6631B
Harness,single L-G-EAD63468101
...
W3001
Angle Assembly L-G-3001A30012A
...
135500
Cover L-G-3550A30023A
...
137213A
Panel Assembly,side L-G-3721A24003F
...
137213B
Panel Assembly,side L-G-3721A24002G
...
137214
Panel Assembly,upper L-G-3721A20177C
...
147901
Barrier,indoor L-G-MAL64063701
...
152302
Filter,air L-G-5230A30001M
...
158591
Pump Assembly,water L-G-5859A20002C
...
249951
Case Assembly,control(indoor) L-G-ABQ59260502
...
263230A
Thermistor Assembly,ntc L-G-EBG61106822
...
263230B
Thermistor Assembly,ntc L-G-EBG61287707
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
266010
Switch Assembly L-G-6601A20013P
...
268711B
Pcb Assembly,main L-G-EBR79004801
...
268711D
Pcb Assembly,sub L-G-EBR83841801
...
330871
Pan Assembly,drain L-G-3087A10008D
...
336600A
Housing,wrapper L-G-3660A20017A
...
336600B
Housing,wrapper L-G-3660A20018A
...
346810
Motor Assembly,dc L-G-4681A20197F
...
349600A
Bracket,motor L-G-4960A20105A
...
349600B
Bracket,motor L-G-4960A30012A
...
349610
Bracket Assembly,motor(indoor) L-G-4961A30005A
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20100Q
...
359012A
Fan Assembly,final L-G-5901A20052A
...
359012B
Fan Assembly,blower L-G-5901A10026G
...
437213A
Panel Assembly,rear(indoor) L-G-3721A21004C
...
437213B
Panel Assembly,rear(indoor) L-G-3721A21005C
