LG ARNU093B1G2.ANWALUS

Model: ARNU093B1G2.ANWALUS

Save Part Not Listed?
product name

B1

...
...
W0FZZB
Fuse,time Delay L-G-6900AQ9028D
...
W1JK
Screw,set L-G-4H00516B
...
W4811
Bracket Assembly L-G-4811A10030A
...
W50010
Accessory Assembly L-G-AAA73031501
...
W51620A
Socket,flare L-G-6620DG3015J
...
W51620B
Socket,flare L-G-6620DG3015H
...
55211G
Tube Assembly,expansion L-G-5211A11603A
...
130911
Cabinet Assembly,indoor L-G-3091A10093R
...
137211
Panel Assembly,front(indoor) L-G-3721A20334E
...
147901
Barrier,indoor L-G-4790A20071B
...
152302
Filter Assembly,air Cleaner L-G-5231AP3330P
...
158591
Pump Assembly,water L-G-5859A10008B
...
249941
Case,control(indoor) L-G-4994A20138C
...
249951
Case Assembly,control(indoor) L-G-ABQ59260101
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287708
...
263230C
Thermistor Assembly,ntc L-G-EBG61325801
...
268711A
Pcb Assembly,main L-G-EBR77384108
...
268711B
Pcb Assembly,option L-G-EBR57725502
...
330871
Pan Assembly,drain L-G-AGK30318401
...
336600A
Housing,wrapper L-G-3660A20059A
...
336600B
Housing,wrapper L-G-3660A20060A
...
346810A
Motor Assembly,dc,indoor L-G-EAU62943701
...
346810B
Motor Assembly,dc,indoor L-G-4681A20198D
...
349600
Bracket,motor L-G-4960A30038A
...
349610
Bracket Assembly,motor(indoor) L-G-4961A20043A
...
352118
Tube Assembly,manifold(indoor) L-G-5211A11604A
...
352150
Hose Assembly,drain L-G-5215A20008B
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354210
Evaporator Assembly,first L-G-5421A20279A
...
359012B
Fan Assembly,blower L-G-5901A20049A
...
437213
Panel Assembly,rear(indoor) L-G-AGL30106001
...
552209
Valve Assembly L-G-AJU36719706
...
669010
Fuse Assembly L-G-6901A20003K

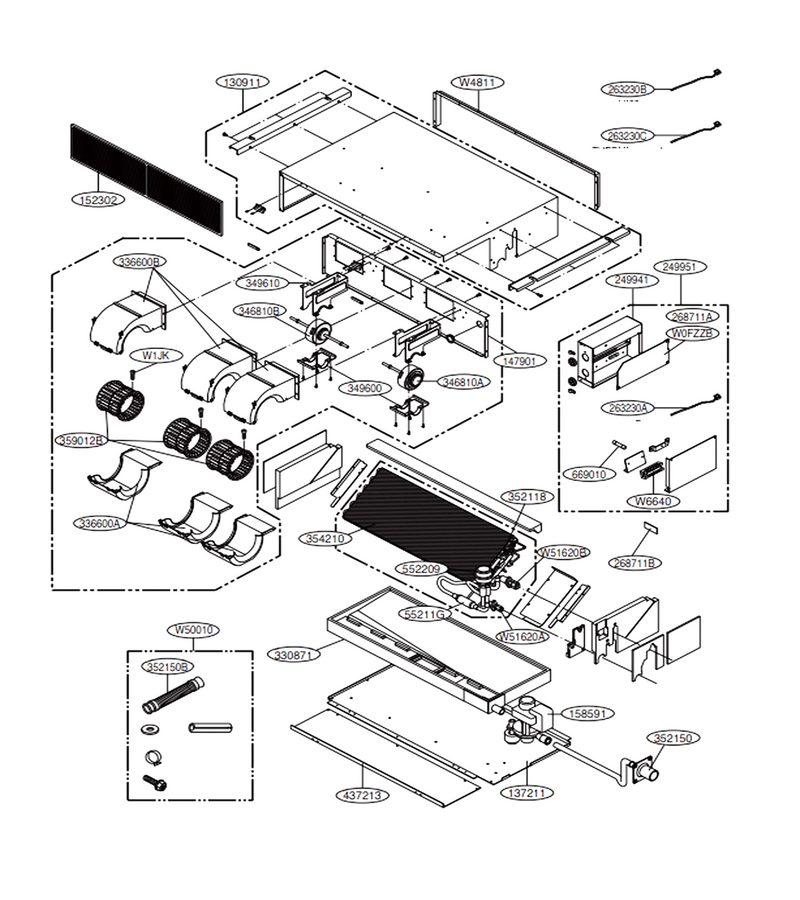

Schematic Image Zoomed
