product name

LG ARNU073TUC4.ANWBLUS

Model: ARNU073TUC4.ANWBLUS

Save Part Not Listed?

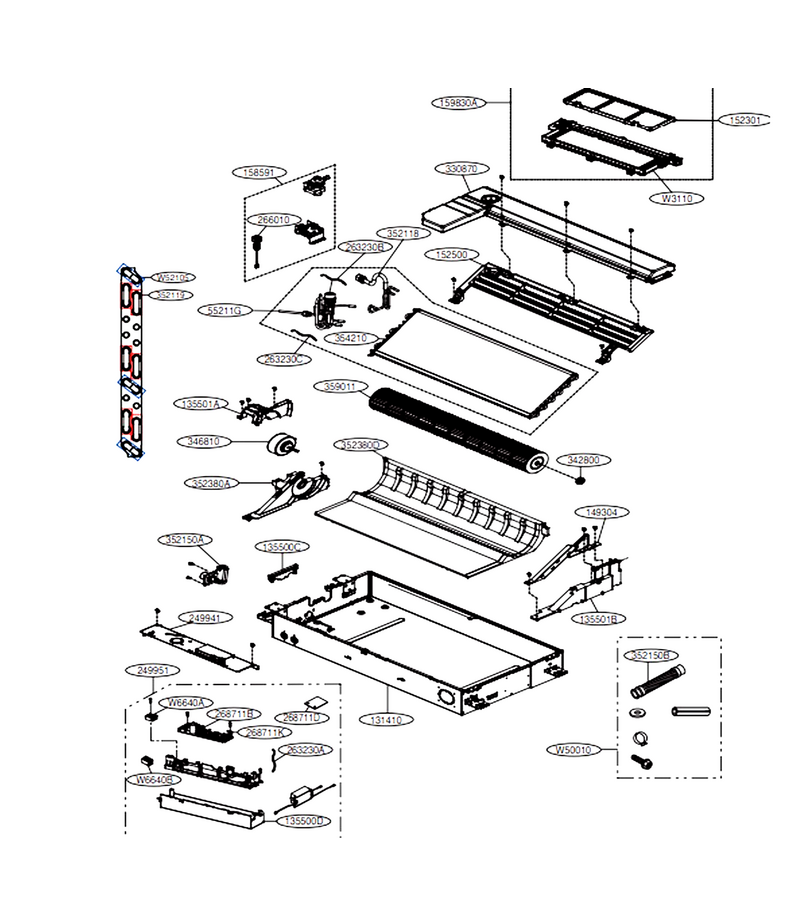

product name

Main

...
...
W3110
Case L-G-MBN62848401
...
W50010
Accessory Assembly L-G-AAA73031518
...
W52105
Tube,return Bending L-G-3H02787B
...
W6640A
Connector,terminal Block L-G-EAG38884446
...
W6640B
Connector,terminal Block L-G-EAG38884444
...
55211G
Tube Assembly,expansion L-G-AJR55707001
...
131410
Cabinet Assembly L-G-ABJ36805709
...
135500D
Cover L-G-MCK41469901
...
135500C
Cover L-G-MCK41149201
...
135501B
Cover Assembly L-G-ACQ59247901
...
135501A
Cover Assembly L-G-ACQ59247801
...
149304
Holder,evaporator L-G-MEG41149601
...
152301
Filter L-G-MDJ63486402
...
152500
Pan,drain L-G-MGB41633301
...
158591
Water Pump Assembly L-G-AHA36804302
...
159830A
Filter Assembly,clean L-G-ADQ72913403
...
249941
Case,control(indoor) L-G-MBN41150504
...
249951
Control (indoor) Case Assembly L-G-ABQ74881705
...
263230A
Thermistor L-G-6323A10002B
...
263230C
Thermistor Assembly,ntc L-G-EBG61325805
...
263230B
Thermistor Assembly,ntc L-G-EBG61287706
...
266010
Switch Assembly L-G-6601A20013P
...
268711D
Pcb Assembly,sub L-G-EBR80820301
...
268711K
Pcb Assembly,sub L-G-EBR78895201
...
268711B
Main Pcb Assembly L-G-EBR81221805
...
330870
Pan Assembly L-G-AGK73390901
...
342800
Bearing L-G-MAP64313501
...
346810
Motor,dc L-G-4681A20091V
...
352118
Tube Assembly,manifold(indoor) L-G-AJR55707101
...
352119
Tube Assembly,return Bending L-G-3H02787A
...
352150A
Drain Hose Assembly L-G-AEM36806102
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
352380A
Guide,air L-G-MEA41163001
...
352380D
Air Guide L-G-MEA41644002
...
354210
Evaporator Assembly,first L-G-ADL36804601
...
359011
Fan Assembly,cross Flow L-G-ADP35994403
