product name

LG ARNU073TNA4.ANWBLUS

Model: ARNU073TNA4.ANWBLUS

Save Part Not Listed?
product name

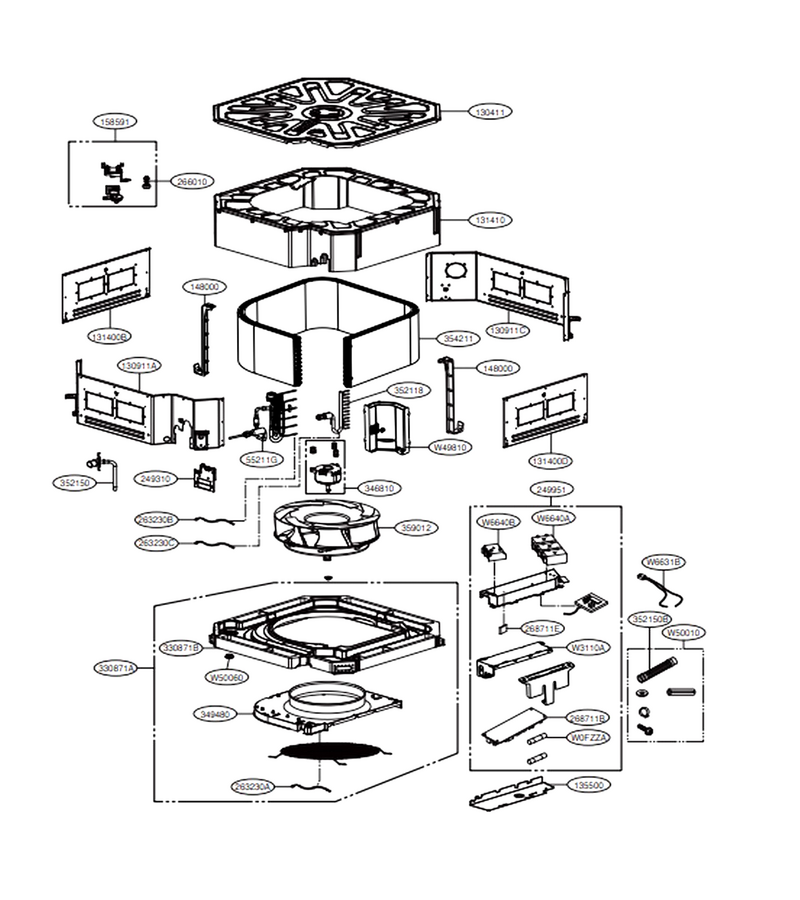

Tm, Tn, Tp (standard Model)

...
...
W0FZZA
Fuse,time Delay L-G-EAF60673101
...
W3110A
Case L-G-MBN64409001
...
W49810
Supporter Assembly L-G-AJJ73860502
...
W50010
Accessory Assembly L-G-AAA31075410
...
W50060
Cap L-G-MBL36236701
...
W6631B
Harness,single L-G-EAD63468101
...
W6640A
Connector,terminal Block L-G-EAG38884446
...
55211G
Tube Assembly,expansion L-G-AJR74225302
...
130411
Base Assembly,indoor L-G-AAN31579004
...
130911C
Cabinet Assembly,indoor L-G-ABJ32881405
...
130911A
Cabinet Assembly L-G-ABJ74008101
...
131400D
Cabinet L-G-MBH36241402
...
131400B
Cabinet L-G-MBH36241202
...
131410
Cabinet Assembly,indoor L-G-ABJ32881207
...
135500
Cover L-G-MCK36239315
...
148000
Supporter L-G-MJH62939401
...
158591
Pump Assembly,water L-G-AHA32883202
...
249310
Holder Assembly L-G-AEJ32882701
...
249951
Case Assembly,control(indoor) L-G-ABQ75341001
...
263230A
Thermistor Assembly,ntc L-G-EBG61106804
...
263230B
Thermistor Assembly,ntc L-G-EBG61287707
...
263230C
Thermistor Assembly,ntc L-G-EBG61325803
...
266010
Switch Assembly L-G-6601A20013L
...
268711B
Pcb Assembly,main L-G-EBR79629507
...
268711E
Pcb Assembly,sub L-G-EBR79266415
...
330871A
Pan Assembly,drain L-G-AGK73470709
...
330871B
Pan Assembly,drain L-G-AGK73430601
...
346810
Motor Assembly,dc,indoor L-G-4681A20172Z
...
349480
Orifice L-G-MFX62461901
...
352118
Tube Assembly,manifold(indoor) L-G-AJR74263302
...
352150
Hose Assembly,drain L-G-AEM32883702
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL73841802
...
359012
Fan Assembly,turbo L-G-ADP73573601
