LG ARND20BDAT2.ANWALUS

Model: ARND20BDAT2.ANWALUS

Save Part Not Listed?
product name

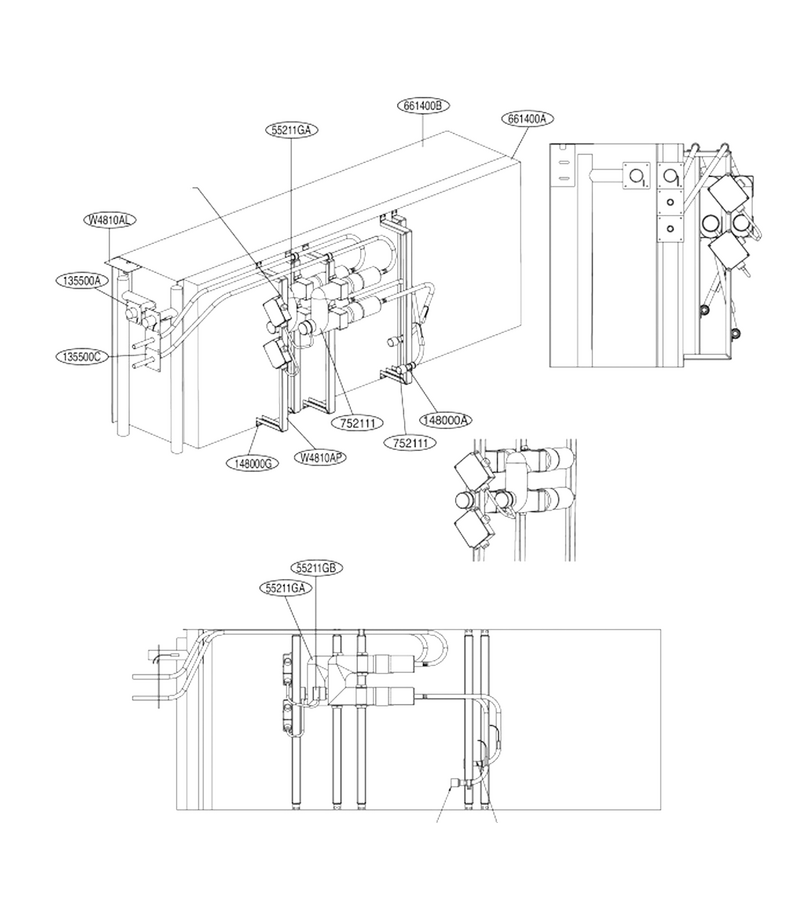

Main (i)

...
...
W4810AL
Bracket,outsourcing L-G-COV32865940
...
W4810AP
Bracket,outsourcing L-G-COV32865944
...
55211GA
Tube Assembly, Expansion L-G-AJR55715601
...
55211GB
Tube Assembly, Expansion L-G-AJR55715602
...
135500A
Bracket,outsourcing L-G-COV32865954
...
135500C
Cover,outsourcing L-G-COV32865956
...
148000A
Supporter,outsourcing L-G-COV32787813
...
148000G
Supporter,outsourcing L-G-COV32787818
...
661400A
Coil Assembly,outsourcing L-G-COV32865951
...
661400B
Coil Assembly,outsourcing L-G-COV32865952
...
752111
Pipe Assembly,outsourcing L-G-COV32787804

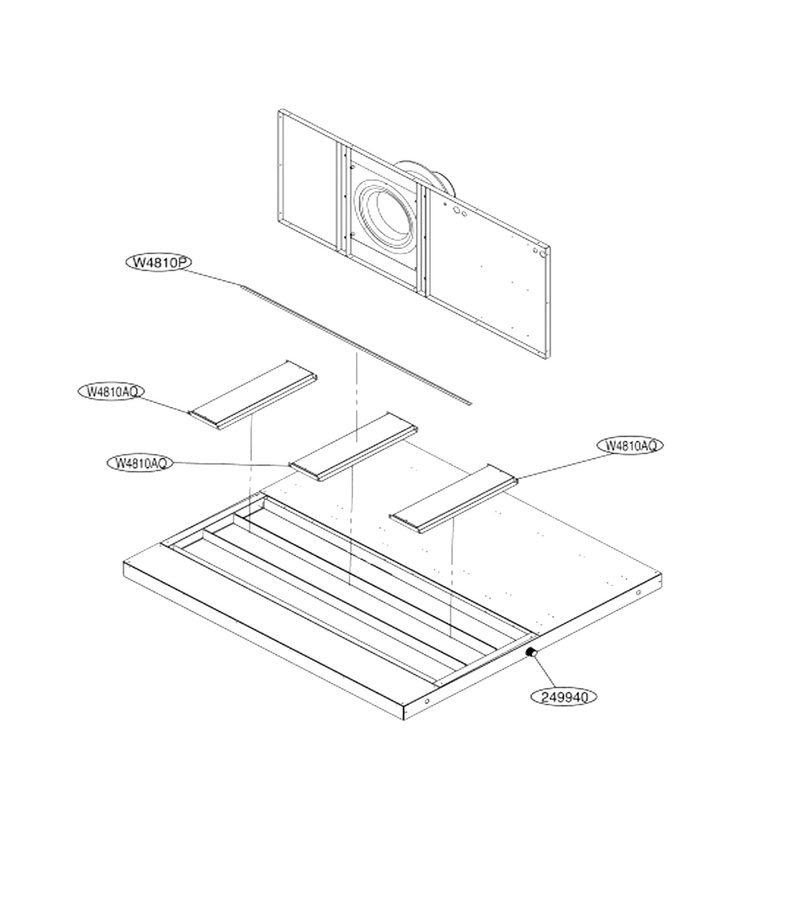

Main (ii)

...
...
W4810AQ
Bracket,outsourcing L-G-COV32865950
...
W4810P
Basket,outsourcing L-G-COV32865918
...
249940
Base,outsourcing L-G-COV32865906

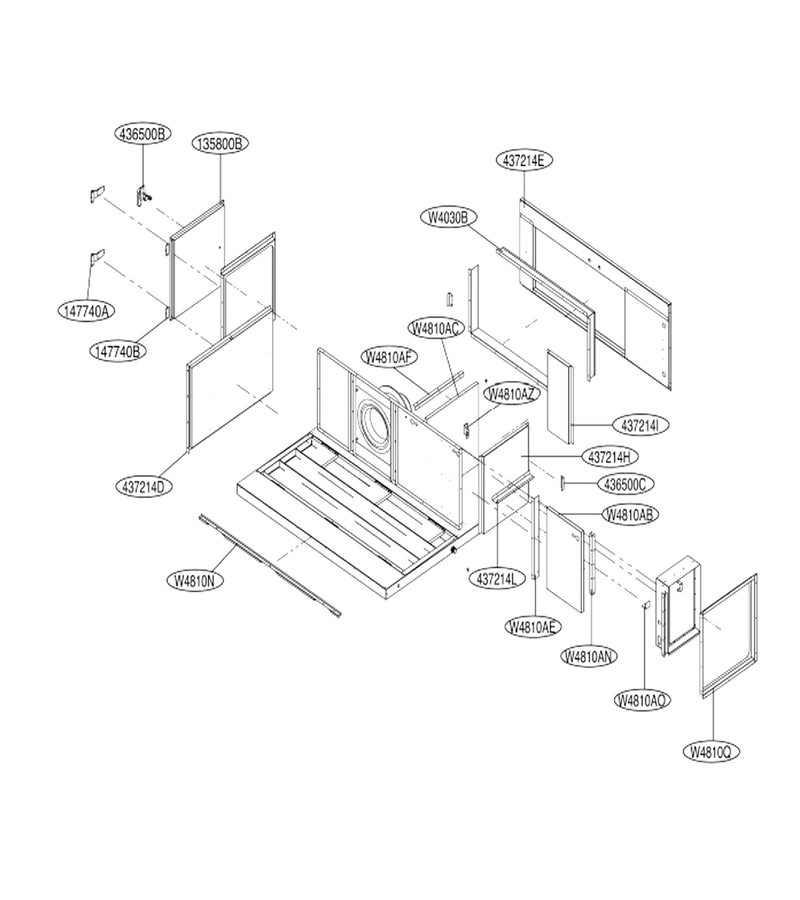

Main (iii)

...
...
W4030B
Flange,outsourcing L-G-COV32865966
...
W4810AB
Bracket,outsourcing L-G-COV32865930
...
W4810AC
Bracket,outsourcing L-G-COV32865931
...
W4810AE
Bracket,outsourcing L-G-COV32865933
...
W4810AF
Bracket,outsourcing L-G-COV32865934
...
W4810AN
Bracket,outsourcing L-G-COV32865942
...
W4810N
Basket,outsourcing L-G-COV32865916
...
W4810Q
Basket,outsourcing L-G-COV32865919
...
135800B
Door,outsourcing L-G-COV32865958
...
147740A
Hinge,outsourcing L-G-COV32865986
...
147740B
Hinge,outsourcing L-G-COV32865987
...
437214D
Panel,outsourcing L-G-COV32865992
...
437214E
Panel,outsourcing L-G-COV32865993
...
437214H
Panel,outsourcing L-G-COV32865996
...
437214I
Panel,outsourcing L-G-COV32865997

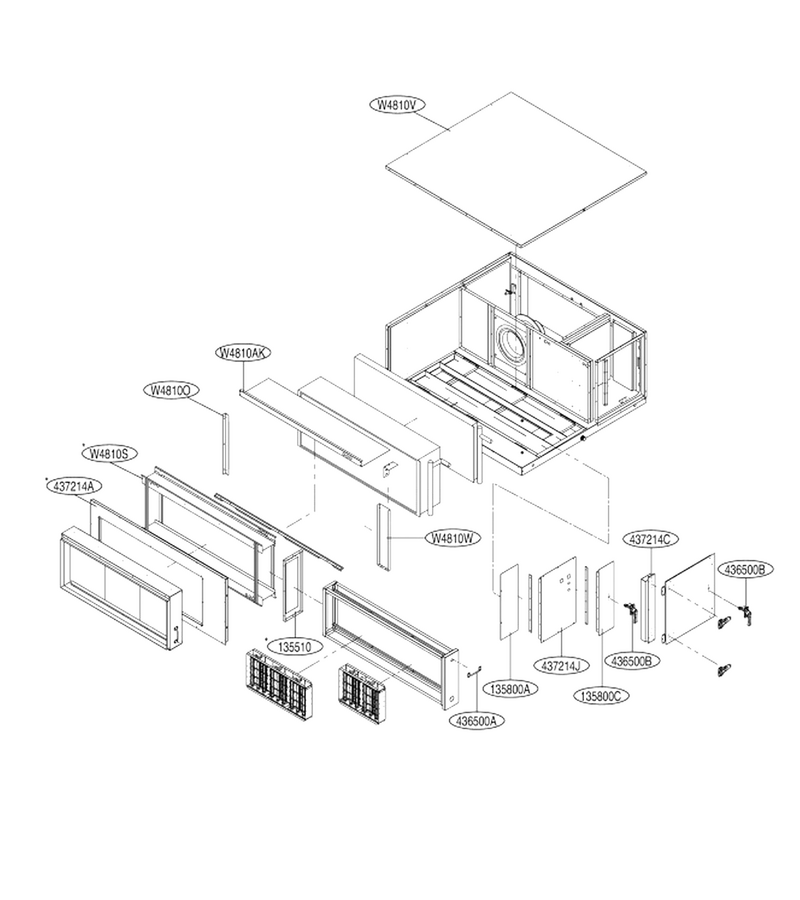

Main (iv)

...
...
W4810AK
Bracket,outsourcing L-G-COV32865939
...
W4810S
Basket,outsourcing L-G-COV32865921
...
W4810V
Bracket,outsourcing L-G-COV32865924
...
W4810W
Bracket,outsourcing L-G-COV32865925
...
135510
Cover Assembly,control,outsourcing L-G-COV32865953
...
135800A
Door,outsourcing L-G-COV32865957
...
135800C
Door,outsourcing L-G-COV32865959
...
436500A
Handle,outsourcing L-G-COV32865981
...
436500B
Handle,outsourcing L-G-COV32865982
...
437214C
Panel,outsourcing L-G-COV32865991
...
437214J
Panel,outsourcing L-G-COV32865998

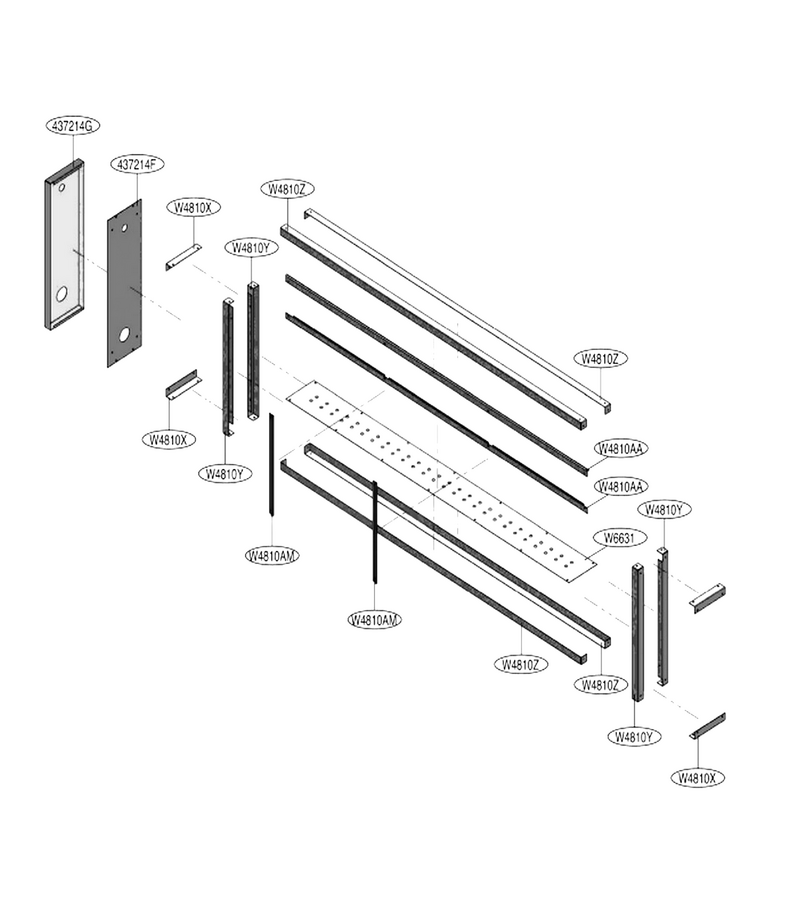

Main (v)

...
...
W4810AA
Bracket,outsourcing L-G-COV32865929
...
W4810AM
Bracket,outsourcing L-G-COV32865941
...
W4810X
Bracket,outsourcing L-G-COV32865926
...
W4810Y
Bracket,outsourcing L-G-COV32865927
...
W4810Z
Bracket,outsourcing L-G-COV32865928
...
437214F
Panel,outsourcing L-G-COV32865994
...
437214G
Panel,outsourcing L-G-COV32865995

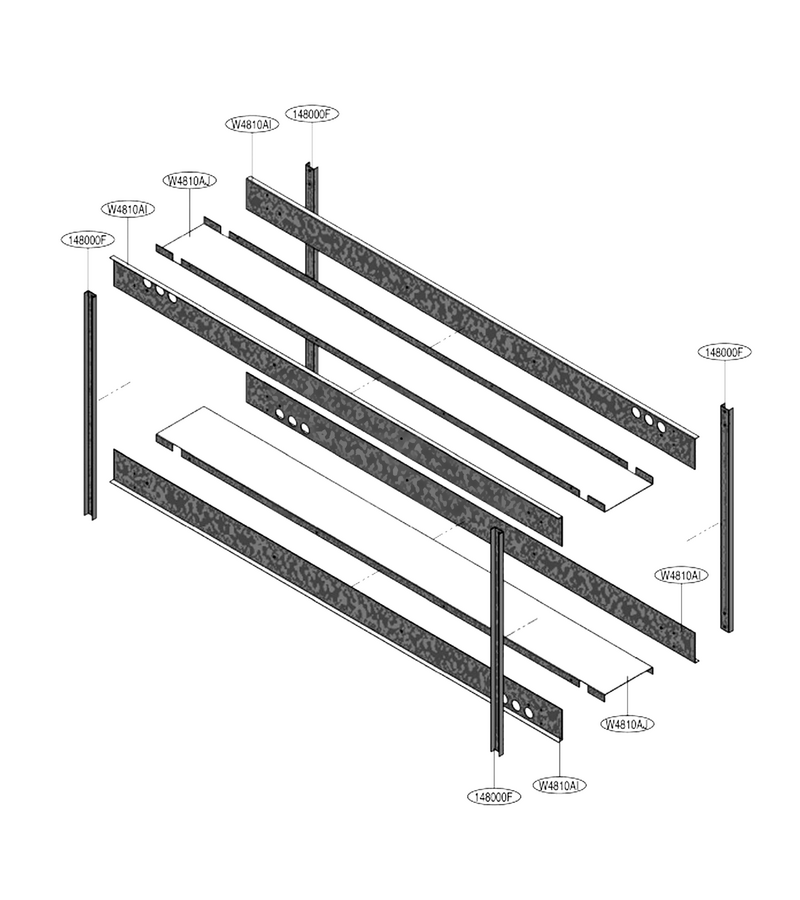

Main (vi)

...
...
W4810AI
Bracket,outsourcing L-G-COV32865937
...
W4810AJ
Bracket,outsourcing L-G-COV32865938
...
148000F
Supporter,outsourcing L-G-COV32787817

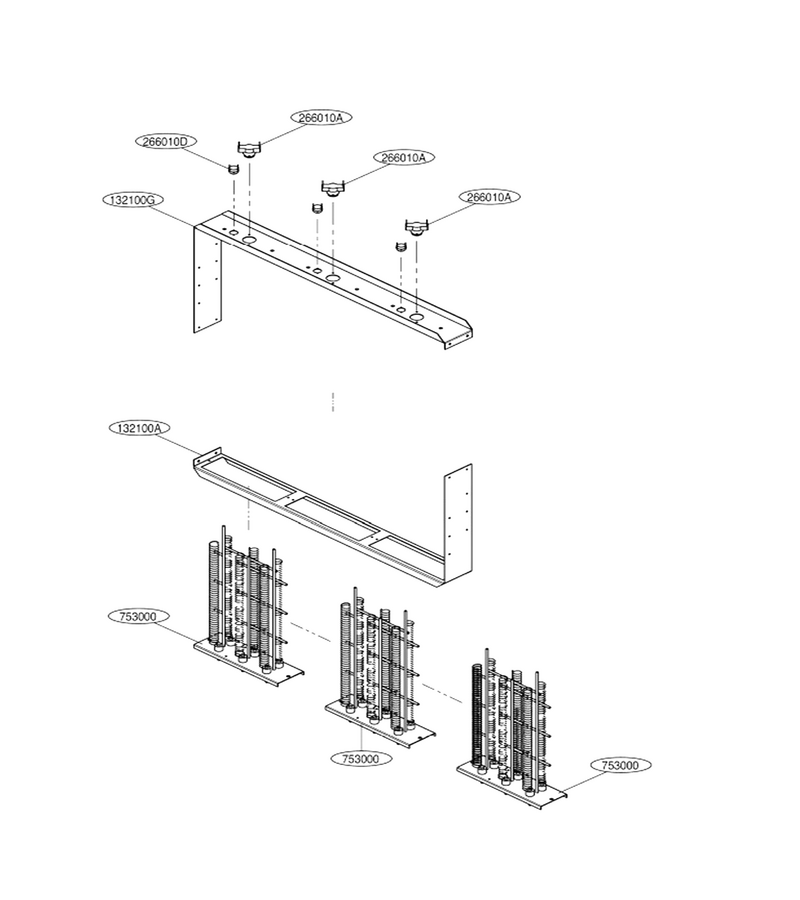

Main (vii)

...
...
132100A
Frame,outsourcing L-G-COV32865968
...
132100G
Frame,outsourcing L-G-COV32865974
...
266010A
Switch,outsourcing L-G-COV32787820
...
266010D
Switch,outsourcing L-G-COV32787823
...
753000
Heater,outsourcing L-G-COV32865985

Main (viii)

...
...
132100B
Frame,outsourcing L-G-COV32865969
...
132100F
Frame,outsourcing L-G-COV32865973

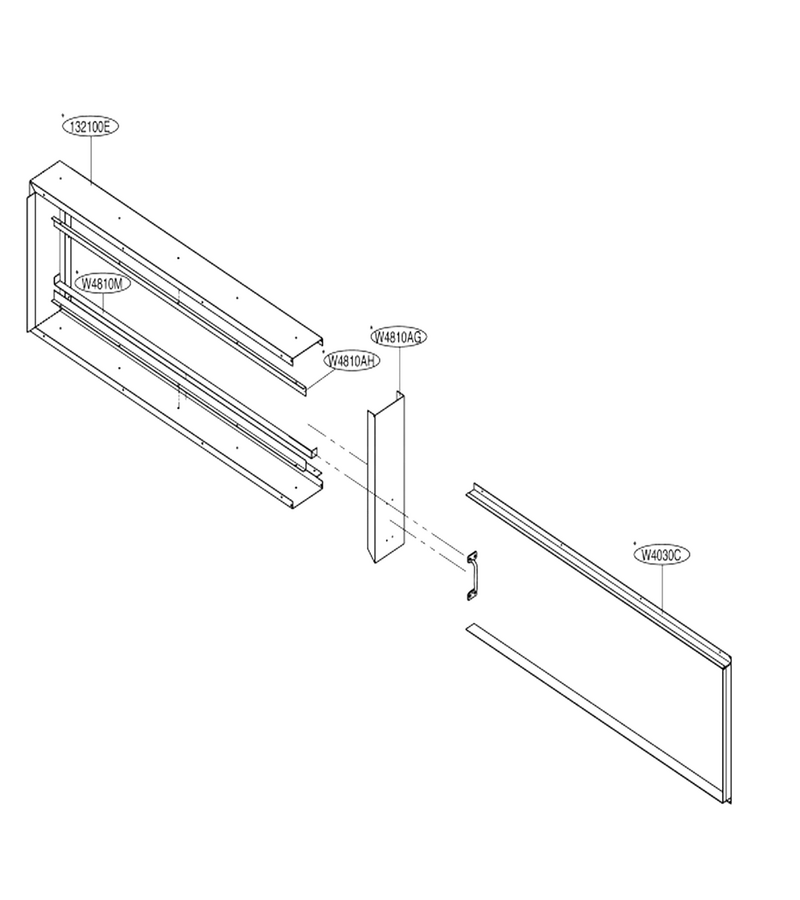

Main (ix)

...
...
W4030C
Flange,outsourcing L-G-COV32865967
...
W4810AG
Bracket,outsourcing L-G-COV32865935
...
W4810AH
Bracket,outsourcing L-G-COV32865936
...
W4810M
Bracket,outsourcing L-G-COV32865948
...
132100E
Frame,outsourcing L-G-COV32865972

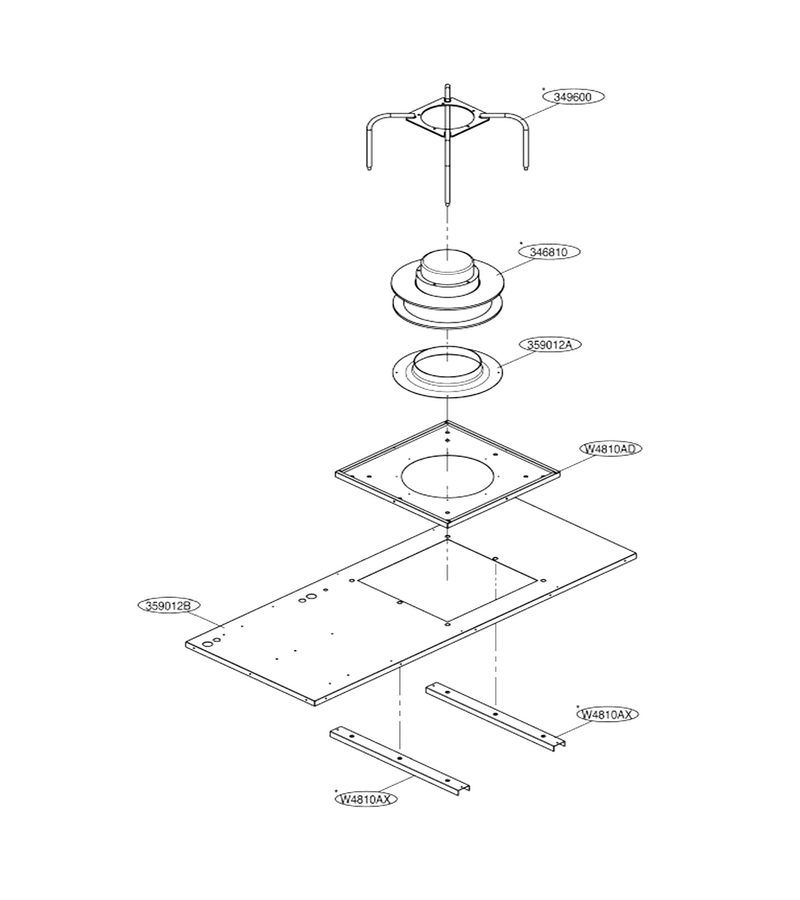

Main (x)

...
...
W4810AD
Bracket,outsourcing L-G-COV32865932
...
346810
Heater,outsourcing L-G-COV32865988
...
349600
Bracket,motor,outsourcing L-G-COV32787825
...
359012A
Fan Assembly,outsourcing L-G-COV32865961
...
359012B
Door,outsourcing L-G-COV32865962

Main (xi)

...
...

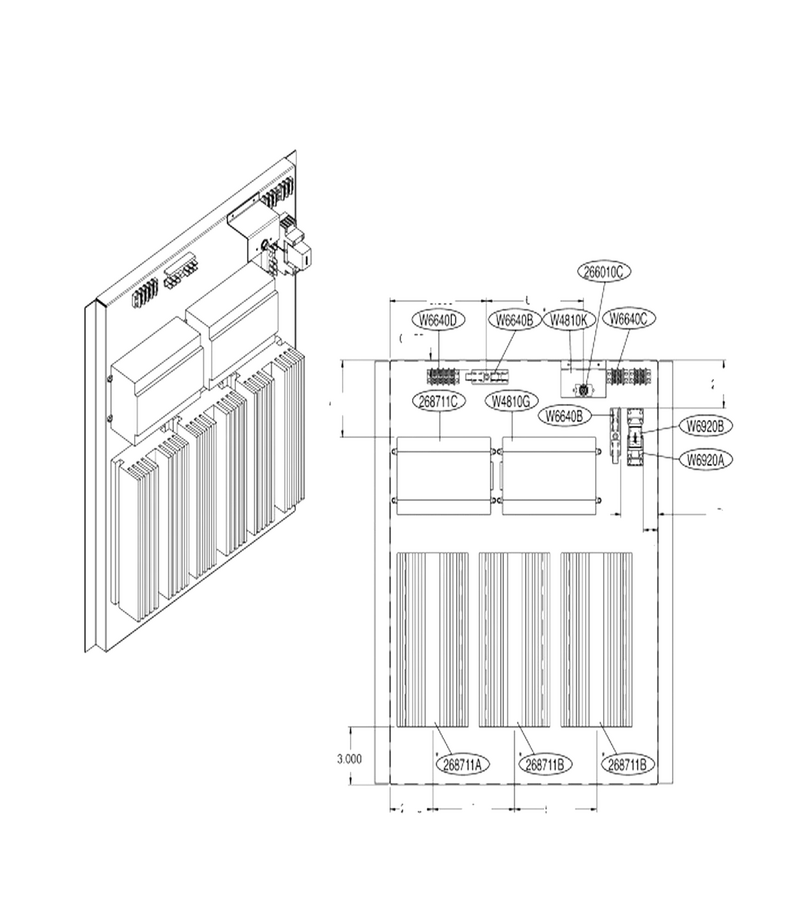

W4810G
Bracket,outsourcing L-G-COV32865946
...
W4810K
Basket,outsourcing L-G-COV32865914
...
W6640B
Switch,outsourcing L-G-COV32787824
...
W6640C
Terminal Block,outsourcing L-G-COV32865902
...
W6640D
Terminal Block,outsourcing L-G-COV32865903
...
W6920A
Relay,outsourcing L-G-COV32787805
...
W6920B
Relay,outsourcing L-G-COV32787806

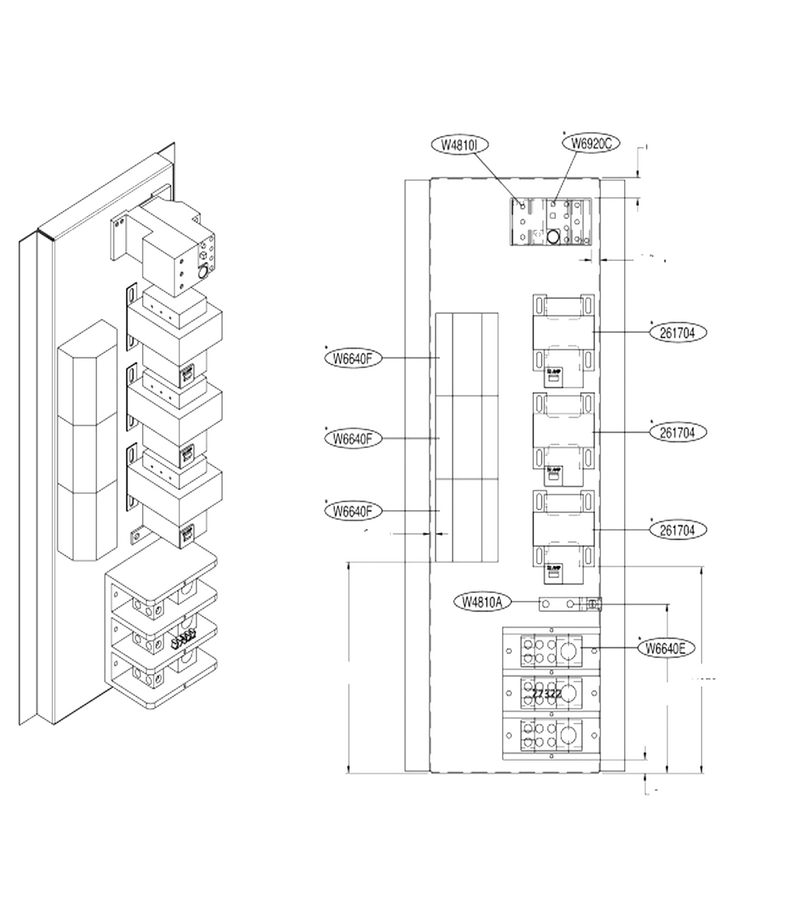

Main (xii)

...
...
W4810A
Basket,outsourcing L-G-COV32865907
...
W4810I
Bracket,outsourcing L-G-COV32865949
...
W6640E
Terminal Block,outsourcing L-G-COV32865904
...
W6640F
Terminal Block,outsourcing L-G-COV32865905
...
261704
Transformer,outsourcing L-G-COV32865908

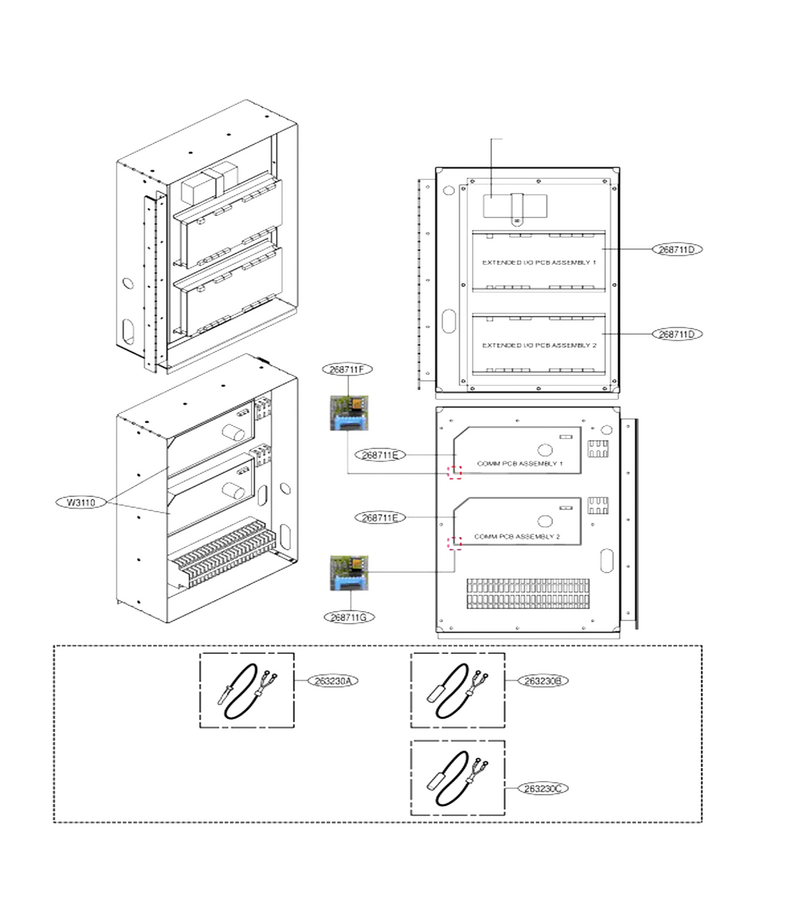

Main (xiii)

...
...
W3110
Case L-G-3110A20145A
...
263230A
Thermistor Assembly,ntc L-G-EBG61106821
...
263230B
Thermistor Assembly,ntc L-G-EBG61287703
...
263230C
Thermistor Assembly,ntc L-G-EBG61287704
...
268711D
Pcb Assembly,sub L-G-EBR61967304
...
268711E
Pcb Assembly,main L-G-EBR66367414
...
268711F
Pcb Assembly,option L-G-EBR52358916
...
268711G
Pcb Assembly,option L-G-EBR52358911

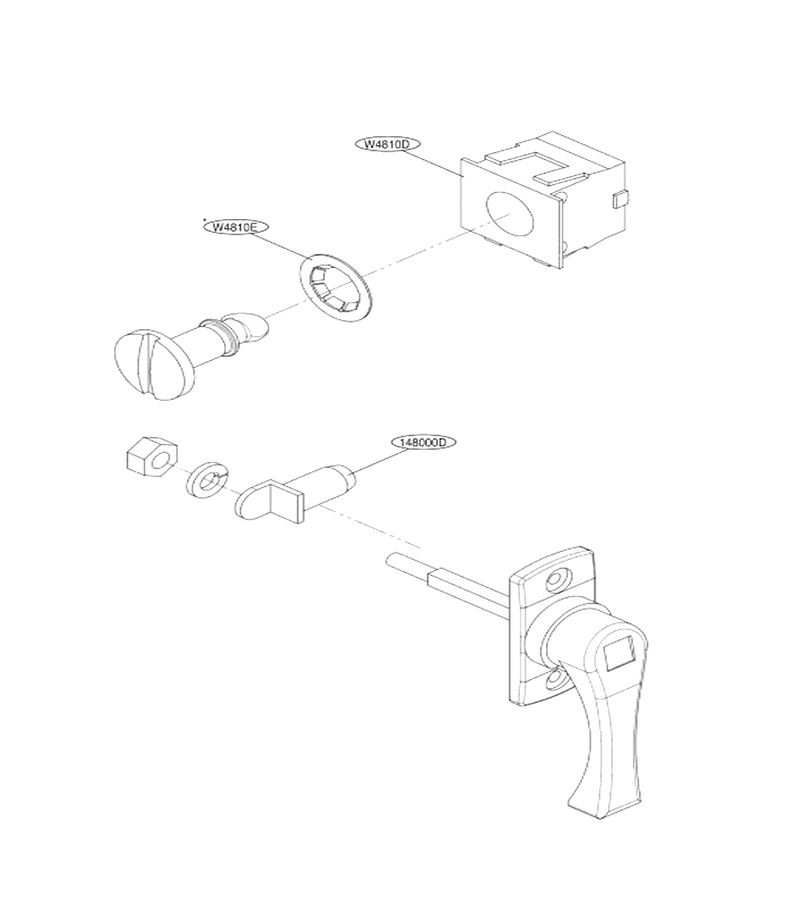

Main (xiv)

...
...
W4810D
Basket,outsourcing L-G-COV32865911
...
W4810E
Basket,outsourcing L-G-COV32865912
...
148000D
Supporter,outsourcing L-G-COV32787819
