LG ARND153DCR4.ENCXLUS

Model: ARND153DCR4.ENCXLUS

Save Part Not Listed?
product name

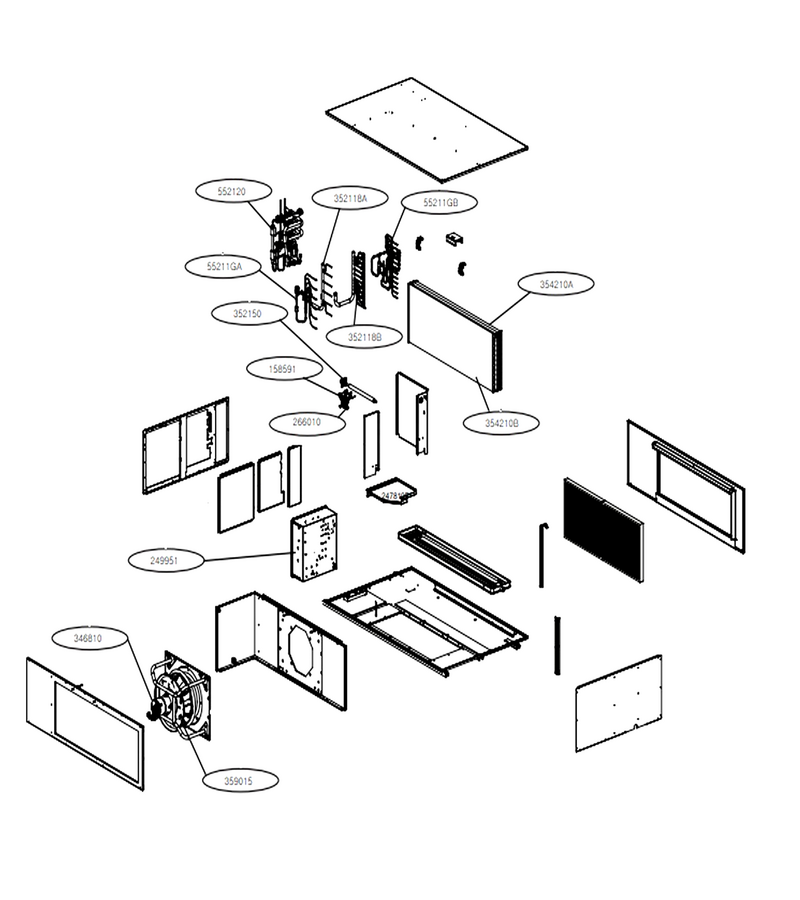

Main 1

...
...
55211GA
Expansion Tube Assembly L-G-AJR30038301
...
55211GB
Expansion Tube Assembly L-G-AJR30038101
...
158591
Pump Assembly L-G-AHA76459101
...
249951
Control (indoor) Case Assembly L-G-ABQ30097601
...
266010
Switch Assembly L-G-6601A20013M
...
346810
Indoor Dc Motor Assembly L-G-EAU65063001
...
352118A
Manifold (indoor) Tube Assembly L-G-AJR30038401
...
352118B
Manifold (indoor) Tube Assembly L-G-AJR30038201
...
352150
Drain Hose Assembly L-G-AEM75694701
...
354210A
First Evaporator Assembly L-G-ADL76690801
...
354210B
First Evaporator Assembly L-G-ADL76690901
...
359015
Turbo Fan Assembly L-G-ADP73773309
...
552120
Tube Assembly L-G-AJR30039001

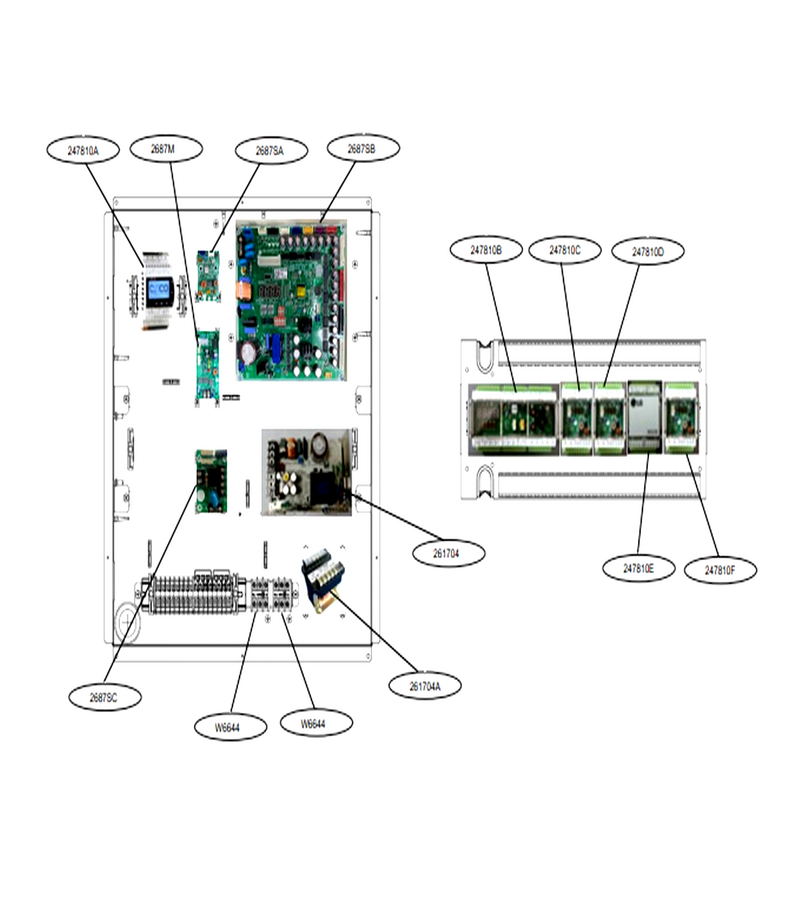

Main 2

...
...
W6644
Connector,terminal Block L-G-EAG38884401
...
2687M
Main Pcb Assembly L-G-EBR80922303
...
2687SA
Sub Pcb Assembly L-G-EBR80820308
...
2687SB
Pcb Assembly,sub L-G-EBR82017101
...
2687SC
Sub Pcb Assembly L-G-6871A20554D
...
247810A
Controller Assembly L-G-ACM76185901
...
247810B
Controller Assembly L-G-ACM75098806
...
247810C
Controller Assembly L-G-ACM75338801
...
247810D
Controller Assembly L-G-ACM75338802
...
247810E
Controller Assembly L-G-ACM75338903
...
247810F
Controller Assembly L-G-ACM75338902
...
261704
Ac/dc Smps L-G-EAY65008803
...
261704A
Power Transformer L-G-EBJ60670103
