product name

LG AMV5206AAQ.ABSEAMA

Model: AMV5206AAQ.ABSEAMA

Save Part Not Listed?
product name

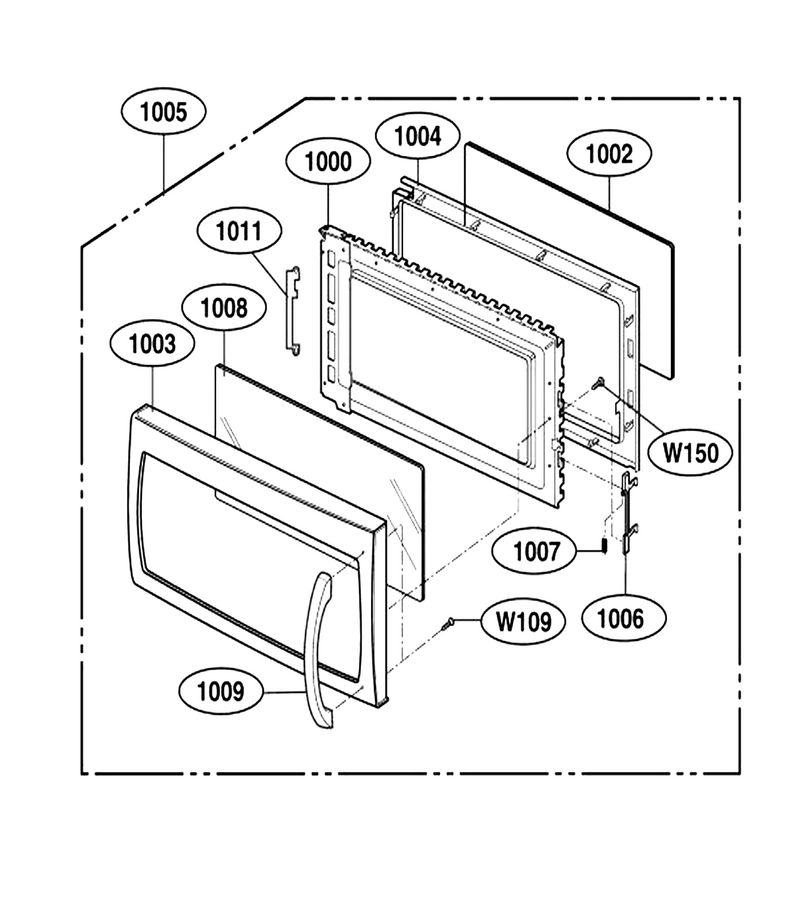

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W150
Microwave Tapping Screw, #3.0 X 10-Mm L-G-1TPL0302618
...
1000
Microwave Door Inner Frame L-G-3213W0A003D
...
1002
Seal Tape L-G-3536WRA001T
...
1003
Panel,door L-G-3720W0D355C
...
1004
Microwave Door Inner Frame L-G-3552W0A001B
...
1005
Door Assembly L-G-3581W1A451N
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A057F
...
1009
Handle,door L-G-3650W1A134C
...
1011
Baffle L-G-4760W1A016A

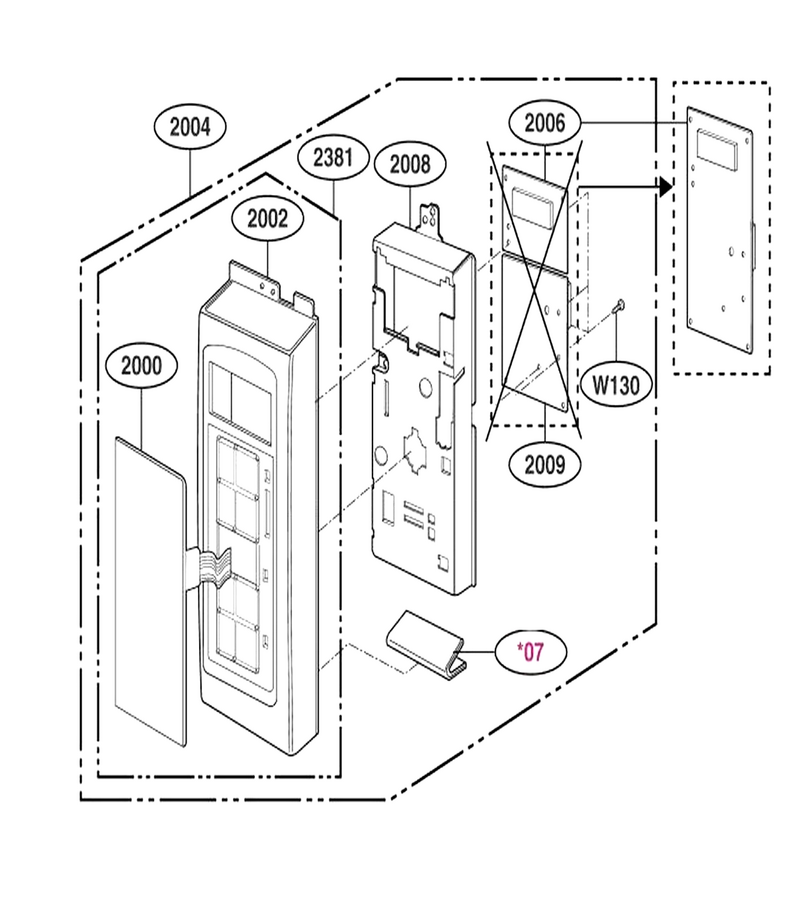

Controller Parts

...
...
*07
Card,technical L-G-3840W1T141A
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A581C
...
2002
Panel,control L-G-3720W0C213C
...
2004
Controller Assembly,keypad L-G-4781W1M371N
...
2006
Pcb Assembly,sub L-G-6871W1A419B
...
2008
Bracket,control Panel L-G-4810W1A300A
...
2381
Parts Assembly L-G-383EW5A211Q

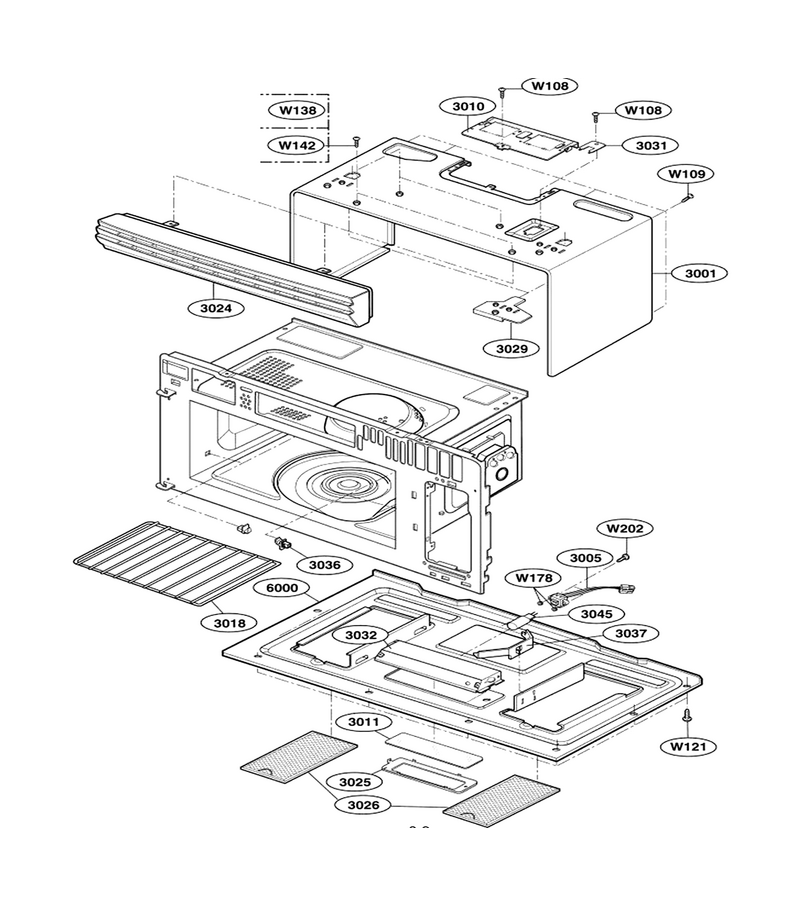

Oven Cavity Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
W178
Hex Nut L-G-1NHA0300018
...
W202
Screw L-G-1MPC0303118
...
3001
Flat Case L-G-3112W0F013E
...
3005
Holder Assembly L-G-4931W1A009A
...
3010
Microwave Vent Duct Cover L-G-4960W1A008A
...
3018
Microwave Cooking Rack L-G-5026W1A052B
...
3024
Grille,vent L-G-3530W0A044C
...
3026
Filter,grease L-G-2B72705C
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3036
Holder L-G-4930W1A026A
...
6000
Plate,base L-G-3302W0A054B

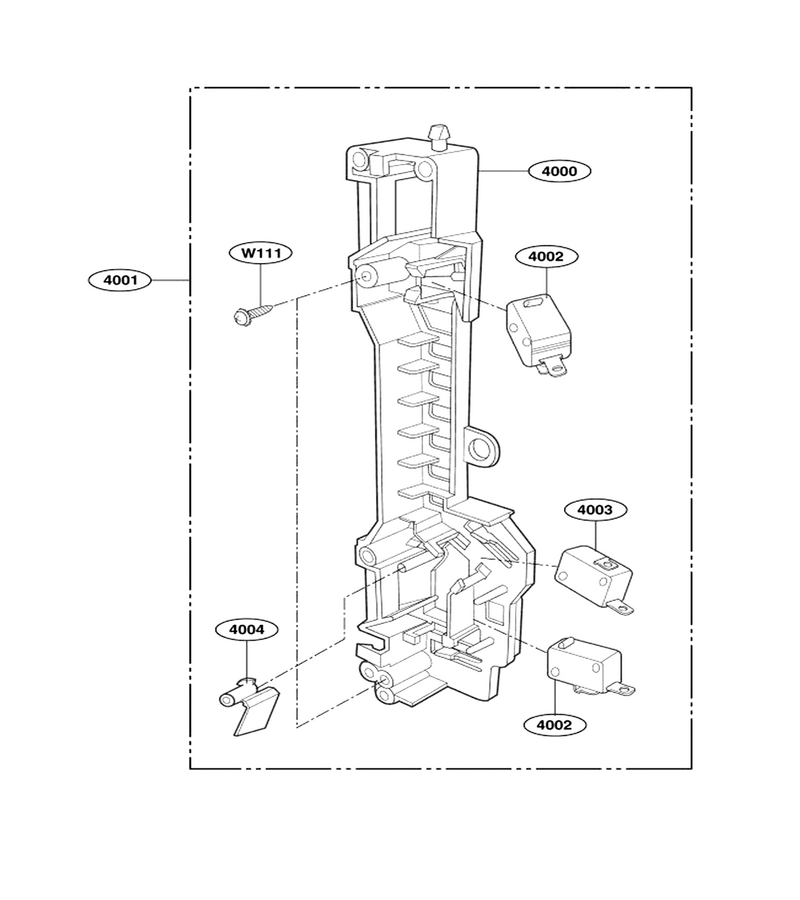

Latch Board Parts

...
...
W111
Screw L-G-4B70188B
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave/hood Holder Locker Assembly L-G-3501W1A019A
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A

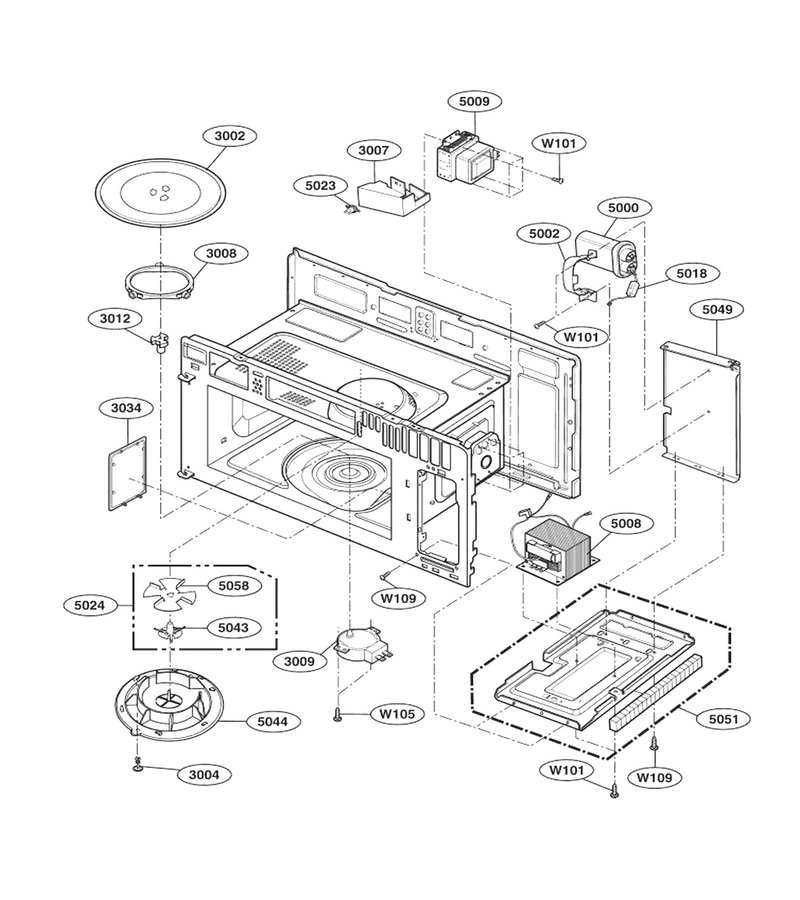

Interior Parts 1

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
3002
Microwave Glass Tray L-G-3390W1G014A
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3007
Guide,air L-G-4974W1A039A
...
3008
Microwave Turntable Tray Support L-G-5889W2A005J
...
3009
Microwave Turntable Motor L-G-6549W1S013D
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3034
Canopy L-G-3052W3A015A
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5002
Bracket L-G-4810WRC002A
...
5008
Microwave High-Voltage Transformer L-G-6170W1D100C
...
5009
Microwave Magnetron L-G-6324W1A001E
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5023
Microwave Thermostat L-G-6930W1A003D
...
5024
Fan Assembly L-G-5901W1A004A
...
5043
Holder L-G-4930W3A013A
...
5044
Microwave/hood Cover L-G-3550W1S001A
...
5049
Guide L-G-4974W1A037A
...
5051
Plate Assembly L-G-3301W1A045A
...
5058
Fan L-G-5900W1A024A

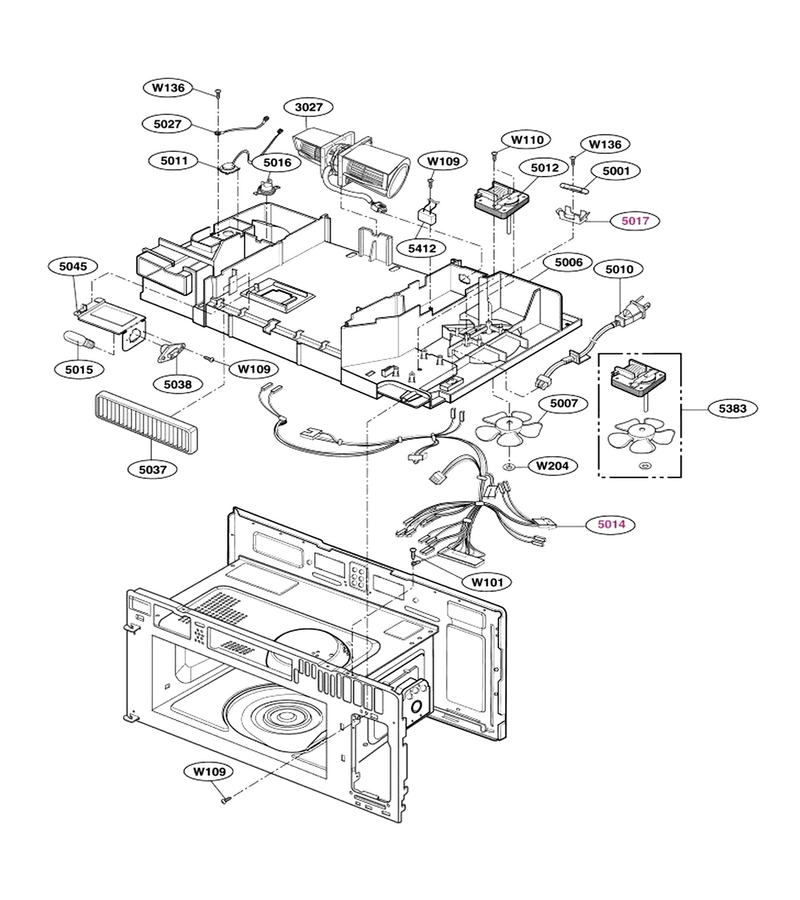

Interior Parts 2

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W136
Screw L-G-1TPL0302418
...
3027
Motor, Ac Ventilation L-G-6549W1V008F
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A018A
...
5007
Fan L-G-5900W1A027B
...
5010
Ac Cord Assembly L-G-6411W2A002N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Circulating Motor L-G-6549W1F009H
...
5014
Harness,single L-G-6877W1A564A
...
5015
Microwave Light Bulb L-G-6912W3Q001D
...
5016
Microwave Thermostat L-G-6930WRT003C
...
5017
Holder L-G-4930W3B025B
...
5027
Ground Wire L-G-3B72342Q
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket L-G-6804W2A001B
...
5045
Oven Cover L-G-3550W3A082A
...
5383
Parts Assembly L-G-383E81A010A
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

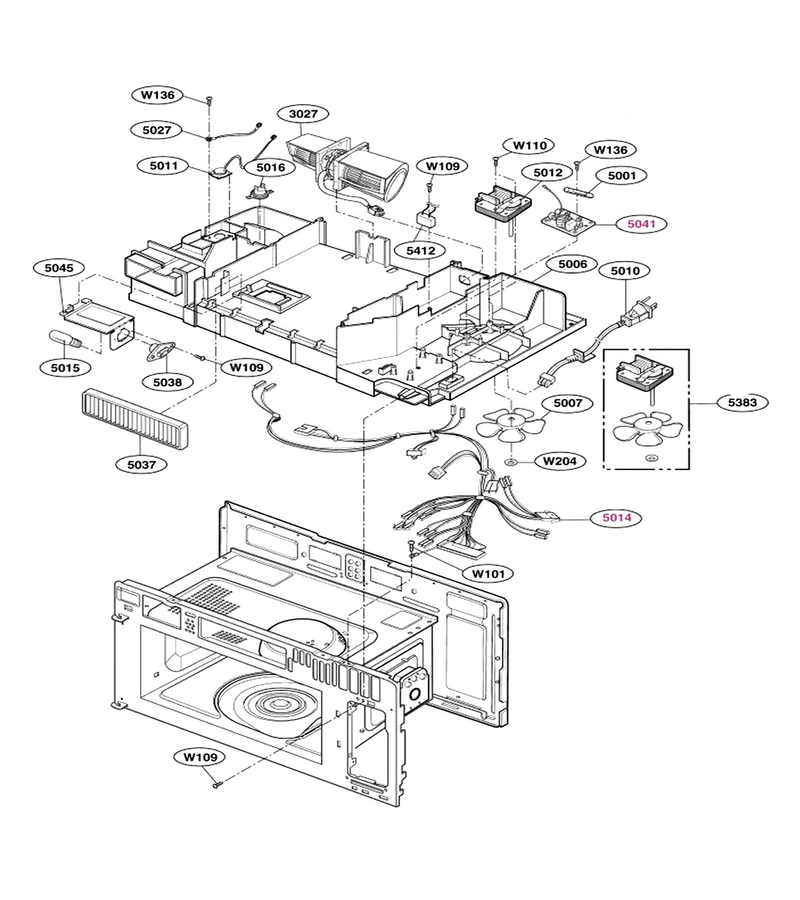

Interior Parts 3

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W136
Screw L-G-1TPL0302418
...
3027
Motor, Ac Ventilation L-G-6549W1V008F
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A018A
...
5007
Fan L-G-5900W1A027B
...
5010
Ac Cord Assembly L-G-6411W2A002N
...
5011
Sensor Assembly L-G-6501W1A013A
...
5012
Circulating Motor L-G-6549W1F009H
...
5014
Harness,single L-G-6877W1A564A
...
5015
Microwave Light Bulb L-G-6912W3Q001D
...
5016
Microwave Thermostat L-G-6930WRT003C
...
5027
Ground Wire L-G-3B72342Q
...
5037
Filter (mech), Charcoal L-G-5230W1A003A
...
5038
Socket L-G-6804W2A001B
...
5045
Oven Cover L-G-3550W3A082A
...
5383
Parts Assembly L-G-383E81A010A
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

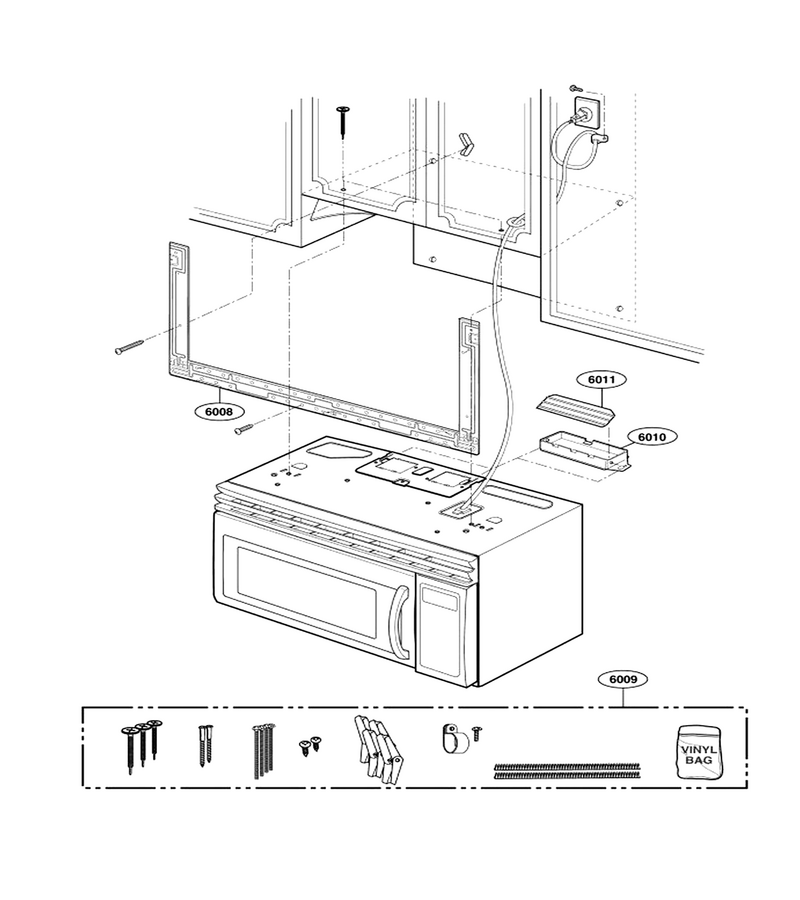

Installation Parts

...
...
6008
Microwave Mounting Plate L-G-3301W0A003A
...
6009
Microwave Installation Hardware Kit L-G-2B72771H
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
