LG AMNH123DER0.ANCAEUS

Model: AMNH123DER0.ANCAEUS

Save Part Not Listed?
product name

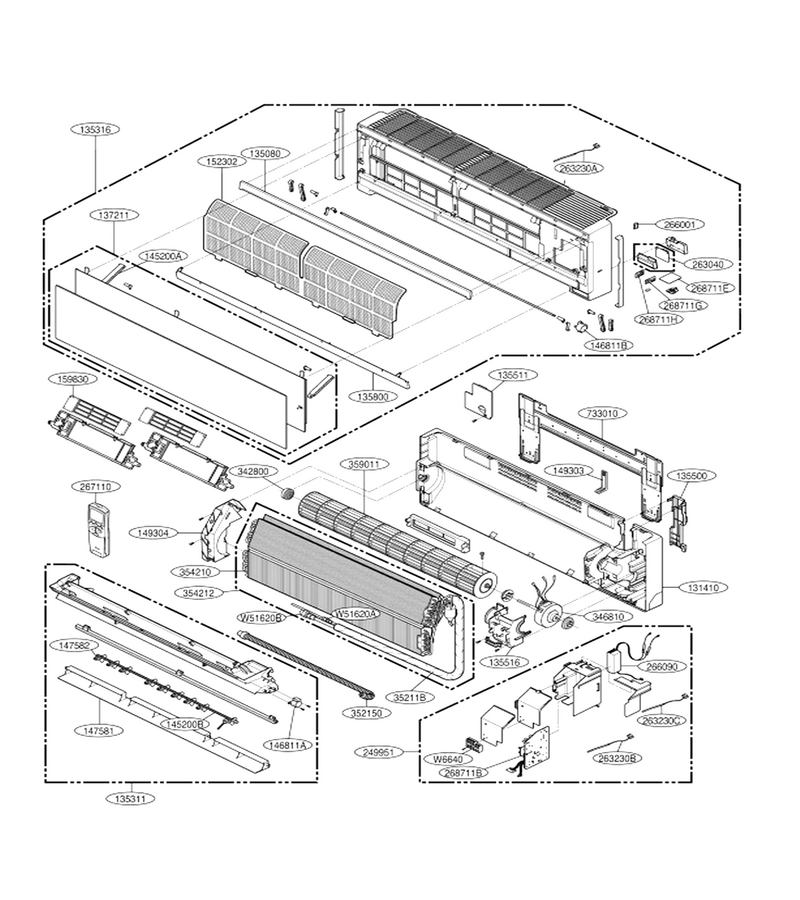

Popular Parts

Popular Parts

Main (i)

...
...
W51620A
Socket,flare L-G-3A00375D
...
W51620B
Socket,flare L-G-3A00375A
...
35211B
Tube Assembly,tubing L-G-5211A15008A
...
131410
Chassis Assembly L-G-3141A20034C
...
135080
Decor L-G-3508A20087F
...
135311
Grille Assembly, Discharge (indoor) L-G-3531A10373B
...
135316
Grille Assembly, Front (indoor) L-G-3531A10374H
...
135500
Cover L-G-3550A30315C
...
135511
Cover Assembly,control(indoor) L-G-3551A20226J
...
135516
Cover Assembly L-G-3551A20156B
...
135800
Door/this Is Strip At Btm With Artcool Logo L-G-3580A20088G
...
137211
Front Panel Assembly L-G-3721A20326A
...
145200B
Link L-G-4520A30090A
...
145200A
Link L-G-4520A30101A
...
146811A
Motor Assembly L-G-4681A20055A
...
146811B
Motor Assembly, Dc, Stepping L-G-4681A20055D
...
147581
Horizontal Louver L-G-5990A20072A
...
147582
Louver,verti L-G-4758A30057A
...
149303
Holder, Tubing L-G-4930A20022A
...
149304
Holder, Evaporator L-G-4930A30070A
...
152302
Room Air Conditioner Air Filter L-G-5230A20064A
...
159830
Filter Assembly, Air Cleaner L-G-5983A20018G
...
249951
Case Assembly,control(indoor) L-G-4995A10205J
...
263040
Lcd, Module-Tn L-G-6306A90009A
...
263230A
Thermistor Assembly,ntc L-G-EBG61106851
...
263230B
Thermistor L-G-EBG58713202
...
263230C
Thermistor Assembly,ntc L-G-EBG61106524
...
266001
Micro Switch L-G-6600K000001
...
266090
Hv Assy L-G-6609A10003Z
...
267110
Remote L-G-6711A20128H
...
268711G
Sub Pcb Assembly L-G-6871A00088A
...
268711H
Sub Pcb Assembly L-G-6871A20259D
...
268711E
Sub Pcb Assembly L-G-6871A00087B
...
268711B
Pcb Assembly,main L-G-6871A20781C
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Room Air Conditioner Indoor Fan Motor L-G-4681AR2295L
...
352150
Hose Assembly,drain L-G-AEM36740102
...
354210
Evaporator Assembly,first L-G-ADL30058601
...
354212
Evaporator Assembly,final L-G-5421A20282A
...
359011
Room Air Conditioner Blower Wheel L-G-5901A20017H
...
733010
Plate Assembly L-G-3301A20020A
