product name

LG AKWW0483UA0.AWHBEUS

Model: AKWW0483UA0.AWHBEUS

Save Part Not Listed?
product name

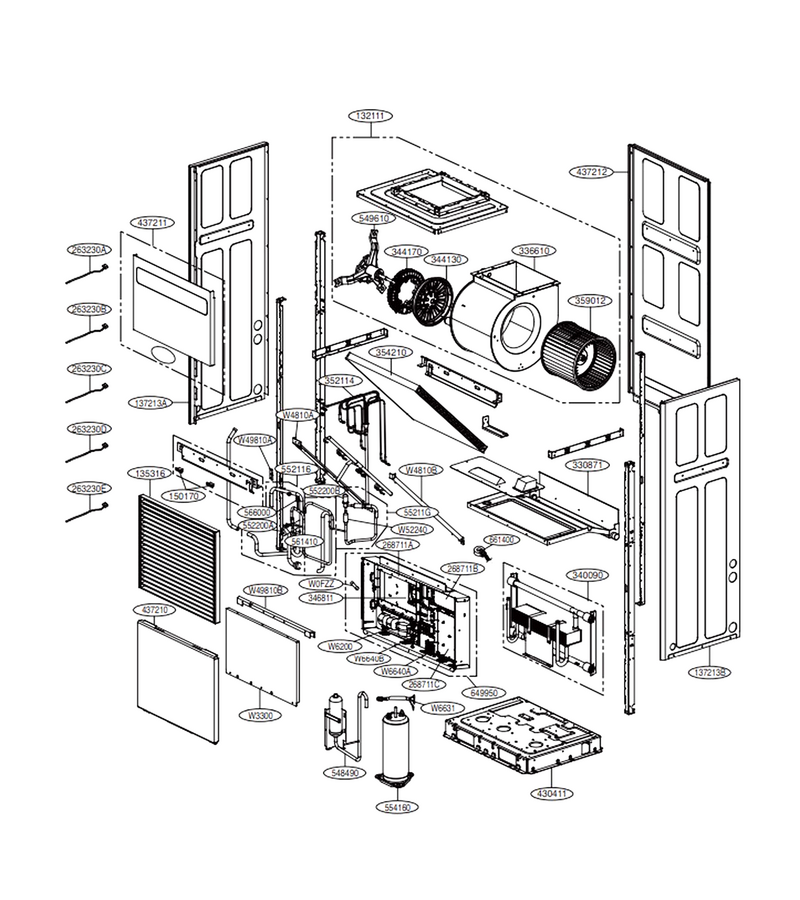

Main (i)

...
...
W0FZZ
Fuse,time Delay L-G-EAF38718601
...
W3300
Plate L-G-MGJ30040301
...
W4810A
Bracket L-G-4810A21058B
...
W4810B
Bracket L-G-4810A21046D
...
W49810A
Supporter L-G-4980A20113B
...
W49810B
Supporter L-G-4980A20202A
...
W52240
Strainer L-G-5224A20002J
...
W6200
Filter,ac Line L-G-EAM41643301
...
W6631
Harness,multi L-G-6631A20217W
...
W6640A
Connector,terminal Block L-G-6640000036B
...
55211G
Tube Assembly,expansion L-G-AJR32865901
...
132111
Frame Assembly L-G-3211A10031B
...
135316
Grille Assembly,front(indoor) L-G-3531A10358A
...
137213A
Panel Assembly,side L-G-3721A10196A
...
137213B
Panel Assembly,side L-G-3721A10196B
...
150170
Magnet Assembly, Mech L-G-3A02221A
...
263230A
Thermistor Assembly,ntc L-G-EBG61106533
...
263230B
Thermistor Assembly,ntc L-G-EBG61106513
...
263230C
Thermistor Assembly,ntc L-G-EBG61107017
...
263230D
Thermistor Assembly,ntc L-G-EBG61107003
...
263230E
Thermistor Assembly,ntc L-G-EBG61107101
...
268711A
Pcb Assembly,main L-G-EBR60845202
...
268711B
Pcb Assembly,main L-G-6871A10059C
...
268711C
Pcb Assembly,fan L-G-EBR39778510
...
330871
Pan Assembly,drain L-G-3087A10036A
...
336610
Housing Assembly L-G-3661A10027B
...
340090
Exchanger Assembly L-G-ADM32866602
...
344130
Rotor Assembly L-G-4413A20001B
...
344170
Stator Assembly L-G-4417A20001C
...
346811
Motor Assembly,ac,cooling L-G-EAU38500601
...
352114
Tube Assembly,distributor L-G-5211A13329C
...
354210
Evaporator Assembly,first L-G-ADL33033401
...
359012
Fan Assembly,blower L-G-2A00578D
...
430411
Base Assembly,weld(outdoor) L-G-3041A11101H
...
437210
Panel Assembly,front(sub) L-G-3721A10198A
...
437211
Panel Assembly,front(outdoor) L-G-3721A10199B
...
437212
Panel Assembly,rear(outdoor) L-G-3721A10197A
...
548490
Accumulator Assembly L-G-AAB32861201
...
549610
Bracket Assembly,motor(outdoor) L-G-4961A10011E
...
552116
Tube Assembly,reverse L-G-AJR32865401
...
552200A
Socket,flare L-G-3A00183C
...
552200B
Valve,expansion Body L-G-5220A90013B
...
554160
Compressor L-G-5416A90008Q
...
561410
Drawing,assembly L-G-6877A20052M
...
566000
Service Valve L-G-6600L000013
...
649950
Case Assembly,control(outdoor) L-G-ABQ69058102
...
661400
Coil,expansion L-G-6141A20011W
