product name

LG AKWW0093YA0.AWHBEUS

Model: AKWW0093YA0.AWHBEUS

Save Part Not Listed?
product name

Main (i)

...
...
W6200
Filter,line Noise L-G-EAM38878001
...
W6631
Harness,multi L-G-EAD52411203
...
55211G
Tube Assembly,expansion L-G-AJR55826401
...
137210
Panel Assembly,front L-G-AGL55832601
...
137211
Panel Assembly,front(indoor) L-G-AGL55790602
...
137213A
Panel Assembly,side L-G-AGL35832401
...
137213B
Panel Assembly,side L-G-AGL35832402
...
137214
Panel Assembly,upper L-G-AGL55825301
...
249951
Case Assembly,control(indoor) L-G-ABQ55787004
...
263230A
Thermistor Assembly,ntc L-G-EBG61106536
...
263230B
Thermistor Assembly,ntc L-G-EBG61106534
...
263230C
Thermistor Assembly,ntc L-G-EBG61106804
...
263230D
Thermistor Assembly L-G-6323A20029A
...
263230E
Thermistor Assembly,ntc L-G-EBG61106911
...
268711D
Pcb Assembly,option L-G-EBR50639204
...
268711F
Pcb Assembly L-G-EBR48168208
...
268711B
Pcb Assembly,main L-G-6871A10354K
...
340090
Exchanger Assembly L-G-ADM55761908
...
352114
Tube Assembly,distributor L-G-AJR55826201
...
352118
Tube Assembly,menifold(indoor) L-G-AJR55826301
...
354210
Evaporator Assembly L-G-ADL55791201
...
430410
Base Assembly,outdoor L-G-AAN55825201
...
435512A
Cover Assembly L-G-ACQ54096301
...
435512B
Cover Assembly L-G-ACQ54103301
...
552116
Tube Assembly,reverse L-G-AJR55826101
...
552202
Reverse Valve L-G-5220AR3228E
...
554160
Compressor L-G-5416A90055D
...
561410
Solenoid L-G-6141A20010W
...
661400
Coil Assembly, Expansion L-G-6141A20032A

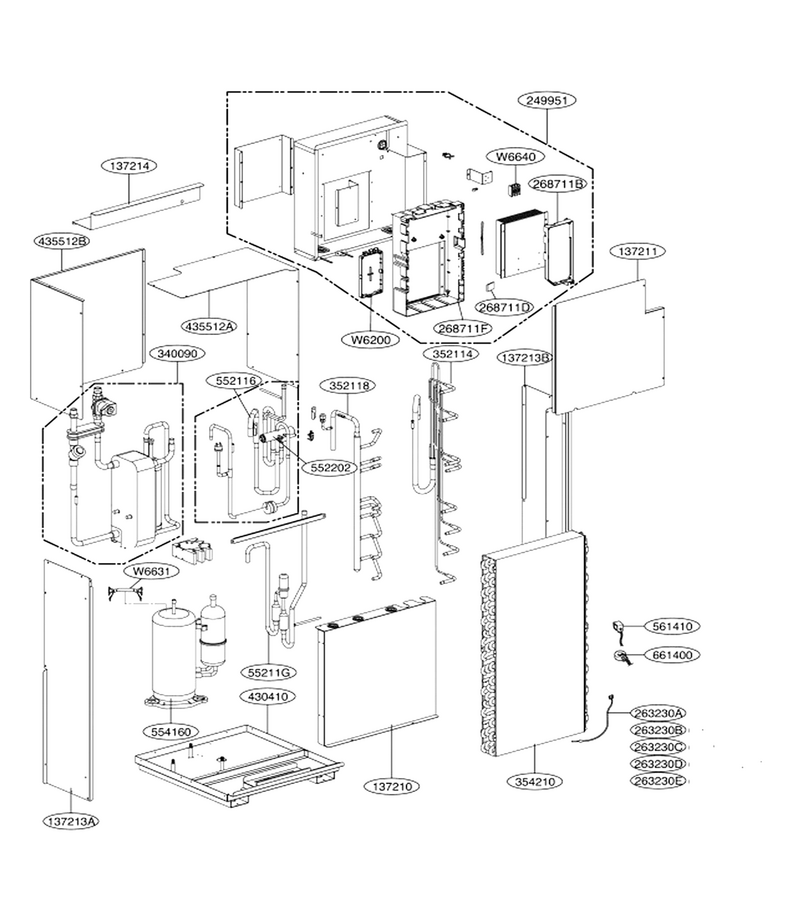

Schematic Image Zoomed
