LG ADFD5448AT.ASTESNA

Model: ADFD5448AT.ASTESNA

Save Part Not Listed?
product name

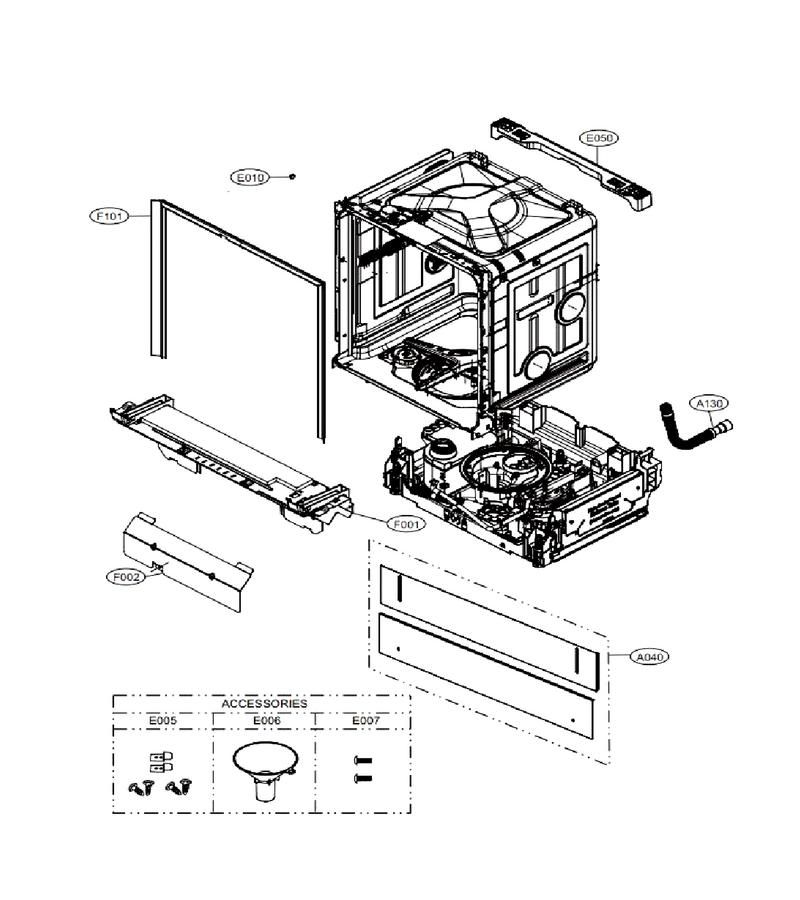

Main

...
...
A040
Accessory Assembly L-G-AAA77744401
...
A130
Hose Assembly L-G-AEM74333101
...
E005
Assembly Accessory L-G-5001DD4001C
...
E006
Funnel L-G-3016ED3001A
...
E007
Accessory Assembly L-G-AAA74804714
...
E010
Cover Screw L-G-4830ED4001A
...
E050
Supporter,holder L-G-MJH64013301
...
F001
Frame Assembly L-G-ADV75970202
...
F002
Frame Assembly L-G-ADV76928002
...
F101
Packing L-G-3920DD3002G

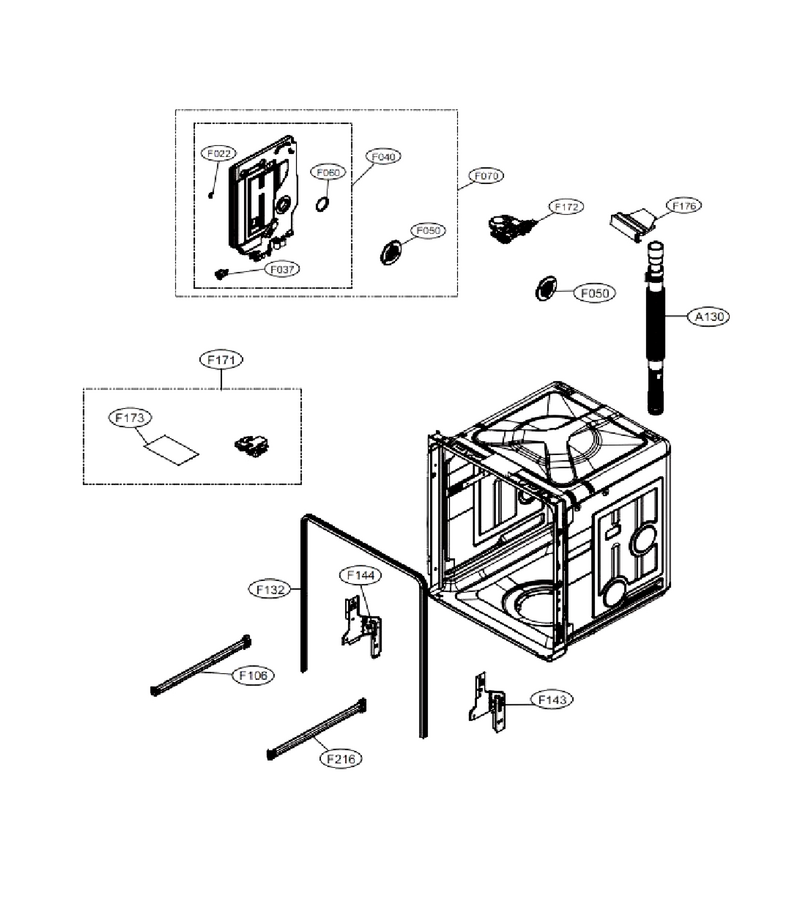

Tub Assembly

...
...
A130
Hose Assembly L-G-AEM74333101
...
F022
Sensor Assembly L-G-EBD62065301
...
F037
Solenoid Assembly L-G-EBE61521603
...
F040
Guide Assembly L-G-AEC74377603
...
F050
Cap,cover L-G-MBL67717601
...
F060
Gasket L-G-MDS65210201
...
F070
Parts Assembly L-G-AGM76251803
...
F106
Parts Assembly L-G-AGM75550001
...
F132
Packing L-G-3920DD3005E
...
F143
Supporter,hinge L-G-MJH63533303
...
F144
Supporter,hinge L-G-MJH63533304
...
F171
Parts Assembly L-G-AGM76209501
...
F172
Switch Assembly L-G-EBF63014701
...
F173
Cover,safety L-G-MCK69283003
...
F176
Packing L-G-MFZ66979401
...
F216
Parts Assembly L-G-AGM75549901

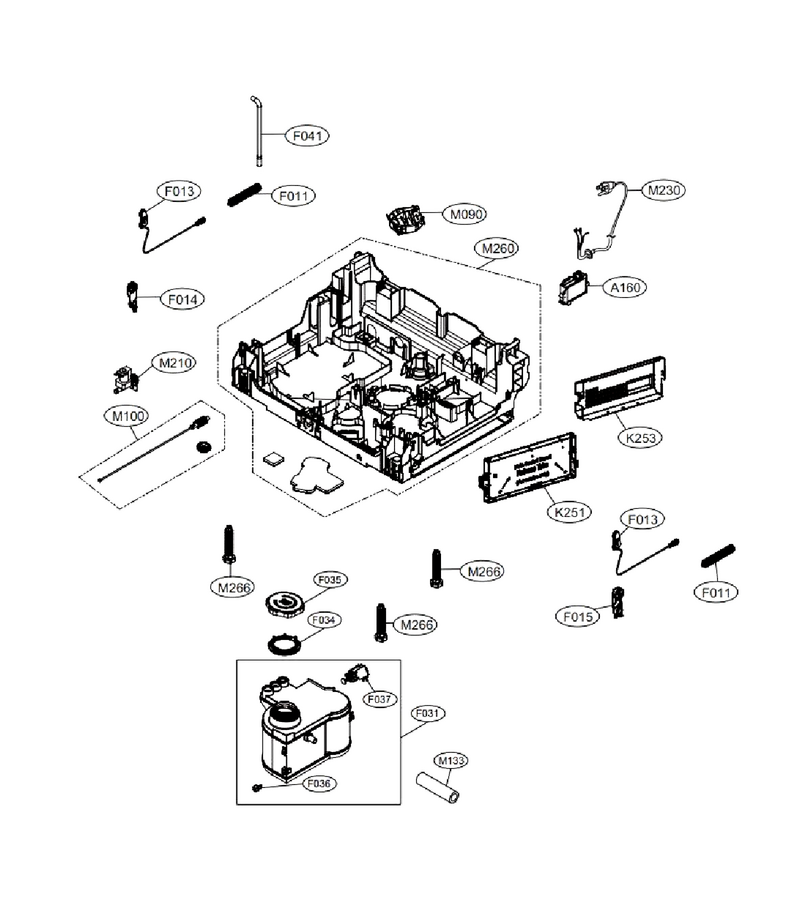

Base Assembly

...
...
A160
Filter Assembly L-G-EAM60991334
...
F011
Spring,hinge L-G-MHY63963802
...
F013
Connector Assembly L-G-ACJ73790102
...
F014
Roller L-G-MHA63252804
...
F015
Roller L-G-MHA63252803
...
F031
Softener Assembly L-G-AHZ72929303
...
F034
Nut,common L-G-1NZZED4003B
...
F035
Cap Assembly L-G-ABN74678601
...
F036
Sensor Assembly L-G-6501ED4001J
...
F037
Solenoid Assembly L-G-EBE61521603
...
F041
Hose,inlet L-G-MEJ63444904
...
K251
Pcb Assembly,main L-G-EBR89462002
...
K253
Cover,protect L-G-MCK70272301
...
M090
Dishwasher Flood Switch L-G-6601ER2001A
...
M100
Parts Assembly L-G-AGM75510003
...
M133
Hose Connector L-G-MEJ63424701
...
M210
Valve Assembly,inlet L-G-5221FD2118G
...
M230
Power Cord Assembly L-G-EAD62373006
...
M260
Parts Assembly L-G-AGM30014401
...
M266
Leg L-G-MFA63022902

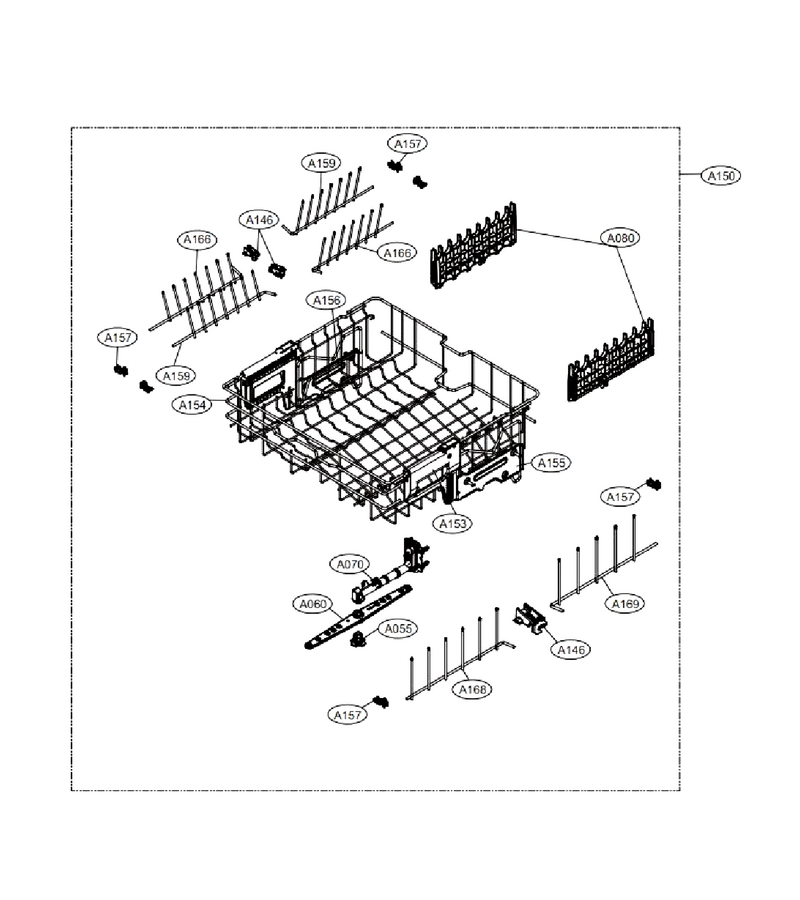

Upper Rack Assembly

...
...
A055
Shaft,nozzle L-G-4370ED3007B
...
A060
Nozzle Assembly L-G-5249DD1001H
...
A070
Guide Assembly L-G-AEC74357501
...
A080
Rack L-G-MGR62482202
...
A146
Holder L-G-MEG64438801
...
A150
Rack Assembly L-G-AHB73129919
...
A153
Parts Assembly L-G-AGM75509501
...
A154
Parts Assembly L-G-AGM75509601
...
A155
Roller Assembly L-G-AHJ73610001
...
A156
Roller Assembly L-G-AHJ73609901
...
A157
Holder L-G-MEG64438902
...
A159
Rack L-G-MGR62482701
...
A166
Rack L-G-MGR62482703
...
A168
Rack L-G-MGR62482706
...
A169
Rack L-G-MGR62482705

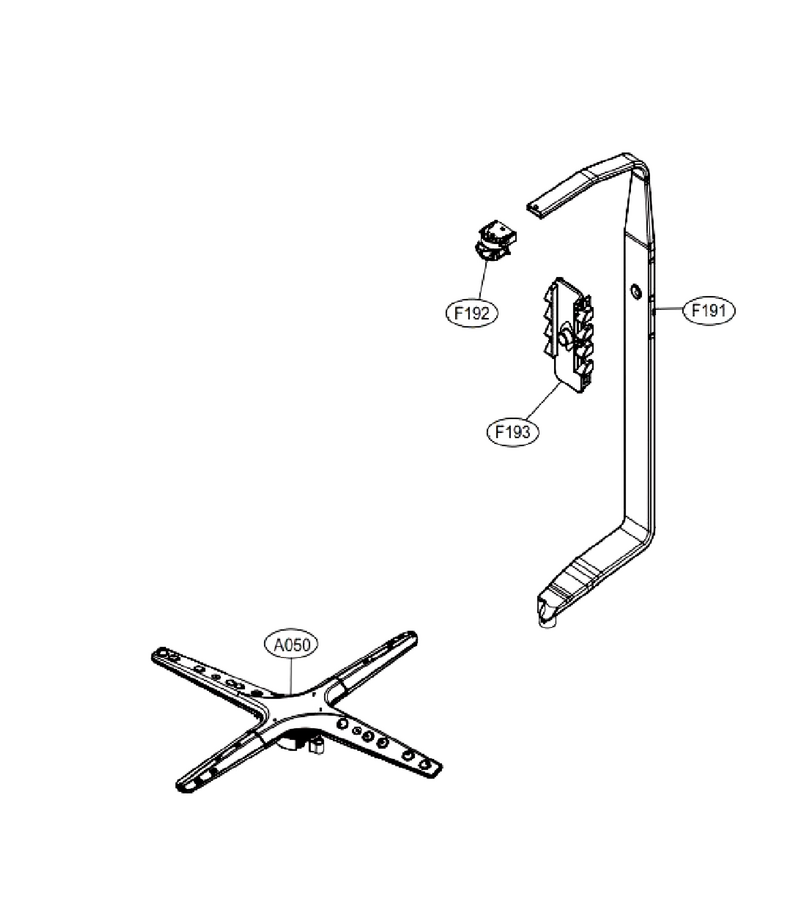

Water Guide Assembly

...
...
A050
Nozzle Assembly L-G-AGB73932501
...
F191
Guide Assembly L-G-AEC74357701
...
F192
Nozzle Assembly L-G-AGB73912401
...
F193
Holder L-G-MEG64418901

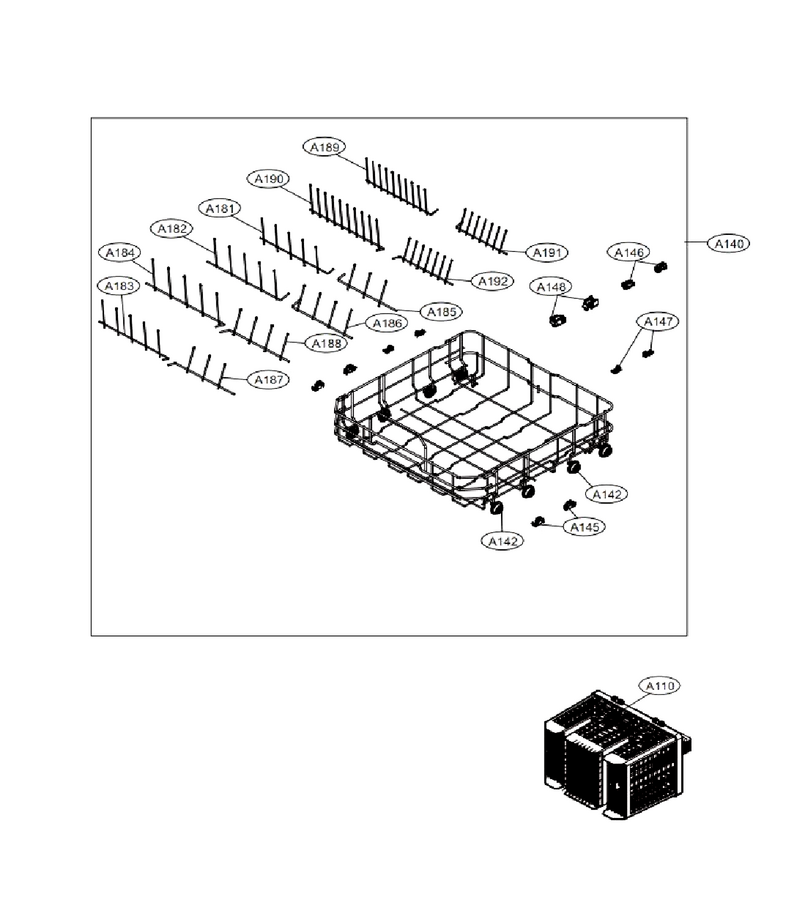

Lower Rack Assembly

...
...
A110
Basket Assembly,spoon L-G-AAP74471401
...
A140
Rack Assembly L-G-AHB73129811
...
A142
Roller Assembly L-G-4581DD3003C
...
A145
Holder L-G-MEG64438701
...
A146
Holder L-G-MEG64438801
...
A147
Holder L-G-MEG64438901
...
A148
Holder L-G-MEG64438601
...
A181
Rack L-G-MGR62482622
...
A182
Rack L-G-MGR62482623
...
A183
Rack L-G-MGR62482624
...
A184
Rack L-G-MGR62482625
...
A185
Rack L-G-MGR62482605
...
A186
Rack L-G-MGR62482606
...
A187
Rack L-G-MGR62482607
...
A188
Rack L-G-MGR62482608
...
A189
Rack L-G-MGR62482811
...
A190
Rack L-G-MGR62482812
...
A191
Rack L-G-MGR62482803
...
A192
Rack L-G-MGR62482804

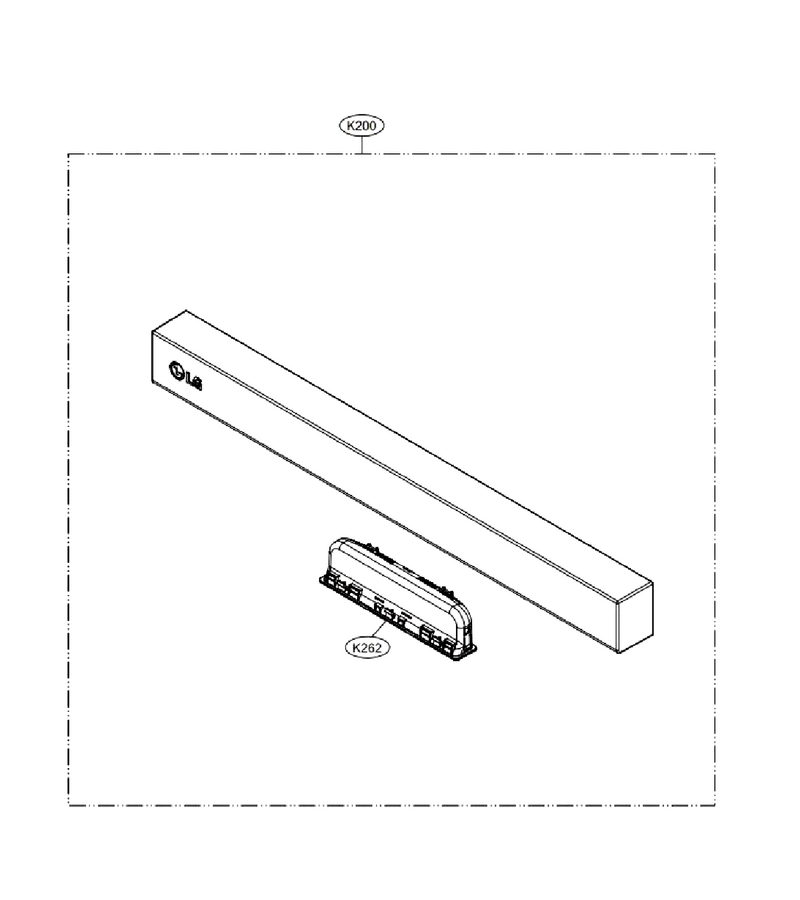

Panel Assembly

...
...
K200
Panel Assembly,control L-G-AGL30039301
...
K262
Handle L-G-MEB63734001

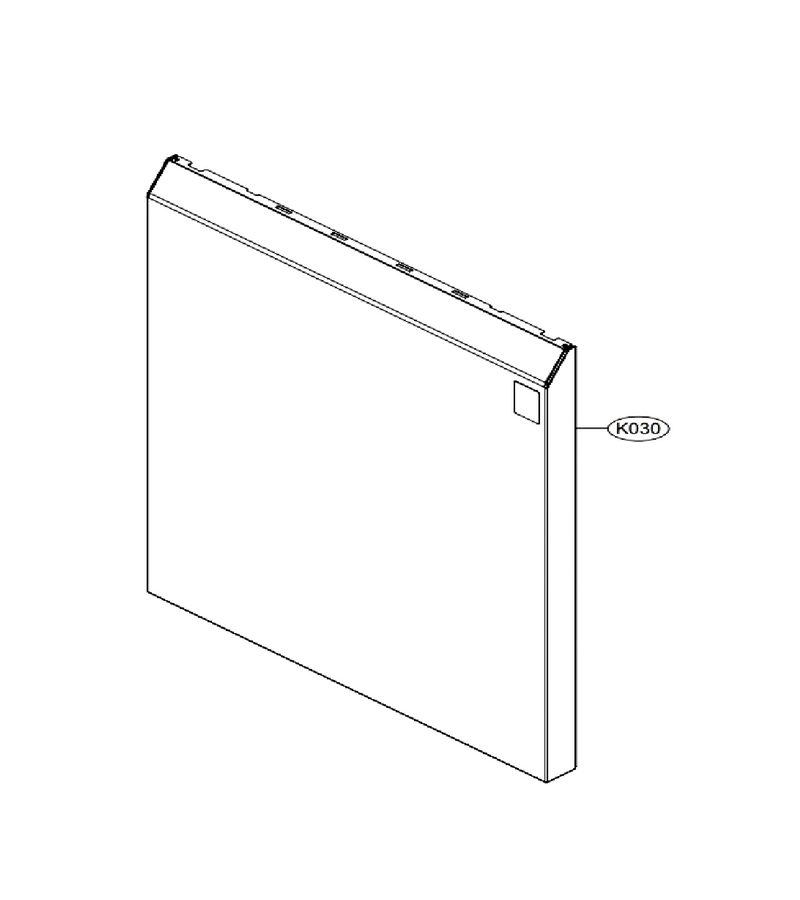

Front Cover Assembly

...
...
K030
Cover Assembly,front L-G-ACQ88048132

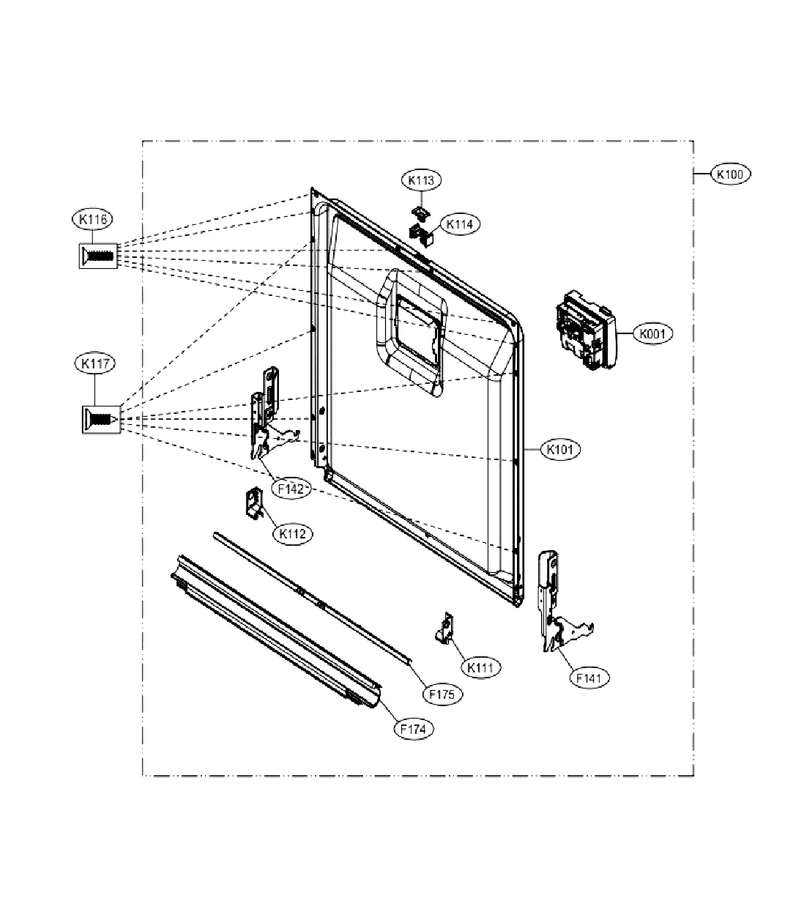

Door Liner Assembly

...
...
F141
Hinge L-G-MEF63061903
...
F142
Hinge L-G-MEF63061904
...
F174
Gasket L-G-MDS65210401
...
F175
Frame L-G-MDQ64476401
...
K001
Parts Assembly L-G-AGM75469803
...
K100
Door Liner Assembly L-G-ADE73849620
...
K101
Door Liner Assembly L-G-ADE73929611
...
K111
Holder L-G-MEG64439201
...
K112
Holder L-G-MEG64439202
...
K113
Locker,lock L-G-MFG63958701
...
K114
Lock Holder L-G-MEG64458801
...
K116
Screw,customized L-G-1SZZED3002G
...
K117
Screw,customized L-G-1SZZED3003G

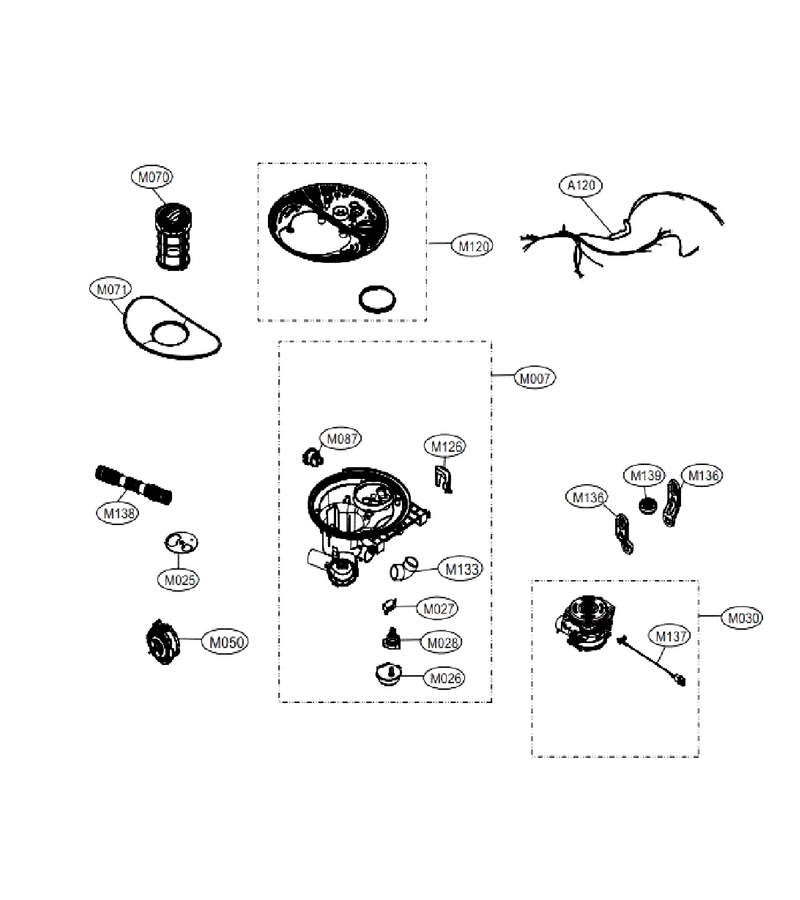

Sump Assembly

...
...
A120
Harness,multi L-G-EAD63647022
...
M007
Parts Assembly L-G-AGM75469208
...
M025
Check Valve L-G-MJX63511301
...
M026
Dishwasher Diverter Motor L-G-4681ED3001D
...
M027
Switch,micro L-G-EBF64375202
...
M028
Shaft Assembly L-G-AHR73669802
...
M030
Casing Assembly,pump L-G-ABT72989206
...
M050
Case Assembly L-G-ABQ75742502
...
M070
Filter Assembly,mesh L-G-ADQ74693701
...
M071
Filter L-G-MDJ64544301
...
M087
Case Assembly L-G-ABQ75742401
...
M120
Cover Assembly L-G-ACQ88920601
...
M126
Water Guide L-G-MEA64230001
...
M133
Hose Connector L-G-MEJ63424701
...
M136
Holder L-G-MEG64398801
...
M137
Connector Assembly L-G-ACJ74110101
...
M138
Drain Hose Assembly L-G-AEM74512901
...
M139
Holder L-G-MEG64398901
