LG ACHH050VBAB.ABEAAAU

Model: ACHH050VBAB.ABEAAAU

Save Part Not Listed?
product name

Popular Parts

Popular Parts

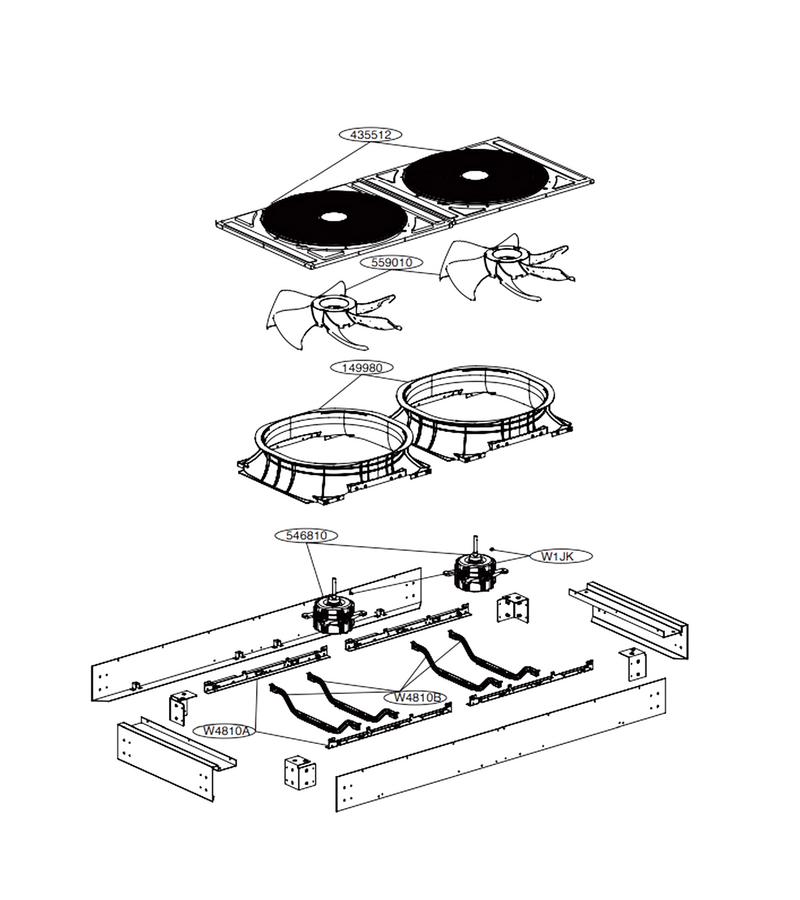

Main (1)

...
...
W1JK
Set Screw L-G-4H00026B
...
W4810A
Bracket L-G-MAZ65143503
...
W4810B
Bracket L-G-MAZ66006801
...
149980
Shroud L-G-MHN63482101
...
435512
Cover Assembly,top(outdoor) L-G-ACQ34885914
...
546810
Outdoor Dc Motor Assembly L-G-EAU43080043
...
559010
Fan Assembly,propeller L-G-ADP75313301

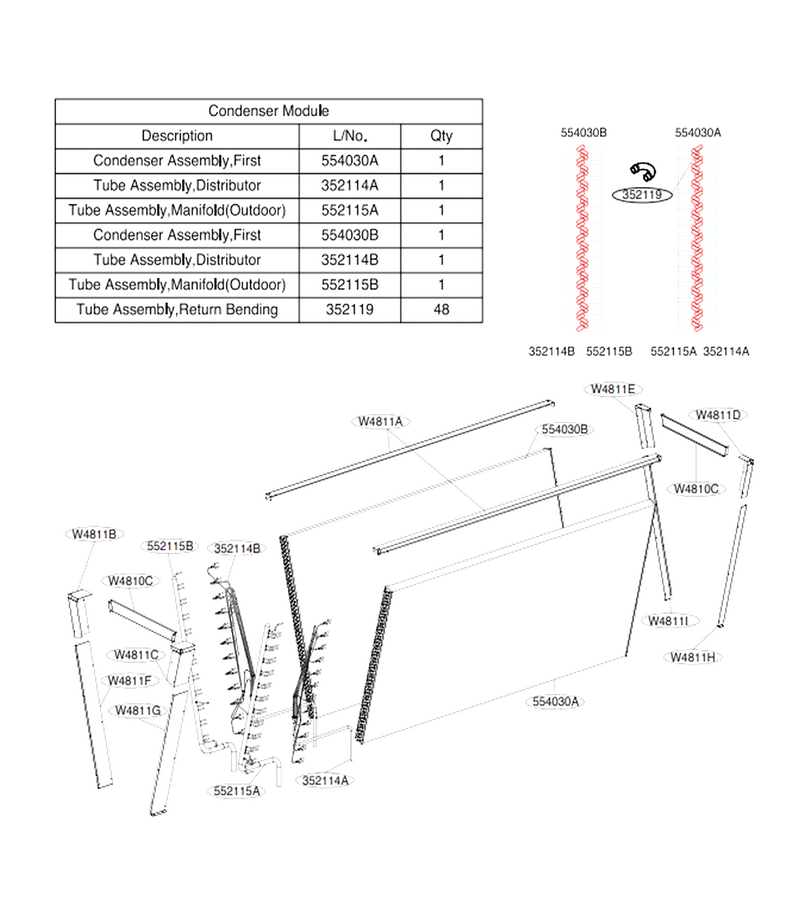

Condenser Assembly

...
...
W4810C
Bracket L-G-MAZ63512903
...
W4811A
Bracket Assembly L-G-ABA74068903
...
W4811B
Bracket Assembly L-G-ABA74249001
...
W4811C
Bracket Assembly L-G-ABA74249002
...
W4811D
Bracket Assembly L-G-ABA74249003
...
W4811E
Bracket Assembly L-G-ABA74249004
...
W4811F
Bracket Assembly L-G-ABA74088605
...
W4811G
Bracket Assembly L-G-ABA74088606
...
W4811H
Bracket Assembly L-G-ABA74088607
...
W4811I
Bracket Assembly L-G-ABA74088608
...
352114A
Tube Assembly,distributor L-G-AJR73965602
...
352114B
Tube Assembly,distributor L-G-AJR73965601
...
352119
Tube Assembly,return Bending L-G-3H02787A
...
552115A
Tube Assembly,manifold(outdoor) L-G-AJR73965501
...
552115B
Tube Assembly,manifold(outdoor) L-G-AJR73965502
...
554030A
Condenser Assembly,first L-G-ACG73568143
...
554030B
Condenser Assembly,first L-G-ACG73568144

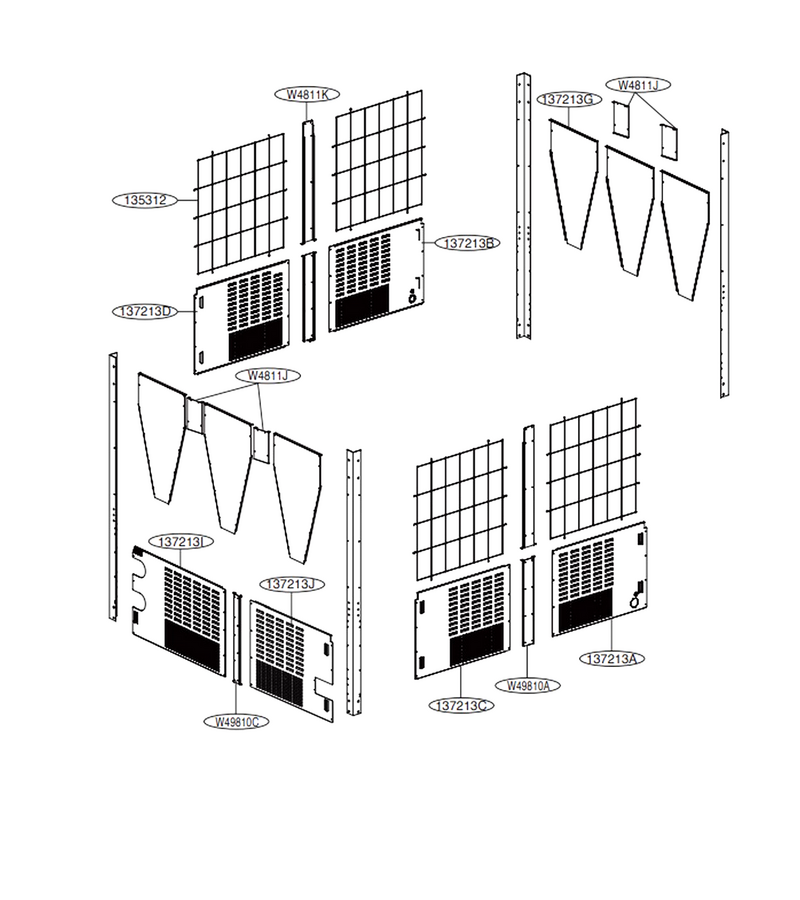

Main (2)

...
...
W4811J
Bracket Assembly L-G-ABA74349701
...
W4811K
Bracket Assembly L-G-ABA74231301
...
W49810A
Supporter Assembly L-G-AJJ73498808
...
W49810C
Supporter Assembly L-G-AJJ73498807
...
135312
Grille Assembly,front L-G-AEB73706001
...
137213A
Panel Assembly,side L-G-AGL76232501
...
137213B
Panel Assembly,side L-G-AGL76232502
...
137213C
Panel Assembly,side L-G-AGL76232503
...
137213D
Panel Assembly,side L-G-AGL76232504
...
137213G
Panel Assembly,side L-G-AGL73675304
...
137213I
Panel Assembly,side L-G-AGL76232503
...
137213J
Bracket Assembly L-G-AGL76232524

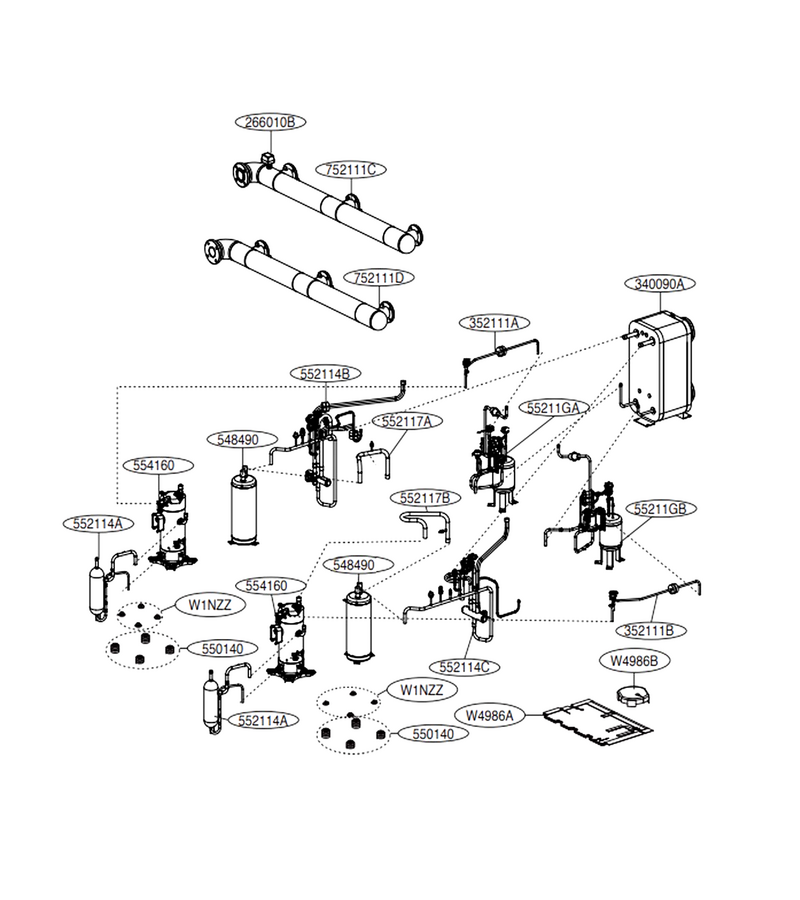

Main (3)

...
...
W1NZZ
Customized Nut L-G-FAD33370603
...
W4986A
Sound Proof L-G-MDS65550301
...
W4986B
Gasket L-G-MDS65550401
...
55211GA
Expansion Tube Assembly L-G-AJR76182705
...
55211GB
Expansion Tube Assembly L-G-AJR76182704
...
266010B
Switch Assembly L-G-EBF60691606
...
340090A
Exchanger Assembly L-G-ADM74650605
...
352111B
Connector Tube Assembly L-G-AJR76182804
...
548490
Accumulator L-G-4848A20001N
...
550140
Damper,compressor L-G-MCQ62569601
...
552114A
Discharge (outdoor) Tube Assembly L-G-AJR76182503
...
552114B
Discharge (outdoor) Tube Assembly L-G-AJR76182905
...
552114C
Discharge (outdoor) Tube Assembly L-G-AJR76182904
...
552117A
Suction (outdoor) Tube Assembly L-G-AJR76182603
...
552117B
Suction (outdoor) Tube Assembly L-G-AJR76182604
...
554160
Compressor Set,korea L-G-TBZ37957301
...
752111C
Pipe Assembly L-G-AGR75994834
...
752111D
Pipe Assembly L-G-AGR75994833

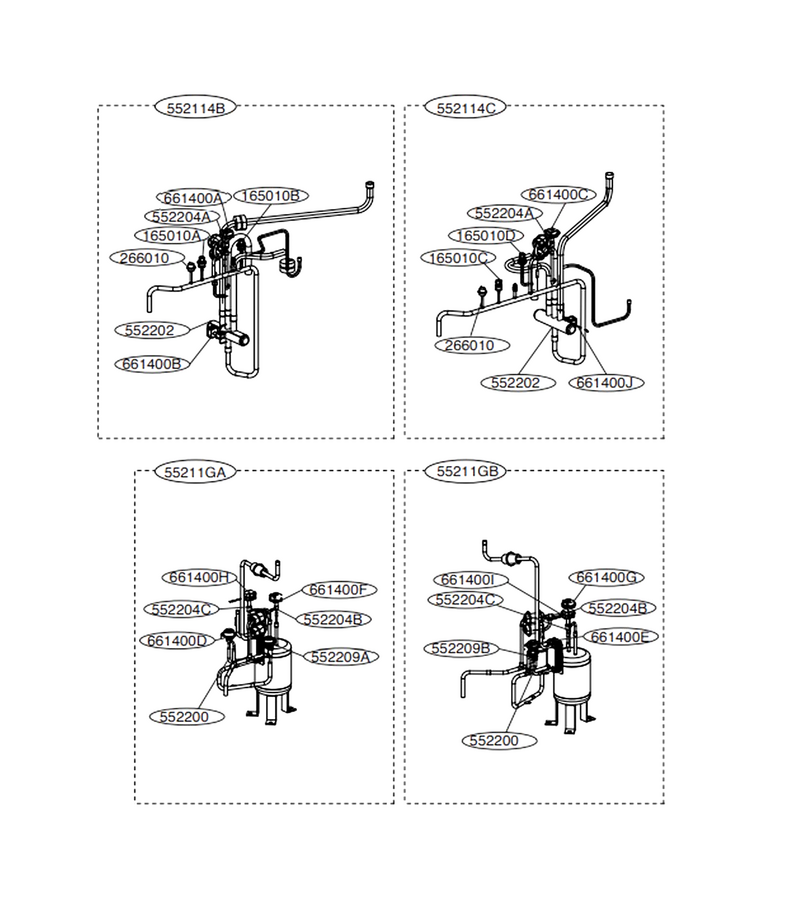

Valve, Sensor Parts

...
...
55211GA
Expansion Tube Assembly L-G-AJR76182705
...
55211GB
Expansion Tube Assembly L-G-AJR76182704
...
165010A
Pressure Sensor Assembly L-G-EBD64401004
...
165010B
Pressure Sensor Assembly L-G-EBD64401003
...
165010C
Pressure Sensor Assembly L-G-EBD64401002
...
165010D
Pressure Sensor Assembly L-G-EBD64401001
...
266010
Switch Assembly,pressure L-G-EBF63614906
...
552114B
Discharge (outdoor) Tube Assembly L-G-AJR76182905
...
552114C
Discharge (outdoor) Tube Assembly L-G-AJR76182904
...
552200
Valve,expansion Body L-G-MJX63992001
...
552202
Valve,reverse L-G-5220AP3777C
...
552204A
Valve,solenoid L-G-MJX61841301
...
552204B
Valve,solenoid L-G-5220A90008K
...
552204C
Valve,solenoid L-G-5220A90008H
...
552209A
Valve Assembly L-G-AJU36719729
...
552209B
Valve Assembly L-G-AJU36719730
...
661400A
Coil Assembly,solenoid L-G-EAP64286401
...
661400B
Reverse Coil Assembly L-G-EAP64987501
...
661400C
Coil Assembly,solenoid L-G-EAP64286402
...
661400D
Coil Assembly,expansion L-G-EAP64286601
...
661400E
Coil Assembly,expansion L-G-EAP64286602
...
661400F
Solenoid Coil Assembly L-G-EAP64286403
...
661400G
Solenoid Coil Assembly L-G-EAP64286404
...
661400H
Solenoid Coil Assembly L-G-EAP64987601
...
661400I
Solenoid Coil Assembly L-G-EAP64987602
...
661400J
Reverse Coil Assembly L-G-EAP64987502

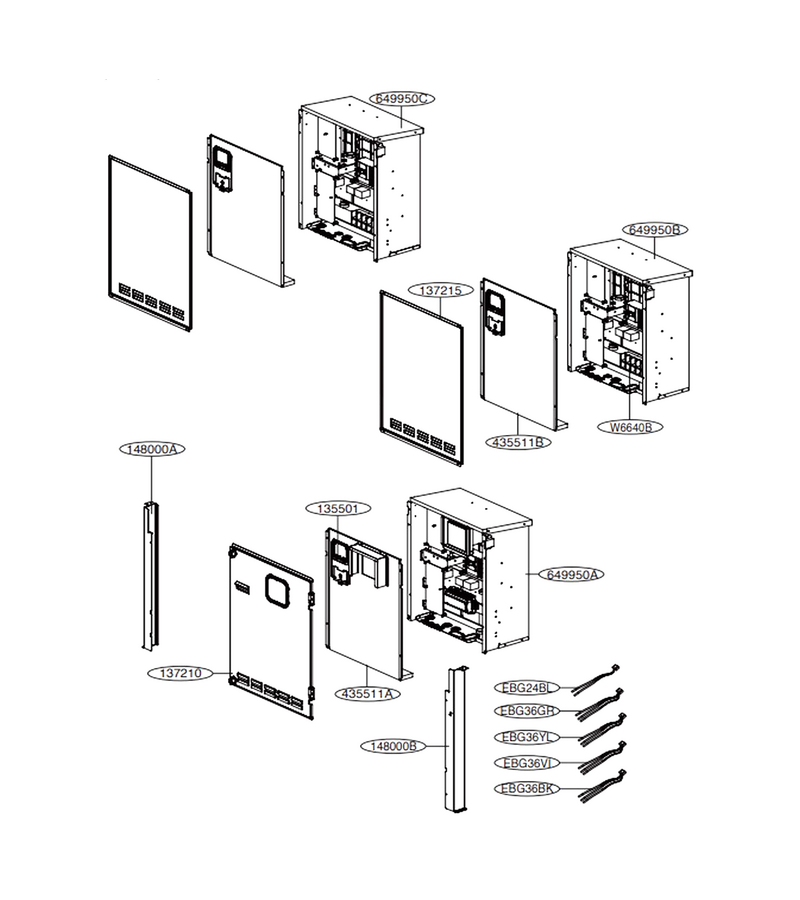

Main (4)

...
...
EBG24BL
Thermistor Assembly,ntc L-G-EBG63285701
...
EBG36BK
Thermistor Assembly,ntc L-G-EBG63285705
...
EBG36GR
Thermistor Assembly,ntc L-G-EBG63285702
...
EBG36VI
Thermistor Assembly,ntc L-G-EBG63285704
...
EBG36YL
Thermistor Assembly,ntc L-G-EBG63285703
...
W6640B
Terminal Block Connector L-G-6640A30004N
...
135501
Cover Assembly L-G-ACQ33787704
...
137210
Panel Assembly,front L-G-AGL73679007
...
137215
Panel Assembly,control L-G-AGL73975501
...
148000A
Supporter L-G-MJH65074012
...
148000B
Supporter L-G-MJH65074014
...
435511A
Cover Assembly,control(outdoor) L-G-ACQ89828811
...
435511B
Cover Assembly,control(outdoor) L-G-ACQ89828812
...
649950A
Control (outdoor) Case Assembly L-G-ABQ30100204
...
649950B
Control (outdoor) Case Assembly L-G-ABQ30100205
...
649950C
Control (outdoor) Case Assembly L-G-ABQ30100206

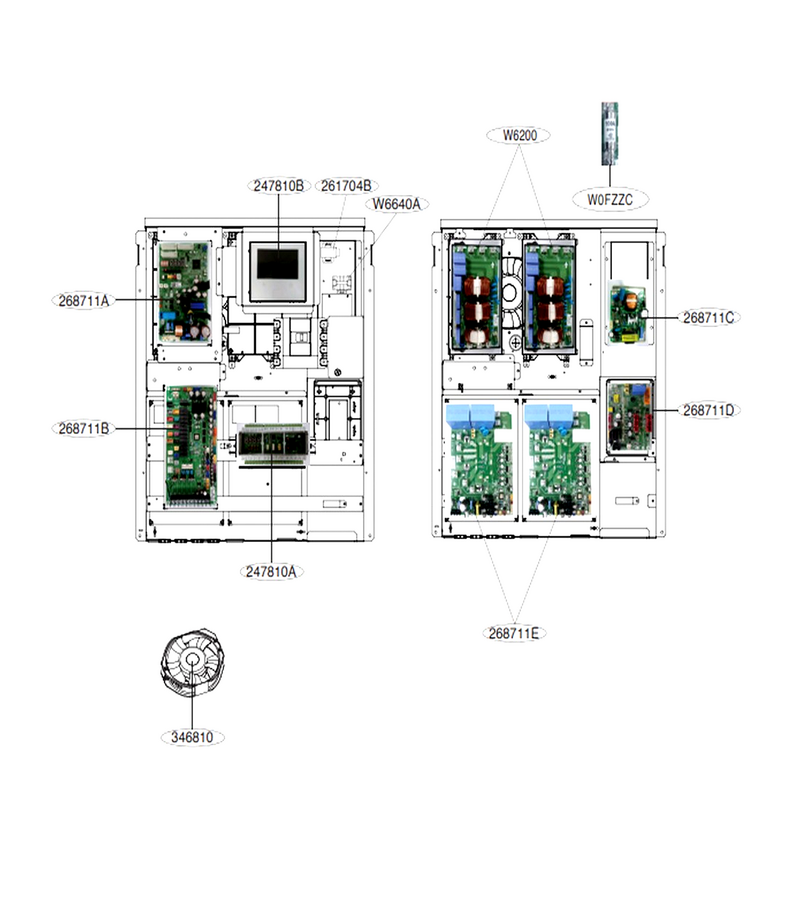

Main (5)

...
...
W0FZZC
Fuse,time Delay L-G-EAF62630401
...
W6200
Filter,ac Line L-G-EAM63430904
...
W6640A
Terminal Block Connector L-G-3A00093D
...
247810A
Controller Assembly L-G-ACM75098802
...
247810B
Controller Assembly L-G-ACM74918902
...
261704B
Reactor Transformer L-G-EBJ61473105
...
268711A
Cycle Pcb Assembly L-G-EBR81880160
...
268711B
Main Pcb Assembly L-G-EBR79669927
...
268711C
Pcb Assembly,power L-G-6871A20695C
...
268711D
Fan Pcb Assembly L-G-EBR79669832
...
268711E
Inverter Pcb Assembly L-G-EBR82376304
...
346810
Motor Assembly,ac,cooling L-G-EAU38500610
