LG ACD052PK.APGCWPL

Model: ACD052PK.APGCWPL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Capacitor, Unclassified L-G-0CZZA20003A
...
35211A
Tube L-G-5211A10062A
...
130410
Base Assembly,single L-G-3041A10011F
...
130910
Cabinet L-G-3091A10020D
...
135312
Grille Assembly,front L-G-3531A10064A
...
135313
Grille,inlet L-G-3530A10064A
...
147582A
Louver,vertical L-G-5990A30005A
...
147582B
Louver,vertical L-G-5990A30005B
...
149410
Knob Assembly L-G-4941A30014A
...
152302
Room Air Conditioner Air Filter L-G-5231AR2148G
...
249950
Case Assembly,control L-G-4995A20126C
...
264110
Power Cord L-G-2H00677P
...
266003
Switch,rotary L-G-2H00154K
...
269300
Room Air Conditioner Thermostat L-G-2H01109H
...
346811
Motor Assembly L-G-4681A10012B
...
349480
Orifice L-G-4948A10007A
...
352115
Tube L-G-5211A10063A
...
352380
Air Guide L-G-5238A20003A
...
352390
Guide L-G-5239A30003A
...
354210
Evaporator L-G-5421A10008B
...
359012
Fan L-G-5900A20005A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552102
Capillary Tube L-G-5210A30018H
...
552111
Capillary L-G-5211AR3332V
...
554030
Condenser L-G-5403AR6200C
...
554160
Compressor Set,china L-G-2520UCDA015
...
559010
Propeller L-G-5900A20017A
...
567502
Protector L-G-6750U-L050A

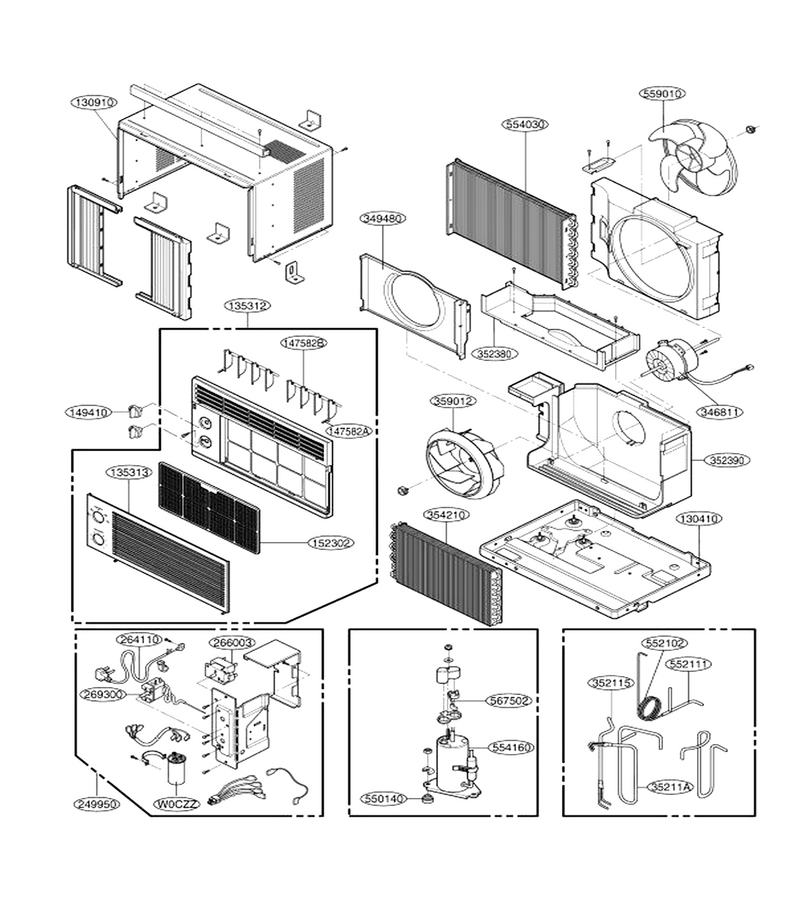

Schematic Image Zoomed
