product name

LG A927KGMS.BIGELGA

Model: A927KGMS.BIGELGA

Save Part Not Listed?
product name

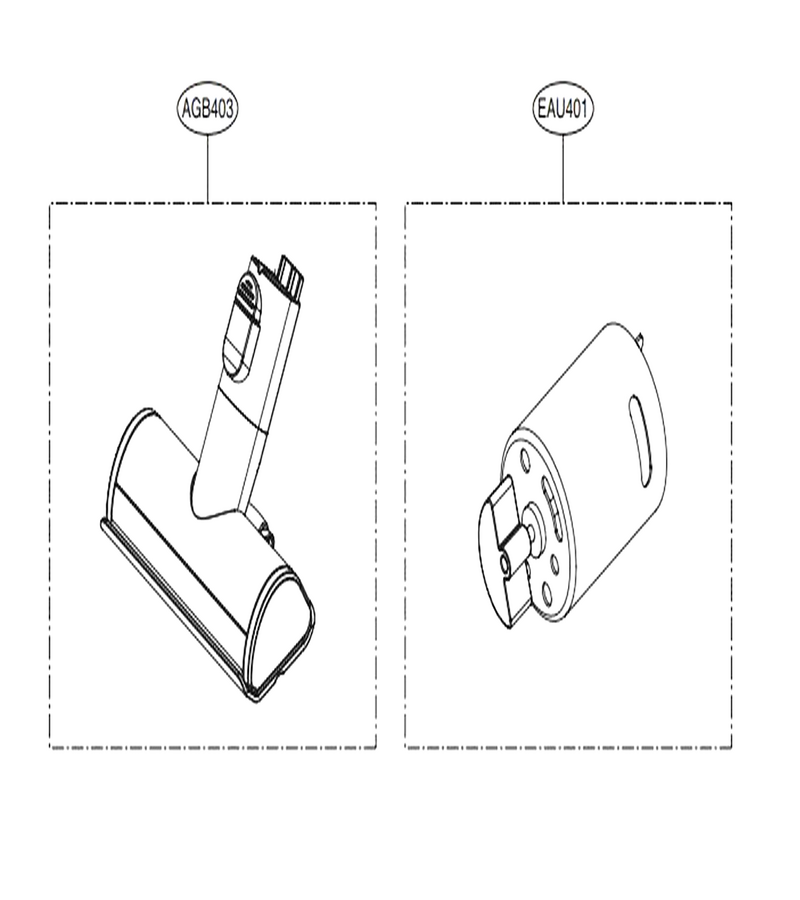

Bedding Nozzle (nozzle Assembly, Quilt)

...
...
AGB403
Quilt Nozzle Assembly L-G-AGB74252408
...
EAU401
Dc Motor Assembly L-G-EAU65063401

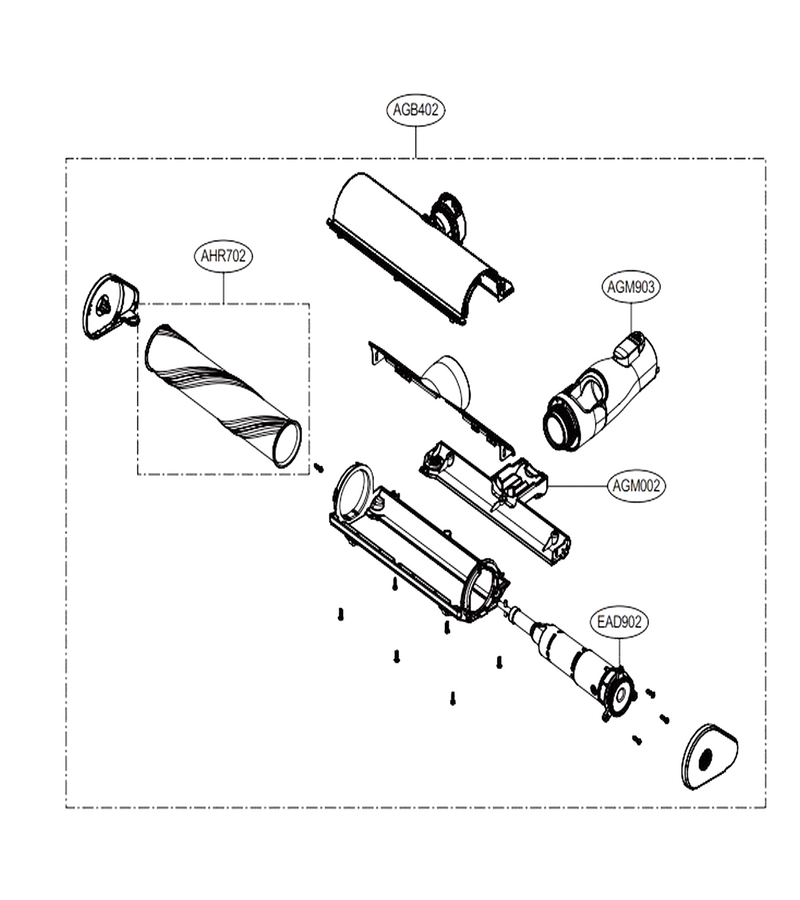

Carpet Nozzle (nozzle Assembly, Turbine)

...
...
AGB402
Nozzle Assembly,turbine L-G-AGB74272415
...
AGM002
Parts Assembly L-G-AGM76509002
...
AHR702
Shaft Assembly,agitator L-G-AHR73809701
...
EAD902
Motor Assembly,dc L-G-EAU63822901

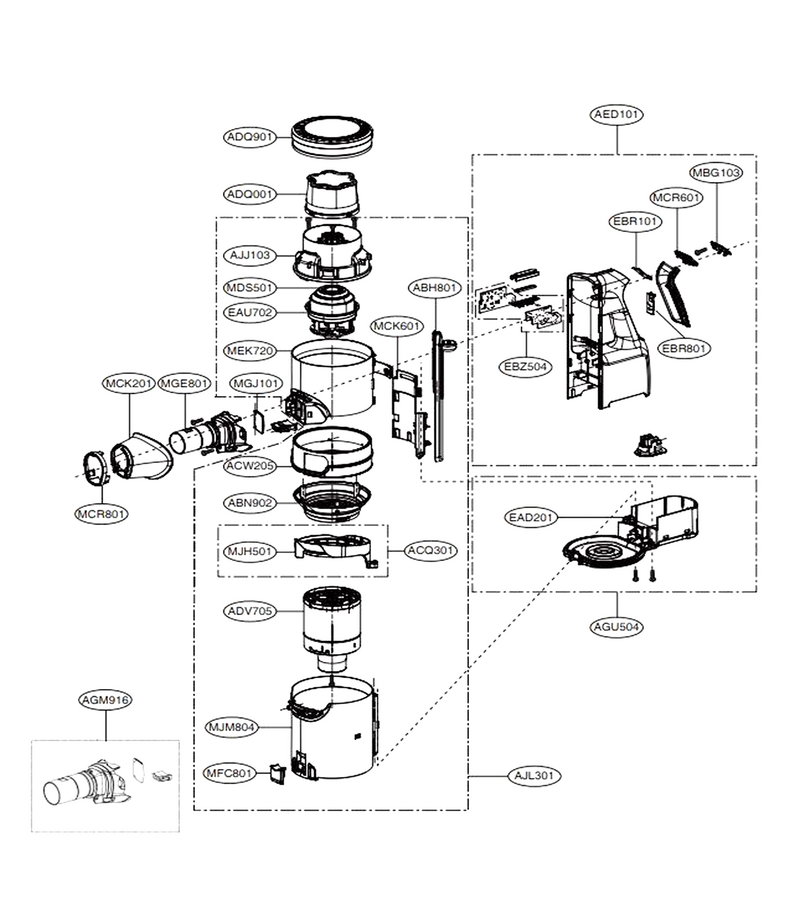

Handle Assembly

...
...
EBR101
Pcb Assembly,power L-G-EBR83294102
...
MCK601
Cover,front L-G-MCK71128601
...
EBR801
Pcb Assembly,module L-G-EBR85871801
...
EBZ504
Part Controller Assembly L-G-EBZ63458516
...
MBG103
Button,power Switch L-G-MBG66226104
...
MCK201
Cover,pipe L-G-MCK69333206
...
MCR601
Decor,button L-G-MCR66632601
...
MCR801
Decor,front L-G-MCR66632801
...
MDS501
Gasket,sealing L-G-MDS67373501
...
MEK720
Housing,motor L-G-MEK63828720
...
MFC801
Lever,release L-G-MFC63589801
...
MGE801
Pipe,connector L-G-MGE64530803
...
MGJ101
Plate,protector L-G-MGJ66161101
...
MJM804
Dust Tank L-G-MJM63284804
...
EAD201
Assembly Cable L-G-EAD63936257
...
AJL301
Dust Tank Assembly L-G-AJL75315001
...
AJJ103
Supporter Assembly,motor L-G-AJJ75281103
...
AGU504
Bottom Plate Assembly L-G-AGU75652505
...
AGM916
Pipe Assembly L-G-AGR30001701
...
AED101
Base Handle Assembly L-G-AED75496501
...
ADV705
Frame Assembly L-G-ADV75957709
...
ADQ901
Exhaust Filter Assembly L-G-ADQ74773917
...
ADQ001
Filter Assembly L-G-ADQ75393702
...
ACW205
Decor Assembly L-G-ACW75298205
...
ACQ301
Parts Assembly L-G-AGM76872920
...
ABN902
Cap Assembly,dust L-G-ABN75698902
...
ABH801
Button Assembly L-G-ABH76959802
...
EAU702
Motor Assembly,dc,vacuum Cleaner L-G-EAU64483702

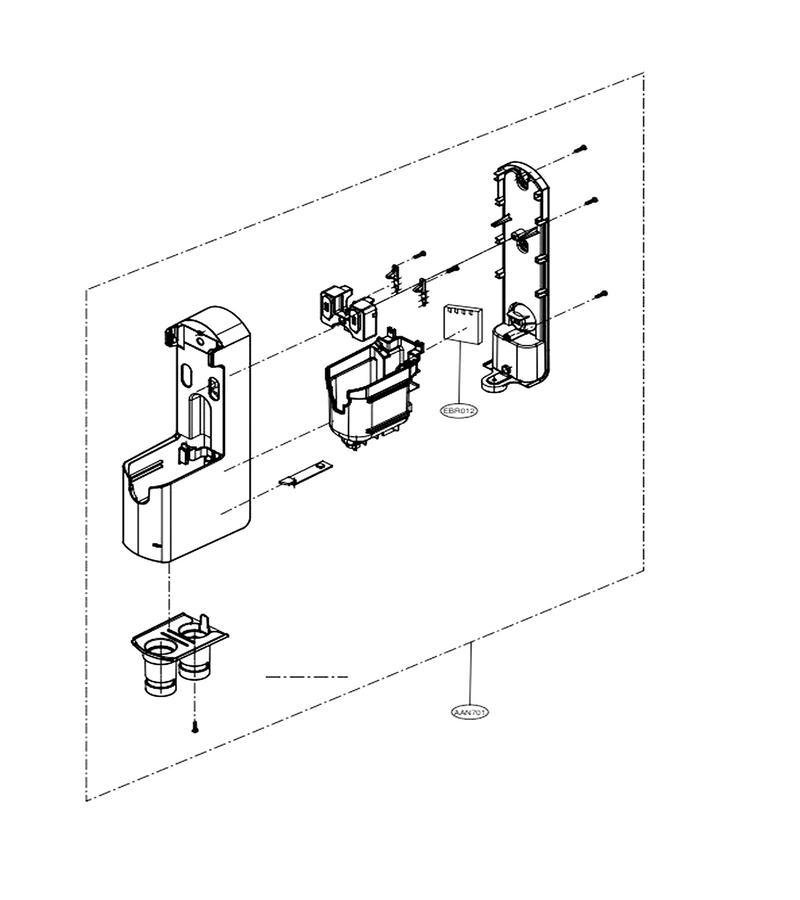

Base Assembly Body

...
...
EBR012
Sub Pcb Assembly L-G-EBR78932018
...
AAN701
Body Base Assembly L-G-AAN75812723

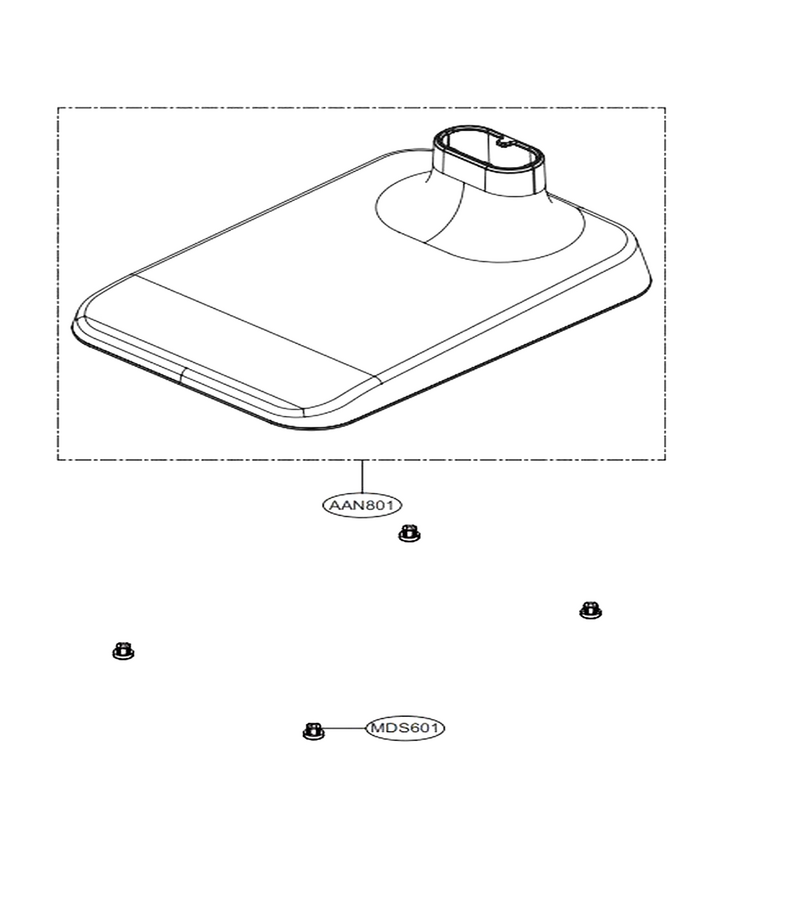

Base Assembly Lower

...
...
AAN801
Base Assembly,lower L-G-AAN75812805
...
MDS601
Gasket L-G-MDS64791601

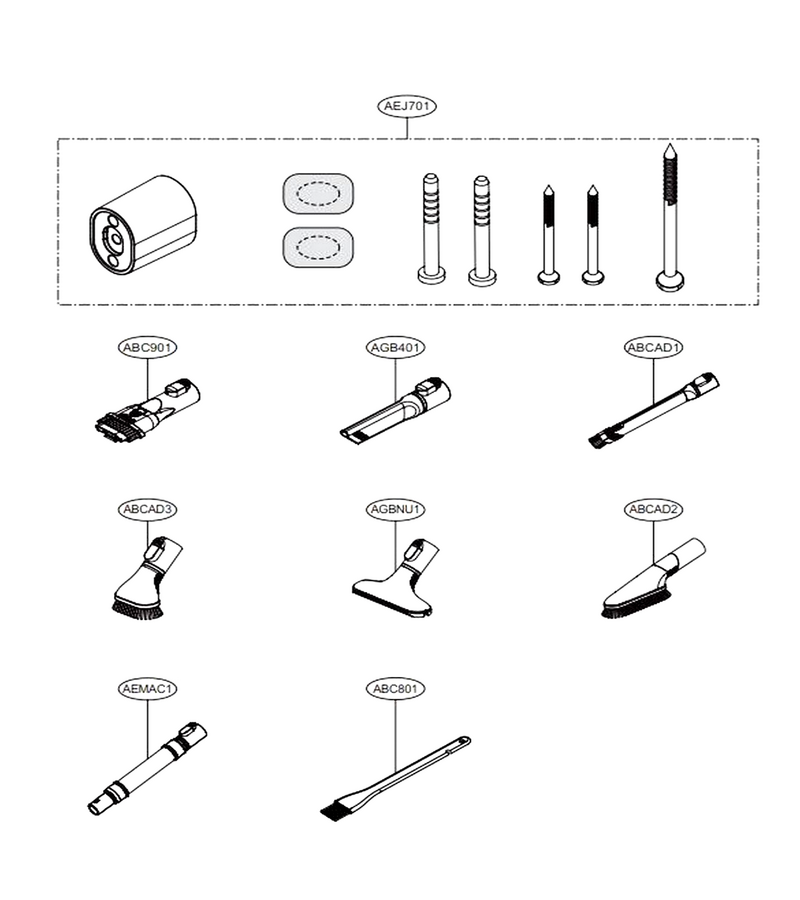

Accessories 1

...
...
AGB401
Nozzle Assembly,crevice L-G-AGB74172403
...
AEJ701
Holder Assembly L-G-AEJ75199702
...
ABC901
Brush Assembly,dust L-G-ABC73509901
...
ABC801
Brush Assembly,dust L-G-ABC73789801

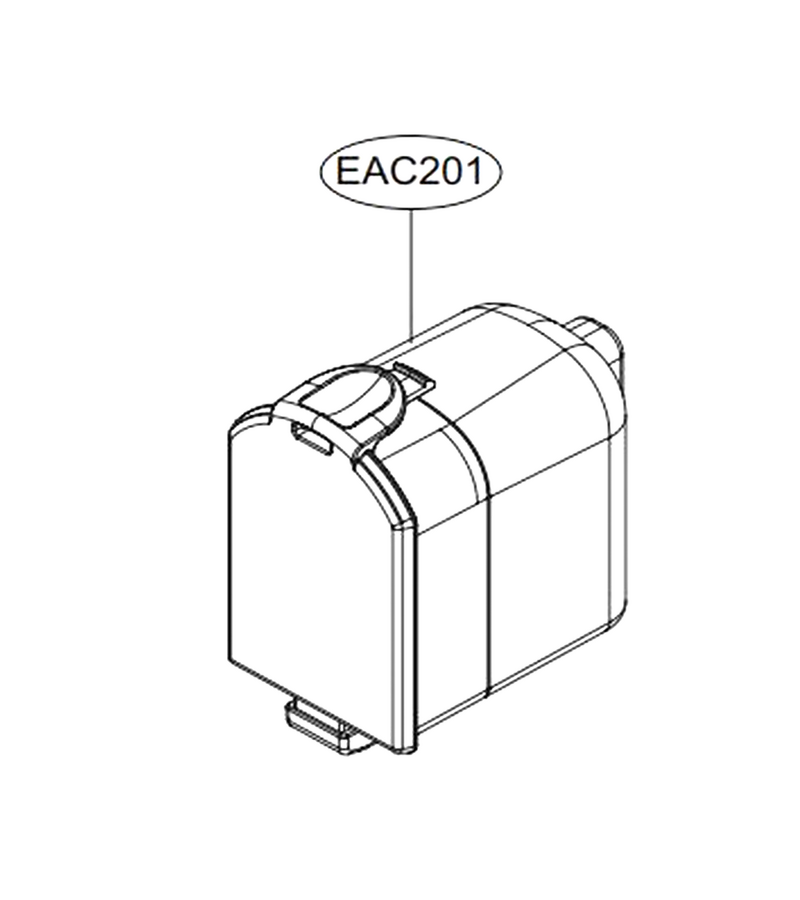

Battery

...
...
EAC201
Battery,assembly L-G-EAC63382204

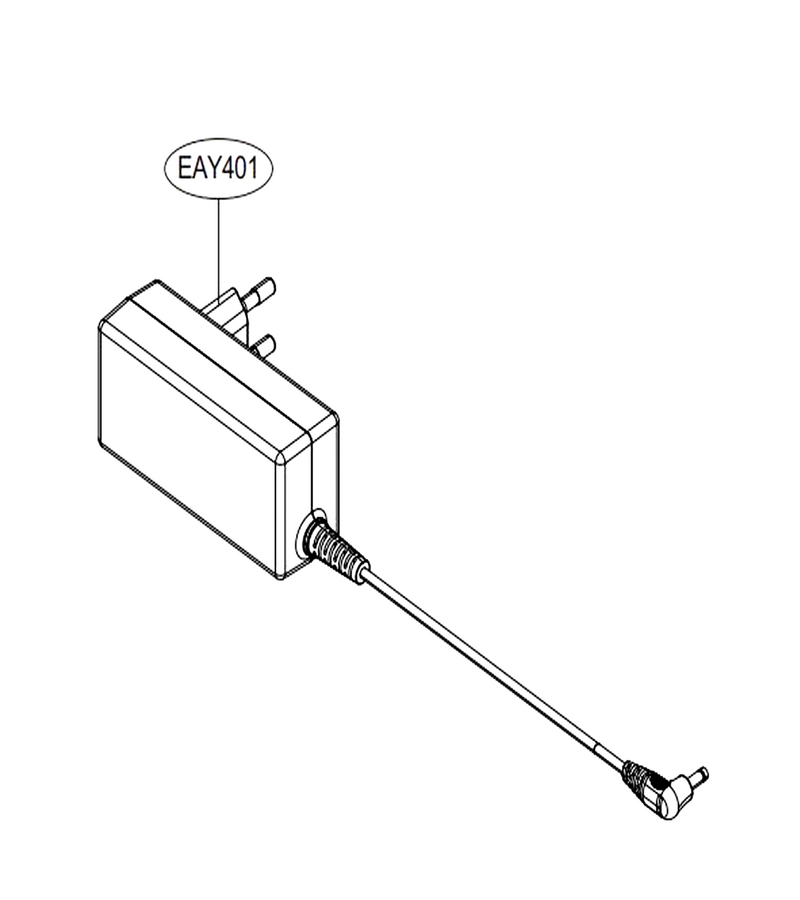

Adaptor

...
...
EAY401
Charger,battery L-G-EAY64470407

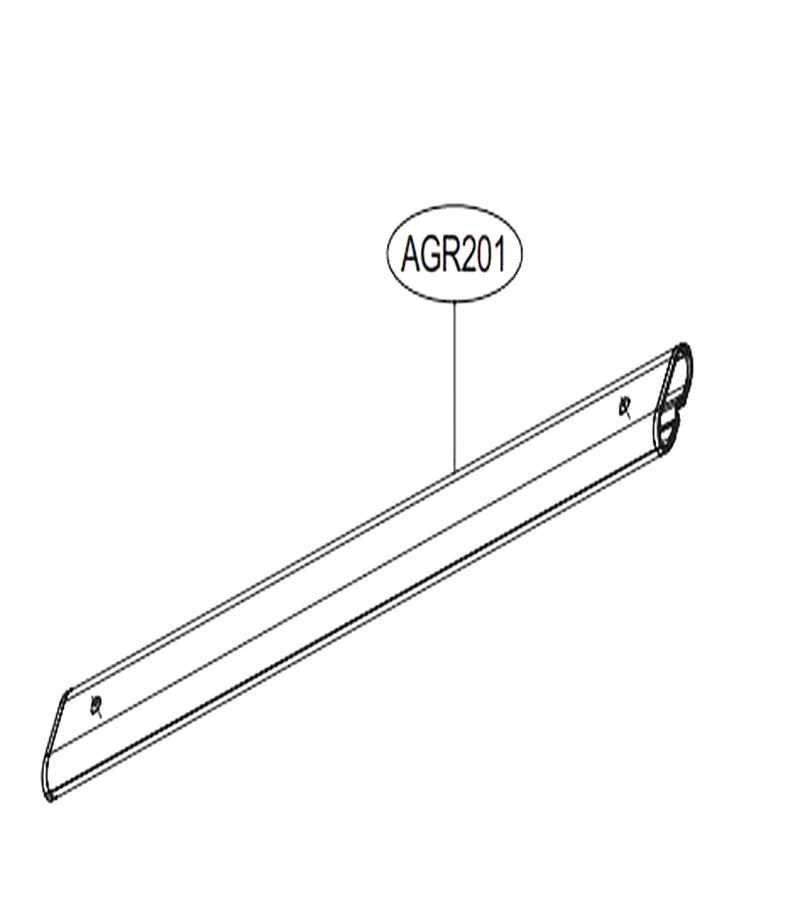

Charging Station Pipe

...
...
AGR201
Pipe Assembly L-G-AGR75445204

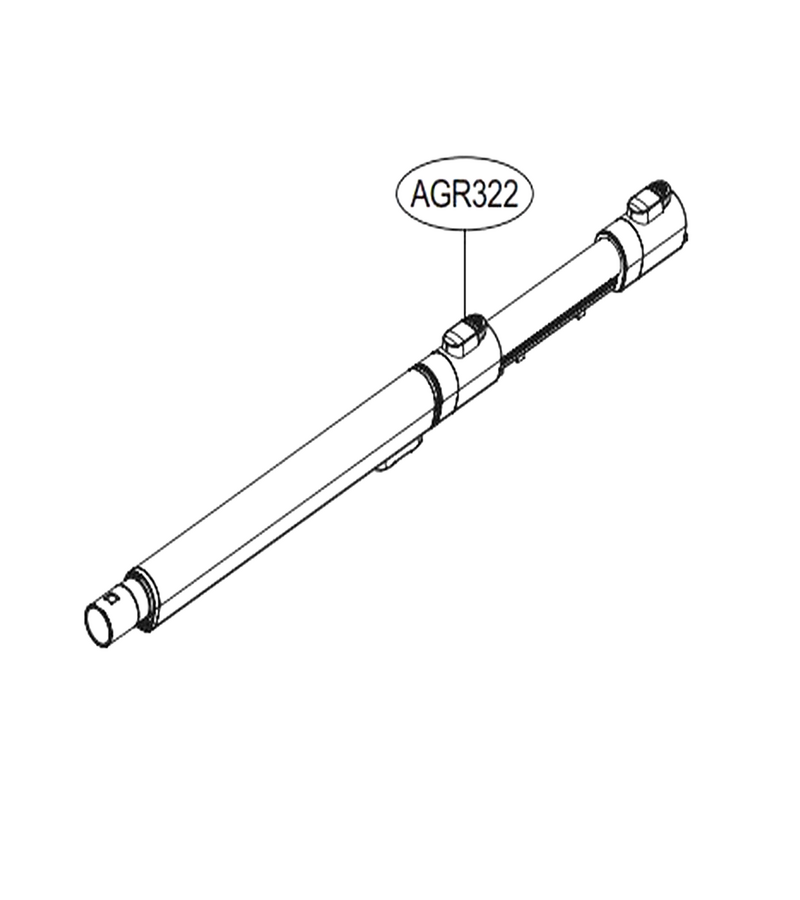

Extension Pipe

...
...
AGR322
Pipe Assembly,telescopic L-G-AGR75445322
