LG A908VMR.DVWELGA

Model: A908VMR.DVWELGA

Save Part Not Listed?

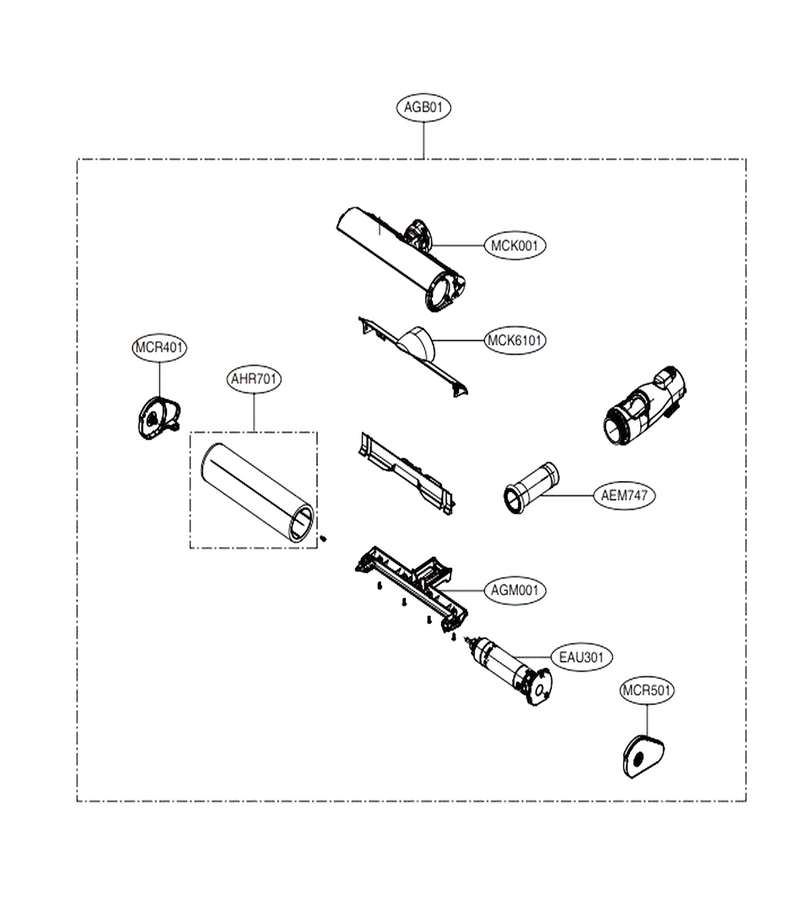

product name

Flufy Nozzle Assembly

...
...
AEM747
Hose Assembly,connector L-G-AEM74792901
...
MCR501
Decor,side L-G-MCR66706501
...
MCR401
Decor,side L-G-MCR66706401
...
MCK6101
Cover,decor L-G-MCK69426101
...
MCK001
Cover,nozzle L-G-MCK69426001
...
EAU301
Motor Assembly,dc L-G-EAU63686304
...
AHR701
Shaft Assembly,agitator L-G-AHR73709703
...
AGB01
Nozzle Assembly,floor L-G-AGB74192423

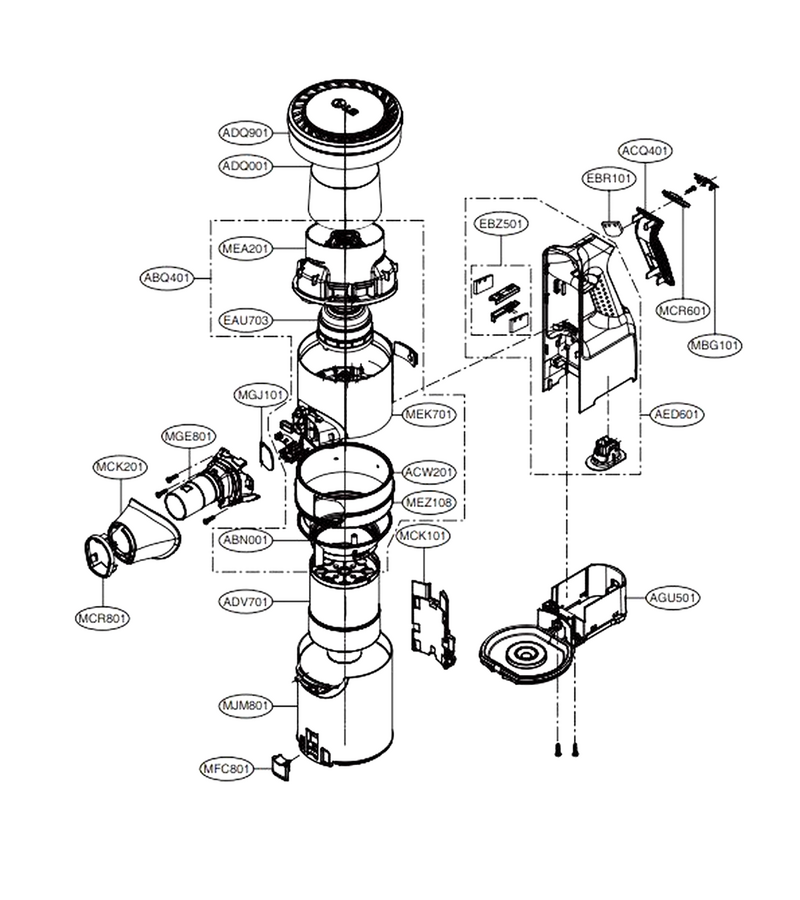

Handle Assembly

...
...
MGJ101
Plate,protector L-G-MGJ66161101
...
MGE801
Pipe,connector L-G-MGE64530803
...
MEZ108
Label,streamer L-G-MEZ66976108
...
MCR801
Decor,front L-G-MCR66632801
...
MCR601
Decor,button L-G-MCR66632601
...
MCK201
Cover,pipe L-G-MCK69333205
...
MBG101
Button,power Switch L-G-MBG66226102
...
EBZ501
Controller Assembly,part L-G-EBZ63458512
...
AGU501
Plate Assembly,bottom L-G-AGU75652503
...
AED601
Handle Assembly,base L-G-AED75495102
...
ADV701
Frame Assembly L-G-ADV75957704
...
ADQ901
Filter Assembly,exhaust L-G-ADQ74773916
...
ADQ001
Filter Assembly L-G-ADQ75393702
...
ACQ401
Cover Assembly L-G-ACQ89213401
...
EBR101
Pcb Assembly,power L-G-EBR83294102

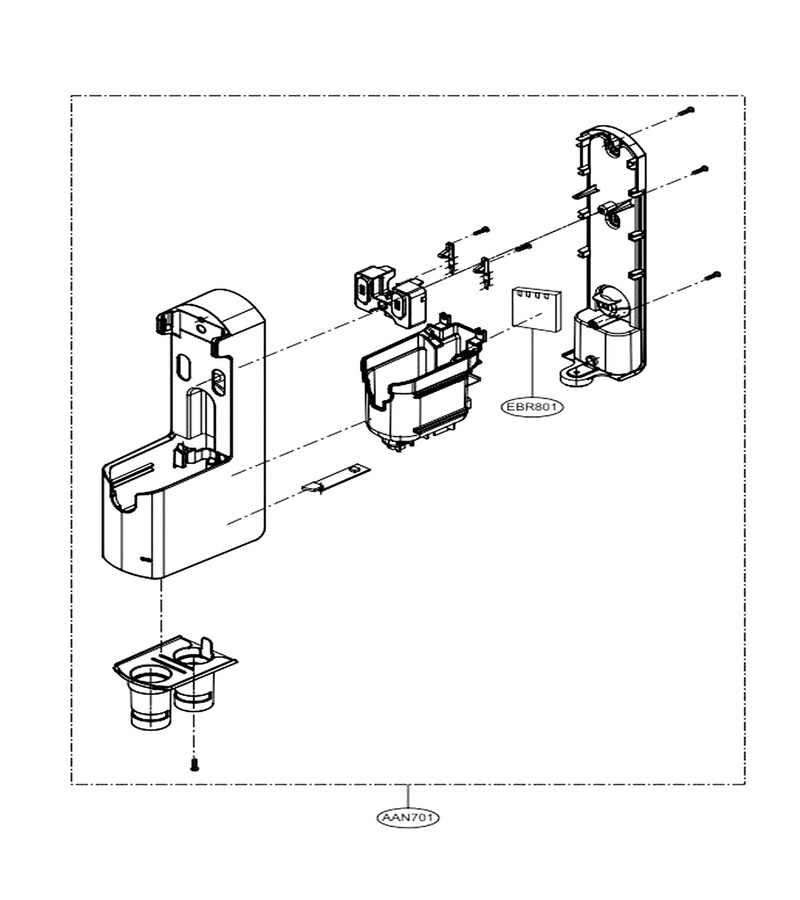

Base Assembly Body

...
...
AAN701
Base Assembly,body L-G-AAN30008502
...
EBR801
Pcb Assembly,sub L-G-EBR78932015

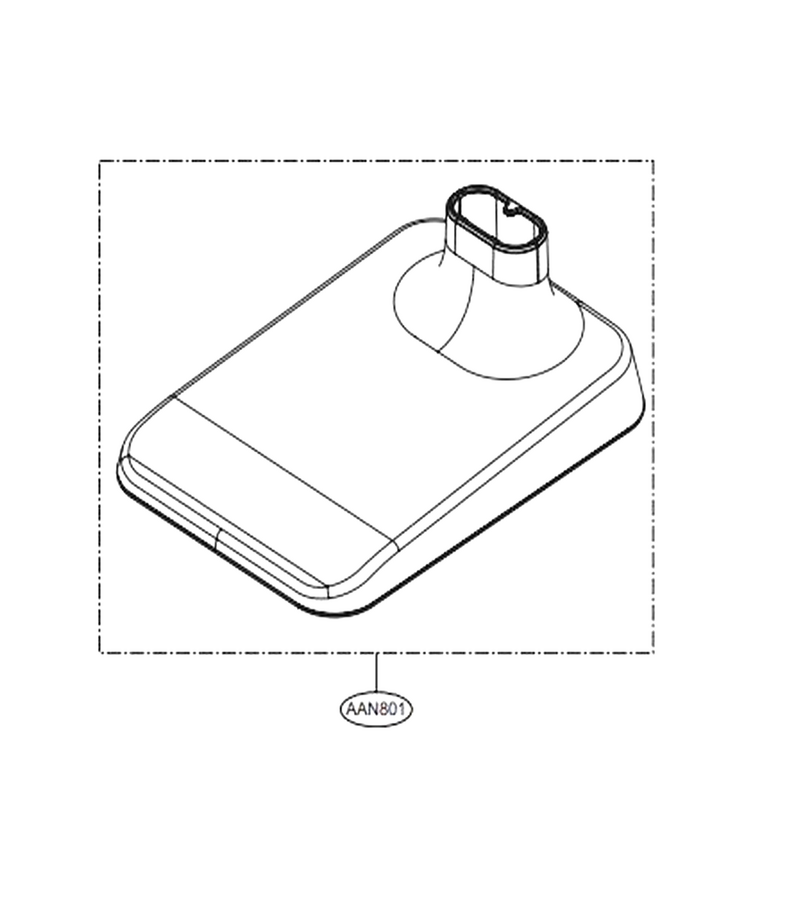

Base Assembly, Lower

...
...
AAN801
Base Assembly,lower L-G-AAN75812805

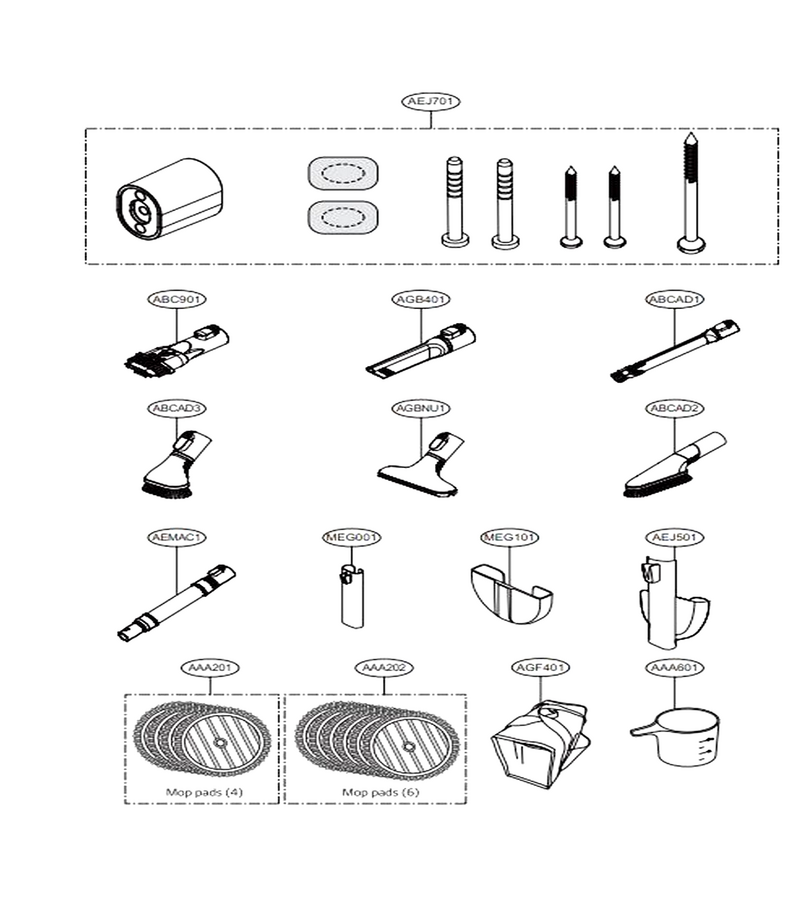

Accessories

...
...
ABC901
Brush Assembly,dust L-G-ABC73509904
...
MEG001
Holder L-G-MEG65799001
...
AGB401
Nozzle Assembly,crevice L-G-AGB74172403

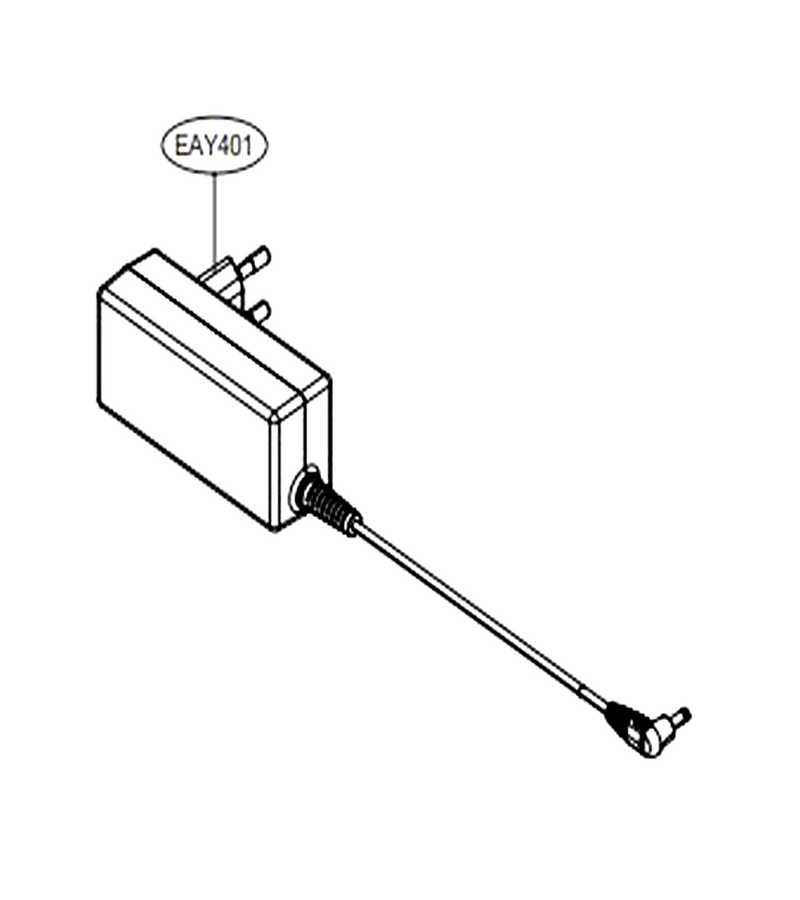

Adapter

...
...
EAY401
Charger,battery L-G-EAY64470407

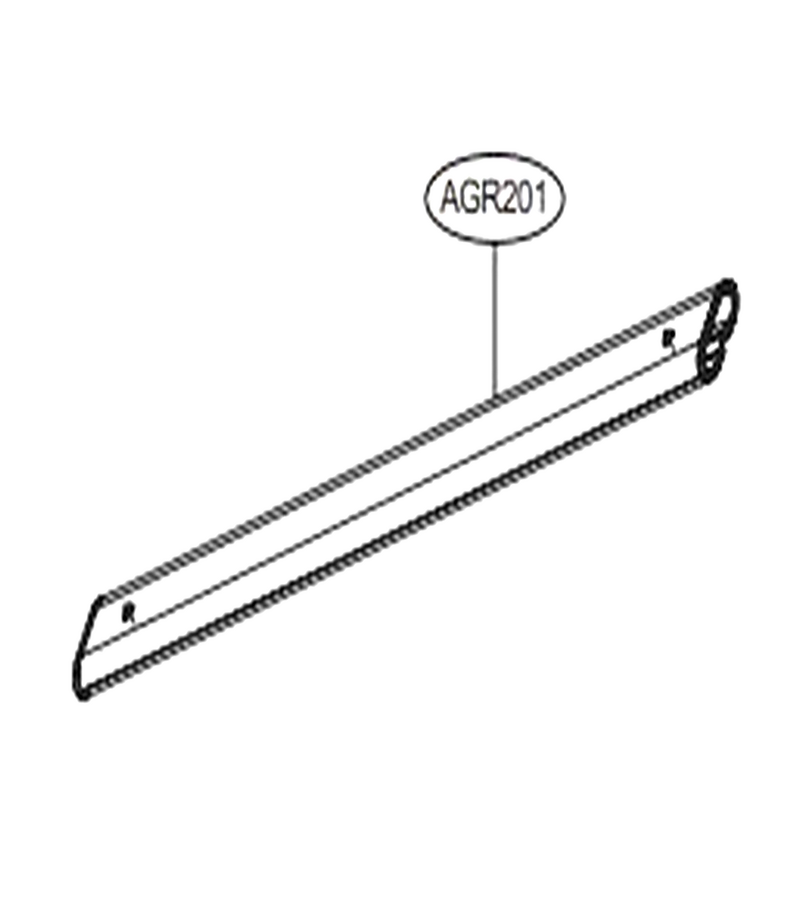

Charging Station Pipe

...
...
AGR201
Pipe Assembly L-G-AGR75445204

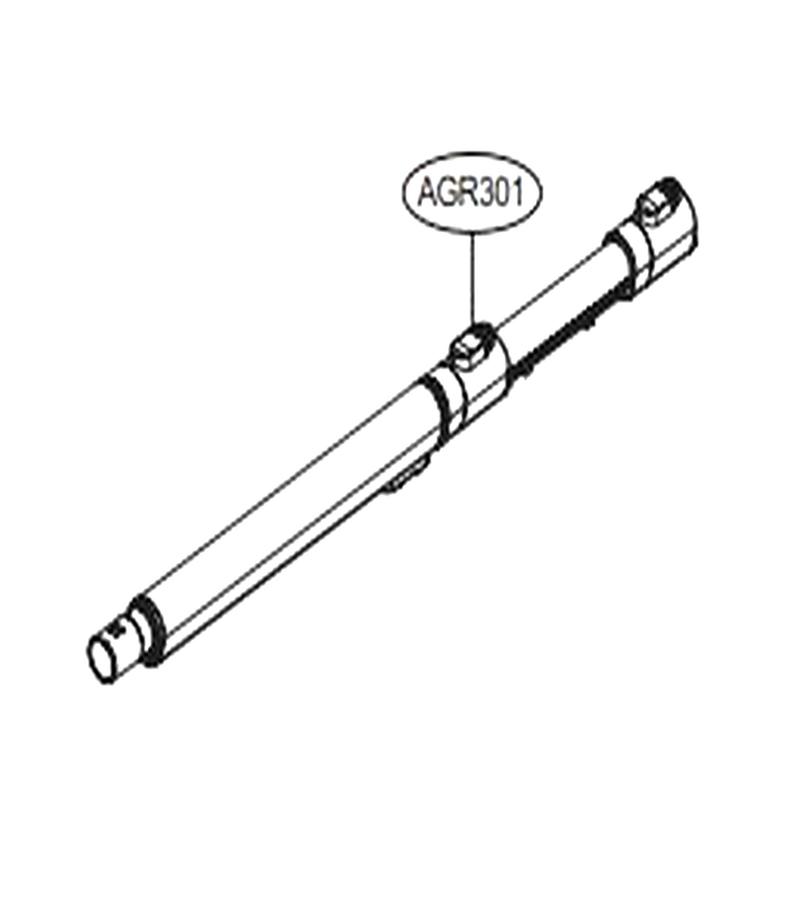

Extension Pipe

...
...
AGR301
Pipe Assembly,telescopic L-G-AGR75445325

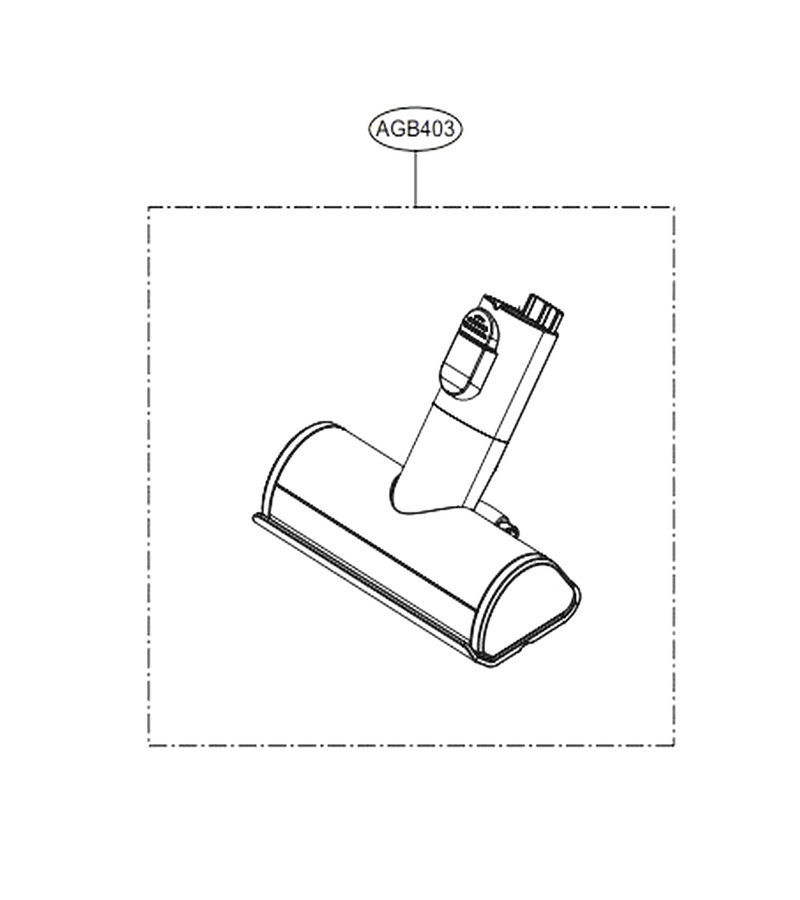

Power Punch Nozzle

...
...
AGB403
Quilt Nozzle Assembly L-G-AGB74252408

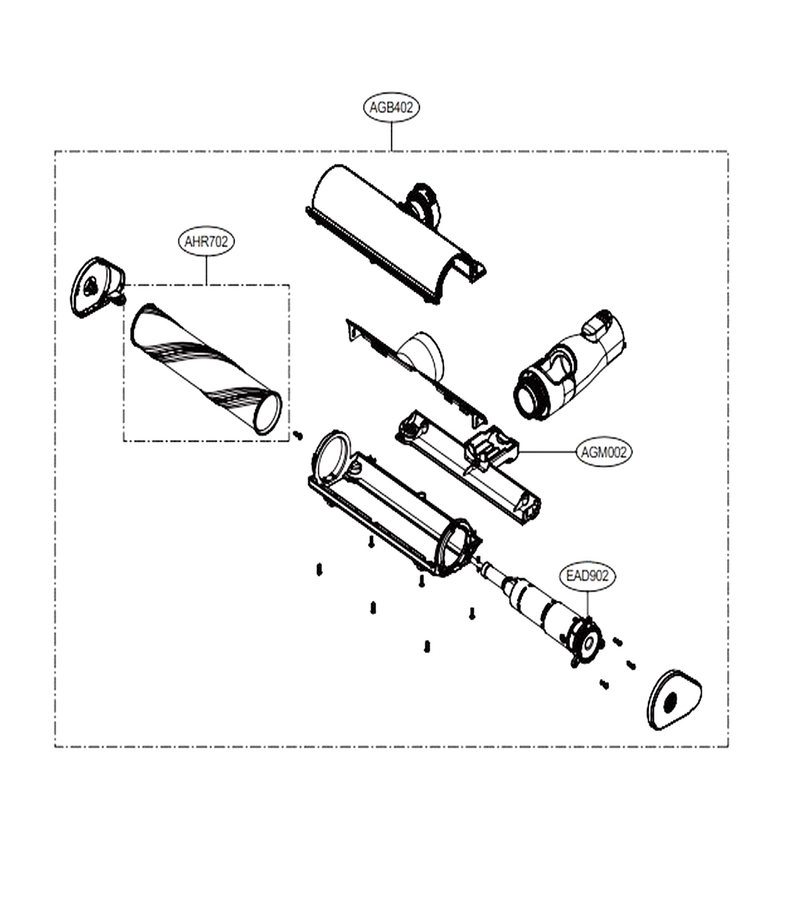

Carpet Nozzle

...
...
AGB402
Nozzle Assembly,turbine L-G-AGB74272415
...
AHR702
Shaft Assembly,agitator L-G-AHR73809701
...
EAD902
Motor Assembly,dc L-G-EAU63822901
