LG A902RM.ABRELGA

Model: A902RM.ABRELGA

Save Part Not Listed?
product name

Popular Parts

Popular Parts

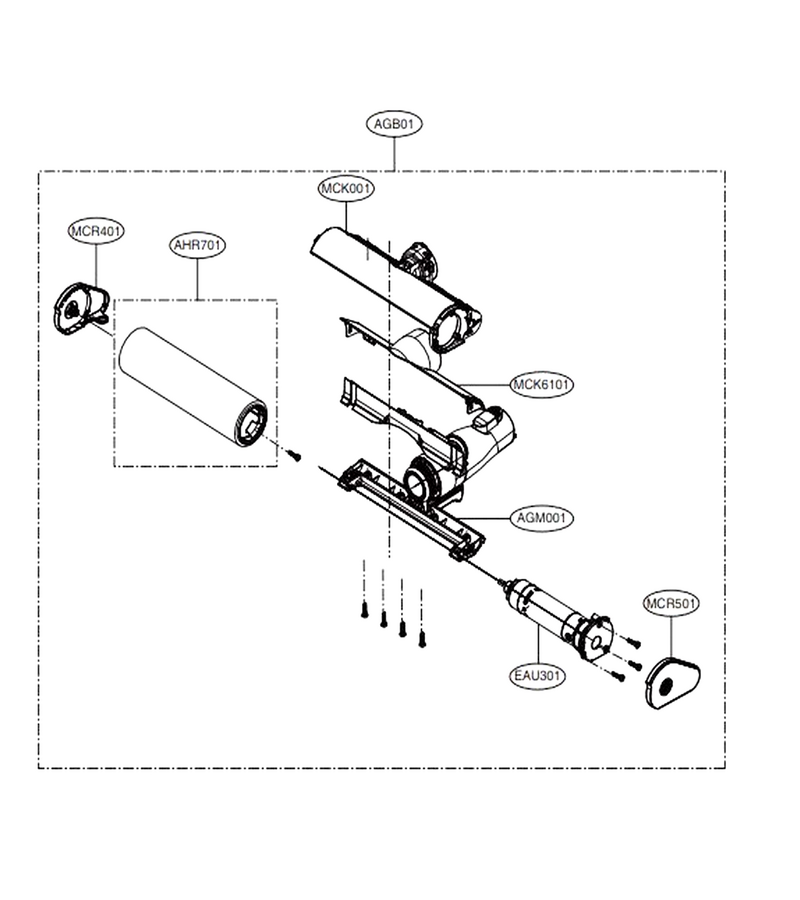

Flufy Nozzle Assembly

...
...
AGM001
Parts Assembly L-G-AGM76509001

Handle Assembly

...
...
MJM801
Dust Tank L-G-MJM63284803
...
MGJ101
Plate,protector L-G-MGJ66161101
...
MGE801
Pipe,connector L-G-MGE64530803
...
MFC801
Lever,release L-G-MFC63589801
...
MEK701
Housing,motor L-G-MEK63828714
...
MEA201
Guide,air L-G-MEA65232201
...
MCR801
Decor,front L-G-MCR66632801
...
MCR601
Decor,button L-G-MCR66632601
...
MCK201
Cover,pipe L-G-MCK69333202
...
MCK101
Cover,front L-G-MCK69333101
...
EBR101
Pcb Assembly,power L-G-EBR83294101
...
MBG101
Button,power Switch L-G-MBG66226102
...
ACW201
Decor Assembly L-G-ACW75298204
...
ADQ001
Filter Assembly L-G-ADQ75393701
...
ADQ901
Filter Assembly,exhaust L-G-ADQ74773922
...
ADV701
Frame Assembly L-G-ADV75957704
...
AED401
Handle Assembly L-G-AED74633404
...
AGU501
Plate Assembly,bottom L-G-AGU75652502
...
AJL001
Tank Assembly,dust L-G-AJL74512032
...
EAU703
Motor Assembly,dc,vacuum Cleaner L-G-EAU64483701

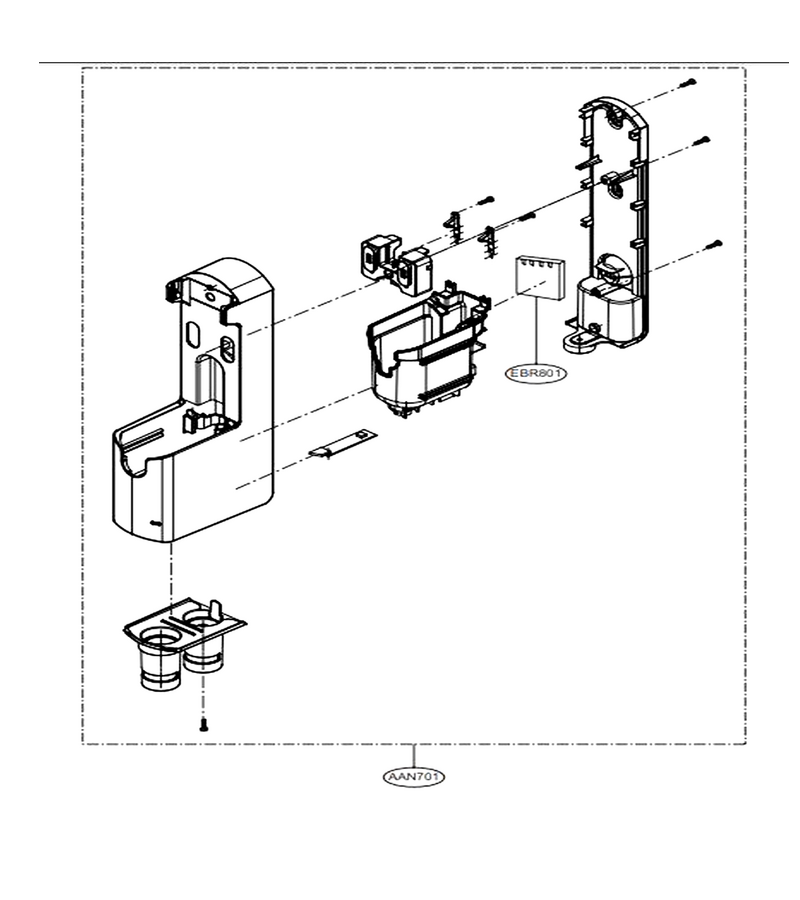

Base Assembly Body

...
...
AAN701
Base Assembly,body L-G-AAN75812706
...
EBR801
Pcb Assembly,sub L-G-EBR78932009

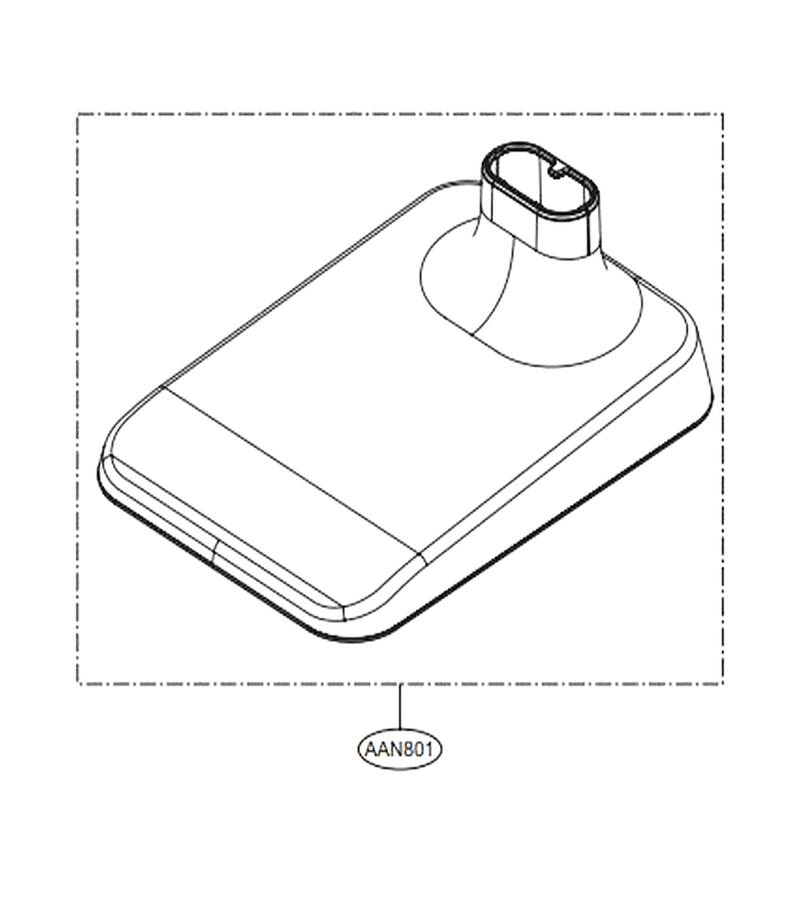

Base Assembly, Lower

...
...
AAN801
Base Assembly,lower L-G-AAN75812804

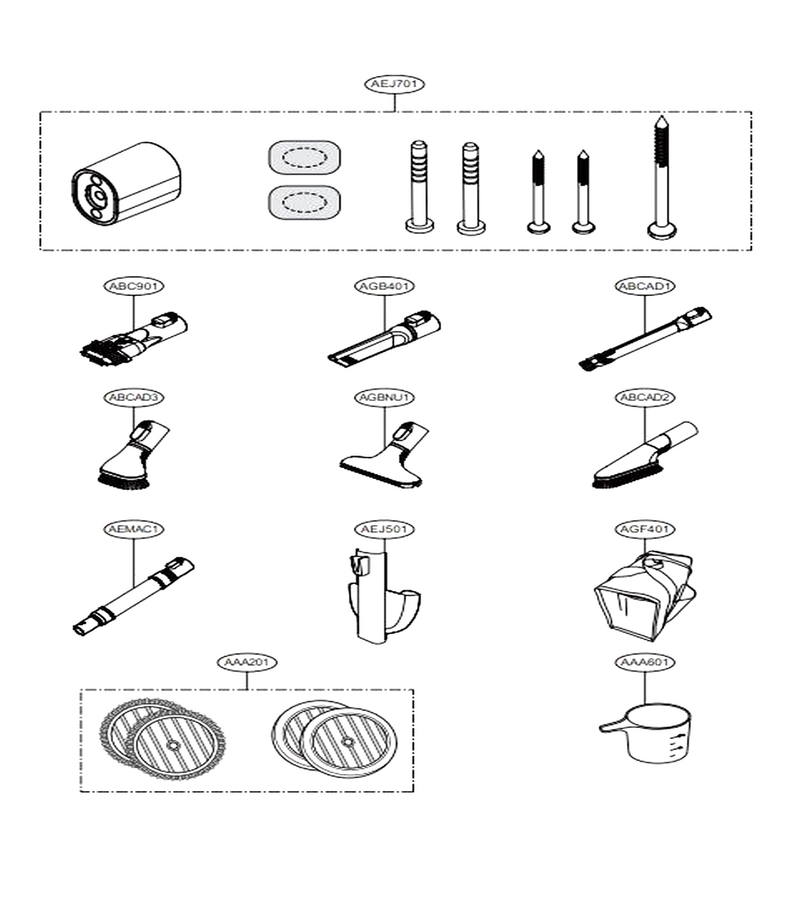

Accessories

...
...
AGB401
Nozzle Assembly,crevice L-G-AGB74172401
...
AEJ701
Holder Assembly L-G-AEJ75199701
...
ABC901
Brush Assembly,dust L-G-ABC73509901

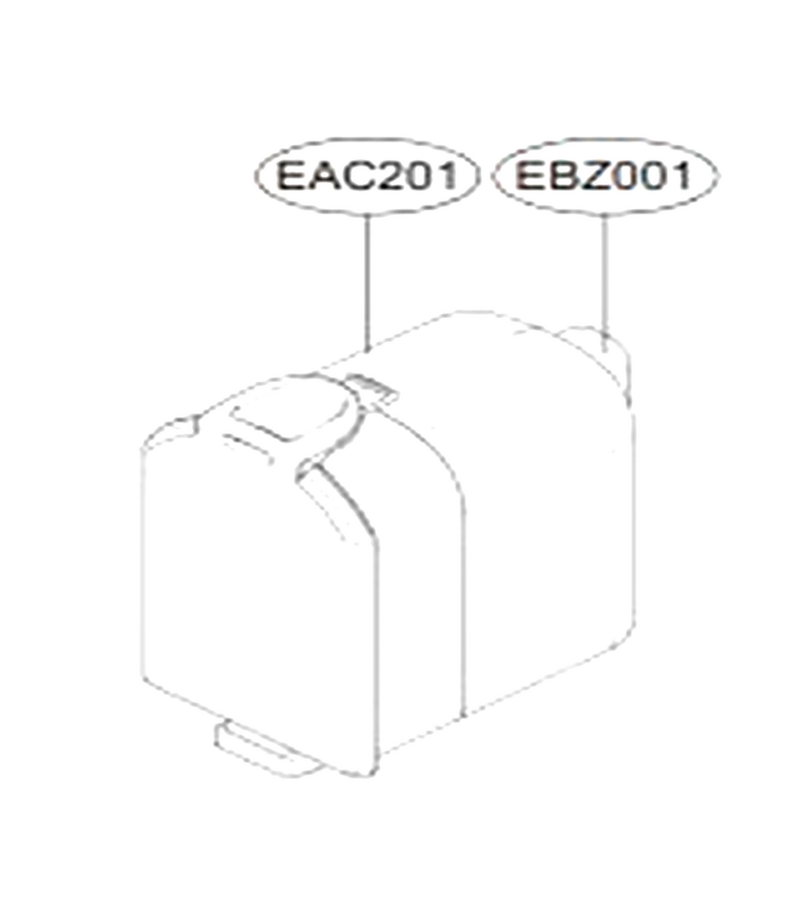

Battery

...
...
EAC201
Battery,assembly L-G-EAC63758601

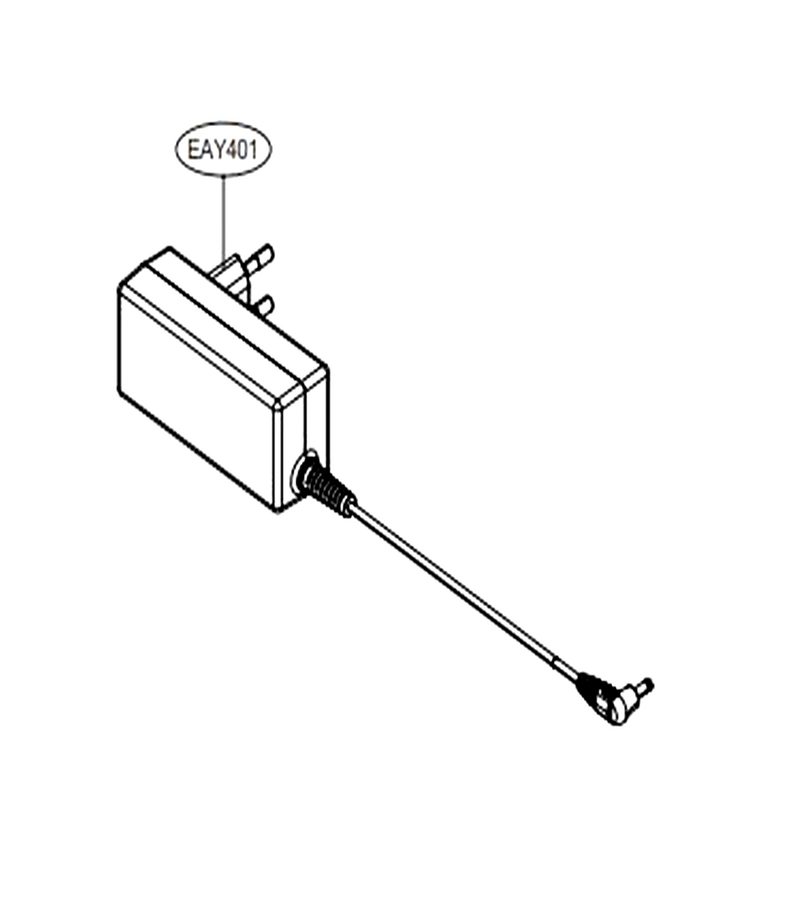

Adaptor

...
...
EAY401
Charger,battery L-G-EAY64470407

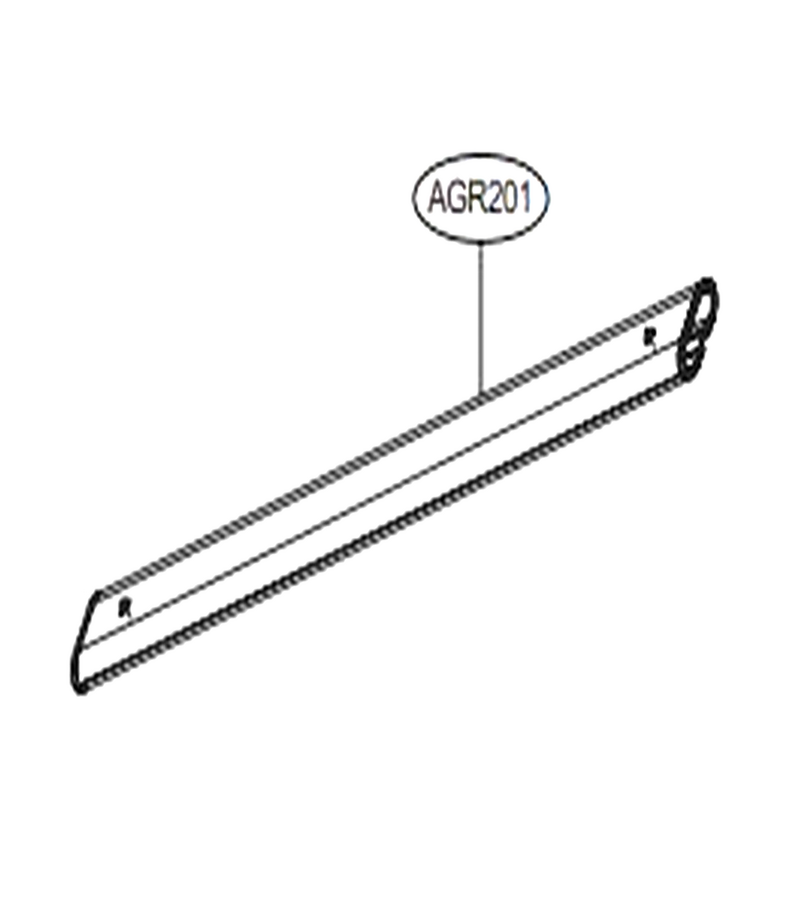

Charging Station Pipe

...
...
AGR201
Pipe Assembly L-G-AGR75445204

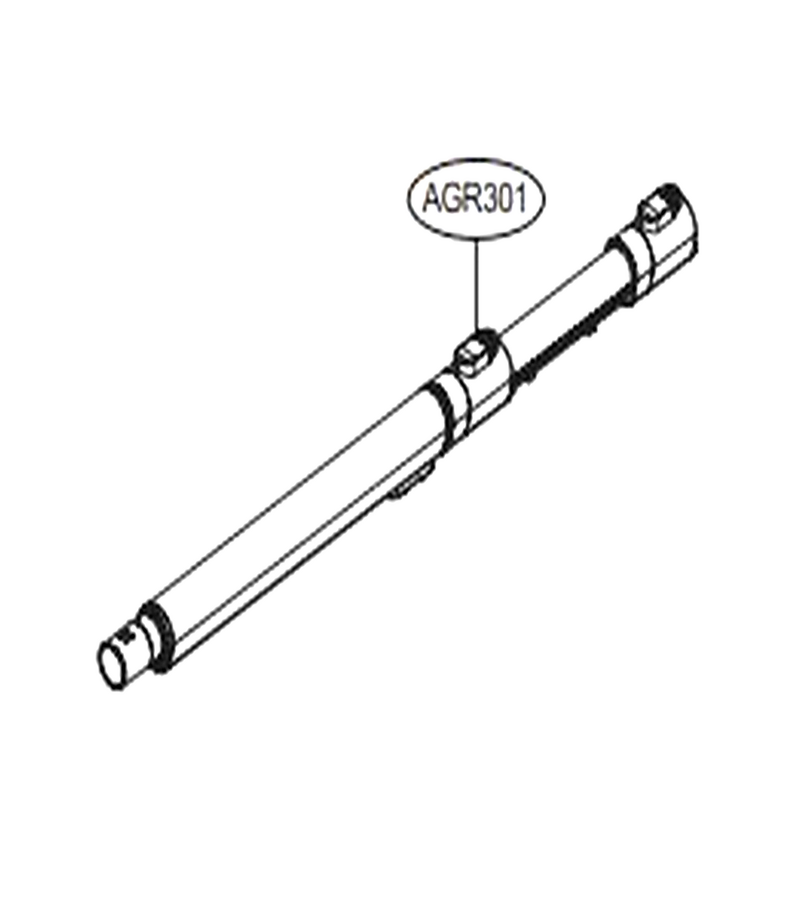

Extension Pipe

...
...
AGR301
Pipe Assembly,telescopic L-G-AGR75445317

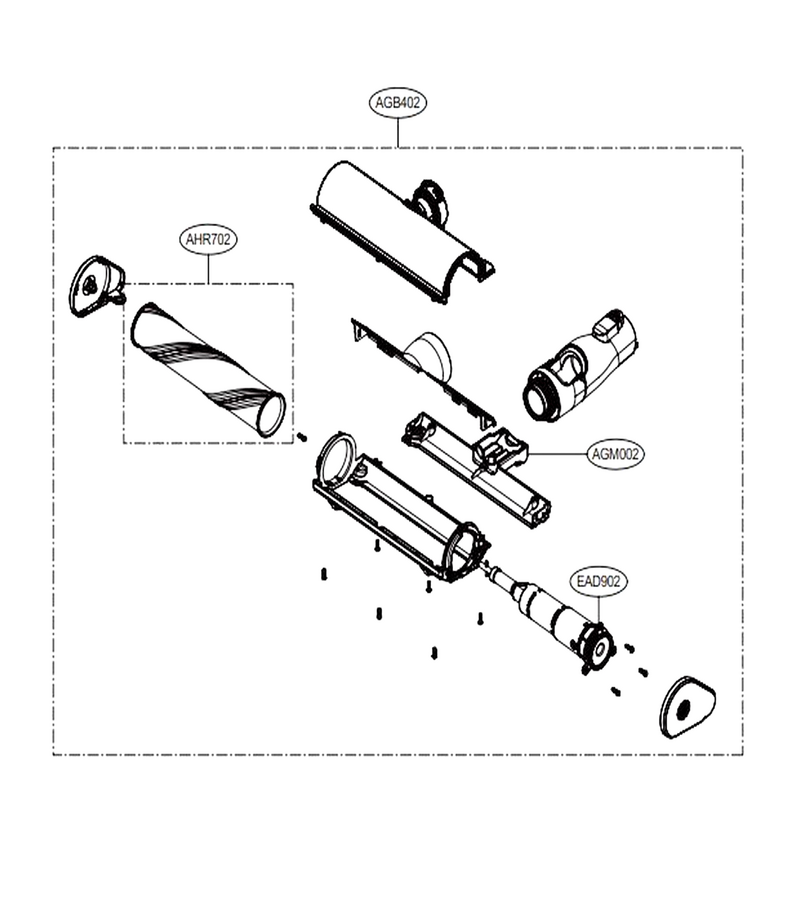

Carpet Nozzle

...
...
AGB402
Nozzle Assembly,turbine L-G-AGB74272405
...
AGM002
Parts Assembly L-G-AGM76509002
...
AHR702
Shaft Assembly,agitator L-G-AHR73809701
...
EAD902
Motor Assembly,dc L-G-EAU63822901
