LG A-VMH30SB.AWHAHCI

Model: A-VMH30SB.AWHAHCI

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Main

...
...
W0CZZ
Capacitor, Film, Box L-G-6120AR2194M
...
W6631B
Multi Harness L-G-6631AR2773W
...
W6631A
Multi Harness L-G-6631A20054J
...
W4810
Bracket L-G-3A01934B
...
W49810
Supporter Assembly L-G-4980A20001D
...
137213A
Panel Assembly,side L-G-AGL70858107
...
137213B
Panel Assembly,side L-G-3721A10150E
...
152503
Nipple,drain L-G-4H01010A
...
261704
Transformer L-G-5874A90007A
...
263230D
Thermistor Assembly,ntc L-G-EBG61107109
...
263230E
Thermistor Assembly,ntc L-G-EBG61186703
...
263230G
Thermistor Assembly,ntc L-G-EBG61107014
...
268711B
Room Air Conditioner Electronic Control Board L-G-6871A20679W
...
349600
Motor Mount L-G-1A00206B
...
352113
Discharge Tube Assembly L-G-5211A23013Q
...
430410
Base Assembly, Outdoor L-G-AAN73130003
...
435300
Grill, Rear L-G-MDX59045502
...
435301
Grille,discharge L-G-MDX63212101
...
435511
Cover Assembly, Control (outdoor) L-G-ACQ36712501
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
437210
Panel Assembly,front(sub) L-G-1A00197F
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105637
...
447910
Barrier Assembly,outdoor L-G-4791A30004R
...
546810
Motor Assembly, Ac, Outdoor L-G-EAU38726201
...
548490
Accumulator Assembly L-G-4849A22003U
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Tube Assembly,capillary L-G-5211A22009L
...
552115
Tube Assembly, Manifold (outdoor) L-G-5211A21440A
...
552116
Tube Assembly, Reverse L-G-5211A22111E
...
552200
Valve, Expansion Body L-G-6140A90001H
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Service Valve L-G-5220A20013C
...
552203B
Service Valve L-G-5220A20007A
...
552204
Solenoid Valve L-G-5220A90008C
...
554031
Condenser Assembly,bending L-G-5403A20070T
...
554160A
Compressor L-G-5416A90015A
...
554160B
Compressor Set L-G-TBZ31469901
...
558511
Drier Assembly L-G-5851A20003M
...
559010
Fan Assembly, Propeller L-G-5901A10032A
...
561410
Solenoid L-G-EBE60658701
...
566000A
Pressure Switch L-G-6600L000022
...
566000B
Pressure Switch L-G-3A02524L
...
649950
Case Assembly,control(outdoor) L-G-ABQ34346501
...
661400

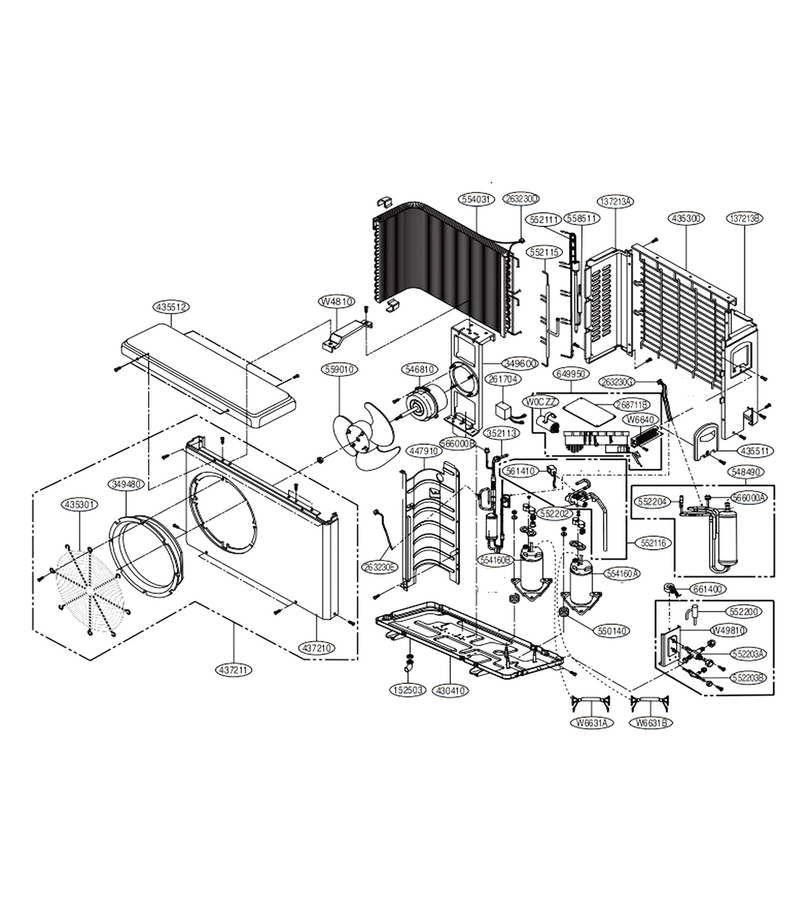

Drawing,assembly L-G-6877A20050T
